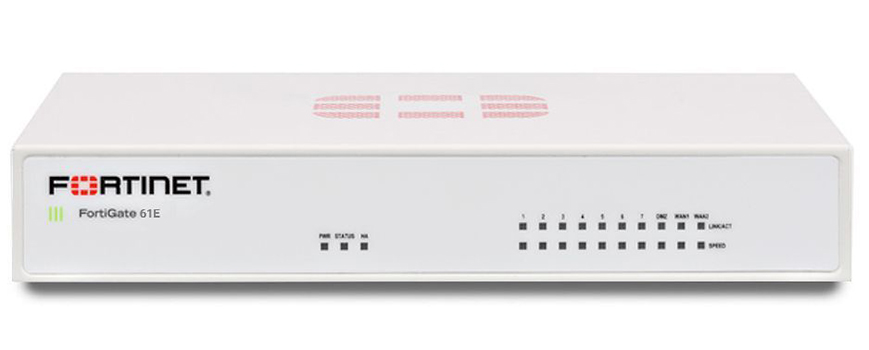

Fortinet FortiGate 61E
Security Gateway for Distributed Branch Offices

Overview:

The Fortinet Enterprise Firewall Solution delivers end-to-end network security with one platform, one network security operating system and unified policy management with a single pane of glass — for the industry’s best protection against the most advanced security threats and targeted attacks.

Security Fabric Integration

FortiGate appliances, interconnected with the Fortinet Security Fabric, form the backbone of the Fortinet Enterprise Solution.

The Fortinet Enterprise Firewall Solution

The Fortinet Enterprise Firewall Solution delivers end-to-end network security with oneplatform, one network security operating system and unified policy management with a singlepane of glass — for the industry’s best protection against the most advanced security threatsand targeted attacks.

One Enterprise Firewall Solution across the Extended Enterprise

The FortiGate family of network appliances represents the industry’s broadest range ofenterprise firewall platforms. FortiGate is based on FortiASIC, a purpose-built integratedarchitecture that provides extremely high throughput and exceptionally low latency, whiledelivering industry-leading security effectiveness and consolidation which is routinely validatedby independent real-world tests. Targeted for distributed enterprises, the FortiGate 60E seriescontains consolidated security and networking functionality, various connectivity options alongwith Industry’s best performance in a compact form factor.

Hardware:

FortiGate/FortiWiFi 60E/61E

Interfaces

1. Console Port
2. 2x GE RJ45 WAN Ports
3. 1x GE RJ45 DMZ Ports
4. 7x GE RJ45 Internal Ports

Powered by SPU SoC3

• Combines a RISC-based CPU with Fortinet’s proprietary FortiASIC™ content and network processors for unmatched performance
• Simplifies appliance design and enables breakthrough performance for smaller networks
• Supports firewall acceleration across all packet sizes for maximum throughput
• Delivers accelerated UTM content processing for superior performance and protection
• Accelerates VPN performance for high speed, secure remote access

3G/4G WAN Connectivity

The FortiGate/FortiWiFi 60E Series includes a USB port that allowsyou to plug in a compatible third-party 3G/4G USB modem,providing additional WAN connectivity or a redundant link formaximum reliability.

Compact and Reliable Form Factor

Designed for small environments, you can simply place the FortiGate/FortiWiFi 30E on a desktop. It is small, lightweight yet highly reliable with superior MTBF (Mean Time Between Failure), minimizing the chance of a network disruption.

Superior Wireless Coverage

A built-in dual-band, dual-stream access point with internal antennas is integrated on the FortiWiFi 30E and provides speedy 802.11n coverage on both 2.4 GHz and 5 GHz bands. The dual- band chipset addresses the PCI-DSS compliance requirement for rogue AP wireless scanning, providing maximum protection for regulated environments.

Software:

FortiOS

Control all the security and networking capabilities across the entire FortiGate platform with one intuitive operating system. Reduce operating expenses and save time with a truly consolidated next generation security platform.

• A truly consolidated platform with one OS for all security and networking services for all FortiGate platforms.
• Industry-leading protection: NSS Labs Recommended, VB100, AV Comparatives and ICSA validated security and performance.
• Control thousands of applications, block the latest exploits, and filter web traffic based on millions of real-time URL ratings.
• Detect, contain and block advanced attacks automatically in minutes with integrated advanced threat protection framework.
• Solve your networking needs with extensive routing, switching, WiFi, LAN and WAN capabilities.
• Activate all the ASIC-boosted capabilities you need on the fastest firewall platform available.

Services:

FortiGuard Security Services

FortiGuard Labs offers real-time intelligence on the threat landscape, delivering comprehensive security updates across the full range of Fortinet's solutions. Comprised of security threat researchers, engineers, and forensic specialists, the team collaborates with the world's leading threat monitoring organizations, other network and security vendors, as well as law enforcement agencies:

• Real-time Updates — 24x7x365 Global Operations research security intelligence, distributed via Fortinet Distributed Network to all Fortinet platforms.
• Security Research — FortiGuard Labs have discovered over 170 unique zero-day vulnerabilities to date, totaling millions of automated signature updates monthly
• Validated Security Intelligence — Based on FortiGuard intelligence, Fortinet's network security platform is tested and validated by the world's leading third-party testing labs and customers globally.

FortiCare Support Services

Our FortiCare customer support team provides global technical support for all Fortinet products. With support staff in the Americas, Europe, Middle East and Asia, FortiCare offers services to meet the needs of enterprises of all sizes:

• Enhanced Support — For customers who need support during local business hours only.
• Comprehensive Support — For customers who need around- the-clock mission critical support, including advanced exchange hardware replacement.
• Advanced Services — For global or regional customers who need an assigned Technical Account Manager, enhanced service level agreements, extended software support, priority escalation, on-site visits and more.
• Professional Services — For customers with more complex security implementations that require architecture and design services, implementation and deployment services, operational services and more.

Enterprise Bundle

FortiGuard Labs delivers a number of security intelligence services to augment the FortiGate firewall platform. You can easily optimize the protection capabilities of your FortiGate with the FortiGuard Enterprise Bundle. This bundle contains the full set of FortiGuard security services plus FortiCare service and support offering the most flexibility and broadest range of protection all in one package.

Specifications:

	FortiGate 60E	FortiWiFi 60E	FortiGate 61E	FortiWiFi 61E
Hardware Specifications
GE RJ45 WAN Ports	2	2	2	2
GE RJ45 Internal Ports	7	7	7	7
GE RJ45 PoE Ports	–	–	–	–
GE RJ45 DMZ Ports	1	1	1	1
Wireless Interface	–	802.11 a/b/g/n/ac	–	802.11 a/b/g/n/ac
USB Ports	1	1	1	1
Console (RJ45)	1	1	1	1
Internal Storage	–	–	128 GB	128 GB
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets)	3 / 3 / 3 Gbps
Firewall Latency (64 byte UDP packets)	3 μs
Firewall Throughput (Packets Per Second)	4.5 Mpps
Concurrent Sessions (TCP)	1.3 Million
New Sessions/Second (TCP)	30,000
Firewall Policies	5,000
IPsec VPN Throughput (512 byte packets)	2 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	500
SSL-VPN Throughput	150 Mbps
Concurrent SSL-VPN Users (Recommended Maximum)	100
IPS Throughput (HTTP / Enterprise Mix) 1	1,400 / 350 Mbps
SSL Inspection Throughput 2	340 Mbps
Application Control Throughput 3	550 Mbps
NGFW Throughput 4	250 Mbps
Threat Protection Throughput 5	180 Mbps
CAPWAP Throughput 6	1.5 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiAPs (Total / Tunnel Mode)	10 / 5
Maximum Number of FortiTokens	100
Maximum Number of Registered FortiClients	200
High Availability Configurations	Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches)	1.5 x 8.5 x 6.3
Height x Width x Length (mm)	38 x 216 x 160
Weight	1.9 lbs (0.9 kg)
Form Factor	Desktop
Environment
Power Required	100–240V AC, 50–60 Hz
Maximum Current	110 V / 1.5 A, 220 V / 0.75 A	110 V / 1.5 A, 220 V / 0.75 A	115V AC / 0.9A, 230V AC / 0.6A	115V AC / 0.9A, 230V AC / 0.6A
Power Consumption (Average / Maximum)	11.7 / 14 W	12.6 / 15.2 W	11.9 / 14.3 W	13 / 16 W
Heat Dissipation	40 BTU/h	52 BTU/h	49 BTU/h	55 BTU/h
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Humidity	20–90% non-condensing
Operating Altitude	Up to 7,400 ft (2,250 m)
Compliance
	FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB
Certifications
	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN

Note: All performance values are "up to" and vary depending on system configuration. IPsec VPN performance is based on 512 byte UDP packets using AES-256+SHA1.
1. IPS performance is measured using 1 Mbyte HTTP and Enterprise Traffic Mix.
2. SSL Inspection is measured with IPS enabled and HTTP traffic, using TLS v1.2 with AES256-SHA.
3. Application Control performance is measured with 64 Kbytes HTTP traffic.
4. NGFW performance is measured with IPS and Application Control enabled, based on Enterprise Traffic Mix.
5. Threat Protection performance is measured with IPS and Application Control and Malware protection enabled, based on Enterprise Traffic Mix.
6. CAPWAP performance is based on 1444 byte UDP packets.
* Maximum loading on each PoE/+ port is 30 W (802.3at).

Rackmount:

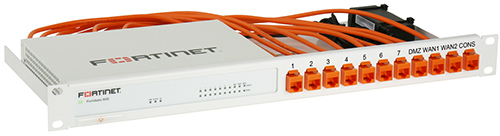

The RM-FR-T10 is a rack mount kit for the FortiGate 60E. The rack mount kit makes your FortiGate 60E fit in a 19" Rack. The RM-FR-T10 has all the RJ45 connections from the rear on the front panel, including the console connection. The rack mount kit matches the color of the FortiGate.

Specifications
Color	RAL 9003 Signal White
Height	1U
Dimensions (height x width x depth)	44 x 482 x 217mm
Number of connections brought to the front	11
Console port to the front	Yes
Cables	11x 0.5m cables
Couplers	11x RJ45 couplers
Supported Models	- FortiGate 60E - FortiGate 61E
What's in the box	- 1x FortiRack + RJ45 couplers - Cables - Assembly materials - Installation guide
EAN	8718868918307
UPC	852754006308

Documentation:

Download the Fortine tFortiGate/FortiWiFi 60E Series Data Sheet (PDF).
