Fortinet FortiGate 401E-DC
High Performance, Top-rated Network Security for Mid-sized Enterprises

Overview:

The FortiGate 400E series provides an application-centric, scalable and secure SD-WAN solution with next generation firewall (NGFW) capabilities for mid-sized to large enterprises deployed at the campus or enterprise branch level. Protects against cyber threats with system-on-a-chip acceleration and industryleading secure SD-WAN in a simple, affordable, and easy to deploy solution. Fortinet’s Security-Driven Networking approach provides tight integration of the network to the new generation of security

Security

• Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement
• Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic
• Prevent and detect against known and unknown attacks using continuous threat intelligence from AI powered FortiGuard Labs security services

Performance

• Delivers industry’s best threat protection performance and ultra-low latency using purpose built-security processor (SPU) technology
• Provides industry-leading performance and protection for SSL encrypted traffic

Certification

• Independently tested and validated best security effectiveness and performance
• Received unparalleled third-party certifications from NSS Labs, ICSA, Virus Bulletin and AV Comparatives

Networking

• Best of Breed SD-WAN capabilities to enable application steering using WAN path control for high quality of experience
• Delivers extensive routing, switching, wireless controller, high-performance, and scalable IPsec VPN capabilities to consolidate networking and security

Management

• Includes management console that’s effective, simple to use, and provides comprehensive network automation & visibility.
• Provides Zero Touch Integration with Security Fabric’s Single Pane of Glass Management
• Predefined compliance checklist analyzes the deployment and highlights best practices to improve overall security posture

Security Fabric

• Enables Fortinet and Fabric-ready partners’ products to provide broader visibility, integrated end-to-end detection, threat intelligence sharing and automated remediation
• Automatically builds Network Topology visualizations which discover IoT devices and provide complete visibility into Fortinet and Fabric-ready partner products

Firewall	IPS	NGFW	Threat Protection	Interfaces
32 Gbps	7.8 Gbps	6 Gbps	5 Gbps	Multiple GE RJ45 and GE SFP Slots

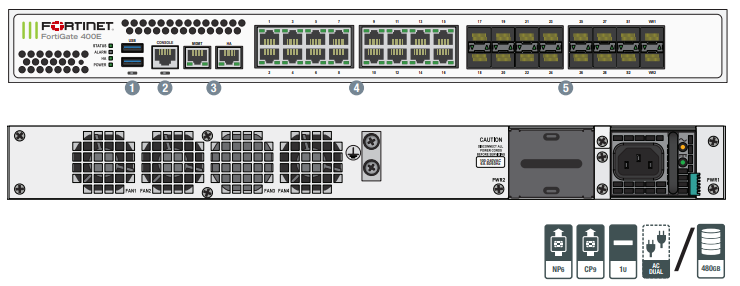

Hardware:

FortiGate 400E/401E/-DC

Interfaces

1. USB Ports
2. Console Port
3. 2x GE RJ45 MGMT/HA Ports
4. 16x GE RJ45 Ports
5. 16x GE SFP Slots

Powered by SPU

• Custom SPU processors deliver the power you need to detect malicious content at multi-Gigabit speeds
• Other security technologies cannot protect against today’s wide range of content- and connection-based threats because they rely on general-purpose CPUs, causing a dangerous performance gap
• SPU processors provide the performance needed to block emerging threats, meet rigorous third-party certifications, and ensure that your network security solution does not become a network bottleneck

Network Processor

Fortinet’s new, breakthrough SPU NP6 network processor works inline with FortiOS functions delivering:

• Superior firewall performance for IPv4/IPv6, SCTP, and multicast traffic with ultra-low latency down to 2 microseconds
• VPN, CAPWAP, and IP tunnel acceleration
• Anomaly-based intrusion prevention, checksum offload, and packet defragmentation
• Traffic shaping and priority queuing

Content Processor

Fortinet’s new, breakthrough SPU CP9 content processor works outside of the direct flow of traffic and accelerates the inspection of computationally intensive security features:

• Enhanced IPS performance with unique capability of full signature matching at ASIC
• SSL Inspection capabilities based on the latest industry mandated cipher suites
• Encryption and decryption offloading

Specifications:

	FORTIGATE 400E	FORTIGATE 401E/-DC
Interfaces and Modules
GE RJ45 Interfaces	16
GE SFP Slots	16
GE RJ45 Management Ports	2
USB Ports	2
RJ45 Console Port	1
Local Storage	NIL	2x 240 GB SSD
Included Transceivers	2x SFP (SX 1 GE)
System Performance — Enterprise Traffic Mix
IPS Throughput	7.8 Gbps
NGFW Throughput	6 Gbps
Threat Protection Throughput	5 Gbps
System Performance and Capacity
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP)	32 / 32 / 24 Gbps
IPv6 Firewall Throughput (1518 / 512 / 64 byte, UDP)	32 / 32 / 24 Gbps
Firewall Latency (64 byte, UDP)	3 μs
Firewall Throughput (Packet per Second)	36 Mpps
Concurrent Sessions (TCP)	4 Million
New Sessions/Second (TCP)	450,000
Firewall Policies	10,000
IPsec VPN Throughput (512 byte)	20 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	2,000
Client-to-Gateway IPsec VPN Tunnels	50,000
SSL-VPN Throughput	4.5 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	5,000
SSL Inspection Throughput (IPS, avg. HTTPS)	4.8 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	4,000
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	300,000
Application Control Throughput (HTTP 64K)	12 Gbps
CAPWAP Throughput (1444 byte, UDP)	14.8 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	48
Maximum Number of FortiAPs (Total / Tunnel)	512 / 256
Maximum Number of FortiTokens	5,000
Maximum Number of Registered FortiClients	600
High Availability Configurations	Active-Active, Active-Passive, Clustering
Dimensions and Power
Height x Width x Length (inches)	1.75 x 17.0 x 15.0
Height x Width x Length (mm)	44.45 x 432 x 380
Weight	16.4 lbs (7.4 kg)	16.9 lbs (7.9 kg)
Form Factor	1 RU
	109 W / 214 W	115 W / 221 W
Power Source	100–240V 60–50Hz
Current (Maximum)	6A
Heat Dissipation	730 BTU/h	754 BTU/h
Redundant Power Supplies (Hot Swappable)	optional
Operating Environment and Certifications
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Humidity	10–90% non-condensing
Noise Level	48 dBA
Operating Altitude	Up to 7,400 ft (2,250 m)
Compliance	FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6

Documentation:

Download the Fortinet FortiGate 401E Datasheet (PDF).

Pricing Notes:

• Hardware plus FortiCare Premium and FortiGuard Enterprise Protection
  Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Enterprise Services Bundle (IPS, AI-based Inline Malware Prevention, Advanced Malware Protection, Inline CASB Database, Data Loss Prevention, Application Control, URL, DNS & Video Filtering, Antispam, Attack Surface Security, and FortiConverter Service) plus term of contract
• Hardware plus FortiCare Premium and FortiGuard Unified Threat Protection (UTP)
  Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, URL, DNS & Video Filtering and Antispam Service) plus term of contract
• Enterprise Protection (IPS, AI-based Inline Malware Prevention, Inline CASB Database, DLP, App Control, Adv Malware Protection, URL/DNS/Video Filtering, Anti-spam, Attack Surface Security, Converter Svc, FortiCare Premium)
  FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Enterprise Services Bundle (IPS, AI-based Inline Malware Prevention, Advanced Malware Protection, Inline CASB Database, Data Loss Prevention, Application Control, URL, DNS & Video Filtering, Antispam, Attack Surface Security, and FortiConverter Service)
• Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, URL, DNS & Video Filtering, Antispam Service, and FortiCare Premium)
  FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, URL, DNS & Video Filtering and Antispam Service)
• Advanced Threat Protection (IPS, Advanced Malware Protection Service, Application Control, and FortiCare Premium)
  FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Advanced Threat Protection Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct Service, Application Control)
• FortiCare Essential Support
  FortiCare Essential Ticket Handling, Hardware Replacement, Firmware and General Upgrades, Application Control
• FortiCare Premium Support
  FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Application Control
• FortiCare Elite Support
  FortiCare Premium Support with FortiCare Elite Ticket Handling.
• Prices are for one year of Premium RMA support. Usual discounts can be applied.
• Annual contracts only. No multi-year SKUs are available for these services.
• Contact Fortinet Renewals team for upgrade quotations for existing FortiCare contracts.
• Pricing and product availability subject to change without notice.
