Fortinet FortiAP S221E
802.11ac Wave 2 2x2 Access Point With Dual Radios, Internal Antennas

Fortinet FortiAP S221E

Fortinet FortiAP Series
FortiAP-S221E
USA: FREE Ground ShippingFortinet FortiAP-S221E
Dual radio 802.11ac wave 2 Indoor SmartAP - 2 x GE RJ45 ports, (802.11 a/b/g/n and 802.11 a/n/ac, 2x2 MU-MIMO with BT/BLE) Internal antenna, PoE injector GPI-115.
#FAP-S221E-A
List Price: $700.00
Our Price: $516.00

Click here to jump to more pricing!

Overview:

The FAP-S221E is our medium-density 802.11ac Wave 2 access point. This enterprise class access point is ideal for medium-density environments such as office or classroom. The S221E supports MU-MIMO giving excellent performance throughput of up to 867 Mbps and the ability to support multiple simultaneous devices.

  • 802.11ac Wave 2
  • Dual Radio 2.4 and 5 GHz
  • 4 Internal Antennas
  • Up to 300 + 867 Mbps

Cloud or FortiOS-managed Smart Access Points

The FortiAP-S Series are the first Access Points of their kind to have UTM services built in. They are equipped with extra memory and a powerful processor that enables them to perform real-time security processing on the AP, providing complete protection against all manner of WiFi and cyber-threats at the network edge. With Fortinet’s award-winning security technology, the FortiAP-S series provides the most compact solution for complete content and application security in a WiFi architecture.

Remote Management

Remote Management
Combines the low CAPEX and convenience of remote management via a central FortiGate or FortiCloud, with on site, locally applied threat protection, delivered through regular FortiGuard updates.

Advanced Security Protection

Advanced Security Protection
On-board IPS, antivirus scanning, web-filtering and application control, protects all users and devices from the latest security threats.

Built-in WiFi Security

Built-in WiFi Security
Protects the network from advanced wireless threats to satisfy PCI DSS compliance. PCI-DSS compliance reports available through FortiCloud or FortiAnalyzer.


Deployment:

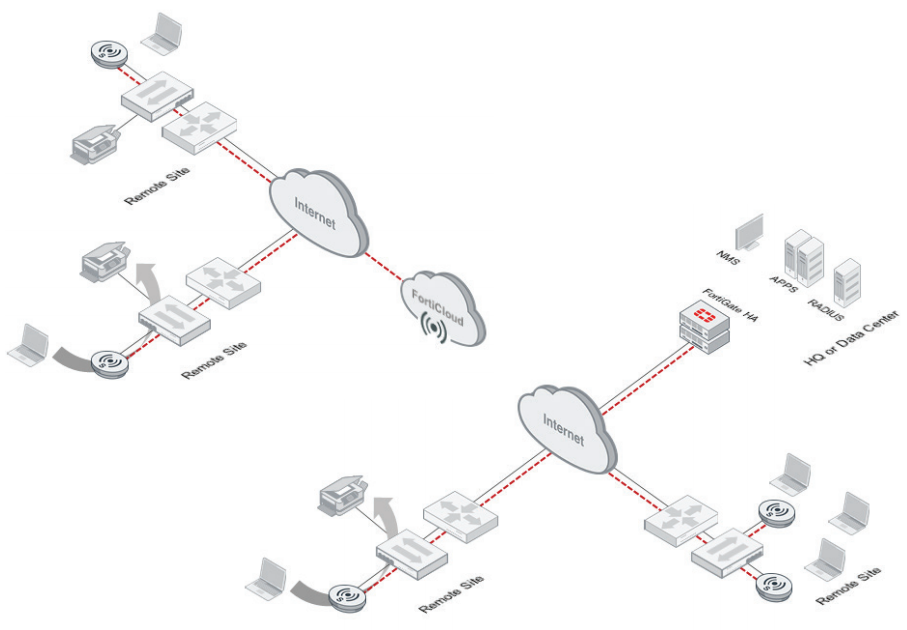

Showing both Cloud-managed and FortiGate-managed FAP-S series at remote sites

Showing both Cloud-managed and FortiGate-managed FAP-S series at remote sites

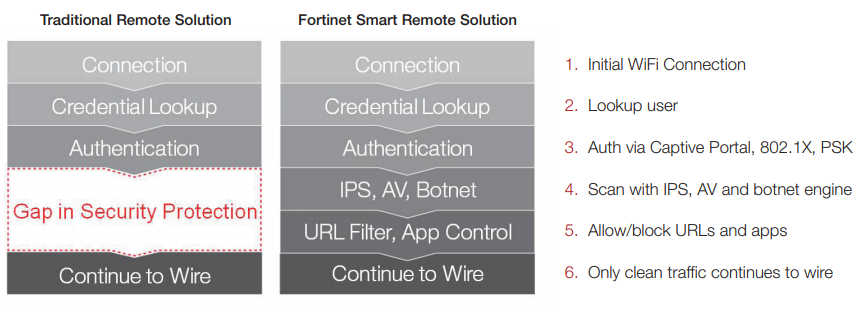

Fortinet approach to secure remote-managed WiFi

Fortinet approach to secure remote-managed WiFi

Specifications:


  FortiAP-S221E
Hardware
Hardware Type Indoor AP
Number of Radios 2 + 1 BT/BLE
Number of Antennas 4 Internal + 1 BT/BLE internal
Antenna Type and Peak Gain PIFA: 3 dBi for 2.4 GHz, 5 dBi for 5 GHz
Frequency Bands (GHz)* 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
Radio 1 Capabilities 2.4 GHz b/g/n (2x2:2 stream) 20/40 MHz (64 QAM)
Radio 2 Capabilities 5 GHz a/n/ac (2x2:2 stream) 20/40/80 MHz (256 QAM)
Maximum Data Rate Radio 1: up to 300 Mbps
Radio 2: up to 867 Mbps
Bluetooth Low Energy (BT/BLE) Radio Bluetooth scanning and iBeacon advertisement @ 4 dBm max TX power
Interfaces 2x 10/100/1000 Base-T RJ45, 1x Type A USB, 1x RS-232 RJ45 Serial Port
Power over Ethernet (PoE) Dual redundant PoE power ports with support for IEEE 802.3af & 802.3at
Simultaneous SSIDs Up to 16 (14 if background scanning enabled)
EAP Type(s) EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST
User/Device Authentication WPA and WPA2 with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist & whitelist
Maximum Tx Power 2.4 GHz: 23 dBm / 200 mW (2 chains combined)*
5 GHz: 22 dBm / 158 mW (2 chains combined)*
Kensington Lock Yes
IEEE Standards 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.1X, 802.3af, 802.3at, 802.3az
SSID Types Supported Local-Bridge, Mesh, & Tunnel (when managed by FortiGate)
Per Radio Client Capacity Up to 512
Cellular Co-existence Yes
LED Off Mode Yes
Advanced 802.11 Features
802.11ac Wave 2 MU-MIMO Yes
Transmit Beam Forming (TxBF) Yes
Low-Density Parity Check (LDPC) Encoding Yes
Maximum Likelihood Demodulation (MLD) Yes
Maximum Ratio Combining (MRC) Yes
A-MPDU and A-MSDU Packet Aggregation Yes
MIMO Power Save Yes
Short Guard Interval Yes
Wireless Monitoring Capabilities
Rogue Scan Radio Modes Background, Full-time
WIPS / WIDS Radio Modes Background, Full-time (recommended)
Packet Sniffer Mode Yes
Spectrum Analyzer Yes
Dimensions
Length x Width x Height 7.87 x 7.87 x 1.81 inches (200 x 200 x 46 mm)
Weight 1.2 lbs (0.55 kg)
Package (shipping) Weight 2.5 lbs (1.15 kg)
Mounting Options Ceiling, T-Rail, and Wall
Included Accessories Mount kits for Ceiling, T-Rail, and Wall
Environment
Power Supply SP-FAP200-PA-XX, GPI-115, or GPI-130
Power Consumption (Max.) 24 W
Humidity 5% to 90% non-condensing
Operating Temperature --40 to 122°F (-20–50°C)
Storage Temperature -40 to 158˚F (-40 to 70˚C)
Directives Low Voltage Directive • RoHS2
UL2043 Plenum Material No
Mean Time Between Failures >30 Years
IP Rating
Surge Protection Built In
Hit-less PoE Failover No
Certifications
WiFi Alliance Certified Yes
DFS FCC, IC, CE, Japan
Certifications
Limited Lifetime Warranty Yes

* Frequency selection and power may be restricted to abide by regional regulatory compliance laws.
** Additional filtration added to reduce interference in 2.4 GHz band from nearby cellular equipment.

RF RX/TX Performance Table:


FortiAP S221E and S223E
Radio 1 — 2.4 GHz Radio 2 — 5 GHz
802.11 a/g Tx Power (dBm) Rx Sensitivity (dBm) Tx Power (dBm) Rx Sensitivity (dBm)
6 Mbps 20 -93 19 -90
9 Mbps 20 -91 19 -89
12 Mbps 20 -90 18 -88
18 Mbps 19 -88 18 -85
24 Mbps 19 -84 17 -82
36 Mbps 18 -83 17 -79
48 Mbps 18 -76 17 -76
54 Mbps 17 -75 16 -74
802.11n HT20
MCS 0/8/16 20 -90 19 -90
MCS 1/9/17 20 -88 18 -87
MCS 2/10/18 19 -85 18 -85
MCS 3/11/19 19 -82 17 -82
MCS 4/12/20 18 -79 17 -78
MCS 5/13/21 18 -74 17 -73
MCS 6/14/22 17 -72 16 -72
MCS 7/15/23 16 -71 16 -70
802.11n HT40
MCS 0/8/16 19 -89 18 -88
MCS 1/9/17 19 -86 18 -86
MCS 2/10/18 18 -84 18 -84
MCS 3/11/19 18 -81 17 -80
MCS 4/12/20 17 -77 17 -77
MCS 5/13/21 17 -73 16 -73
MCS 6/14/22 16 -71 16 -71
MCS 7/15/23 16 -69 15 -69
802.11ac VHT20
MCS 0 20 -90 19 -90
MCS 1 20 -88 18 -87
MCS 2 19 -85 18 -84
MCS 3 19 -82 17 -80
MCS 4 18 -79 17 -78
MCS 5 18 -74 17 -73
MCS 6 17 -72 16 -72
MCS 7 16 -71 16 -71
MCS 8 15 -67 16 -67
802.11ac VHT40
MCS 0 19 -89 18 -88
MCS 1 19 -86 18 -85
MCS 2 18 -84 18 -83
MCS 3 18 -81 17 -80
MCS 4 17 -77 17 -77
MCS 5 17 -73 16 -71
MCS 6 16 -71 16 -70
MCS 7 16 -69 15 -68
MCS 8 15 -67 15 -66
MCS 9 15 -65 15 -63
802.11ac VHT80
MCS 0 17 -85
MCS 1 17 -80
MCS 2 17 -78
MCS 3 16 -75
MCS 4 16 -72
MCS 5 16 -71
MCS 6 15 -67
MCS 7 15 -65
MCS 8 14 -61
MCS 9 14 -60

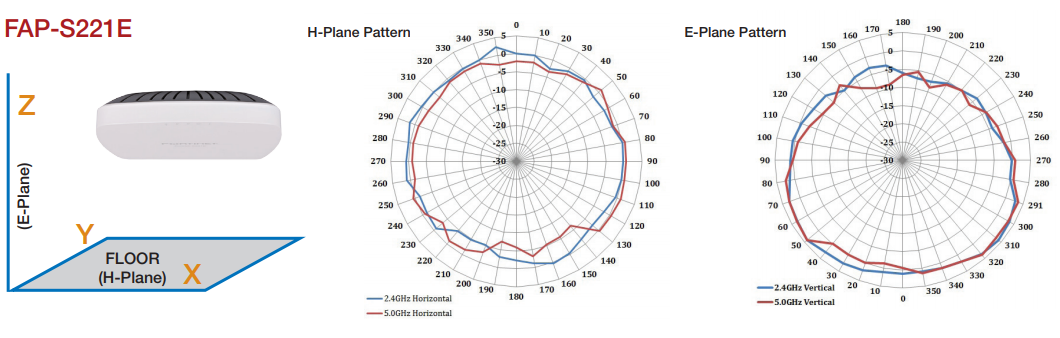

Antenna Radiation Patterns:

FortiAP-S221E Antenna Radiation Patterns

Documentation:

Download the Fortinet FortiAP Smart Series Access Points Datasheet (PDF).

Pricing Notes:

Fortinet FortiAP Series
FortiAP-S221E
USA: FREE Ground ShippingFortinet FortiAP-S221E
Dual radio 802.11ac wave 2 Indoor SmartAP - 2 x GE RJ45 ports, (802.11 a/b/g/n and 802.11 a/n/ac, 2x2 MU-MIMO with BT/BLE) Internal antenna, PoE injector GPI-115.
#FAP-S221E-A
List Price: $700.00
Our Price: $516.00
Fortinet 8x5 FortiCare Contract
*8x5 Support, Hardware Replacement, Firmware and General Upgrades
1 Year 8x5 FortiCare Contract for FortiAP-S221E
#FC-10-PS221-311-02-12
List Price: $35.00
Our Price: $30.00
FortiAP-S221E 3 Year 8x5 FortiCare Contract
#FC-10-PS221-311-02-36
List Price: $105.00
Our Price: $90.91
FortiAP-S221E 5 Year 8x5 FortiCare Contract
#FC-10-PS221-311-02-60
List Price: $175.00
Our Price: $151.51
Fortinet 24x7 FortiCare Contract
*24x7 Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades
1 Year 24x7 FortiCare Contract for FortiAP-S221E
#FC-10-PS221-247-02-12
List Price: $70.00
Our Price: $61.00
FortiAP-S221E 3 Year 24x7 FortiCare Contract
#FC-10-PS221-247-02-36
List Price: $210.00
Our Price: $181.82
FortiAP-S221E 5 Year 24x7 FortiCare Contract
#FC-10-PS221-247-02-60
List Price: $350.00
Our Price: $303.03
Accessories
AC Power Adaptor for FAP-U321EV, FAP-U323EV, FAP-U221EV, FAP-U223EV, FAP-S221E, FAP-S223E, FAP-221E and FAP-223E with US and JP power plug
#SP-FAP200-PA-US
Our Price: $33.00
