Fortinet FortiAP C23JD
Wall Jack Access Point for use with FortiCloud

Fortinet FortiAP C23JD

Notice: FortiAP C23JD Discontinued

The FortiAP C23JD is a discontinued model. For optimal security and long-term support, explore Fortinet’s latest wireless access points or save with the Fortinet Trade-Up Program.

Fortinet Trade-Up Program

Get a significant discount on a new Fortinet unit when you upgrade a competitive or legacy firewall.

FortiAP C23JD License and Renewal Options

Technical support, firmware updates/upgrades, and hardware replacement will not be available after EoS on May 29, 2023 .

View FortiAP C23JD License & Renewal Options

FortiAP Access Points Solutions

The FortiAP wireless access points offer the most secure wireless offering in the industry by integrating with our Next Generation Firewall.

AI-powered Security Assistant

FortiAI uses GenAI to assist security teams to make better decisions, rapidly respond to threats, and save time on even the most complex tasks.

Overview:

The FortiAP-C series are entry-level cloud-managed Access Points offering Zero-Touch provisioning to support enterprises with remote sites requiring basic wireless LAN connectivity. The FortiAP-C series are managed through the FREE FortiCloud provisioning and management portal, eliminating the CAPEX and complexity of having to deploy onsite WLAN controllers and management servers.

Cloud Management
No wireless controller required, reducing upfront CAPEX and providing the convenience of cloud management.

Ease of Deployment
Zero-touch deployments, with no requirement for onsite IT staff.

Simple Pricing
No recurring per AP licenses for full-featured cloud-management nor hidden costs.

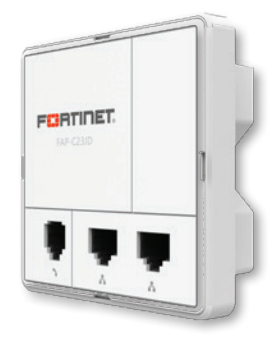

FortiAP C23JD

The FAP-C23JD is a cost-effective in-room high-speed WiFi service over existing in-room telephone lines access point, suitable for hotel and dorm rooms. This access point can be installed in minutes, right over the existing wall plate.

Highlights

802.11n
Single Radio 2.4 GHz
2 Internal Antennas Up to 300 Mbps

Deployment:

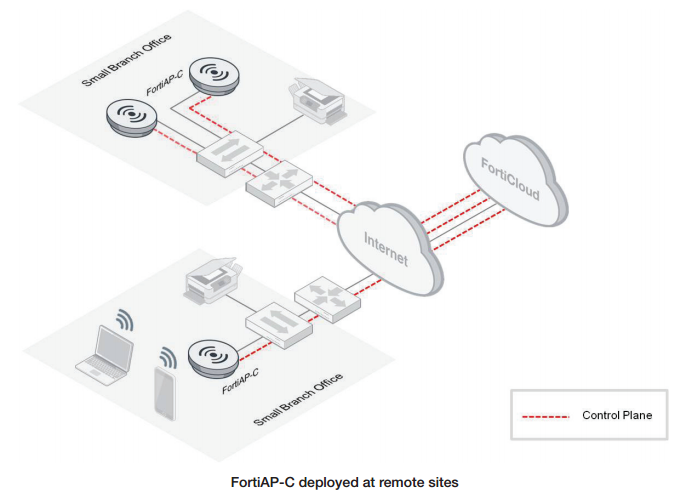

FortiAP-C deployed at remote sites

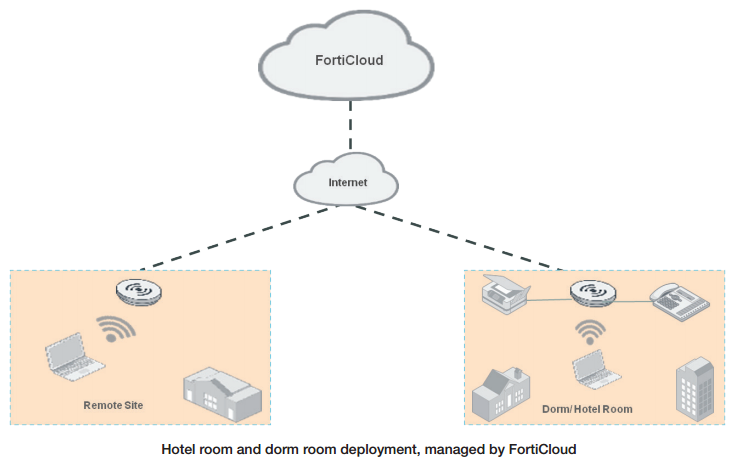

Hotel room and dorm room deployment, managed by FortiCloud

Specifications:

FortiAP C23JD Specifications
Hardware
Hardware Type	Indoor Wall Plate AP
Number of Radios	1
Number of Antennas	2 Internal
Peak Antenna Gain	2 dBi for 2.4 GHz
Frequency Bands (GHz) *	2.400–2.4835
Frequency of Radio 1	2.4 GHz 802.11b/g/n (2x2:2 stream) 20/40 MHz
Frequency of Radio 2	N/A
Maximum Data Rate	300 Mbps (2.4 G)
Ethernet Ports	3x FE RJ45 (1x 802.3af PoE back, 2 front)
USB Port	N/A
Serial Console Port	N/A
Power over Ethernet (PoE)	1x PoE RJ45 port for 802.3af (15.4 W)
Simultaneous SSIDs	4 (can be expanded to 8 later by SW)
EAP Type(s)	EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST
User/Device Authentication	WPA and WPA2 with 802.1x or Preshared key, WEP and Web Captive Portal
Maximum Tx Power	20 dB
Physical Security	No
IEEE Specifications	802.11b/g/n
FortiPresence Capable	No
Wireless Mesh Capable	No
Management Systems	FortiGate or FortiCloud
SSID Types Supported	Local-Bridge, Tunne
FortiDeploy & FortiCloud Key	No
Maximum Concurrent Clients per Radio	12
LED Off Mode	LED covered by front cover
Advanced 802.11 Features
802.11n Features	20 Mhz and 40 Mhz High-Throughput (HT) Support Increased maximum frame transmission by incorporating A-MPDU and A-MSDU Packet Aggregation Conserve power via Dynamic MIMO power save
Low-density parity check (LDPC) encoding	Yes
Maximum Ratio Combining (MRC)	Yes
A-MPDU and A-MSDU Packet Aggregation	Yes
MIMO Power Save	Yes
Short Guard Interval	Yes
WME Multimedia Extensions	Yes
Dimensions
Length x Width x Height	3.4 x 3.4 x 1.38 inches (86 x 86 x 35 mm)
Weight	1.02 lb (0.46 kg)
Package (shipping) Weight	1.3 lb (0.6 kg)
Mounting Options	Wall
Included Accessories	None
Environment
Power Supply	PoE 802.3af (15.4 W)
Maximum FAP Power Consumption with 802.3af PoE	5 W
Humidity	10–90% non condensing
Operating Temperature	32–122°F (0–50°C)
Storage Temperature	-40–158°F (-40–70°C)
Mean Time Between Failures	>10 Years
IP Rating	N/A
Certifications
CCC (China)	Yes
SRRC (China)	Yes
Warranty
Limited Lifetime Warranty	Yes

* Frequency selection and power may be restricted to abide by regional regulatory compliance laws

RF RX/TX Performance Table:

FortiAP C23JD
	Radio 1
	2.4 GHz
802.11 a/b/g	Average TX Power (dBm)	RX Sensitivity (dBm)
6 Mbps	20	-92
9 Mbps	20	-92
12 Mbps	20	-90
18 Mbps	20	-88
24 Mbps	20	-87
36 Mbps	20	-82
48 Mbps	19	-77
54 Mbps	17	-76
802.11 HT20
MSC 0/8/16 (BPSK)	19	-91
MSC 1/9/17 (QPSK)	19	-89
MSC 2/10/18 (QPSK)	19	-86
MSC 3/11/19 (16-QAM)	19	-84
MSC 4/12/20 (16-QAM)	19	-78
MSC 5/13/21 (64-QAM)	18	-73
MSC 6/14/22 (64-QAM)	17	-72
MSC 7/15/23 (64-QAM)	16	-72
802.11 HT40
(BPSK)	19	-89
MSC 1/9/17 (QPSK)	19	-87
MSC 2/10/18 (QPSK)	19	-84
MSC 3/11/19 (16-QAM)	18	-82
MSC 4/12/20 (16-QAM)	18	-77
MSC 5/13/21 (64-QAM)	18	-72
MSC 6/14/22 (64-QAM)	17	-71
MSC 7/15/23 (64-QAM)	17	-70

Maximum capability of the Hardware provided (Excluding antenna gain)

Documentation:

Download the Fortinet FortiAP C Series Datasheet (PDF).
