Fortinet FortiAP-224E
Outdoor, IP67 Rated Access Point, 2x2 MU-MIMO with Dual Radio, Internal Antennas

Fortinet FortiAP-224E

Fortinet FortiAP Series
FortiAP-224E
USA: FREE Ground ShippingFortiAP-224E
Dual radio outdoor wireless wave 2 AP with internal antenna (802.11 b/g/n and 802.11 a/n/ac/ac2, 2x2 MU-MIMO), BLE radio, 2 x GE RJ45 port and 1 SFP port. IP67 water resistance, and 802.3af PoE powered. Region Code A
#FAP-224E-A
List Price: $700.00
Our Price: $516.00

Click here to jump to more pricing!

Overview:

The FAP-224E is a new member of our 802.11ac Wave 2 family with MU-MIMO capability and transmit beam forming capable of handling an astounding 512 clients per radio. This high-performance dual-band AP is ruggedized with an Ingress Protection IP67-rated enclosure capable of withstanding extended temperature ranges. The FAP-224E is suitable for deployment in the harsh conditions. It has 4 internal antennas for WiFi and one Bluetooth and also provides SFP cage to allow for long-distance fiber connectivity and is suitable for mission-critical bridging or mesh deployments.

  • 802.11ac Wave 2
  • Dual Radio 2.4 and 5 GHz
  • 4 Internal Antennas
  • 2x2 MU-MIMO
  • Up to 400 + 867 Mbps

Cloud or FortiOS-managed Access Points

FortiAP access points are managed centrally by the integrated WLAN controller of any FortiGate® security appliance or can be managed through the free FortiCloud provisioning and management portal. With the integration of the wireless controller functionality into the market leading FortiGate appliance, Fortinet delivers a true Unified Access Layer. This enables you to easily manage wired and wireless security from a Single-pane-of-glass management console and protects your network from the latest security threats.

Unified Management

Unified Management
Unified management console simplifies operations, ensuring consistent and effective policy enforcement and compliance.

Advanced Security Protection

Advanced Security Protection
Wireless LAN security done right, from the leader in network security. Integrated Firewall, IPS, Application Control, and Web Filtering protect the wireless LAN from the latest security threats.

Built-in WiFi Security

Built-in WiFi Security
Protects the network from advanced wireless threats and satisfies PCI DSS compliance.


Deployment:

Centralized or Local Wireless Controller

Centralized or Local Wireless Controller

Outdoor Point-to-Point Bridging or Multipoint Mesh Deployment

Outdoor Point-to-Point Bridging or Multipoint Mesh Deployment

Outdoor Mesh and PoE Pass-Through Deployment

Outdoor Mesh and PoE Pass-Through Deployment

Specifications:


  FortiAP-224E
Hardware
Indoor/Outdoor Deployment Outdoor AP
Number of Radios 2 + 1 BT/BLE
Number of Antennas 4 External + 1 BT/BLE External
Antenna Type and Peak Gain Dipole: 6 dBi for 2.4 GHz, 8 dBi for 5 GHz
Frequency Bands (GHz)* 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
Radio 1 Capabilities 2.4 GHz b/g/n (2x2:2 stream) 20/40 MHz (256 QAM)
Radio 2 Capabilities 5 GHz a/n/ac (2x2:2 stream) 20/40/80 MHz (256 QAM)
Maximum Data Rate Radio 1: up to 400 Mbps
Radio 2: up to 867 Mbps
Bluetooth Low Energy (BT/BLE) Radio
Interfaces 1x 10/100/1000 Base-T RJ45, 1x 10/100/1000 Base-T RJ45 (PoE), 1x optical fiber SFP cage
Power over Ethernet (PoE) IEEE 802.3af/at
Simultaneous SSIDs Up to 16 (14 if background scanning enabled)
EAP Type(s) EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST
User/Device Authentication WPA and WPA2 with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist & whitelist
Maximum Tx Power 2.4 GHz: 24 dBm / 251 mW (2 chains combined)*
5 GHz: 24 dBm / 251 mW (2 chains combined)*
Kensington Lock No
IEEE Standards 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.1X, 802.3af, 802.3at, 802.3az
SSID Types Supported Local-Bridge, Tunnel & Mesh (when managed by controller)
Per Radio Client Capacity Up to 512
Cellular Co-existence No
LED Off Mode Yes
Advanced 802.11 Features
802.11ac Wave 2 MU-MIMO Yes
Transmit Beam Forming (TxBF) Yes
Low-Density Parity Check (LDPC) Encoding Yes
Maximum Likelihood Demodulation (MLD) Yes
Maximum Ratio Combining (MRC) Yes
A-MPDU and A-MSDU Packet Aggregation Yes
MIMO Power Save Yes
Short Guard Interval Yes
Wireless Monitoring Capabilities
Rogue Scan Radio Modes Background, Full-time
WIPS / WIDS Radio Modes Background, Full-time
Packet Sniffer Mode Yes
Spectrum Analyzer Yes
Dimensions
Length x Width x Height 8.4 x 8.4 x 2.66 inches (214 x 214 x 67.5 mm)
Weight 3.8 lbs (1.7 kg)
Package (shipping) Weight 5.82 lbs (2.64 kg)
Mounting Options Wall Mount or Pole Mount
Included Accessories Mounting kit for Wall or Pole, Grounding cable
Environment
Power Supply GPI-115, or GPI-130
Power Consumption (Max.) 12.95 W
Humidity 5% to 90% non-condensing
Operating Temperature --40 to 149°F (-20–65°C)
Storage Temperature -4 to 158˚F (-20 to 70˚C)
Directives Low Voltage Directive • RoHS2
UL2043 Plenum Material No
Mean Time Between Failures >10 Years
IP Rating IP67
Surge Protection Built In Yes
Hit-less PoE Failover No
Certifications
WiFi Alliance Certified Yes
DFS In Process
Certifications
Limited Lifetime Warranty No — 1 Year Limited Warranty

* Frequency selection and power may be restricted to abide by regional regulatory compliance laws.

RF RX/TX Performance Table:


FortiAP 224E
Radio 1 — 2.4 GHz Radio 2 — 5 GHz
802.11 a/b/g Tx Power (dBm) Rx Sensitivity (dBm) Tx Power (dBm) Rx Sensitivity (dBm)
1 Mbps 24 -96
6 Mbps 24 -93 24 -93
9 Mbps 24 -92 24 -91
12 Mbps 24 -90 24 -90
18 Mbps 24 -88 24 -88
24 Mbps 24 -85 24 -85
36 Mbps 23 -82 23 -82
48 Mbps 22 -78 22 -77
54 Mbps 22 -76 22 -76
802.11 HT20
MCS 0 (BPSK) 24 -92 24 -91
MCS 1 (QPSK) 24 -89 24 -88
MCS 2 (QPSK) 24 -87 23 -85
MCS 3 (16-QAM) 24 -84 23 -83
MCS 4(16-QAM) 23 -81 22 -80
MCS 5 (64-QAM) 23 -76 22 -75
MCS 6 (64-QAM) 23 -74 21 -74
MCS 7 (64-QAM) 22 -73 20 -72
MCS 8 (256-QAM) 18 -68
MCS 9 (256-QAM)
802.11 HT40
MCS 0 (BPSK) 23 -90 23 -89
MCS 1 (QPSK) 23 -87 22 -86
MCS 2 (QPSK) 23 -85 22 -83
MCS 3 (16-QAM) 23 -81 21 -80
MCS 4(16-QAM) 23 -78 21 -77
MCS 5 (64-QAM) 23 -74 21 -73
MCS 6 (64-QAM) 22 -73 20 -72
MCS 7 (64-QAM) 22 -71 19 -70
MCS 8 (256-QAM) 18 -66
MCS 9 (256-QAM) 17 -64
802.11 HT80
MCS 0 (BPSK) 22 -86
MCS 1 (QPSK) 22 -83
MCS 2 (QPSK) 22 -81
MCS 3 (16-QAM) 21 -78
MCS 4(16-QAM) 21 -74
MCS 5 (64-QAM) 21 -70
MCS 6 (64-QAM) 20 -69
MCS 7 (64-QAM) 19 -67
MCS 8 (256-QAM) 17 -63
MCS 9 (256-QAM) 18 -60

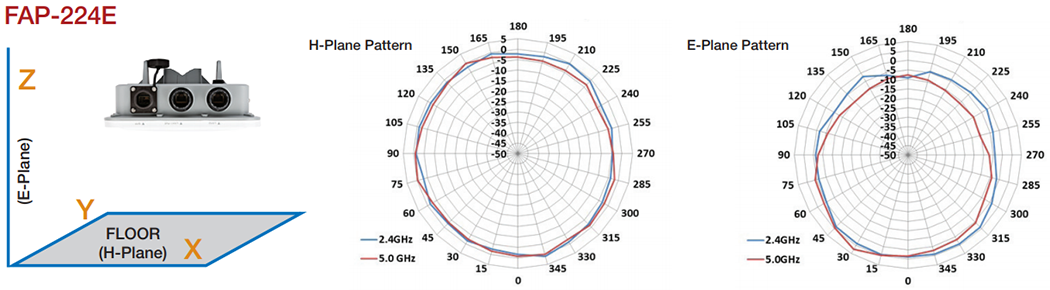

Antenna Radiation Patterns:

FortiAP-224E Antenna Radiation Patterns

Documentation:

Download the Fortinet FortiAP Series Datasheet (PDF).
