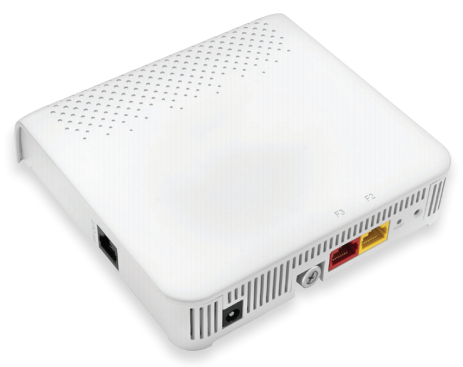

Fortinet FortiAP 122
802.11ac Wave 1 | Dual Radio 2.4 GHz and 5 GHz | 4 Internal Antennas

Fortinet FortiAP 122

Fortinet FortiAP Series
FortiAP-122
Dual radio 2x2 2-stream 802.11a/b/g/n/ac Wall Plate Access Point with integrated antennas and two 10/100 BASE-T ports. Powered by PoE (Power over Ethernet) 802.3af/802.3at, or external power adapter (sold separately).
#AP122
Our Price: $499.00

Click here to jump to more pricing!

Overview:

Fortinet AP series Access Points (APs) provide a high-performance, premise-managed WiFi network with a broad range of 802.11ac Wave 1 and Wave 2 APs that ease deployment and scaling and offer a number of compelling quality-of-experience advantages. They also provide a complete portfolio of security services that offer additional means of protection to combat the ever-evolving threat landscape. Fortinet also offers an RF technology that uniquely manages the spectrum utilization, allowing it to dramatically simplify deployment vs competing solutions.

Application Control

Provides administrators with Application Visibility to prioritize applications to improve the user experience by guaranteeing more capacity to select groups, such as mission-critical applications or mobile point-of-sale (mPoS) devices.

Air Traffic Control

Provides sophisticated air traffic control mechanisms to govern station airtime so every client gets a fair turn on-air, which prevents the slowest, or the fastest, devices from hogging resources.

Single Channel Technology

Unique technology that manages spectrum utilization to overcome the interference-related deployment barriers commonly encountered in high density environments.

Highlights

Fortinet AP122

The AP122 is the first wall plate access point specifically designed to meet the ever-increasing mobile data needs of hotel guests and resident college and university students. With gigabit-data rates, the AP122 is perfectly suited for in-room deployment needs of the hotel, cruise line and highereducation residence-hall markets.

Designed to be placed in any location flush to a wall, the AP122 can be installed by standard service personnel using existing CAT5/6 cabling connected from a standard wall junction box. For wired connectivity, it features two 10/100 BASE-T switch ports to support a range of in-room IP device and user connectivity options. Additionally, one of the wired ports can operate as an IEEE 802.3af-compliant PoE Out port offering up to 13 watts of power, capable of powering devices such as IP telephones. This reduces costs in additional cabling, switch ports, and power sourcing equipment. An additional pass-through port allows connectivity for digital phones and a USB port offers options for future uses.

Like other Fortinet access points, the AP122 integrates seamlessly with our Network Manager, Fortinet Connect, and other application solutions to bring intelligent management and resilient wireless services to your network. The AP122 is ideal for supporting IP-based services such as VoIP, IPTV, high-speed Internet access and in-room device connectivity.

Additionally, Fortinet’s Virtual Cell, single-channel option uniquely allows the AP122 to support pervasively, full channel 802.11ac in real-world deployments, which more than double the data rate over legacy 802.11n solutions. This architecture also greatly simplifies RF coverage planning and significantly reduces wireless LAN (WLAN) deployment costs.

Benefits

  • Support for in-room, IP-based services such as VoIP, streaming video, and high-speed Internet access
  • Support for in-room IP devices and digital phones with native access to in-house PBX system
  • Maximizes full-channel 802.11ac throughout the enterprise
  • No infrastructure upgrades

Specifications:


OPERATING MODES
Centralized deployment mode
Distributed deployment mode
Remote VPN tunnel mode
SECURITY
WEP, WPA-PSK, WPA-TKIP, WPA2-AES, 802.11i, 802.1X (EAP-TLS, EAP-TTLS, PEAP, LEAP, EAP-FAST, EAP-SIM, EAP-AKA, and EAP-MD5)
802.1X and captive portal authentication against local database on the controller, RADIUS, and Active Directory
RADIUS-assisted per-user and per-ESSID access control via MAC filtering
MANAGEMENT
Automatically discovers controllers and downloads configuration settings for plug-and-play deployment
Upgrades and management using System Director/E(z)RF® Network Manager
Support for SNMP
WIRELESS SPECIFICATIONS
Model Introduction
AP122 is at dual-radio architecture with:
– 2.4 GHz Std 802.11b/g/n
– 5.6 GHz 802.11a/n/ac
Supported radio technologies
2x2:2SS (two spatial streams)
Supported transmit beam-forming (TxBF)
IEEE Std 802.11b with Direct Sequence Spread Spectrum (DSSS)
IEEE Std 802.11ac with 20/40/80 MHz (HT20/HT40/VHT80) channel width
IEEE Std 802.11n with 40 MHz (HT40) channel width
IEEE Std 802.11a/g with 20 MHz channel
Supported Modulation
IEEE Std 802.11ac: BPSK, QPS K, 16-QAM, 64-QAM, and 256-QAM
IEEE Std 802.11a/g/n: BPSK, QPSK, 16-QAM, and 64-QAM
IEEE Std 802.11b: BPSK, QPSK, CCK
Supported MCS Index
Supported MCS0 to MCS9 for IEEE Std 802.11ac (NSS=1 to 2)
Supported MCS0 to MCS15 for IEEE Std 802.11n
Supported Frequency Bands
2.400 to 2.4835 GHz (ISM)
5.150 to 5.250 GHz (UNII-1)
5.250 to 5.350 GHz (UNII-2, DFS)
5.470 to 5.725 GHz (UNII-2 Extends, DFS)
DEFAULT TRANSMIT POWER
Default transmit power per antenna
2.4 GHz: 10 dBm
5.2 GHz: 13 dBm
Maximum available transmit power per antenna
2.4 GHz: 20 dBm
5.2 GHz: 20 dBm
Transmit power adjustment
1 dBm increments
Actual Tx power dependent on national regulatory limits
RECEIVER SENSITIVITY
Standard Data rate (Mbps) Receiver sensitivity (dBm)
2.4 GHz, IEEE 802.11b 1 -97
11 -89
2.4 GHz, IEEE 802.11g 6 -94
54 -76
2.4 GHz, IEEE 802.11n HT20 MCS0/8 -93
MCS7/15 -72
2.4 GHz, IEEE 802.11n HT40 MCS0/8 -91
MCS7/15 -70
5 GHz, IEEE 802.11a 6 -92
54 -72
5 GHz, IEEE 802.11n HT20 MCS0/8 -90
MCS7/15 -72
5 GHz, IEEE 802.11n HT40 MCS0/8 -86
MCS7/15 -68
5 GHz, IEEE 802.11AC HT20 MCS0NSS1/2 -89
MCS8NSS1/2 -68
5 GHz,IEEE 802.11AC HT40 MCS8NSS1/2 -88
MCS8NSS1/2 -62
5 GHz, IEEE 802.11AC HT80 MCS8NSS1/2 -82
MCS8NSS1/2 -60
PHYSICAL SPECIFICATIONS
Power
IEEE PoE (Power over Ethernet) 802.3af/802.3at injector or switch
48V external power adapter (sold separately)
Other Interfaces
One 10/100/1000 Mbps BASE-T Ethernet RJ45 for Data uplink (G1)
One 10/100 Mbps BASE-T Ethernet RJ45 port with PoE Out support.
One 10/100 Mbps BASE-T Ethernet RJ45 port
One USB 2.0 port (Type-A)
One reset button
One RJ45 Passthrough port: RJ45 to RJ45
LED Indicators
One tri-color LED for AP status
Mounting
Wall mount: junction box wall mount bracket included
Dimensions
5.51 x 5.35 x 1.18 inches (14.0 x 13.6 x 3.0 cm)
Environmental
Operating temperature: 32–104°F (0–40°C)
Operating humidity: 5–95% non-condensing
Storage temperature: -40–158°F (-40–70°C) ambient
Storage humidity: 5–95% non-condensing

* Frequency selection and power may be restricted to abide by regional regulatory compliance laws.

Documentation:

Download the Fortinet FortiAP Series Datasheet (PDF).

Pricing Notes:

Fortinet FortiAP Series
FortiAP-122
Dual radio 2x2 2-stream 802.11a/b/g/n/ac Wall Plate Access Point with integrated antennas and two 10/100 BASE-T ports. Powered by PoE (Power over Ethernet) 802.3af/802.3at, or external power adapter (sold separately).
#AP122
Our Price: $499.00
FortiAP-122 8x5 FortiCare Contract
AP122 1 Year 8x5 FortiCare Contract
#FC-10-AP122-311-02-12
List Price: $34.93
Our Price: $30.24
AP122 3 Year 8x5 FortiCare Contract
#FC-10-AP122-311-02-36
List Price: $104.79
Our Price: $90.73
AP122 5 Year 8x5 FortiCare Contract
#FC-10-AP122-311-02-60
List Price: $174.65
Our Price: $151.21
FortiAP-122 24x7 FortiCare Contract
AP122 1 Year 24x7 FortiCare Contract
#FC-10-AP122-247-02-12
List Price: $64.87
Our Price: $56.16
AP122 3 Year 24x7 FortiCare Contract
#FC-10-AP122-247-02-36
List Price: $194.61
Our Price: $168.49
AP122 5 Year 24x7 FortiCare Contract
#FC-10-AP122-247-02-60
List Price: $324.35
Our Price: $280.82
