Fortinet FortiVoice Gateway GS24
2 x 10/100 RJ45 Ports, 1x RJ-21 interface for FXS 1 to 24

Overview:

The FortiVoice Gateway works in conjunction with your FortiVoice phone system to expand the resources and connect different line types to the system. The gateways are supported on the FortiVoice Enterprise systems, FVE-100E and larger.

The FortiVoice Gateway solution provides ease of support for additional phone lines or analog extensions. The compact design and simple configuration makes growing your network a snap, and with the stackable design you can add as many gateways as you need now or later on as you grow. Gateways can be installed locally or remotely to provide scalable solutions for on-premises networks or centralized deployments.

Highlights

• Compact design
• Dual LANs
• Easy Connections
• Ease of Configuration
• Secure Audio

Features & Benefits:

Compact Design
The compact design of the gateways allows additional devices to be connected on the network.

Dual LANs
With dual network connections, it ensures devices will always be available even if a network connection goes down.

Easy Connections
Using standard RJ-11 connections makes it easy to plug lines or cables.

Ease of Configuration
Simplified and centralized configuration through FortiVoice web management.

Secure Audio
With SRTP, all calls are encrypted for maximum security.

PRI (T1/E1)
Supports both PRI T1, PRI E1 and R2 protocols in both single and dual port configurations.

FXO
Supports standard incoming PSTN lines incorporating regional and country dial plans.

FXS
Supports standard analog phones or fax machines allowing you to use your current hardware with newer technology.

Caller ID
Supports Bellcore, ETSI and DTMF Caller ID formats.

Fax / T.38
Supports T.38 for faxing over IP.

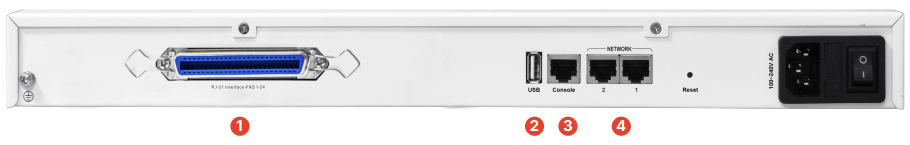

Specifications:

1. 1x RJ-21 interface for FXS 1 to 24
2. 1 x USB Port
3. 1 x Console Port
4. 2 x 10/100 RJ45 Ports

	FVG-GS04	FVG-GS16	FVG-GS24	FVG-GO04	FVG-GT01	FVG-GT02
Hardware Specifications
Analog Extensions (FXS)	4	16	24	—	—	—
Traditional Telephone Lines (FXO)	—	—	—	4	—	—
PRI (T1/E1)	—	—	—	—	1	2
Network Interfaces (RJ45)	2	2	2	2	2	2
Hardware Form Factor	Desktop	Desktop	Rack mount (1U)	Desktop	Rack mount (1U)	Rack mount (1U)
Dimensions
Height x Width x Length (inches)	1.13 x 4.52 x 6.7	1.38 x 6.10 x 13.6	1.75 x 17 x 9.25	1.13 x 4.52 x 6.7	1.75 x 17 x 9.25	1.75 x 17 x 9.25
Height x Width x Length (mm)	35 x 115 x 170	35 x 155 x 345	44.4 x 234.9 x 431.8	35 x 115 x 170	44.4 x 234.9 x 431.8	44.4 x 234.9 x 431.8
Weight	1.54 lbs (0.7 kg)	2 lbs (0.91 kg)	10 lbs (4.5 kg)	1.54 lbs (0.7 kg)	10 lbs (4.5 kg)	10 lbs (4.5 kg)
Advanced Network Features
Voice QoS
802.1Q VLAN
SIP over TLS
SRTP
SNMP
Fax over VoIP
T.38
Management
Command Line Interface
Web Interface
Voice
Codecs	G.711 u-law/A-law, G.729a, G.722, G.726
DTMF	Inband, RFC2883, SIP info

Documentation:

Download the Fortinet FortiVoice Gateway Data Sheet (PDF).
