Fortinet FortiProxy 2000G
Fast, Secure, and Scalable Security for any Organization

Fortinet Products

FortiProxy-2000G FortiProxy2000G, 4xRJ45 GbE, 2xRJ45 GbE Bypass, 2xSFP GbE, 2xSFP+ 10GbE

#FPX-2000G
List Price: ~~$60,000.00~~
Our Price: ~~$44,412.00~~
Call For Lowest Price!

Click here to jump to more pricing!

Overview

Secure Web Gateway Services

Overview:

FortiProxy is a secure web gateway that protects employees against internet-borne attacks by incorporating multiple detection techniques such as web, video, and DNS filtering, data loss prevention, antivirus, intrusion prevention, and Client Browser Isolation.

Highlights

Advanced protection against threats
Virtual domains high performance and scalability
Content caching and WAN optimization

Features

Advanced SSL Inspection

Powerful hardware that can perform SSL inspection to effectively remove blind spots in encrypted traffic, without compromising on performance.

Security Fabric

The Fortinet Security Fabric delivers broad protection and visibility to every network segment, device, and appliance, whether virtual, in the cloud, or on-premises. IFortiProxy integrates with key security fabric components such as FortiSandbox and FortiAnalyzer. It can also integrate with third-party security devices using ICAP and WCCP protocols.

High Performance, Scalability, and Low TCO

FortiProxy uses specialized ASICs in order to accelerate performance of the network and security modules. FortiProxy supports proxy speeds up to 15 Gbps, and can scale from small enterprises with 500 users all the way to larger enterprises of 50,000 users. FortiProxy provides great value to customers while maintaining a low total cost of ownership.

Advanced Protection Against Threats

Integration with FortiGuard Threat Intelligence Service
Web, Video, DNS filtering, and application control
Client Browser Isolation for decreasing the attack surface
Integration with FortiSandbox and FortiNDR cloud and on-premise appliance
AV, IPS, DLP, and Content Analysis

Virtual Domains High Performance and Scalability

Custom–built security processing units for high performance
License sharing across multiple devices (VM and HW)
HA availability for redundancy

Content Caching and WAN Optimization

Static and dynamic content caching
Multiple Content Delivery Network
Decrease Network Latency
Lower bandwidth overhead

Secure Web Gateway Services:

Web and Video Filtering

FortiGuard’s cloud-delivered AI-driven web filtering service provides comprehensive threat protection to address threats including ransomware, credential-theft, phishing, and other webborne attacks. It uses AI-driven behavior analysis and correlation to block unknown malicious URL’s almost immediately, with near-zero false-negatives.

The Web Filtering service leverages industry-leading threat intelligence from FortiGuard labs. This is based on telemetry gathered from over 10 billion real-world events per day. FortiGuard Web Filtering has a database of hundreds of millions of URLs classified into 90+ categories to meet granular web controls and reporting. Help achieve regulatory compliance and granular video control with industry-first advanced video filtering.

DNS Filtering

Protect against sophisticated DNS-based threats including DNS tunneling, C2 server identification, and domain generation algorithms (DGAs). DNS filtering provides full visibility into DNS traffic while blocking high-risk domains including malicious newly registered domains (NRDs), parked domains, and more.

Granular Application Control

With the constant increase in the usage of social apps, it’s vital for organizations to provide very granular controls. For instance, they may want to allow access but prevent specific actions like posts. FortiProxy supports all major social websites (including Facebook, LinkedIn, Twitter, Instagram), and supports more than 3000 apps. In addition, SaaS Apps can be classified using the cloud database that’s maintained by FortiGuard.

Data Loss Prevention

Protect sensitive data from leaving your network, ensure data privacy and regulatory compliance requirements. Sensitive files can be fingerprinted or watermarked and the outgoing traffic is examined to identify any data leakage.

Intrusion Prevention

FortiProxy uses a combination of signature as well as signature-less engines to prevent intrusions. IPS signatures can be based on exploits, known vulnerabilities or anomaly patterns. Signature-less techniques are used to detect SQL injection, domain generation algorithm attacks, java and flash exploits. FortiGuard Labs generates more than 100 IPS rules every week, blocking more than 4 million network intrusion attempts.

Client Browser Isolation

Client-based native browser isolation (NBI) uses a Docker container to isolate the browser from the external networks. Client browser isolation provides a full browser isolation to stop phishing, account takeover, and malware without performance overhead and without the need for SSL inspection.

Sandboxing

Complement with a two-step AI based sandboxing approach. Suspicious and at-risk files are subjected to the first stage of analysis that quickly identifies known and emerging malware through FortiSandbox’s ML powered static analysis. Second stage analysis is done in a contained environment to uncover the full attack lifecycle leveraging behavior-based ML with dynamic analysis detection engine more efficient and effective against new zero-day threats

Content Analysis

Enforce acceptable usage by detecting and preventing illicit images and videos with AI-driven content analysis. With the addition of the Content Disarm and Reconstruction service, you can reduce mean time to detection (MTTD) with low latency content sanitization. A broad range of file types are supported beyond traditional signature-based and reputation-based measures.

WAN Optimization and Advanced Caching

Today at many locations, bandwidth is a bottleneck, and to keep operation costs low, it may be prohibitive to provide additional bandwidth. In these environments, FortiProxy is also able to greatly optimize and accelerate the network by enabling caching of content and by enabling WAN Optimization features.

Use Cases:

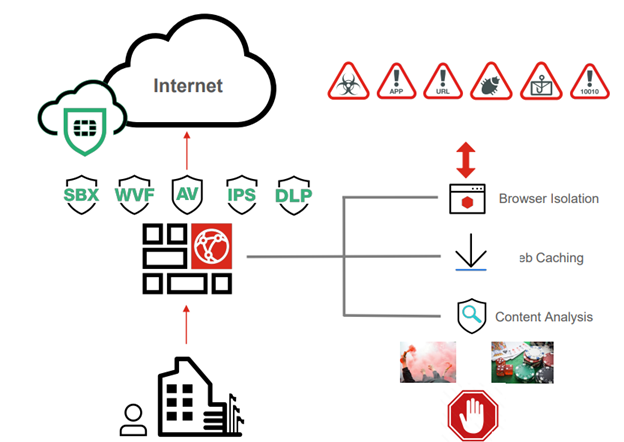

SWG Services

Methods Supported
- Explicit Proxy, Transparent, PBR, and WCCP
Advanced Offering
- FortiProxy employs multiple FortiGuard services to protect users against the latest web threats and to enforce compliance
- Integration with FortiGuard Threat Intelligence Service
Benefits
- Advanced SWG Services
- Full Visibility
- All-Inclusive License
- Stackable License from 500 to 50K Users

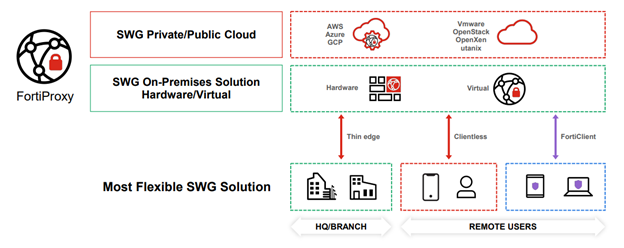

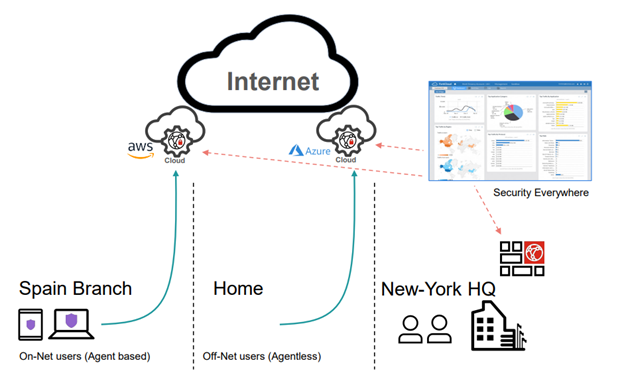

Hybrid Cloud Solution

Methods Supported
- On-prem HW/VM, Agent-based, Agentless
Advanced Offering
- Share license according to load/ time/ user
- Explicit Proxy with PAC File hosting support
- Centralized management of your FortiProxy devices from a single console
Benefits
- Auto scaling
- Full Visibility
- Consistent Security Across all Users

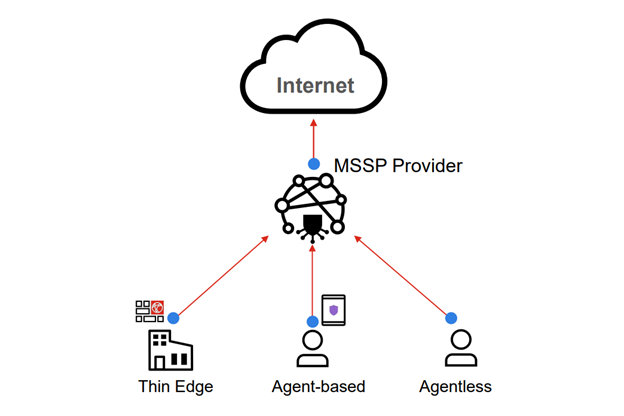

Managed Security Service Providers

Methods Supported
- Thin Edge, Agent-based, Agentless
Advanced Offering
- Share license according to load/ time/ user
- Explicit Proxy with PAC File hosting support or SSL-VPN
- VDOM per customer - full integration and visibility
Benefits
- Easy Onboarding
- Full Visibility

Features Summary:

System

Wide range of deployment options:
- Inline, Forward Proxy, Explicit proxy, WCCP/PBR
- Hardware or virtual appliance
IPv4 and IPv6 address support
Application Support including HTTP/S
HA available as active-active and activebackup with session synchronization
Automation Stitches
Virtual Domains

Threat Protection

Integration with FortiGuard threat intelligence services for real-time threat updates
Integration with cloud sandbox to detect advanced threats
In-built security services requiring no additional appliance
Web, Video, and DNS Filtering
- Dynamic categorization of websites
- Blocking of malicious and suspicious domains and URLs
- Static blacklists and whitelists
Application Control
- Granular web application control for social websites
- Support for 3000+ applications
Antivirus, bonet and DLP
Client Browser Isolation
Virtual Domains
Content Analysis
Multiple ICAP servers support
IPS signature and filters
Web Rating Override
SSL/SSH Inspection
Custom Application Signature

Authentication

Support for various authentication modes including Radius, SAML, LDAP, NTLM, Kerberos, FortiToken One-Time Password
In-built authentication requiring no additional device

Advanced Caching

Web and video caching
Reverse web cache
Traffic Shaping and QoS policies to prioritize Apps
Dynamic adaptive streaming over HTTP
Dynamic adaptive streaming over RTP and RTMPT

WAN Optimization

Protocol Optimization – support HTTP, MAPI, CIFS, FTP, and TCP
Secure tunneling over across WAN
Wan Optimization peers

Management and Reporting

FortiView Integration
FortiAnalyzer Integration
Support Syslog server
Granular role based access
Reporting and Logging
Policy tests for ease of deployment

Specifications:

	FortiProxy 400G	FortiProxy 2000G	FortiProxy 4000G
System Information
License Capacity	500–6,000 users	500–20,000 users	500–60,000 users
Deployment Modes	Inline Proxy, Transparent/WCCP Proxy, Explicit Proxy, Routed Proxy
Virtual Domain	up to 10 VDOM	up to 100 VDOM	up to 250 VDOM
Hardware Specifications
Memory	16 GB	128 GB	256 GB
Management	HTTP/S, SSH, CLI, SNMP, Console RJ45	HTTP/S, SSH, CLI, SNMP, Console RJ45	HTTP/S, SSH, CLI, SNMP, Console RJ45
Network Interfaces	4x GE RJ45	2x 10 GE SFP+, 2x GE SFP ports, 2x GE RJ45 ports	4x 10 GE SFP+, 2x GE SFP ports, 4x GE RJ45 ports
Bypass Interfaces	—	2x GE RJ45 ports	2x GE RJ45 ports
Storage	4 TB (2 TB x2) Hard Disk	8 TB (2 TB x4) Hard Disk	8 TB (2 TB x4) Hard Disk
Power Supply	Single (Optional Dual)	Dual	Dual
Environment
Form Factor	1U Appliance	2U Appliance	2U Appliance
Input Voltage	100–240V, AC 60–50 Hz	100–240V AC, 50–60 Hz	100–240V AC, 50–60 Hz
Power Consumption (Average / Maximum)	120 W / 151 W	289 W / 353 W	549 W / 670 W
Maximum Current	100V/5A, 240V/3A	100V/7.5A, 240V/3.9A	100V/10A, 240V/5A
Heat Dissipation	550 BTU/h	1,238 BTU/h	2,321 BTU/h
Operating Temperature	32–104°F (0–40°C)	32–104°F (0–40°C)	32–104°F (0–40°C)
Storage Temperature	-13–158°F (-25–70°C)	-13–158°F (-25–70°C)	-13–158°F (-25–70°C)
Humidity	5–95% non-condensing	8–90% non-condensing	10%–90% non-condensing
Dimensions
Height x Width x Length (inches)	1.73 x 17.24 x 16.38	3.5 x 17.2 x 31.9	3.5 x 17.2 x 31.9
Height x Width x Length (cm)	44 x 438 x 416	88 x 445 x 810	88 x 445 x 810
Weight	25 lbs (11 kg)	43 lbs (19.4 kg)	43 lbs (19.4 kg)
Compliance
Safety Certifications	FCC, ICES, CE, RCM, VCCI, BSMI (Class A), UL/cUL, CB

Documentation:

Download the Fortinet FortiProxy Series Datasheet (PDF).

Pricing and product availability subject to change without notice.

Fortinet Products

FortiProxy-2000G FortiProxy2000G, 4xRJ45 GbE, 2xRJ45 GbE Bypass, 2xSFP GbE, 2xSFP+ 10GbE

#FPX-2000G
List Price: ~~$60,000.00~~
Our Price: ~~$44,412.00~~
Call For Lowest Price!

FortiProxy-2000G SWG Protection - Web & Video Filtering, DNS Filtering, Application Control, DLP, IPS, AV, Botnet (IP/Domain), Sandbox Cloud including Virus Outbreak and Content Disarm & Reconstruct. 500 User license with SWG Protection (Minimum order 1 and up to 100)

FortiProxy-2000G 1 Year SWG Protection - Web & Video Filtering, DNS Filtering, Application Control, IPS, AV, Botnet (IP/Domain),FortiSandbox SaaS including Virus Outbreak and Content Disarm & Reconstruct. 500 User license with SWG Protection (Minimum order 1 and up to 40)

#FC1-10-XY2KG-514-02-12
List Price: ~~$2,500.00~~
Our Price: $1,850.50

FortiProxy-2000G 3 Year SWG Protection - Web & Video Filtering, DNS Filtering, Application Control, IPS, AV, Botnet (IP/Domain),FortiSandbox SaaS including Virus Outbreak and Content Disarm & Reconstruct. 500 User license with SWG Protection (Minimum order 1 and up to 40)

#FC1-10-XY2KG-514-02-36
List Price: ~~$7,500.00~~
Our Price: $5,551.50

FortiProxy-2000G 5 Year SWG Protection - Web & Video Filtering, DNS Filtering, Application Control, IPS, AV, Botnet (IP/Domain),FortiSandbox SaaS including Virus Outbreak and Content Disarm & Reconstruct. 500 User license with SWG Protection (Minimum order 1 and up to 40)

#FC1-10-XY2KG-514-02-60
List Price: ~~$12,500.00~~
Our Price: $9,252.50

FortiProxy-2000G Content Analysis Service. 500 User license (Minimum order 1 and up to 100)

FortiProxy-2000G 1 Year Content Analysis Service. 500 User license (Minimum order 1 and up to 40

#FC1-10-XY2KG-160-02-12
List Price: ~~$250.00~~
Our Price: $185.05

FortiProxy-2000G 3 Year Content Analysis Service. 500 User license (Minimum order 1 and up to 40

#FC1-10-XY2KG-160-02-36
List Price: ~~$750.00~~
Our Price: $555.15

FortiProxy-2000G 5 Year Content Analysis Service. 500 User license (Minimum order 1 and up to 40

#FC1-10-XY2KG-160-02-60
List Price: ~~$1,250.00~~
Our Price: $925.25

FortiProxy-2000G Client Browser Isolation. 500 user license (Minimum order 1 and up to 100) - Support Windows10 and Chrome

FortiProxy-2000G 1 Year Client Browser Isolation. 500 user license (Minimum order 1 and up to 40) - Support Windows10 and Chrome

#FC1-10-XY2KG-587-02-12
List Price: ~~$750.00~~
Our Price: $555.15

FortiProxy-2000G 3 Year Client Browser Isolation. 500 user license (Minimum order 1 and up to 40) - Support Windows10 and Chrome

#FC1-10-XY2KG-587-02-36
List Price: ~~$2,250.00~~
Our Price: $1,665.45

FortiProxy-2000G 5 Year Client Browser Isolation. 500 user license (Minimum order 1 and up to 40) - Support Windows10 and Chrome

#FC1-10-XY2KG-587-02-60
List Price: ~~$3,750.00~~
Our Price: $2,775.75

FortiProxy-2000G FortiCare Premium Support

FortiProxy-2000G 1 Year FortiCare Premium Support

#FC-10-XY2KG-247-02-12
List Price: ~~$12,000.00~~
Our Price: $10,363.20

FortiProxy-2000G 3 Year FortiCare Premium Support

#FC-10-XY2KG-247-02-36
List Price: ~~$36,000.00~~
Our Price: ~~$31,089.60~~
Call For Lowest Price!

FortiProxy-2000G 5 Year FortiCare Premium Support

#FC-10-XY2KG-247-02-60
List Price: ~~$60,000.00~~
Our Price: ~~$51,816.00~~
Call For Lowest Price!

FortiProxy-2000G FortiGuard Data Loss Prevention Service. 500 user license (Minimum order 1 and up to 100)

FortiProxy-2000G 1 Year FortiGuard Data Loss Prevention Service. 500 user license (Minimum order 1 and up to 40

#FC1-10-XY2KG-589-02-12
List Price: ~~$500.00~~
Our Price: $370.10

FortiProxy-2000G 3 Year FortiGuard Data Loss Prevention Service. 500 user license (Minimum order 1 and up to 40

#FC1-10-XY2KG-589-02-36
List Price: ~~$1,500.00~~
Our Price: $1,110.30

FortiProxy-2000G 5 Year FortiGuard Data Loss Prevention Service. 500 user license (Minimum order 1 and up to 40

#FC1-10-XY2KG-589-02-60
List Price: ~~$2,500.00~~
Our Price: $1,850.50

FortiProxy-2000G SWG Protection - Web & Video Filtering, DNS Filtering, Application Control, IPS, AV, Botnet (IP/Domain),FortiSandbox SaaS including Virus Outbreak and Content Disarm & Reconstruct. 500 User license with SWG Protection (Minimum order 1 and up to 40)

FortiProxy-2000G 2 Year SWG Protection - Web & Video Filtering, DNS Filtering, Application Control, IPS, AV, Botnet (IP/Domain),FortiSandbox SaaS including Virus Outbreak and Content Disarm & Reconstruct. 500 User license with SWG Protection (Minimum order 1 and up to 40)

#FC1-10-XY2KG-514-02-24
List Price: ~~$5,000.00~~
Our Price: $3,701.00

FortiProxy-2000G 4 Year SWG Protection - Web & Video Filtering, DNS Filtering, Application Control, IPS, AV, Botnet (IP/Domain),FortiSandbox SaaS including Virus Outbreak and Content Disarm & Reconstruct. 500 User license with SWG Protection (Minimum order 1 and up to 40)

#FC1-10-XY2KG-514-02-48
List Price: ~~$10,000.00~~
Our Price: $7,402.00

FortiProxy-2000G Content Analysis Service. 500 User license (Minimum order 1 and up to 40

FortiProxy-2000G 2 Year Content Analysis Service. 500 User license (Minimum order 1 and up to 40

#FC1-10-XY2KG-160-02-24
List Price: ~~$500.00~~
Our Price: $370.10

FortiProxy-2000G 4 Year Content Analysis Service. 500 User license (Minimum order 1 and up to 40

#FC1-10-XY2KG-160-02-48
List Price: ~~$1,000.00~~
Our Price: $740.20

FortiProxy-2000G Client Browser Isolation. 500 user license (Minimum order 1 and up to 40 - Support Windows10 and Chrome

FortiProxy-2000G 2 Year Client Browser Isolation. 500 user license (Minimum order 1 and up to 40) - Support Windows10 and Chrome

#FC1-10-XY2KG-587-02-24
List Price: ~~$1,500.00~~
Our Price: $1,110.30

FortiProxy-2000G 4 Year Client Browser Isolation. 500 user license (Minimum order 1 and up to 40) - Support Windows10 and Chrome

#FC1-10-XY2KG-587-02-48
List Price: ~~$3,000.00~~
Our Price: $2,220.60

FortiProxy-2000G FortiGuard Data Loss Prevention Service. 500 user license (Minimum order 1 and up to 40

FortiProxy-2000G 2 Year FortiGuard Data Loss Prevention Service. 500 user license (Minimum order 1 and up to 40

#FC1-10-XY2KG-589-02-24
List Price: ~~$1,000.00~~
Our Price: $740.20

FortiProxy-2000G 4 Year FortiGuard Data Loss Prevention Service. 500 user license (Minimum order 1 and up to 40

#FC1-10-XY2KG-589-02-48
List Price: ~~$2,000.00~~
Our Price: $1,480.40

FortiProxy-2000G FortiProxy Data Protection Services includes Image Content Analysis and FortiGuard DLP Services. 500 User License (Order up-to Maximum of 40 units)

FortiProxy-2000G 1 Year FortiProxy Data Protection Services includes Image Content Analysis and FortiGuard DLP Services. 500 User License (Order up-to Maximum of 40 units)

#FC1-10-XY2KG-1005-02-12
List Price: ~~$750.00~~
Our Price: $555.15

FortiProxy-2000G 2 Year FortiProxy Data Protection Services includes Image Content Analysis and FortiGuard DLP Services. 500 User License (Order up-to Maximum of 40 units)

#FC1-10-XY2KG-1005-02-24
List Price: ~~$1,500.00~~
Our Price: $1,110.30

FortiProxy-2000G 3 Year FortiProxy Data Protection Services includes Image Content Analysis and FortiGuard DLP Services. 500 User License (Order up-to Maximum of 40 units)

#FC1-10-XY2KG-1005-02-36
List Price: ~~$2,250.00~~
Our Price: $1,665.45

FortiProxy-2000G 4 Year FortiProxy Data Protection Services includes Image Content Analysis and FortiGuard DLP Services. 500 User License (Order up-to Maximum of 40 units)

#FC1-10-XY2KG-1005-02-48
List Price: ~~$3,000.00~~
Our Price: $2,220.60

FortiProxy-2000G 5 Year FortiProxy Data Protection Services includes Image Content Analysis and FortiGuard DLP Services. 500 User License (Order up-to Maximum of 40 units)

#FC1-10-XY2KG-1005-02-60
List Price: ~~$3,750.00~~
Our Price: $2,775.75

Fortinet FortiProxy 2000G Fast, Secure, and Scalable Security for any Organization
