Fortinet FortiExtender Vehicle 511G
Industrial strength for secure networks
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Overview:

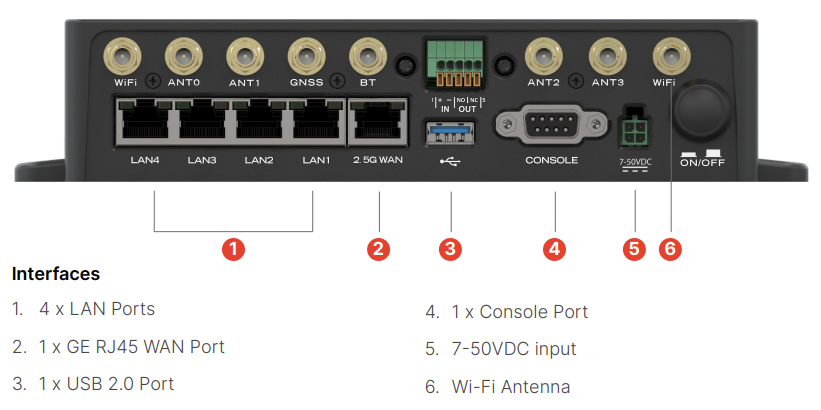

The FortiExtender Vehicle 511G interface includes 4 LAN ports and 1 WAN port, featuring a digital I/O port for external device control, as well as Console and USB 2.0 ports for out of band management (OOB).
Industrial strength for secure networks
FortiExtender ruggedized 5G/LTE gateways offer scalable, secure, and resilient connectivity for operational technology networks and enterprise networks with harsh deployment environments. Driven by Fortinet’s unique approach of Secure Networking, FortiExtender allows organizations business continuity, improved network availability while securing connectivity with wired broadband and cellular networks.

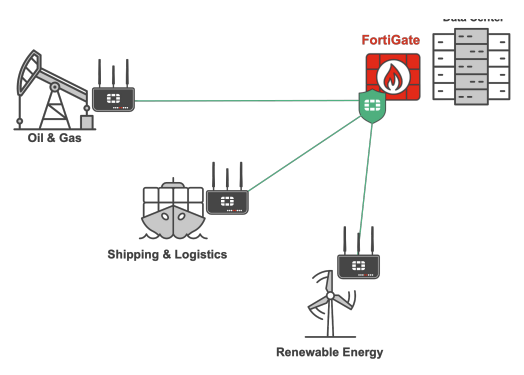

From remote sites in harsh conditions, to factories, healthcare facilities, and fleet vehicles—FortiExtender ruggedized 5G/LTE gateways provide reliable broadband access to the internet and extends the value of the Fortinet Security Fabric to support fluid business operations dependent on remote device connectivity.
Highlights
- Extends network edge into vehicle and harsh site deployments
- Unifies 3G/4G LTE, 5G, and Wi-Fi in a single device
- Dust and splash proof (IP64)
- Ruggedized against extreme temperatures, shock, vibration, and humidity
- Certified for a variety of deployment scenarios
- Enables secure network fabrics with VxLAN extension
- Cloud management and on-premises management options
- Rich interface for multiple LAN, WAN, and console connections
- Small form-factor for easy deployment and optimal cellular signal
Features:
Superior Management, Security, and Control
FortiExtender Rugged is a plug-and-play device. Once deployed in a vehicle or at a harsh site remotely over VxLAN, FortiExtender appears as a regular network interface in FortiOS management. Administrators can manage the connection and implement advanced protection from FortiGuard, just like any other FortiGate interface.
Ruggedized for Any Deployment Scenario
FortiExtender rugged devices allow you to deploy the device in a vehicle or at a harsh site. The devices are protected against temperature extremes, shock, vibration, humidity, and provide ingress protection against dust and splash. In addition, FortiExtender ruggedized devices are certified for deployment in unique secnarios, such as rail deployments.
5G/LTE Wireless WAN

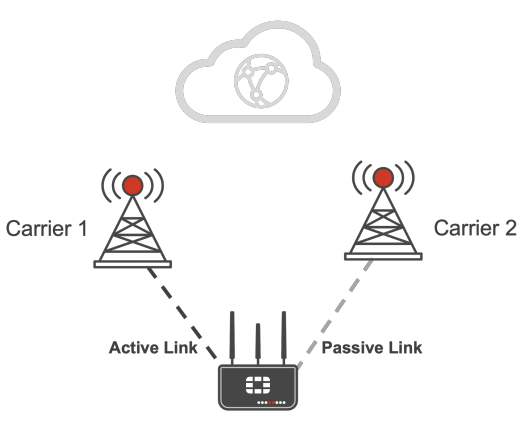

FortiExtender ruggedized devices support dual-SIM and dual-modem options, enabling up to four different ISPs for ultra-reliable connectivity. Dual-SIM models enable active/passive cellular for failover based on data plan, disconnects, signal strength, and link health, allowing you to balance connectivity quality and cost. Dual-Modem provides active/active cellular links for high-availability, traffic isolation, and load-balancing use cases.
LAN Connectivity
FortiExtender offers multiple LAN Ethernet ports to enable multiple connections at the Wireless WAN site. Ideal for High Availability (HA) pairs of FortiGates, each FortiGate can be directly connected to the FortiExtender. Either FortiGate can run in load-balancing or failover modes and receive WAN connectivity from the FortiExtender.
VxLAN Extension
You don’t need a FortiGate on site to deploy AI-powered security with your FortiExtender. Enhanced LAN Extension in FortiExtender creates a network fabric using VxLAN technology where you can extend the Layer 2 broadcast domain of a remote FortiGate to the standalone FortiExtender with no extra license needed. Depending on the FortiGate model, Enhanced LAN Extension supports over 1000 FortiExtenders per firewall.

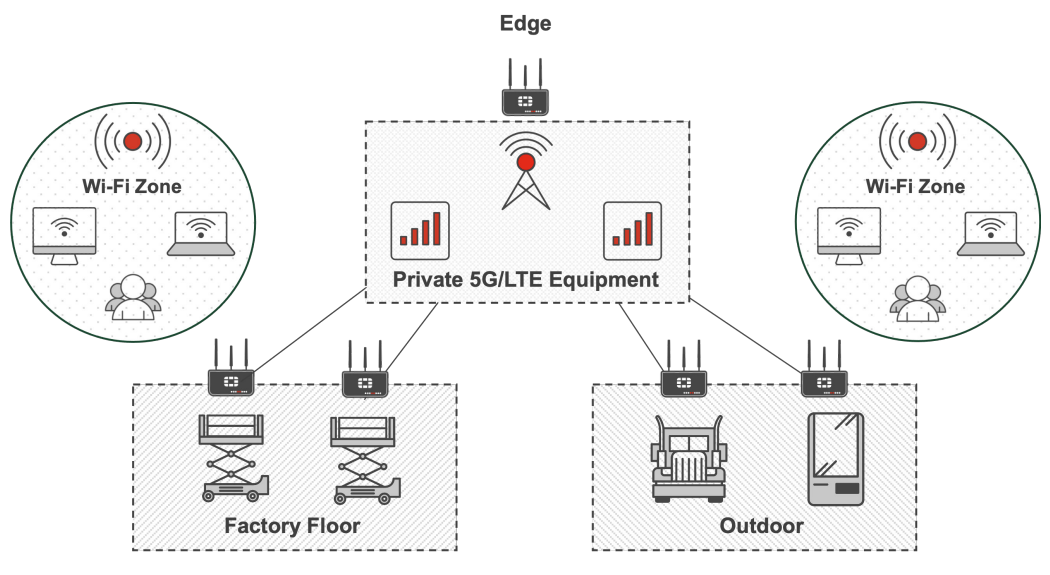

Private 5G/LTE (CBRS)
All FortiExtender 5G/LTE models support CBRS in either the form of LTE Band 48 or 5G N48. This allows FortiExtender to play a critical role in Private 5G/LTE deployments as a rapid secure uplink at the edge. When equipped with a Private 5G/LTE SIM card, FortiExtenders can also receive CBRS signal from Private 5G/LTE Access Points to deployed on Automated Guided Vehicles (AGVs), Autonomous Mobile Robots (AMRs), or as virtual LAN mobile zones in parking lots, pop-up tents, and more.
Deployment:
Production Site
Specifications:
| FortiExtender Vehicle 511G | FortiExtender Rugged 511G | |
|---|---|---|
| Hardware Specifications | ||
| Hardware and System | IPQ6010, Quad-Core [email protected] | IPQ6010-1, Quad-Core [email protected] |
| Modem Support | Telit FN990A28-HP | Telit FN990A28-HP |
| Number of Antennas | 7 (4x 5G/LTE + 1x GNSS + 2x 2.4G/5G Wi-Fi) | 7 (4x 5G/LTE + 1x GNSS + 2x 2.4G/5G Wi-Fi) |
| Power over Ethernet (PoE) Powered | — | on 2.5G WAN port |
| Ethernet Ports | 1x 2.5G + 4x 1G | 1x 2.5G/PoE + 1x 1G |
| USB Ports | 1x USB 2.0-A | 1x USB 2.0-A |
| Bluetooth | ||
| GPS Antenna Port | Dedicated GNSS port | Dedicated GNSS port |
| Wi-Fi | Wi-Fi 6 (802.11ax) | Wi-Fi 6 (802.11ax) |
| Mounting Options | Desk, Wall, DIN Rail (Optional DIN rail clip required) | Pole, Wall |
| Type | Vehicle | Outdoor |
| Dimensions | ||
| Height x Width x Length (inches) | 7.6 x 5.1 x 1.8 | 9.5 x 7.1 x 1.85 |
| Height x Width x Length (mm) | 192 x 130 x 45 | 242 x 181 x 47 |
| Weight | 0.96 (Kg) | 1.7 (Kg) |
| Environment | ||
| Power Required | 7 - 50V | PoE 802.3at |
| Power Consumption (Average) | 18.5 W | 11 W |
| Power Consumption (Maximum) | 20 W | 16 W |
| Operating Temperature | -40°F to 158°F (-40°C to 70°C) | -40°F to 158°F (-40°C to 70°C) |
| Storage Temperature | -40°F to 158°F (-40°C to 70°C) | -40°F to 158°F (-40°C to 70°C) |
| Humidity | 5% to 95% RH non-condensing | 5% to 95% RH non-condensing |
| Carrier Certifications | ||
| PTCRB | ||
| AT&T FirstNet | FirstNet Capable | — |
| Certification | ||
| FCC | FCC Part 15B, 15C, 15E, 2.1091 | FCC Part 15B, 15C, 15E, 2.1091 |
| IC | ICES-003, RSS-247, RSS-102 | ICES-003, RSS-247, RSS-102 |
| CE | EMC 2014/30/EU (EN 55032, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 301 489-1/-3/-17/-19/-52) RED 2014/53/EU (EN 300 328, EN 301 893, EN 300 440, EN 303 413, EN 301 908-1/-2/-13/-25, EN IEC 62311, EN 50665, EN 50385) LVD 2014/35/EU (EN 62368-1) |
EMC 2014/30/EU (EN 55032, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 301 489-1/-3/-17/-19/-52) RED 2014/53/EU (EN 300 328, EN 301 893, EN 300 440, EN 303 413, EN 301 908-1/-2/-13/-25, EN IEC 62311, EN 50665, EN 50385) LVD 2014/35/EU (EN 62368-1, EN 60950-22) |
| UL | UL/CSA 62368-1 | UL/CSA 62368-1 |
| CB | IEC/EN 62368-1 | IEC/EN 62368-1, IEC/EN 60950-22 |
| Ingress Protection | IP64 | IP67 |
| Rolling Stock | — | |
| Shock/Vibration/Humidity | MIL-STD-810H | IEC 61850-3 / IEEE 1613 |
| Regional Compatibility | ||
| FCC Part 15B, 15C, 2.1091 | FCC Part 15B, 15C, 15E, 2.1091 | |
| Bandwidth and Throughput Information | ||
| IPsec VPN (Wired) | 850 Mbps | 850 Mbps |
| IPsec VPN (LTE/5G) | 400 Mbps | 400 Mbps |
| LAN-Extension (VxLAN over IPsec) | 600 Mbps | 600 Mbps |
| LAN-LAN Layer-2 Frames | 950 Mbps | 950 Mbps |
| LAN-WAN NAT Layer 3 packets | 940 Mbps | 940 Mbps |
| Max WAN Uplinks Supported | 1 | 1 |
Cellular Wireless Specifications:
| Feature | FortiExtender Vehicle 511G | FortiExtender Rugged 511G |
|---|---|---|
| Regional Compatibility | Global | Global |
| Internal Modem Specifications | ||
| Modem Model | FN990A28-HP | FN990A28-HP |
| 5G NR SA and NSA** | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79 | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n71, n75, n76, n77, n78, n79 |
| 4G: LTE** | B1, B2(B25), B3, B4(B66), B26(B5, B18, B19), B7, B8, B12(B17), B13, B14, B20, B28, B29(DL), B30, B32(DL), B34, B38, B39, B40, B41, B42, B43, B46(LAA), B48(CBRS), B66, B71 | B1, B2(B25), B3, B4(B66), B26(B5, B18, B19), B7, B8, B12(B17), B13, B14, B20, B28, B29(DL), B30, B32(DL), B34, B38, B39, B40, B41, B42, B43, B46(LAA), B48(CBRS), B66, B71 |
| 3G: UMTS/HSPA+** | B1, B2, B4, B5(B6, B19), B8 | B1, B2, B4, B5(B6, B19), B8 |
| 3G: WCDMA** | B1, B2, B4, B5(B6, B19), B8 | B1, B2, B4, B5(B6, B19), B8 |
| Additional Ports | — | — |
| Connector Type | SMA | N/A (Internal antennas) |
| Module Certifications* | AT&T, FirstNet, VZW, TMO, KDDI, Docomo, FCC, ISED, RED, JATE/TELEC, Anatel, RCM, NCC, GCF, PTCRB, KC, Telstra | AT&T, FirstNet, VZW, TMO, KDDI, Docomo, FCC, ISED, RED, JATE/TELEC, Anatel, RCM, NCC, GCF, PTCRB, KC, Telstra |
| Diversity | 5G n41/77/78/79 PC1.5. No on others | 5G n41/77/78/79 PC1.5. No on others |
| MIMO | ||
| GNSS Bias | , not used in FER-511G | |
| Advanced Radio Technology** | ||
| 2x2 MIMO — enables industry leading data speeds | MIMO UL support on bands: 5G FR1: n38, n41, n48, n77, n78, n79 | MIMO UL support on bands: 5G FR1: n38,n41, n48, n77, n78, n79 |
| 4x4 MIMO — enables industry leading data speeds | 4x4 MIMO DL support on bands: 5G FR1: n1, n2, n3, n7, n25, n30, n38, n40, n41, n48, n66, n75, n77, n78, n79 4G: B1, B2, B3, B4, B7, B25, B30, B38, B39, B40, B41, B42, B43, B48, B66" |
4x4 MIMO DL support on bands: 5G FR1: n1, n2, n3, n7, n25, n30, n38, n40, n41, n48, n66, n75, n77, n78, n79 4G: B1, B2, B3, B4, B7, B25, B30, B38, B39, B40, B41, B42, B43, B48, B66 |
| 5G Downlink 4x4 MIMO bands ** n1, n2, n3, n7, n25, n30, n38, n40, n41, n48, n66, n75, n77, n78, n79 |
||
| 5G Uplink 2 × 2 MIMO Band ** n38, n41, n48, n77, n78, n79 |
||
| LTE Downlink 4 × 4 MIMO bands ** B1, B2, B3, B4, B7, B25, B30, B38, B39, B40, B41, B42, B43, B48, B66 |
||
| Receiver Diversity — improves performance at cell edges and in buildings | ||
| Dual Modem | ||
| 2x2 2.4G/5 GHz concurrent Wi‑Fi 6 (802.11ax) | ||
| Advanced Software Features | ||
| Connection Status | ||
| Auto‑connect | ||
| Auto‑select Network | ||
| Data Byte Count | ||
| Network Profile | ||
| Power Management — standby and hibernate selective suspend | ||
| DIAG and AT Commands | ||
| Private IP SIM Support | ||
| L2 Tunnel Mode via VLAN or CAPWAP for fast and flexible deployments | ||
| Single Pane of Glass Management via FortiGate and FortiManager | ||
| SIM Features | ||
| Dual‑SIM Support with intelligent fail‑over algorithms | ||
| SIM Size: Micro‑SIM type 3FF | ||
| SIM Security Cover | ||
| IMEI printed at bottom of enclosure for ease of activation | ||
* Applies only to the modem module and does not apply to the device.
** Supported frequency bands are contingent upon the modem vendor’s firmware integrity, the Fortinet software version deployed, and carrier-specific configurations. Fortinet makes no guarantees regarding continued compatibility of bands across all carriers, FortiExtender hardware or software versions.
Documentation:
Download the Fortinet FortiExtender Rugged Series Datasheet (PDF).
