Fortinet FortiExtender 211G
Extend, Ensure, and Secure Your Network with 5G/LTE Gateways
[Image coming soon]
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Overview:
Extend, Ensure, and Secure Your Network
FortiExtender indoor 5G/LTE gateways offer scalable, secure, and resilient connectivity for enterprise networks. Driven by Fortinet’s unique approach of Secure Networking, FortiExtender allows organizations business continuity, improved network availability while securing connectivity with wired broadband and cellular networks.
From secure point of sale (POS) systems, to factories, healthcare facilities, microbranches, and kiosks— FortiExtender provides reliable broadband access to the internet and extends the value of the Fortinet Security Fabric to support fluid business operations dependent on remote device connectivity.
Highlights
- Improves network uptime
- Extends the network edge
- Provides out of band management (OOB)
- Integrates with Fortinet Secure SD-WAN
- Enables network fabrics with VxLAN extension
- Cloud management and on-premises management options
- Rich interface for multiple LAN and WAN connections
- Small form-factor for easy deployment and optimal cellular signal
Features:
Superior Management, Security, and Control
FortiExtender is a plug-and-play device. Once connected to a FortiGate, either directly or remotely over VxLAN, FortiExtender appears as a regular network interface in FortiOS management. IT administrators can manage the connection and implement advanced protection from FortiGuard, just like any other FortiGate interface.
Flexible Deployment for Optimal Signal Strength
FortiExtender devices removed the need for lengthy, expensive, and lossy antenna cables. FortiExtender utilizes Power over Ethernet (PoE) so you can run a high-quality Ethernet cable up to 100 meters away from the FortiGate or network switch where there is optimal 5G/LTE signal. Certain FortiExtender models also support SFP ports, so that you can deploy the device over 100 meters away from the FortiGate or network switch.
5G/LTE Wireless WAN

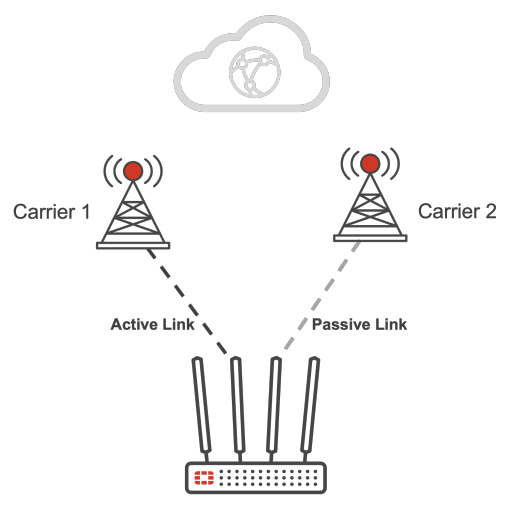

FortiExtender supports dual-SIM and dual-modem options, enabling up to four different ISPs for ultra-reliable connectivity. Dual-SIM models enable active/passive cellular for failover based on data plan, disconnects, signal strength, and link health, allowing you to balance connectivity quality and cost. Dual-Modem provides active/active cellular links for high-availability, traffic isolation, and load-balancing use cases. Failover configuration options for Dual-SIM FortiExtender include.
Wired WAN Connectivity
FortiExtender offers WAN connectivity options with an Ethernet WAN port, in addition to 5G/LTE Wireless WAN links. With this wired WAN port, you can connect a DSL, cable, or another modem for additional WAN connectivity. Load-balancing and failover options enable your FortiExtender to manage your WAN connections across several options to ensure optimal connectivity and cost.
LAN Connectivity
FortiExtender offers multiple LAN Ethernet ports to enable multiple connections at the Wireless WAN site. Ideal for High Availability (HA) pairs of FortiGates, each FortiGate can be directly connected to the FortiExtender. Either FortiGate can run in load-balancing or failover modes and receive WAN connectivity from the FortiExtender.
VxLAN Extension
You don’t need a FortiGate on site to deploy AI-powered security with your FortiExtender. Enhanced LAN Extension in FortiExtender creates a network fabric using VxLAN technology where you can extend the Layer 2 broadcast domain of a remote FortiGate to the standalone FortiExtender with no extra license needed. Depending on the FortiGate model, Enhanced LAN Extension supports over 1,000 FortiExtenders per firewall.
Virtual Routing Redundancy Protocol (VRRP)
In branch environments where a high-availability (HA) pair of FortiGates is not possible, FortiExtender supports VRRP to offer HA alongside a single FortiGate. When plugged into a FortiGate, FortiExtender acts as a passive IP passthrough device to the FortiGate. In the event of a FortiGate failure, FortiExtender will take over as the master NAT firewall, offering uninterrupted connectivity for enhanced business continuity. When the FortiGate is restored, FortiExtender returns to its passive role.
Private 5G/LTE (CBRS)
All FortiExtender 5G/LTE models support CBRS in either the form of LTE Band 48 or 5G N48. This allows FortiExtender to play a critical role in Private 5G/ LTE deployments as a rapid secure uplink at the edge. When equipped with a Private 5G/LTE SIM card, FortiExtenders can also receive CBRS signal from Private 5G/LTE Access Points to deployed on Automated Guided Vehicles (AGVs), Autonomous Mobile Robots (AMRs), or as virtual LAN mobile zones in parking lots, pop-up tents, and more.
Specifications:
| FortiExtender 211G | |
|---|---|
| Hardware Specifications | |
| Hardware and System | |
| Modem Support | Internal (1x Modem) LTE CAT-12 |
| Number of Antennas | 3 SMA External (2x LTE + 1x GNSS) |
| Power over Ethernet (PoE) Powered | 1x Port4, IEEE 802.3at (25.5W) |
| Ethernet Ports | 1x 1GigE WAN, 4x 1GigE LAN |
| USB Ports | 1x USB 2.0 Type-A |
| Bluetooth | BLE 5.0+ |
| GPS Antenna Port | |
| Mounting Options | Wall-Mount / Desktop |
| Type | Indoor |
| Dimensions | |
| Height x Width x Length (inches) | 1.5 x 6.22 x 6.22 (not including antenna length) |
| Height x Width x Length (mm) | 38 x 158 x 158 (not including antenna length) |
| Weight | 0.90 lbs (0.41 Kg) |
| Environment | |
| Power Required | PoE 802.3af/at or 12V/3A External Adapter |
| Power Consumption (Average) | 9.18W |
| Power Consumption (Maximum) | 10.64W |
| Operating Temperature | 32°F to 104°F (-0°C to 40°C) |
| Storage Temperature | -40°F to 158°F (-40°C to 70°C) |
| Humidity | 5% to 95% |
| Certification | |
| FCC | FCC Part 15B, 15C, 2.1091 |
| IC | ICES-003, RSS-247, RSS-102 |
| CE | EMC 2014/30/EU (EN 55032, EN 55035, EN IEC 61000-3-2, EN 61000-3-3, EN 301 489-1/-17/-19/-52) RED 2014/53/EU (EN 300 328, EN 303 413, EN 301 908-1/-2/-13, EN IEC 62311, EN 50665, EN 50385) LVD 2014/35/EU (EN 62368-1) |
| UL | UL/CSA 62368-1 |
| CB | IEC/EN 62368-1 |
| 3G/4G-LTE/5G Specifications | |
| Regional Compatibility | |
| Applied Region | Global Carriers |
| Internal Modem Specifications | |
| Modem Model | Telit LN920A12-WW (CAT-12) |
| 4G: LTE ** | Bands: 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 18, 19, 20, 25, 26, 28, 29, 30, 38, 39, 40, 41, 42, 43, 48 (CBRS), 66, 71 |
| 3G: UMTS/HSPA+ ** | Bands: 1, 2, 4, 5, 8 |
| 3G: WCDMA ** | Bands: 1, 2, 4, 5, 6, 8, 9, 19 |
| Additional Ports | GPS antenna port |
| Connector Type | SMA (MAIN, AUX, GPS) |
| Module Certifications | RCM, ANATEL, ISED, CCC/ NAL/SRRC, RED, JATE/TELEC, KCC, NCC, UKCA, FCC, PTCRB, GCF, TELSTRA, KDDI, DOCOMO, SPK NZ, AT&T, VZW, TMO. |
| Diversity | Yes |
| MIMO | Yes |
| GNSS Bias | NA |
Note:
Certification notes: The built-in modem offers quad-band connectivity to HSPA+ networks worldwide and expected to work in 3G mode worldwide, subject to carrier support.
There are exceptions however, as some carriers control the access to their network to specific carrier certified devices. These carriers allow only certified modem IMEI numbers on their network and have the ability to disable the LTE connection after a period of time.
The following carriers are known to require additional testing to obtain certification. Please reach out to the Fortinet sales team and to evaluate your specific regional requirements: Brazil (VIVO), USA (Sprint), New Zealand, Arabian Peninsula (all carriers), UK (All carriers).
** Supported frequency bands are contingent upon the modem vendor’s firmware integrity, the Fortinet software version deployed, and carrier-specific configurations. Fortinet makes no guarantees regarding continued compatibility of bands across all carriers, FortiExtender hardware or software versions.
Software Features:
| Feature | FortiExtender 211G |
|---|---|
| Advanced Radio Technology | |
| 2x2 MIMO — enables industry leading data speeds | |
| 4x4 MIMO — enables industry leading data speeds | — |
| 5G Downlink 4x4 MIMO bands ** n1, n2, n3, n7, n25, n30, n38, n39, n40, n41, n48, n66, n70, n75, n76, n77, n78, n79 |
— |
| 5G Uplink 2 × 2 MIMO Band ** n38, n41, n48, n77, n78, n79 |
— |
| LTE Downlink 4 × 4 MIMO bands ** B1, B2, B3, B4, B7, B25, B30, B32, B38, B39, B40, B41, B42, B43, B48, B66, B70 |
— |
| Receiver Equalization — improves performance in noisy and highly mobile environments | |
| Receiver Diversity — improves performance at cell edges and in buildings | |
| Dual Modem | — |
| Advanced Software Features | |
| Connection Status | |
| Auto‑connect | |
| Auto‑select Network | |
| Data Byte Count | |
| Network Profile | |
| Self‑diagnostics | |
| Power Management — standby and hibernate selective suspend | |
| DIAG and AT Commands | |
| Private IP SIM Support | |
| L2 Tunnel Mode via VLAN or CAPWAP for fast and flexible deployments | |
| Single Pane of Glass Management via FortiGate and FortiManager | |
| SIM Features | |
| Dual‑SIM Support with intelligent fail‑over algorithms | |
| SIM Size: Micro‑SIM type 3FF | |
| SIM Security Cover | |
| IMEI printed at bottom of enclosure for ease of activation | |
| eSIM | In‑progress |
| Bandwidth Information | |
| IPsec VPN Throughput (Wired) | 890 Mbps |
| IPsec VPN Throughput (5G/LTE) | 170 Mbps |
| Lan‑Extension Throughput | DL/UL: 600Mbps/350Mbps |
| LAN‑LAN Layer‑2 Frames Throughput | 950Mbps |
| LAN‑WAN NAT’ed Layer‑3 IP Packets Throughput | 900Mbps |
| Max WAN Uplinks Supported | 1 |
| Carrier Certifications | |
| Verizon | In-progress |
| ATT | In Progress |
| PTCRB | |
| T-Mobile | Planned |
| Public Safety Network | FirstNet Trusted Planned |
** Supported frequency bands are contingent upon the modem vendor’s firmware integrity, the Fortinet software version deployed, and carrier-specific configurations. Fortinet makes no guarantees regarding continued compatibility of bands across all carriers, FortiExtender hardware or software versions.
The built-in modem offers quad-band connectivity to HSPA+ networks worldwide and is expected to work in 3G mode worldwide, subject to carrier support. There are exceptions however, as some carriers control the access to their network to specific carrier certified devices. These carriers allow only certified modem IMEI numbers on their network and have the ability to disable the LTE connection after a period of time.
Certifications are in progress. The following carriers are known to require additional testing to obtain certification. Please reach out to the Fortinet sales team and to evaluate your specific regional requirements: Brazil (VIVO), USA (Sprint), New Zealand, Arabian Peninsula (all carriers), and UK (all carriers).
