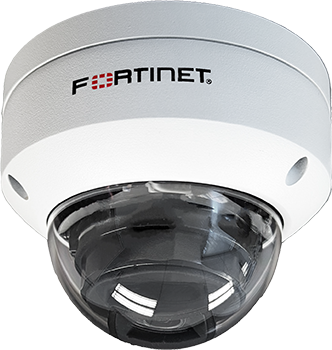

Fortinet FortiCam FD51
Video Security IP Camera

Overview:

The FortiCam FD51 is a fixed dome camera with a fixed wide-angle lens designed for indoor or outdoor environments. Its built-in Digital I/O integrates with motion sensors and alarms, while strong low-light sensitivity through true shutter WDR keeps footage clear in almost any lighting condition.

Smart Security Cameras for Any Business

Get complete visual coverage inside and out with FortiCameras. With options for indoor and outdoor, vandal-proof, weatherproof, low-light night vision, fixed and motorized zoom lenses, and two-way audio, there’s a FortiCamera for every environment.

FortiCameras are easy to set up and can work with FortiRecorder appliance, VM, or with the FortiCamera Cloud solution. Full access to video feeds and alerts through web-based and mobile applications.

The AI powered FortiCameras provided even more reassurance, with face recognition or vehicle detection, you can be alerted of people of interest or vehicles allowing quick response to any situation that may arise.

Highlights

• Scheduled and manual recording
• Motion detection and continuous recordings
• Snapshot notifications and alerts
• Camera live view and video playback
• Event monitor with timeline
• Centralized management, maintenance, and monitoring
• Mobile access on iOS and Android

Specifications:

	FORTICAMERA FD51
Platform	FortiRecorder
Description	Fixed Dome, Indoor/Outdoor, vandal proof
Sensor Type	5 mega-pixel, 1/2.7” Progressive CMOS
Iris	F1.6, fixed
Optical Zoom	—
Focal Length	2.8 mm
View Angle	H:111°, V:59°, D:133°
Minimum Illumination	0.055 Lux (Color) @ F1.6 0.005 Lux (B/W) @ F1.6
Wide Dynamic Range	Shutter WDR (>120dB)
Streaming Protocols	RTSP
Video Compression	H.264/H.265 (HEVC)
Audio	Line in/out
Interface	RJ45 Ethernet 10/100 Mbps
Digital Input / Output	1/1
Mounting	Wall, pole, ceiling, 3-axis, 3/4” conduit, junction box, drop tube (see “Optional Accessories”)
Operation
IRLED / IRC	30m / yes
3D Noise Reduction
Dimensions
Height x Width x Length (inches)	3.5 x 4.6 x 4.6
Height x Width x Length (mm)	90 x 117 x 117
Weight	1.24 lbs (562 g)
Environment
Power Source	PoE (802.3af) Class 0, or DC12V
Power Consumption (Max)	6.38W
Operating Temperature	-22°F to 144°F (-30°C to 60°C)
Humidity	<90% non-condensing
Compliance
Regulatory and Standards	FCC Class A / ICES / CE
Rating	IP66 / IK10
ONVIF Profiles	S, G, T

Documentation:

Download the Fortinet FortiCam FD51 Datasheet (PDF).
