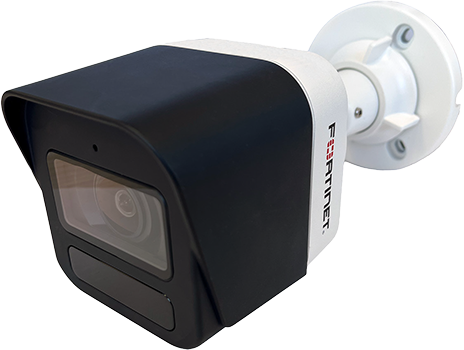

Fortinet FortiCam FB50H
5MP Bullet-Style Video Security IP Camera

Overview:

FortiCamera FB50H

The FortiCamera FB50H is a compact, bullet-style IP camera with an adjustable mounting angle, making it easy to install and aim in tight indoor or outdoor spaces. Its 5 megapixel low-light CMOS sensor and 2.7–13mm motorized lens with 4x optical zoom capture sharp, detailed video, while DOL HDR (>120dB) keeps footage clear in high-contrast lighting conditions. Built-in 30m IR illumination extends visibility into low-light and nighttime environments, and the IP66/IK10 rating protects the camera against dust, water, and vandalism. Two-way audio (line in/out) and a digital I/O port allow integration with intercoms, alarms, and other security equipment, and an optional junction box accessory simplifies conduit installations.

---

Smart Security Cameras for Any Business

Get complete visual coverage inside and out with FortiCameras. With options for indoor and outdoor, vandal-proof, weatherproof, low-light night vision, fixed and motorized zoom lenses, and two-way audio, there’s a FortiCamera for every environment. FortiCameras are easy to set up and can work with a FortiRecorder appliance, VM, or the FortiCamera Cloud solution, giving you full access to video feeds and alerts through web-based and mobile applications.

Easy to set up, license-free

With FortiCameras, installation is a breeze. They support PoE, eliminating the need for AC power. Just connect the camera to the FortiRecorder network via a PoE switch and you’re up and running. No software installation, no patches and, unlike using third-party cameras, no license fees.

Building blocks for scalable IP video solutions

FortiCameras are completely integrated with FortiRecorder and the powerful FortiCentral and mobile clients. All components complement each other to form a scalable video surveillance installation from small retail to large campus sites. FortiCameras are your eyes into Fortinet video analytics solutions including face recognition and object detection.

Highlights

• Scheduled and manual recording
• Motion detection and continuous recordings
• Snapshot notifications and alerts
• Camera live view and video playback
• Event monitor with timeline
• Centralized management, maintenance, and monitoring
• Mobile access on iOS and Android

Specifications:

	FORTICAMERA FB50H
Platform	FortiRecorder
Format	Bullet
Installation	Indoor / outdoor
Sensor Resolution	5 MP
Image Sensor	1/2.7 inch low light CMOS
Iris	Fixed
Aperture	F1.6 (W), F3.1 (T)
Zoom	4x
Focal Length	2.7–13.5 mm (motorized)
View Angle	Horizontal: 32°~111° Vertical: 18°~57° Diagonal: 37°~136°
Minimum Illumination	0.025 Lux @ F1.6 (color)
Dynamic Range	DOL HDR (>120dB)
RTSP
Video Compression	MJPEG/H.264/H.265
Audio	Line in / out
Ethernet Port	10/100
Digital Input / Output	1/1
Storage	—
Operation
IR Illumination	30m
3D Noise Reduction
Dimensions
Height x Width x Length (inches)	3.3 x 3.3 x 7.7
Height x Width x Length (mm)	85 x 85 x 195
Weight	1.67 lbs (757 g)
Environment
Power Over Ethernet	802.3af - Class 0
External Power	DC12V
Power Consumption (Max)	7.77W
Operating Temperature	-22°F to 140°F (-30°C to 60°C)
Humidity	<90% non-condensing
Compliance
Regulatory and Standards	FCC Class A / CE
Rating	IP66 / IK10
ONVIF Profiles	S, G, T
Wi-Fi/Bluetooth
Bluetooth	—
Wi-Fi	—
Mounting
Wall
Pole	—
Ceiling
3/4 inch Conduit	—
Junction Box
Table	—
Drop Tube	—
3-axis
Tile	—

Documentation:

Download the Fortinet FortiCamera Datasheet (PDF).
