Fortinet FortiAP 23JK
2x2 Indoor Tri-radio 11be 6Ghz Capable Desktop APs

Overview:

FortiAP™ access points are managed centrally by the integrated WLAN controller of any FortiGate® security appliance or through the FortiEdge Cloud provisioning and management portal. With the integration of the wireless controller functionality into the market-leading FortiGate appliance, these APs are perfect for campus and branch deployments. Fortinet’s Security Fabric enables you to easily manage wired and wireless security from a Single-pane-of-glass management console and protects your network from the latest security threats.

FortiAP 23JK is enterprise class Wi-Fi 7 indoor wall plate AP provide three radios and two spatial streams. These access points support the 6 GHz band and have one 10 Gigabit Ethernet and three 1 Gigabit Ethernet ports and one port supports the PSE OUT. The APs can provide 24/7 background scanning across all bands while still providing access on 2.4 GHz, 5 GHz, and 6 GHz bands. The integrated BLE/ ZigBee radio can be used for beacons and location applications.

Note: For FAP-23JK, use of the 6GHz band is subject to regional regulatory authority approval.

• Three-Radio 2.4GHz + 5GHz + 6GHz + Scan | 4 Wi-Fi Antennas + 1 BLE/ZigBee antenna
• 2x2 MU-MIMO | Up to 688 Mbps + 2.88 Gbps + 5.76 Gbps data rate

HARDWARE OFFERINGS	ANTENNA TYPE	INDOOR USE	OUTDOOR USE
2x2 Indoor Tri-radio 11be 6Ghz Capable Desktop APs	Internal		-

---

Use Cases:

FortiAPs allow for a versatile collection of installation topologies with options to fit any enterprise.

Campus

A single building with multiple floors, or a corporate or education campus with a group of large buildings.

• High-capacity designs including Dual 5GHz and tri-band with Wi-Fi 6E allow a maximal number of client devices to attach to the network at the same time without over-air congestion
• Complete NOC functionality with network visibility and AIOps simplify a complex network deployment into a solution manageable by IT teams of any size

---

Branch Office / SD-Branch

A highly distributed number of small sites, often with no on-site IT.

• Built in NAC functions* allow secure onboarding of devices at remote locations where IT doesn’t have reliable visibility
• Management orchestration with zero-touch deployment allows for quick and easy rollouts without the need for skilled installers at each site

---

Micro Branch

Ultra small sites that still fall under IT’s responsibility

• Can act as a SASE endpoint as a foundation for zero-trust network access (ZTNA)
• Simple management and provisioning through FortiSASE interface

---

Remote Workers

A remote AP installed at a worker’s home or at micro-branch office space.

• Split tunneling allows local traffic to remain local while sending other traffic to the data center for inspection when needed
• Desktop mounting options for wall-plate models allow the use of Ethernet as well as Wi-Fi connectivity while leveraging the same secure tunnel

---

SMB

Single site or small collection of sites with limited IT resources.

• Built-in NAC functions* bring security to the wireless network with no need to install and manage additional products
• Network and security convergence decreases management overhead while keeping the network secure

*FortiGate-managed installations only.

---

Specifications:

FortiAP 32JK
Hardware
Hardware Type	Wi-Fi 7 Indoor AP
Number of Radios	3 Wi-Fi + 1 BLE
Number of Antennas	5.x2 Dual band Wi-Fi + x2 6GHz band Wi-Fi + x1 BLE/ ZigBee antenna
Antenna Type Support	N/A
Antenna Type and Peak Gain	PCB 2.4/5GHz dual band antenna: 4.0 dBi for 2.4GHz, 4.4 dBi for 5 GHz PCB 6GHz antenna: 3.6 dBi for 6GHz band PCB BLE antenna: 3.7 dBi for 2.4GHz
Supported Frequency Bands (GHz)*	2.4GHz Band: ISM 2.4‑2.484GHz 5.0GHz Band: UNII‑1 5.15‑5.25GHz, UNII‑2A 5.25‑5.35GHz, UNII‑2C 5.47‑5.73GHz, UNII‑3 5.725‑5.85GHz, UNII‑4 5.85‑5.895GHz 6.0GHz Band: UNII-5 5.925-6.425GHz, UNII-6‑6.425-6.525GHz, UNII-7 6.525-6.875, UNII-8 6.875-7.125GHz
Radio 1 Capabilities	Frequency band: 2.4GHz Channel width: 20/40MHz Modulation: BPSK, QPSK, 64/256/1024/4096 QAM MIMO Chains: 2x2 Service
Radio 2 Capabilities	Frequency band: 5.0GHz UNII-1 to UNII-4 Channel width: 20/40/80/160MHz Modulation: BPSK, QPSK, 16/64/256/1024/4096 QAM MIMO Chains: 2x2 Service
Radio 3 Capabilities	Frequency band: 6.0GHz UNII-5 to UNII-8 Channel width: 20/40/80/160/320MHz Modulation: BPSK, QPSK, 16/64/256/1024/4096 QAM MIMO Chains: 2x2 Service
Maximum Data Rate	2.4GHz band: up to 688 Mbps 5.0GHz band: up to 2.882 Gbps 6.0GHz band: up to 5.765 Gbps
Bluetooth Low Energy Radio	Bluetooth scanning and iBeacon advertizement @10 dBm max TX power
Trusted Platform Module (TPM)	Yes
GNSS	N/A
Interfaces	WAN1: x1 100M/1000M/2.5G/5.0G/10G Multigigabit Ethernet (RJ45), 802.3bt PoE(PD) LAN ports: x3 10M/100M/1000M Gigabit Ethernet (RJ45), LAN3 802.3af PoE (PSE) RJ-45 Ports (1xPass-through in, 1xPass-through out) x1 RS-232 RJ45 Serial Port
Power over Ethernet (PoE)	WAN1: 802.3bt
Hit-less PoE Failover	N/A
Simultaneous SSIDs	Up to 8 per client serving radio (7 if background scanning is enabled)
EAP Type(s)	EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST, EAP‑TTLS/PAP
User/Device Authentication	WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blacklist and whitelist
Maximum Tx Power (Conducted)	2.4GHz band: 25 dBm/316 mW (2 chains combined)* 5.0GHz band: 22 dBm/158 mW (2 chains combined)* 6.0GHz band: 21 dBm/125 mW (2 chains combined@320MHz BW)*
Kensington Lock	Yes
IEEE Standards	802.11a, 802.11b, 802.11be, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11ac, 802.11ax, 802.11mc, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3bt, 802.3az, 802.1Q, 802.11u, 802.11w, 802.3bz
SSID Types Supported	Local-Bridge, Mesh, and Tunnel
Per Radio Client Capacity	Up to 512 clients per radio (Radio1, Radio2, and Radio3)
Cellular Co-existence	Yes
LED Off Mode	Yes
Advanced 802.11 Features
OFDMA	Yes
Spatial Reuse (BSS Coloring)	Yes
UL MU-MIMO	Yes
DL-MU-MIMO	Yes
Enhanced Target Wake Time (TWT)	Yes
ZeroWait DFS	No
Onboard Security Functions
UTP Capable	In Progress
UTP Features	To be confirmed
Wireless Monitoring Capabilities
Rogue Scan radio modes	Background, Dedicated
WIPS / WIDS radio modes	Background, Dedicated (recommended)
Packet Sniffer Mode	Yes
Spectrum Analyzer	Yes
Dimensions
Length x Width x Height	7.08 x 4.72 x 1.57 inches (180 x 120 x 40 mm)
Weight	1.15 lbs (0.52 kg)
Package (shipping) Weight	1.85 lbs (0.84 kg)
Mounting Options	Wall mount default option and Table top stand option
Included Accessories	Standard Wall Mounting Kit
Environment
CPU/RAM	Quad-core ARM Cortex-A53 1.5GHz / 2 GB
Power Supply	802.3bt PoE (GPI-145) or 802.3at PoE ( GPI-130) without PSE OUT 48V 1A DC power supply (SP-FAP23J-PA-10)
Power Consumption (Max)	31 W - PoE input 19 W - PoE input (without PSE OUT) 27.25 W - 54V DC power supply
Power Sourcing Equipment (PSE)	802.3af PSE OUT on LAN3 port
PoE Mode	802.3bt: R1(2.4GHz) + R2(5GHz) + R3(6GHz) + PSE-OUT 802.3at: R1(2.4GHz) + R2(5GHz) + R3(6GHz) without PSE-OUT
Humidity	5% to 90% non-condensing
Operating/Storage Temp.	32°F to 113°F (0°C to 45°C) / -22°F to 158°F (-30°C to 70°C)
Directives	Low Voltage Directive * RoHS
UL2043 Plenum Material	Yes
Mean Time Between Failures	>10 Years
IP Rating	N/A
Surge Protection Built In	N/A
Certifications
Wi-Fi Alliance Certified	Certified (Wi-Fi 7 in progress)
DFS	Europe, FCC, Japan, Australia, N
Warranty
Limited Lifetime Warranty	Yes

Note: * Frequency selection, power, and some communication features may be restricted to abide by regional regulatory compliance laws.

---

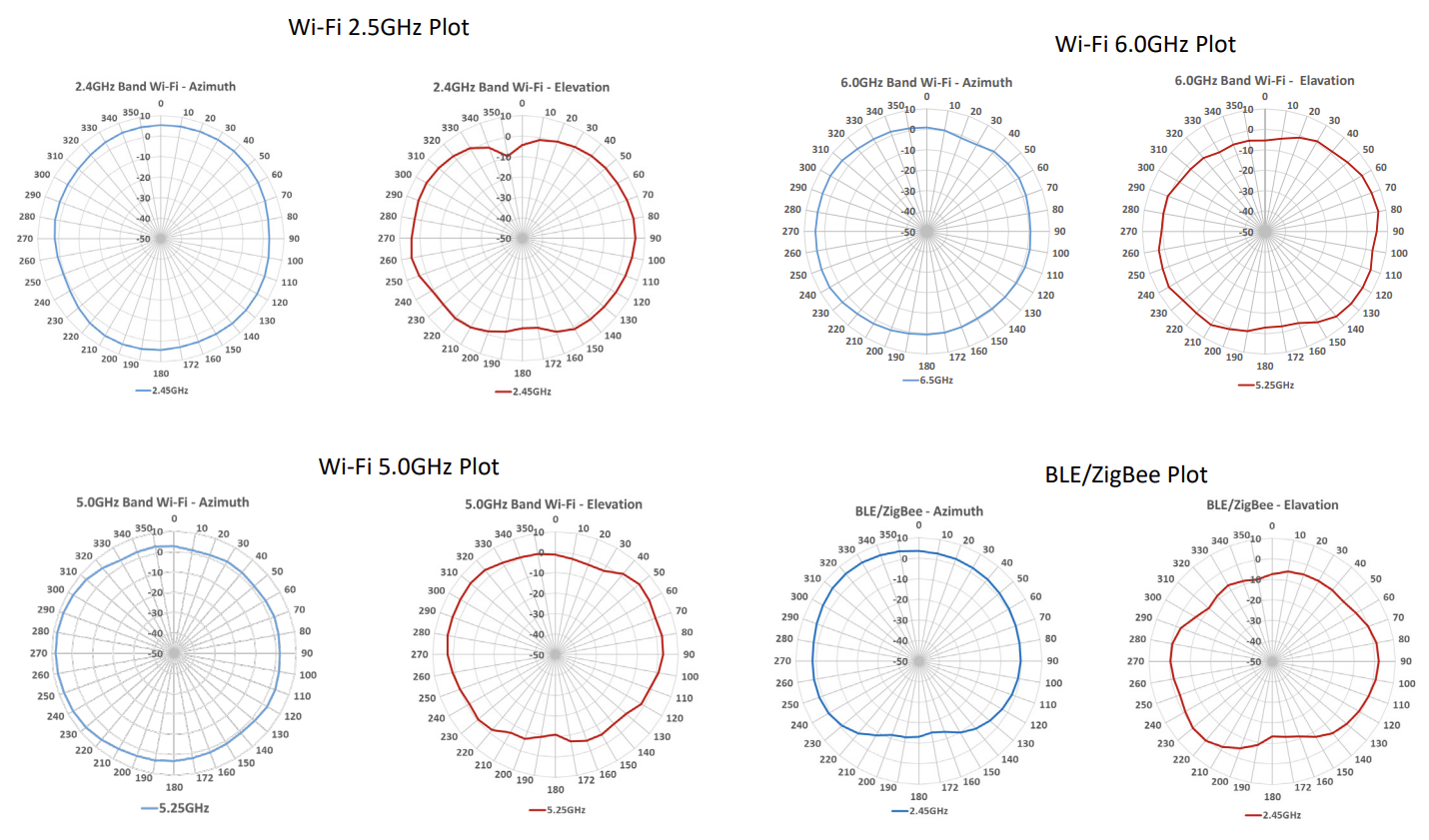

Antenna Radiation Patterns
