Fortinet FortiWifi 40F
Next Generation Firewall Secure SD-WAN

Overview:

The Fortinet Enterprise Firewall Solution

The FortiGate/FortiWiFi 40F series provides a fast and secure SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses. Protects against cyber threats with system-on-a-chip acceleration and industry-leading secure SDWAN in a simple, affordable, and easy to deploy solution. Fortinet’s Security-Driven Networking approach provides tight integration of the network to the new generation of security.

Security

• Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement
• Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic
• Prevents and detects against known and unknown attacks using continuous threat intelligence from AI-powered FortiGuard Labs security services

Performance

• Delivers industry’s best threat protection performance and ultra-low latency using purpose-built security processor (SPU) technology
• Provides industry-leading performance and protection for SSL encrypted traffic

Certification

• Independently tested and validated best security effectiveness and performance
• Received unparalleled third-party certifications from NSS Labs

Networking

• Delivers advanced networking capabilities that seamlessly integrate with advanced layer 7 security and virtual domains (VDOMs) to offer extensive deployment flexibility, multi-tenancy and effective utilization of resources
• Delivers high-density, flexible combination of various high-speed interfaces to enable best TCO for customers for data center and WAN deployments

Management

• Includes a Management Console that is effective, simple to use, and provides comprehensive network automation & visibility.
• Provides Zero Touch Integration with Security Fabric’s Single Pane of Glass Management
• Predefined compliance checklist analyzes the deployment and highlights the best practices to improve overall security posture

Security Fabric

• Enables Fortinet and Fabric-ready partners’ products to provide broader visibility, integrated end-to-end detection, threat intelligence sharing and automated remediation

Firewall	IPS	NGFW	Threat Protection	Interfaces
5 Gbps	1 Gbps	800 Mbps	600 Mbps	Multiple GE RJ45 | WiFi variants

Hardware:

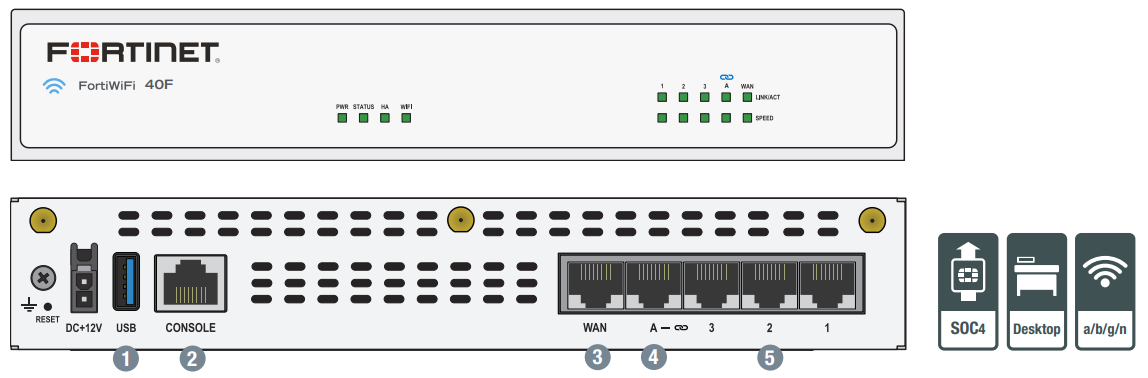

FortiGate / FortiWifi 40F

Interfaces

1. 1x USB Port
2. 1x Console Port
3. 1x GE RJ45 WAN Port
4. 1x GE RJ45 FortiLink Port
5. 3x GE RJ45 Ethernet Ports

Powered by Purpose-builtSecure SD-WAN ASIC SOC4

• Combines a RISC-based CPU with Fortinet’s proprietary Security Processing Unit (SPU) content and network processors for unmatched performance
• Delivers industry’s fastest application identification and steering for efficient business operations
• Accelerates IPsec VPN performance for best user experience on direct internet access
• Enables the best of breed NGFW Security and Deep SSL Inspection with high performance
• Extends security to access layer to enable SD-Branch transformation with accelerated and integrated switch and access point connectivity

3G/4G WAN Connectivity

The FortiGate 40F Series includes a USB port that allows you to plug in a compatible third-party 3G/4G USB modem, providing additional WAN connectivity or a redundant link for maximum reliability.

Compact and Reliable Form Factor

Designed for small environments, you can place it on a desktop or wall-mount it. It is small, lightweight yet highly reliable with a superior MTBF (Mean Time Between Failure), minimizing the chance of a network disruption.

Secure Access Layer

FortiLink protocol enables you to converge security and the network access by integrating the FortiSwitch into the FortiGate as a logical extension of the NGFW. These FortiLink enabled ports can be reconfigured as regular ports as needed.

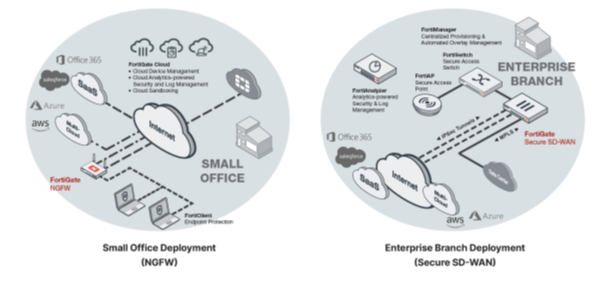

Deployment:

Specifications:

	FortiGate 40F	FortiWifi 40F
Interfaces and Modules
GE RJ45 WAN / DMZ Ports	1
GE RJ45 Internal Ports	3
GE RJ45 FortiLink Ports	1
GE RJ45 PoE/+ Ports	-
Wireless Interface	-	Single Radio (2.4GHz/5GHz) 802.11 /a/b/g/n/ac-W2
USB Ports	1
Console (RJ45)	1
Onboard Storage	-
Included Transceivers	-
System Performance — Enterprise Traffic Mix
IPS Throughput	1 Gbps
NGFW Throughput	800 Mbps
Threat Protection Throughput	600 Mbps
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets)	5/5/5 Gbps
Firewall Latency (64 byte UDP packets)	2.97 μs
Firewall Throughput (Packets Per Second)	7.5 Mpps
Concurrent Sessions (TCP)	700,000
New Sessions/Second (TCP)	35,000
Firewall Policies	5,000
IPsec VPN Throughput (512 byte)	4.4 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	200
Client-to-Gateway IPsec VPN Tunnels	250
SSL-VPN Throughput	490 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	200
SSL Inspection Throughput (IPS, avg. HTTPS)	310 Mbps
SSL Inspection CPS (IPS, avg. HTTPS)	320
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	55,000
Application Control Throughput (HTTP 64K)	990 Mbps
CAPWAP Throughput (HTTP 64K)	3.5 Gbps
Virtual Domains (Default / Maximum)	10 / 10
Maximum Number of FortiSwitches Supported	8
Maximum Number of FortiAPs (Total / Tunnel Mode)	16 / 8
Maximum Number of FortiTokens	500
High Availability Configurations	Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches)	1.5 x 8.5 x 6.3
Height x Width x Length (mm)	38.5 x 216 x 160
Weight	2.2 lbs (1 kg)
Form Factor	Desktop
Input rating	12Vdc, 3A
Power Required	Powered by External DC Power Adapter, 100–240V AC, 50/60 Hz
Power Consumption (Average / Maximum)	7.74 W / 9.46 W	14.6 W / 16.6 W
Maximum Current	100V AC / 0.2A, 240V AC / 0.1A
Heat Dissipation	52.55 BTU/hr	56.64 BTU/hr
Operating Environment and Certifications
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Humidity	10–90% non-condensing
Noise Level	Fanless 0 dBA
Operating Altitude	Up to 7,400 ft (2,250 m)
Compliance	FCC, ICES, CE, RCM, VCCI, BSMI, UL/cUL, CB
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN
Radio Specifications
Multiple (MU) MIMO	-	3 x 3
Maximum Wi-Fi Speeds	-	1300 Mbps @ 5 GHz, 450 Mbps @ 2.4 GHz
Maximum Tx Power	-	20 dBm
Antenna Gain	-	3.5 dBi @ 5GHz, 5 dBi @ 2.4 GHz

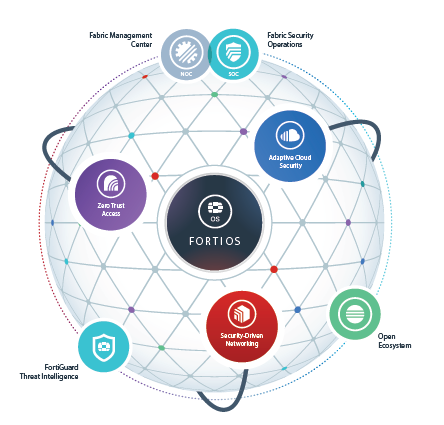

Fabric Security:

Rackmount:

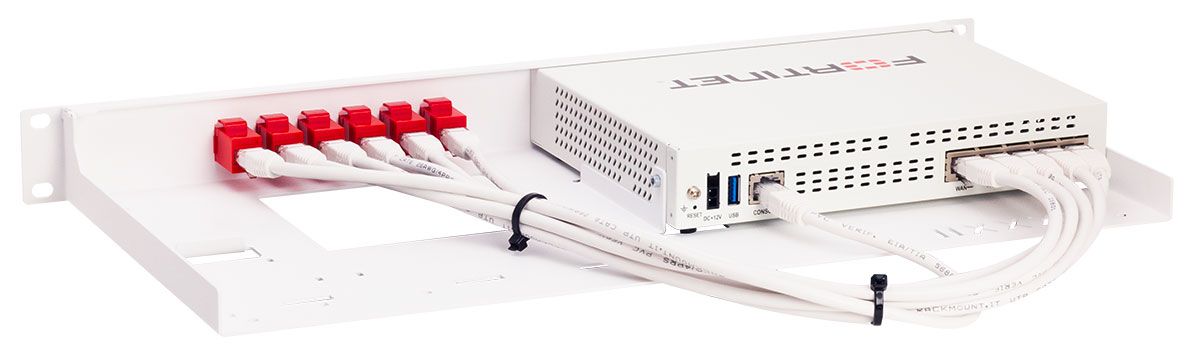

The RM-FR-T14 gives you the ability to mount your Fortinet desktop firewall in a 19" rack. The rack is tailored specifically for the listed models to guarantee a perfect fit. In addition, the connections are brought to the front for easy access. The power supply is fixed to prevent an accidental loss of power.

Assembly will take about 5 minutes. Simply slide your Fortinet device in the kit, place the retainers, connect the supplied cables to the keystones and fix the power supply to the rack.

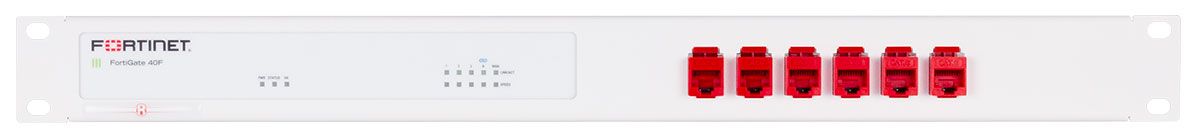

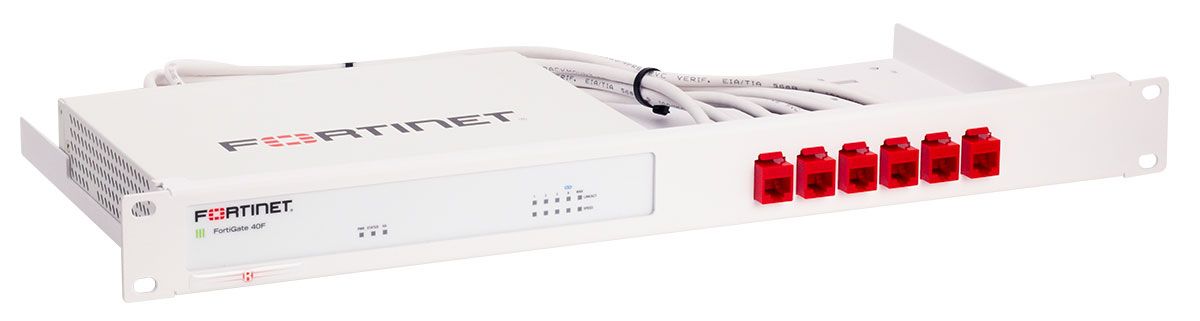

Image Views:

Specifications
Manufacturer	Rackmount.IT
Model	Fortinet
For Use	FortiGate 40F
Color	RAL 9003 Signal White
Height	1U
Dimensions (height x width x depth)	1.73 in. x 18.98 in. x 8.54 in. (44 x 482 x 217 mm)
Number of connections brought to the front	6
Console port to the front	Yes
Cables	6x 0.5m cables
Couplers	6x RJ45 couplers
What's in the box	1x FortiRack + RJ45 couplers Cables  Assembly materials Installation guide

Documentation:

Download the Fortinet FortiGate 40F Series Data Sheet (PDF).
