Fortinet FortiVoice Gateway GT01
2 x 10/100 ports, 8 x FXO voice gateway

Fortinet FortiVoice Gateway GT01

Fortinet FortiVoice Gateway Series
FortiVoice Gateway
USA: FREE Ground ShippingFortiVoiceGateway GT01, 2 x 10/100/1000 ports, 1 x PRI (T1/E1) voice gateway
#FVG-GT01
List Price: $1,499.00
Our Price: $1,349.10

Click here to jump to more pricing!

Overview:

The FortiVoice Gateway works in conjunction with your FortiVoice phone system to expand the resources and connect different line types to the system. The gateways are supported on the FortiVoice Enterprise systems, FVE-100E and larger.

The FortiVoice Gateway solution provides ease of support for additional phone lines or analog extensions. The compact design and simple configuration makes growing your network a snap, and with the stackable design you can add as many gateways as you need now or later on as you grow. Gateways can be installed locally or remotely to provide scalable solutions for on-premises networks or centralized deployments.

Highlights

  • Compact design
  • Simple configuration
  • Dual LANs

Features & Benefits:

Compact Design
The compact design of the gateways allows additional devices to be connected on the network.

Dual LANs
With dual network connections, it ensures devices will always be available even if a network connection goes down.

Easy Connections
Using standard RJ-11 connections makes it easy to plug lines or cables.

Ease of Configuration
Simplified and centralized configuration through FortiVoice web management.

Secure Audio
With SRTP, all calls are encrypted for maximum security.

PRI (T1/E1)
Supports both PRI T1, PRI E1 and R2 protocols in both single and dual port configurations.

FXO
Supports standard incoming PSTN lines incorporating regional and country dial plans.

FXS
Supports standard analog phones or fax machines allowing you to use your current hardware with newer technology.

Caller ID
Supports Bellcore, ETSI and DTMF Caller ID formats.

Fax / T.38
Supports T.38 for faxing over IP.

Specifications:

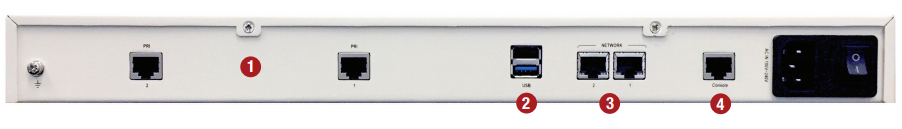

FortiVoice Gateway GT01 Rear View

  1. 1x PRI (T1/E1)
  2. 2x USB Port
  3. 2x 10/100/1000 RJ45 Ports
  4. 1x Console Port
FortiVoice Gateway GT01 FortiVoice Gateway GT02
Hardware Specifications
Traditional Telephone Lines (FXO)
Analog Extensions (FXS)
PRI (T1/E1) 1 2
Network Interface Cards (RJ45) 2 2
Hardware Form Factor Rack mount (1U) Rack mount (1U)
Dimensions
Height x Width x Length (inches) 1.75 x 17 x 9.25 1.75 x 17 x 9.25
Height x Width x Length (mm) 44.4 x 431.8 x 234.9 44.4 x 431.8 x 234.9
Weight 10 lbs (4.5 kg) 10 lbs (4.5 kg)
Advanced Network Features
Voice QoS
802.1 Q VLAN
SIP over TLS
SRTP
SNMP
Fax over VoIP
T.38
Management
Command Line Interface
Web Interface
Voice
Codecs G.711 u-law/A-law, G.729a, G.722, G.726
DTMF Inband, RFC2883, SIP info

Documentation:

Download the Fortinet FortiVoice Gateway Data Sheet (PDF).

Pricing Notes:

Fortinet FortiVoice Gateway Series
FortiVoice Gateway
USA: FREE Ground ShippingFortiVoiceGateway GT01, 2 x 10/100/1000 ports, 1 x PRI (T1/E1) voice gateway
#FVG-GT01
List Price: $1,499.00
Our Price: $1,349.10
FortiVoice Gateway-GT01 Hardware plus 8x5 FortiCare
FortiVoice Gateway-GT01 Hardware plus 1 Year 8x5 FortiCare
#FVG-GT01-BDL-311-12
List Price: $1,723.85
Our Price: $1,551.46
FortiVoice Gateway-GT01 Hardware plus 3 Year 8x5 FortiCare
#FVG-GT01-BDL-311-36
List Price: $2,173.55
Our Price: $1,956.20
FortiVoice Gateway-GT01 Hardware plus 5 Year 8x5 FortiCare
#FVG-GT01-BDL-311-60
List Price: $2,623.25
Our Price: $2,360.93
FortiVoice Gateway-GT01 24x7 FortiCare Contract
FortiVoice Gateway-GT01 1 Year 24x7 FortiCare Contract
#FC-10-FVG01-247-02-12
List Price: $299.80
Our Price: $259.57
FortiVoice Gateway-GT01 3 Year 24x7 FortiCare Contract
#FC-10-FVG01-247-02-36
List Price: $899.40
Our Price: $778.70
FortiVoice Gateway-GT01 5 Year 24x7 FortiCare Contract
#FC-10-FVG01-247-02-60
List Price: $1,499.00
Our Price: $1,297.83
FortiVoice Gateway-GT01 8x5 FortiCare Contract
FortiVoice Gateway-GT01 1 Year 8x5 FortiCare Contract
#FC-10-FVG01-311-02-12
List Price: $224.85
Our Price: $194.68
FortiVoice Gateway-GT01 3 Year 8x5 FortiCare Contract
#FC-10-FVG01-311-02-36
List Price: $674.55
Our Price: $584.03
FortiVoice Gateway-GT01 5 Year 8x5 FortiCare Contract
#FC-10-FVG01-311-02-60
List Price: $1,124.25
Our Price: $973.38
