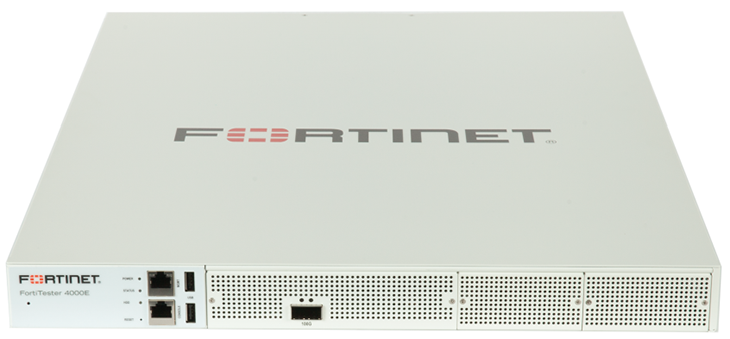

Fortinet FortiTester 4000E
Enterprise-Scale Network Security Testing

Fortinet FortiTester 4000E

Fortinet FortiTester Series
FortiTester-4000E
USA: FREE Ground ShippingFortinet FortiTester-4000E
Network performance and security testing system for enterprises and service providers. 1 x GE RJ45, 1 x 100GE QSFP28, 2 TB HDD Storage. (Please note, two devices using Test Center mode are required.)
#FTS-4000E
Get a Quote!

Click here to jump to more pricing!

Overview:

Highlights

  • Cost-effective performance and security testing system for enterprises and service providers.
  • Flexible operation modes from 1 standalone device up to 8 devices combined in Test Center mode.
  • 40 GE QSFP+ interface support on 3000E (with 4x 10 GE SFP+ split mode).
  • 100 GE QSFP28, 40 GE QSFP+ with 4x 10 GE fan-out, 10/1 GE SFP+ appliances.
  • VM version with support for Vmware ESXi and KVM hypervisors.
  • No add-on licenses. Simple device-based license for all functionality.
  • REST API for test automation.

FortiTester appliances offer enterprises and service providers a cost-effective solution for performance testing and validating their network security infrastructure and services, providing a comprehensive range of application test cases to evaluate equipment and right-size infrastructure. All test functionality is included in one simple device-based license.

Comprehensive testing and flexible operation

FortiTester provides powerful yet easy-to-use test cases that simulate many stateful applications and malicous traffic. Built-in reporting provides comprehensive information about the test including SNMP stats from the DUT. It enables you to establish performance standards and run audits to validate they continue to be met. A single 40 GE appliance allows over 20 million concurrent connections and new HTTP connection rates greater than 1 million/second, hardwarebased acceleration supports new HTTPS connection rates above 20,000/second. Up to 8 appliances can be grouped in Test Center mode to massively scale performance. 40 GE device interfaces can be split to 4x 10 GE SFP+ for additional testing flexibility. 100 GE, 10 GE devices and VM versions complete the Tester range, with competitive price points for their target customers.

Key Features and Benefits

Simple device-based license
All test cases and tester functionality, including attack traffic samples, are provided in a simple device-based license.

Comprehensive test cases
Includes a wide range of test cases for IPv4 and IPv6 covering application and video delivery, IPsec, mobility, network services, and attack replay.

Advanced test case options
Easily change test case options — for example, such as how sessions are closed, piggybacking, randomize source ports, specify SSL versions and ciphers, include payload for inline scanning and sandboxing. Adjust load parameters while tests are running.

Specifications:


Fortitester 4000E Specifications
Hardware Specifications
Total Interface 1x 100 GE QSFP28, 1x GE RJ45
Storage 2 TB HDD
Form Factor 1U
Performance Examples and Application Support Standalone Mode Test Center Mode with 2 Devices
HTTP Throughput Client-only 93 Gbps
HTTP Connections Per Second Client-only 810,000
HTTP Concurrent Connections Client-only 84,000,000
SSL Throughput Client-only 5.5 Gbps
SSL Connections Per Second Client-only 40,500
SSL Concurrent Connections Client-only 30,000
IPsec No Yes
Protocol (SMTP, POP3, IMAP, FTP, LDAP, NTP, DNS, RTSP/RTP, DHCP, TFTP, RADIUS, IGMP) Client-only Yes
RFC2544 No Yes
DDoS Client-only Yes
Replay — Traffic, Attack, GTP No No
Dimensions and Power
Height x Width x Length (inches) 1.73 x 17.24 x 22.83
Height x Width x Length (mm) 44 x 438 x 580
Weight 22.6 lbs (10.3 kg)
Power Required 100–240V AC, 63–47 Hz, Redundant
Power Consumption (Average / Maximum) 300 W / 360 W
Maximum Current 120V/5A, 240V/3A
Heat Dissipation 1228.4 BTU/h
Redundant Power Supplies Dual Power Supplies
Environment
Operating Temperature 32–104°F (0–40°C)
Storage Temperature -4 – 158°F (-20–70°C)
Humidity 5–95% non-condensing
Operating Altitude Up to 7,400 ft (2,250 m)
Compliance
Regulatory Compliance FCC Part 15 Class A, C-tick, VCCI, CE, UL/c
Safety CSA, C/US, CE, UL

* maximum of 2 devices in test center mode for IPsec testing.

Software:

Test case configuration

Easily configure test cases for applications, traffic generation, application simulation, and malicious traffic, using FortiTester’s web interface.

Test case configuration

Standalone and test center modes

The two software components in FortiTester are the traffic generator and the test center. The traffic generator is the engines, assigned CPU cores, and physical interfaces. The test center is the user interface, test cases, and system management. In Standalone mode, test center works with the local traffic generator. In Test Center mode, test center connects to the local traffic generator and remote traffic generators on other FortiTesters, allowing you to scale your performance testing requirements.

Standalone and test center modes

Virtual machine

The virtual machine version allows performance and validation testing for both physical and virtual network services and infrastructure. Ideal for customers implementing network functions virtualization (NFV) and software defined networking (SDN.) Both vSwtich and PCI-E passthrough are supported, providing flexibility and performance for vm-based testing. Furthermore, test center mode enables the virtual solution to easily scale up to 8 testers (or scale down to multiple standalone units), providing flexibility and performance.

Example deployment for both virtual and physical device tests

Example deployment for both virtual and physical device tests

Documentation:

Download the Fortinet FortiTester Datasheet (PDF).

Pricing Notes:

Fortinet FortiTester Series
FortiTester-4000E
USA: FREE Ground ShippingFortinet FortiTester-4000E
Network performance and security testing system for enterprises and service providers. 1 x GE RJ45, 1 x 100GE QSFP28, 2 TB HDD Storage. (Please note, two devices using Test Center mode are required.)
#FTS-4000E
Get a Quote!
Fortinet 8x5 FortiCare Contract
*8x5 Support, Hardware Replacement, Firmware and General Upgrades, VPN, Traffic Management
1 Year 8x5 FortiCare Contract for FortiTester-4000E
#FC-10-FTK4K-311-02-12
List Price: $9,000.00
Our Price: $7,792.00
FortiTester-4000E 3 Year 8x5 FortiCare Contract
#FC-10-FTK4K-311-02-36
Get a Quote!
FortiTester-4000E 5 Year 8x5 FortiCare Contract
#FC-10-FTK4K-311-02-60
Get a Quote!
FortiTester Standard Security Signature Attack Package
FortiTester-4000E 1 Year FortiTester Standard Security Signature Attack Package
#FC-10-FTK4K-186-02-12
List Price: $6,000.00
Our Price: $5,194.80
FortiTester Premium Threat Intelligence Signature Attack package
FortiTester-4000E 1 Year FortiTester Premium Threat Intelligence Signature Attack package
#FC-10-FTK4K-187-02-12
List Price: $12,000.00
Our Price: $10,389.60
