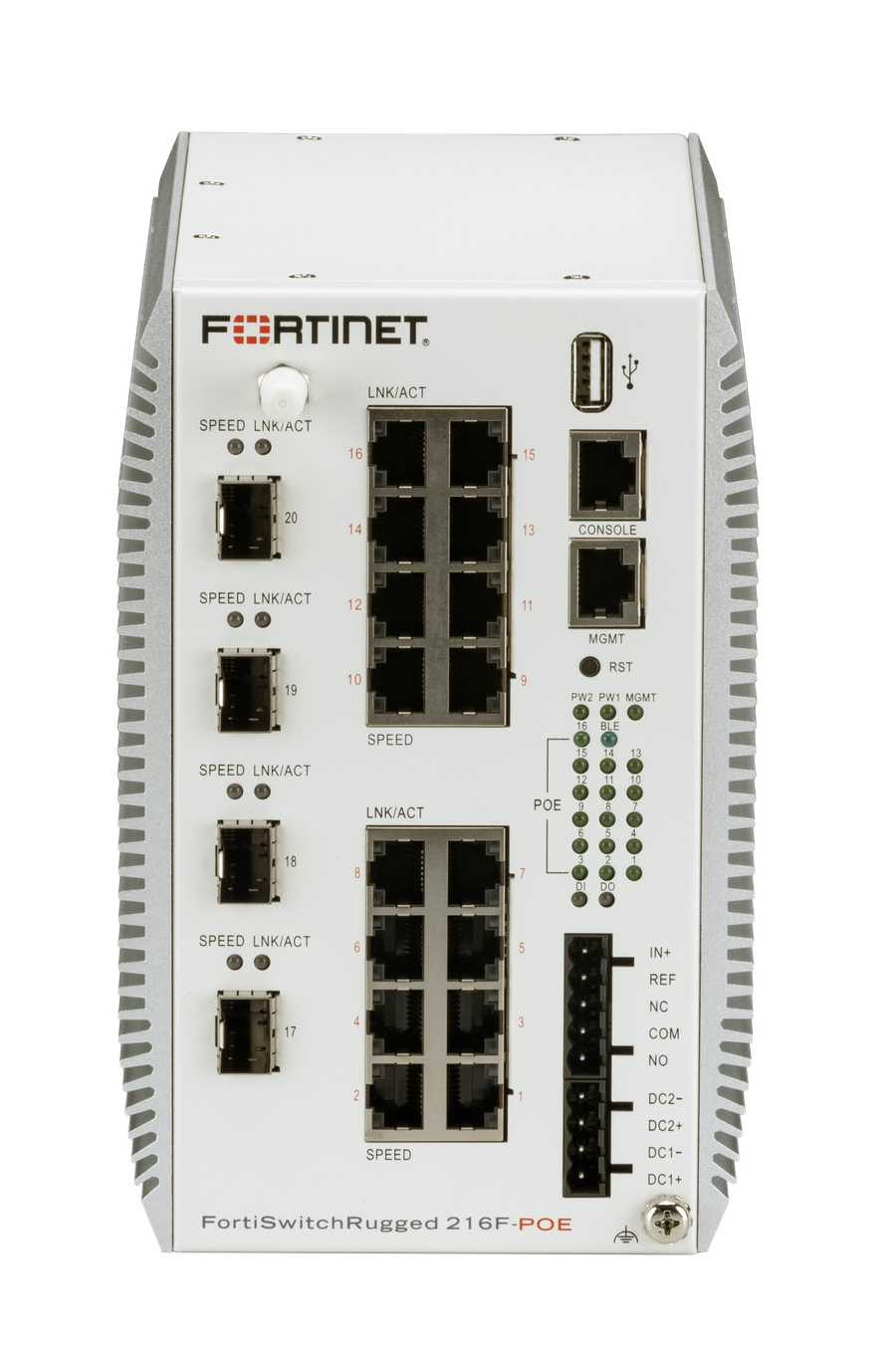

Fortinet FortiSwitchRugged 216F-POE
Secure, Ruggedized Ethernet Switching

Overview:

Performance and Features Designed for Harsh Environments

FortiSwitch™ Rugged switches deliver all of the enterprise features, performance, and security of the trusted FortiSwitch secure, simple, scalable Ethernet solution. Our rugged switches have added hardware reinforcement and software features that make them ideal for deployments in hostile environments, as well as operational technology (OT) industrial and control networks.

Resilient, sturdy, and capable of withstanding intense temperature fluctuations, FortiSwitch Rugged ensures the integrity and performance of mission-critical networks in even the most challenging of deployments. When united with FortiGate Rugged Next-Generation Firewalls, IT and OT network administrators can deploy a converged Ethernet architecture that offers powerful cybersecurity protection engineered to survive in hostile environments.

The FortiSwitchRugged 216F-POE is a fanless, DIN-rail mounted switch providing 16x 10M/100M/1G RJ45 ports and 4x 1G/10G SFP/SFP+ ports, with 802.3af/at/bt PoE on all 16 copper ports and a 360W PoE power budget.

Security-Driven Networking Through FortiLink

FortiLink is an innovative proprietary management protocol that allows FortiGates to seamlessly manage any FortiSwitch. FortiLink enables the FortiSwitch to become a logical extension of the FortiGate, integrating it directly into the Fortinet Security Fabric. This management option reduces complexity and decreases management costs as network security and access layer functions are enabled and managed through a single console.

FortiLink integration enables centralized policy management and offers basic network access control (NAC) functionality, making both easy to implement and manage. This converged Security-Driven architecture, centered around the FortiGate running FortiOS, offers better protection and lower cost of ownership than multiple point products. Coupled with the FortiGuard Industrial Security Service, it ensures that critical networks receive real-time protection.

Features:

• Durable. Mean time between failure is greater than 25 years. Designed to perform while enduring hostile conditions with built to ingress protection up to IP30 and IP40 standards.
• Industrial Application Ready. Supports Precision Time Protocol IEEE1588v2, HSR/PRP to implement zero-loss redundancy on wired Ethernet, and meets power substations requirements IEEE1613 / IEC 61850-3.
• Fanless. Passive cooling with no fan and no moving parts.
• High Performance. Gigabit Ethernet speeds and above on all ports with auto negotiation to support legacy devices.
• Next-Generation PoE Support. With PoE support in all models and next-generation PoE++ in specific models, FortiSwitch Rugged can deliver and manage power where needed for devices such as cameras, sensors, and wireless access points.
• Multiple Form Factors. DIN-rail and rack mount options.
• Zero-touch Deployment. Auto discovery and simplified configuration enable rapid deployment of network services.
• Layer 2 and Layer 3 Options.
• Entry-Level NAC Included.* Secure onboarding standard IoT devices at no additional charge with the FortiGuard IoT service, available for OT.
• Redundant Power Inputs. Maximize network availability by eliminating the downtime associated with failure of a power input.

* Requires FortiLink-enabled deployment.

Specifications:

Particulars	FortiSwitchRugged 216F-POE	FortiSwitchRugged 424F-POE
Hardware Specifications
Total Network Interfaces	16x 10M/100M/1G RJ45 4x 1G/10G SFP/SFP+	12x 1/2.5 GE RJ45, 12x 1/2.5 GE SFP 4x 10G SFP+, 2x 40G QSFP+ ports
10/100/1000 Service Ports	1	1
RJ-45 Serial Console Port	1	1
Power over Ethernet (PoE) Ports	16 (802.3af/at/bt (90W))	12 (802.3af/at/4-pair 60W)
PoE Power Budget	360W	421W
System Specifications
Switching Capacity (Duplex)	112 Gbps	360 Gbps
Packets per Second (Duplex)	166 Mpps	536 Mpps
MAC Address Storage	16k	32k
Network Latency	< 1µs	< 1µs
VLANs Supported	4k	4k
Link Aggregation Group Size	8	Up to 24
Total Link Aggregation Groups	Up to number of ports	Up to number of ports
Queues/Port	—	8
Packet Buffers	1.5MB	4MB
DRAM	1GB DDR4	1GB
Flash	32MB SPI + 1GB NAND	256MB
ACL	2k	1.5k
Spanning Tree Instances	32	32
IPv4/IPv6 Hardware-based Routing	—	Yes
Route Entries (IPv4/IPv6)	—	16k/8k
Host Entries (IPv4/IPv6)	—	16k/7k
Multicast Route Entries	—	4k
Power
Power Input	Redundant input terminals	Redundant input terminals
Input Voltage Range	+/- 12 to +/- 57Vdc, 2.98A max for Non-PoE output +/- 44 to +/- 57Vdc, 6.45A max for 802.3af PoE output +/- 50 to +/- 57Vdc, 7.92A max for 802.3at PoE+ output +/- 52 to +/- 57Vdc, 7.61A max for 802.3bt PoE++ output	24 to 40Vdc, 6.5A max for non-PoE 41 to 125Vdc, 15A max for non-PoE or 802.3af/at/bt PoE output
Reverse Power Protection	Yes	Yes
Power Consumption (Maximum)	35W (without PoE) 396W (with PoE)	107.1W (without PoE) 528.6W (with PoE)
Heat Dissipation	1353 BTU/h (with PoE) 119.42 BTU/h (without PoE)	1704 BTU/h (with PoE) 313.4 BTU/h (without PoE)
Environment
Operating Temperature Range	-40°F to 167°F (-40°C to 75°C) (cold startup at -40°C/°F) Maximum operating temperature with PoE: 75°C with 240W PSE 60°C with 360W PSE	-40°C to 70°C Maximum operating temperature with PoE: 70°C with 105W PSE 60°C with 315W PSE 50°C with 420W PSE
Operating Altitude	3000m within -40°C to 55°C (2000m within -40°C to 75°C)	2000m above sea level
Storage Temperature Range	-40°F to 185°F (-40°C to 85°C)	-40°F to 185°F (-40°C to 85°C)
Humidity	5% to 95% RH non-condensing	5% to 95% RH non-condensing
Mean Time Between Failures	> 30 years	> 30 years
Cooling	Fanless	Fanless
Mechanical
Ingress Protection	IP40	IP40
Form Factor	DIN-rail	Rackmount
Height x Width x Length (inches)	7.09 x 4.58 x 6.69	1.73 x 17.32 x 16.14
Height x Width x Length (mm)	180 x 116.4 x 170	44 x 440 x 410
Weight	6.6 lbs (3.0 kg)	13.9 lbs (6293 g)
Compliance
EMI	FCC, CE, RCM, VCCI, BSMI (Class A), ICES, UKCA	FCC, CE, RCM, VCCI, BSMI (Class A), ICES, UKCA
RoHS and WEEE	Compliant	Compliant
Warranty
Fortinet Warranty	Limited lifetime* warranty on all models

* Fortinet Warranty Policy: http://www.fortinet.com/doc/legal/EULA.pdf
