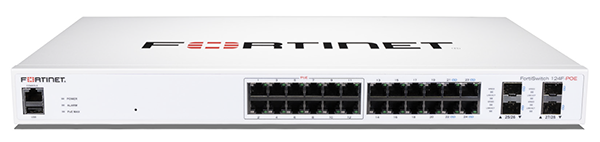

Fortinet FortiSwitch 124F-POE
Secure Access Switches
Get a Quote!
The FortiSwitchTM Secure Access Family delivers outstanding security, performance, and manageability. Secure, simple, and scalable, FortiSwitch is the right choice for threat-conscious businesses of all sizes.
Tightly integrated into the Fortinet Security Fabric via FortiLink, FortiSwitch can be managed directly from the familiar FortiGate interface. This single pane of glass management provides complete visibility and control of users and devices on the network regardless of how they connect. This makes the FortiSwitch ideal for SD-Branch deployments with applications that range from desktop to data center aggregation, enabling businesses to converge their security and network access.
Security Fabric Integration through FortiLink
FortiLink is an innovative proprietary management protocol that allows our FortiGate Next Generation Firewall to seamlessly manage any FortiSwitch. FortiLink enables the FortiSwitch to become a logical extension of the FortiGate, integrating it directly into the Fortinet Security Fabric. This management option reduces complexity and decreases management costs as network security and access layer functions are enabled and managed through a single console. FortiLink integration enables centralized policy management, including role-based access and control, making it easy to implement and manage. This control and manageability make FortiSwitch ideal for SD-Branch deployments.
- Designed for installations from desktops to wiring closets § Ideal for SD-Branch deployments § Centralized security and access management from FortiGate interfaces with FortiLink § Optimal for converged network environments; enabling voice, data, and wireless traffic to be delivered across a single network § Supports non-FortiLink deployments through onboard GUI, API, or command line configuration § Up to 48 ports in a compact 1 RU form factor § Stackable up to 300 switches per FortiGate, depending on model § Supports Wire-speed switching and Store and Forward forwarding mode
|FORTISWITCH FORTILINK MODE (WITH FORTIGATE)|
|Management and Configuration|
|Auto Discovery of Multiple Switches||Yes|
|Number of Managed Switches per FortiGate||8 to 300 Depending on FortiGate Model (Please refer to admin guide)|
|FortiLink Stacking (Auto Inter-Switch Links)||Yes|
|Software Upgrade of Switches||Yes|
|Centralized VLAN Configuration||Yes|
|Switch POE Control||Yes|
|Link Aggregation Configuration||Yes|
|L3 Routing and Services||Yes (FortiGate)|
|Policy-Based Routing||Yes (FortiGate)|
|Virtual Domain||Yes (FortiGate)|
|Security and Visibility|
|802.1x Authentication (Port-based, MAC-based, MAB)||Yes|
|MAC Black/While Listing||Yes (FortiGate)|
|Policy Control of Users and Devices||Yes (FortiGate)|
|Block Intra-VLAN Traffic||Yes|
|IPC, AV, Application Control, Botnet||Yes (FortiGate)|
|Support FortiLink FortiGate in HA Cluster||Yes|
|LAG support for FortiLink Connection||Yes|
|Active-Active Split LAG from FortiGate to FortiSwitches for Advanced Redundancy||Yes (with FS-2xx, 4xx, 5xx)|
|FortiSwitch 124F||FortiSwitch 124F-POE||FortiSwitch 124F-FPOE|
|Total Network Interfaces||24x GE RJ45 and 4x 10GE SFP+||24x GE RJ45 and 4x 10GE SFP+||24x GE RJ45 and 4x 10GE SFP+|
|Dedicated Management 10/100 Port||0||0||0|
|RJ-45 Serial Console Port||1||1||1|
|Form Factor||1 RU Rack Mount||1 RU Rack Mount||1 RU Rack Mount|
|Power over Ethernet (PoE) Ports||0||12 (802.3af/at)||24 (802.3af/at)|
|PoE Power Budget||0||185 W||370 W|
|Mean Time Between Failures||> 10 years||> 10 years||> 10 years|
|Switching Capacity (Duplex)||128 Gbps||128 Gbps||128 Gbps|
|Packets Per Second (Duplex)||190 Mpps||190 Mpps||190 Mpps|
|MAC Address Storage||32 K||32 K||32 K|
|Network Latency||< 1µs||< 1µs||< 1µs|
|VLANs Supported||4 K||4 K||4 K|
|Link Aggregation Group Size||8||8||8|
|Total Link Aggregation Groups||128||128||128|
|Packet Buffers||2 MB||2 MB||2 MB|
|DRAM||512 MB DDR3||512 MB DDR3||512 MB DDR3|
|FLASH||64 MB||64 MB||64 MB|
|Height x Depth x Width (inches)||1.73 x 9.06 x 12.99||1.73 x 10.24 x 12.99||1.73 x 10.24 x 12.99|
|Height x Depth x Width (mm)||44 x 230 x 330||44 x 260 x 330||44 x 260 x 330|
|Weight||4.48 lbs (2.03 kg)||7.85 lbs (3.56 kg)||8.42 lbs (3.82 kg)|
|Power Required||100–240V AC, 50–60 Hz||100–240V AC, 50–60 Hz||100–240V AC, 50–60 Hz|
|Power Supply||AC Built in||AC Built in||AC Built in|
|Power Consumption (Average / Maximum)||24.8 W / 26.3 W||235.9 W / 237.4 W||449.8 W / 451.3 W|
|Heat Dissipation||89.683 BTU/h||809.534 BTU/h||1538.933 BTU/h|
|Operating Temperature||32–104°F (0–40°C)||32–104°F (0–40°C)||32–104°F (0–40°C)|
|Storage Temperature||-4–158°F (-40–70°C)||-4–158°F (-40–70°C)||-4–158°F (-40–70°C)|
|Humidity||10–90% non-condensing||10–90% non-condensing||10–90% non-condensing|
|Certification and Compliance|
|FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2|
|Fortinet Warranty||Limited lifetime warranty on all models|
Download the Fortinet FortiSwitch Secure Access Series Datasheet (PDF).
- FortiCare Premium Support
FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades
- FortiCare Elite Support
FortiCare Premium Support with FortiCare Elite Ticket Handling.
- Prices are for one year of Premium RMA support. Usual discounts can be applied.
- Annual contracts only. No multi-year SKUs are available for these services.
- Contact Fortinet Renewals team for upgrade quotations for existing FortiCare contracts.
- Pricing and product availability subject to change without notice.
