Fortinet FortiSwitch 108F
Secure Access Switches

FortiSwitch

Fortinet Products

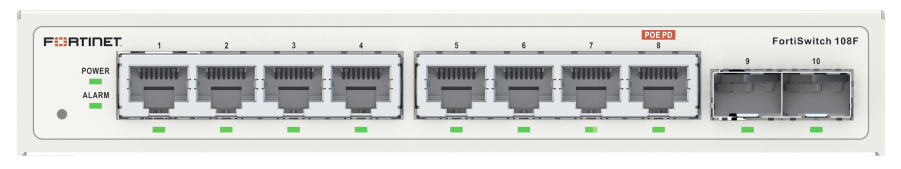

FortiSwitch-108F
L2 Switch - 8 x GE RJ45 ports, 2 x GE SFP, Fanless, 12V/3A power adapter of input voltage 100 - 240VAC and PSE dual powered L2+ management switch, FortiGate Switch controller compatible.
#FS-108F
List Price: $289.00
Our Price: $213.02

Click here to jump to more pricing!

Overview:

Security, Performance, and Manageability

The FortiSwitch™ Secure Access Family delivers outstanding security, performance, and manageability. Secure, simple, and scalable, FortiSwitch is the right choice for threatconscious businesses of all sizes.

Security Fabric Integration through FortiLink

FortiLink is an innovative proprietary management protocol that allows our FortiGate Next Generation Firewall to seamlessly manage any FortiSwitch. FortiLink enables the FortiSwitch to become a logical extension of the FortiGate, integrating it directly into the Fortinet Security Fabric. This management option reduces complexity and decreases management costs as network security and access layer functions are enabled and managed through a single console. FortiLink integration enables centralized policy management, including role-based access and control, making it easy to implement and manage. This control and manageability make FortiSwitch ideal for SD-Branch deployments.

Highlights

  • Designed for installations from desktops to wiring closets
  • Ideal for SD-Branch deployments
  • Optimal for converged network environments; enabling voice, data, and wireless traffic to be delivered across a single network
  • Centralized security and access management from FortiGate interface
  • Supports non-FortiLink deployments through onboard GUI, API, or command line configuration
  • Up to 48 ports in a compact 1 RU form factor
  • Stackable up to 300 switches per FortiGate depending on model
  • Supports Wire-speed switching and Store and Forward forwarding mode

Deployment

FortiLink

  • FortiGate managed
  • Security Fabric enabled
  • Most common deployment model

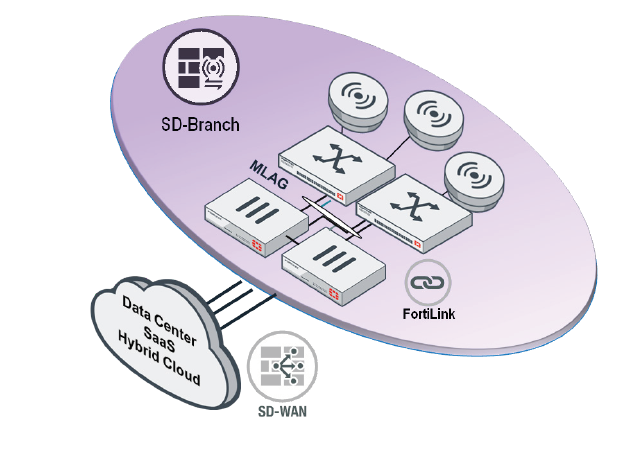

FortiSwitch Fortilink Mode Deployment Example

Standalone

  • Industry standard deployment model
  • Common in non-FortiGate environments

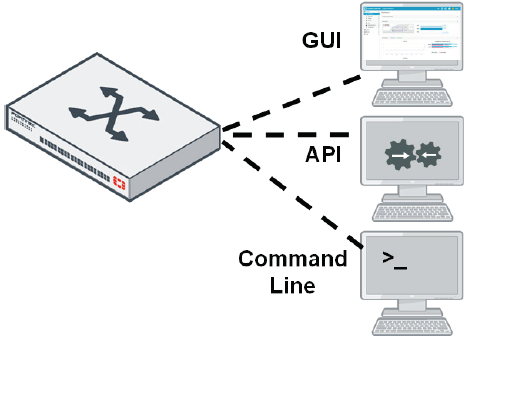

FortiSwitch Standalone Mode Deployment Example

Cloud Management for both deployment options available through FortiCloud


Features:

FORTISWITCH

Layer 2

Jumbo Frames

Auto-negotiation for Port Speed and Duplex

MDI/MDIX Auto-crossover

IEEE 802.1D MAC Bridging/STP

IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)

IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)

STP Root Guard

STP BPDU Guard

Edge Port / Port Fast

IEEE 802.1Q VLAN Tagging

Private VLAN

IEEE 802.3ad Link Aggregation with LACP

Unicast/Multicast traffic balance over trunking port (dst-ip, dst-mac, src-dst-ip, src-dst-mac, src-ip, src-mac)

IEEE 802.1AX Link Aggregation

Spanning Tree Instances (MSTP/CST)

IEEE 802.3x Flow Control and Back-pressure

IEEE 802.3 10Base-T

IEEE 802.3u 100Base-TX

IEEE 802.3z 1000Base-SX/LX

IEEE 802.3ab 1000Base-T

IEEE 802.3ae 10 Gigabit Ethernet

IEEE 802.3az Energy Efficient Ethernet

IEEE 802.3bz Multi Gigabit Ethernet

IEEE 802.3 CSMA/CD Access Method and Physical Layer Specifications

Storm Control

MAC, IP, Ethertype-based VLANs

Virtual-Wire

Split Port (QSFP+ breakout to 4x10G SFP+ or 4x1G SFP)

Time-Domain Reflectcometry (TDR) Support

LAG min/max bundle

Rapid PVST interoperation

Ingress Pause Metering

Loop Guard

Per-port storm control

Priority-based Flow Control (802.1Qbb)

IEEE 802.1ad QinQ

VLAN Mapping

IEEE 802.3ba, 802.3bj, and 802.3bm 40 and 100 Gigabit Ethernet

Auto topology

Services

IGMP proxy / querier

MLD Snooping

MLD proxy / querier

IGMP Snooping

Layer 3

Static Routing (Hardware-based)

Dynamic Routing Protocols: OSPFv2, RIPv2, VRRP, BGP, ISIS *

Multicast Protocols: PIM-SSM *

ECMP

Bidirectional Forwarding Detection (BFD)

DHCP Relay

IP conflict detection and notification

DHCP server

Unicast Reverse Path Forwarding - uRPF

IPv6 route filtering

Filtering routemaps based on routing protocol

Security and Visibility

Port Mirroring

Admin Authentication Via RFC 2865 RADIUS

IEEE 802.1X Authentication Port-based

IEEE 802.1X Authentication MAC-based

IEEE 802.1X Guest and Fallback VLAN

IEEE 802.1X MAC Access Bypass (MAB)

IEEE 802.1X Dynamic VLAN Assignment

Radius CoA (Change of Authority)

Radius Accounting

MAC-IP Binding

sFlow

ACL

IEEE 802.1ab Link Layer Discovery Protocol (LLDP)

IEEE 802.1ab LLDP-MED

IEEE 802.1ae MAC Security (MAC Sec)

DHCP-Snooping

Dynamic ARP Inspection

Sticky MAC and MAC Limit

IEEE 802.1X open auth

IEEE 802.1X EAP pass-through

Flow Export (NetFlow and IPFIX)

ACL Multistage

ACL Multiple Ingress

ACL Schedule

IP source guard

IPv6 RA Guard

LLDP-MED ELIN support

Per-port and per-VLAN MAC learning limit

Assign VLANs via Radius attributes (RFC 4675)

High Availability

Multi-Chassis Link Aggregation (MCLAG)

Quality of Service

IEEE 802.1p Based Priority Queuing

IP TOS/DSCP Based Priority Queuing

IEEE 1588 PTP (Transparent Clock)

Explicit Congestion Notification

Egress priority tagging

Percentage Rate Control

Management

IPv4 and IPv6 Management

Telnet / SSH

HTTP / HTTPS

SNMP v1/v2c/v3

SNTP

Standard CLI and Web GUI Interface

Software download/upload: TFTP/FTP/GUI

Managed from FortiGate

Support for HTTP REST APIs for Configuration and Monitoring

Dual Firmware Support

RMON Group 1

Packet Capture

SPAN, RSPAN, and ERSPAN

Link Monitor

POE Control Modes

System Temperature and Alert

Syslog UDP/TCP

Provide warning if L2 table is getting full

Display Average Bandwidth and Allow Sorting on Physical Port / Interface Traffic

System alias command

SNMP v3 traps

* Requires ‘Advanced Features’ License.

Specifications:


FORTISWITCH 108F FORTISWITCH 108F-POE FORTISWITCH 108F-FPOE
Hardware Specifications

Total Network Interfaces

7x GE RJ45, 1x GE/POE-PD RJ45, and 2x GE SFP

8x GE RJ45 and 2x GE SFP

8x GE RJ45 and 2x GE SFP

Dedicated Management 10/100 Port

0

0

0

RJ-45 Serial Console Port

1

1

1

Form Factor

Desktop

Deskop / 19” rack bracket

Deskop / 19” rack bracket

Power over Ethernet (PoE) Ports

0

8 (802.3af/at)

8 (802.3af/at)

PoE Power Budget

0

65 W

130 W

Mean Time Between Failures

> 10 years

> 10 years

> 10 years

System Specifications

Switching Capacity (Duplex)

20 Gbps

20 Gbps

20 Gbps

Packets Per Second (Duplex)

30 Mpps

30 Mpps

30 Mpps

MAC Address Storage

8 K

8 K

8 K

Network Latency

4 μs

4 μs

4 μs

VLANs Supported

4 K

4 K

4 K

Link Aggregation Group Size

8

8

8

Total Link Aggregation Groups

8

8

8

Packet Buffers

512 KB

512 KB

512 KB

DRAM

256 MB DDR3

256 MB DDR3

256 MB DDR3

FLASH

32 MB

32 MB

32 MB

ACL

768

768

768

Spanning Tree Instances

16

16

16

Dimensions

Height x Depth x Width (inches)

1.18 x 4.72 x 7.09

1.73 x 8.23 x 9.85

1.73 x 8.23 x 9.85

Height x Depth x Width (mm)

30 x 120 x 180

44 x 209 x 250

44 x 209 x 250

Weight

1.36 lbs (0.62 kg)

3.75 lbs (1.70 kg)

4.05 lbs (1.84 kg)

Environment

Power Required

100–240V AC, 50/60 Hz / PoE-PSE(af)

100–240V AC, 50/60 Hz

100–240V AC, 50/60 Hz

Power Supply

12V/1A DC power adapter included, PoE-PD Built in

AC built in

AC built in

Redundant Power

No

No

No

Power Consumption

6.2 W

74.4 W

139.2 W

Heat Dissipation

21.142 BTU/h

34.12 BTU/h

34.56 BTU/h

Operating Temperature

32–113°F (0–45°C)

32–113°F (0–45°C)

32–113°F (0–45°C)

Storage Temperature

-49–158°F (-40–70°C)

-40–158°F (-40–70°C)

-40–158°F (-40–70°C)

Humidity

5–95% non-condensing

5–95% non-condensing

5–95% non-condensing

Air-Flow Direction

side-to-back

side-to-back

side-to-back

Certification and Compliance

FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2

Warranty

Fortinet Warranty

Limited lifetime* warranty on all models

Documentation:

Download the Fortinet FortiSwitch Secure Access Series Datasheet (PDF).
