Fortinet FortiGate 61F
Secure SD-WAN Unified Threat Management

Fortinet FortiGate 60F

Fortinet FortiGate Series
FortiGate-61F
10 x GE RJ45 ports (including 2 x WAN Ports, 1 x DMZ Port, 7 x Internal Ports), 128GB SSD onboard storage. Max managed FortiAPs (Total / Tunnel) 30 / 10
#FG-61F
List Price: $895.00
Our Price: $659.70
Fortinet FortiGate-61F Hardware plus ASE FortiCare and FortiGuard 360 Protection
FortiGate-61F Hardware plus 1 Year Hardware plus ASE FortiCare and FortiGuard 360 Protection
#FG-61F-BDL-988-12
List Price: $1,790.00
Our Price: $1,319.41
FortiGate-61F Hardware plus 3 Year Hardware plus ASE FortiCare and FortiGuard 360 Protection
#FG-61F-BDL-988-36
List Price: $3,580.00
Our Price: $2,638.82
FortiGate-61F Hardware plus 5 Year Hardware plus ASE FortiCare and FortiGuard 360 Protection
#FG-61F-BDL-988-60
List Price: $5,370.00
Our Price: $3,958.23
Fortinet FortiGate-61F Hardware plus 1 Year 24x7 FortiCare and FortiGuard Enterprise Protection
FortiGate-61F Hardware plus 1 Year 24x7 FortiCare and FortiGuard Enterprise Protection
#FG-61F-BDL-980-12
List Price: $1,655.75
Our Price: $1,220.45
FortiGate-61F Hardware plus 3 Year 24x7 FortiCare and FortiGuard Enterprise Protection
#FG-61F-BDL-980-36
List Price: $3,177.25
Our Price: $2,341.95
FortiGate-61F Hardware plus 5 Year 24x7 FortiCare and FortiGuard Enterprise Protection
#FG-61F-BDL-980-60
List Price: $4,698.75
Our Price: $3,463.45
Fortinet FortiGate-61F Hardware plus 1 Year 24x7 FortiCare and FortiGuard Unified (UTM) Protection
FortiGate-61F Hardware plus 1 Year 24x7 FortiCare and FortiGuard Unified (UTM) Protection
#FG-61F-BDL-950-12
List Price: $1,476.75
Our Price: $1,088.51
FortiGate-61F Hardware plus 3 Year 24x7 FortiCare and FortiGuard Unified (UTM) Protection
#FG-61F-BDL-950-36
List Price: $2,640.25
Our Price: $1,946.13
FortiGate-61F Hardware plus 5 Year 24x7 FortiCare and FortiGuard Unified (UTM) Protection
#FG-61F-BDL-950-60
List Price: $3,803.75
Our Price: $2,803.74

Click here to jump to more pricing!

Live Demo! Click here to load

Overview:

Secure SD-WAN Unified Threat Management

The FortiGate 60F series offers an excellent Security and SD-WAN solution in a compact fanless desktop form factor for enterprise branch offices and mid-sized businesses. Protect against cyber threats with industry-leading secure SD-WAN in a simple, affordable and easy to deploy solution.

Security

  • Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement
  • Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic
  • Prevent and detect against known and unknown attacks using continuous threat intelligence from AI powered FortiGuard Labs security services

Performance

  • Delivers industry’s best threat protection performance and ultra-low latency using purpose-built security processor (SPU) technology
  • Provides industry-leading performance and protection for SSL encrypted traffic

Certification

  • Independently tested and validated best security effectiveness and performance
  • Received unparalleled third-party certifications from NSS Labs, ICSA, Virus Bulletin and AV Comparatives

Networking

  • Best of Breed SD-WAN capabilities to enable application steering using WAN path control for high quality of experience
  • Delivers advanced networking capabilities, high-performance, and scalable IPsec VPN capabilities

Management

  • Includes Management Console that’s effective, simple to use, and provides comprehensive network automation & visibility.
  • Provides Zero Touch Integration with Security Fabric’s Single Pane of Glass Management
  • Predefined compliance checklist analyzes the deployment and highlights best practices to improve overall security posture

Security Fabric

  • Enables Fortinet and Fabric-ready partners’ products to provide broader visibility, integrated end-to-end detection, threat intelligence sharing and automated remediation
  • Automatically builds Network Topology visualizations which discover IoT devices and provide complete visibility into Fortinet and Fabric-ready partner products
Firewall IPS NGFW Threat Protection Interfaces
10 Gbps 1.4 Gbps 1 Gbps 700 Mbps Multiple GE RJ45 | Variants with internal storage

Hardware:

FortiGate 60F/61F

FortiGate 30E-3G4G

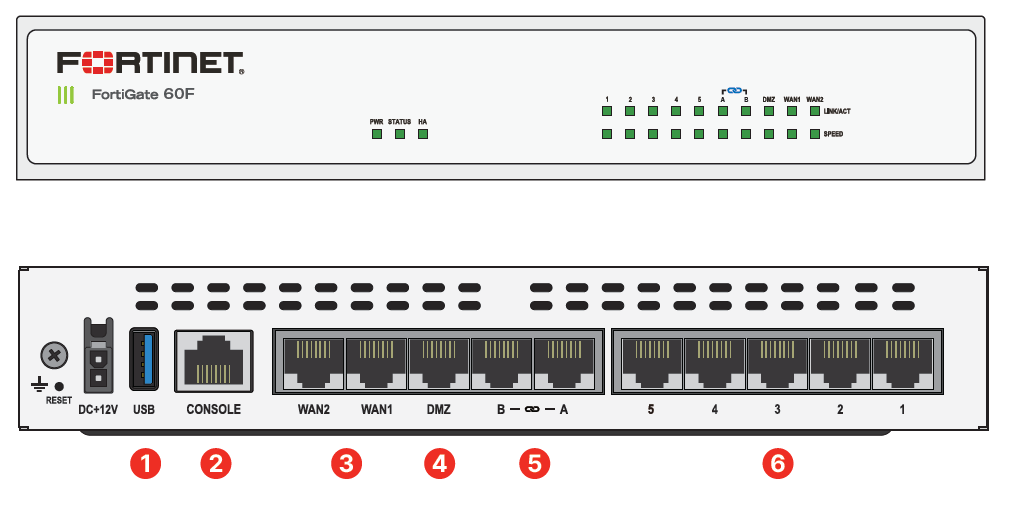

Interfaces

  1. USB Port
  2. Console Port
  3. 2x GE RJ45 WAN Ports
  4. 1x GE RJ45 DMZ Port
  5. 2x GE RJ45 FortiLink Ports
  6. 5x GE RJ45 Internal Ports

Powered by Purpose-built Secure SD-WAN ASIC SOC4

  • Combines a RISC-based CPU with Fortinet’s proprietary Security Processing Unit (SPU) content and network processors for unmatched performance
  • Delivers industry’s fastest application identification and steering for efficient business operations
  • Accelerates IPsec VPN performance for best user experience on direct internet access
  • Enables best of breed NGFW Security and Deep SSL Inspection with high performance
  • Extends security to access layer to enable SD-Branch transformation with accelerated and integrated switch and access point connectivity

3G/4G WAN Connectivity

The FortiGate 60F Series includes a USB port that allows you to plug in a compatible third-party 3G/4G USB modem, providing additional WAN connectivity or a redundant link for maximum reliability.

Compact and Reliable Form Factor

Designed for small environments, you can place it on a desktop or wall-mount it. It is small, lightweight yet highly reliable with superior MTBF (Mean Time Between Failure), minimizing the chance of a network disruption.

Extends Security to Access Layer with FortiLink Ports

FortiLink protocol enables you to converge security and the network access by integrating the FortiSwitch into the FortiGate as a logical extension of the NGFW. These FortiLink enabled ports can be reconfigured as regular ports as needed.

Specifications:


FortiGate 60F FortiGate 61F
Hardware Specifications
GE RJ45 WAN / DMZ Ports 2/1
GE RJ45 Internal Ports 5
GE RJ45 FortiLink Ports 2
GE RJ45 PoE/+ Ports -
Wireless Interface
USB Ports 1
Console (RJ45) 1
Internal Storage 1 x 128 GB SSD
System Performance — Enterprise Traffic Mix
IPS Throughput 1.4 Gbps
NGFW Throughput 1 Gbps
Threat Protection Throughput 700 Mbps
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets) 10/10/6 Gbps
Firewall Latency (64 byte UDP packets) 4 μs
Firewall Throughput (Packets Per Second) 9 Mpps
Concurrent Sessions (TCP) 700,000
New Sessions/Second (TCP) 35,000
Firewall Policies 5,000
IPsec VPN Throughput (512 byte packets) 6.5 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 200
Client-to-Gateway IPsec VPN Tunnels 500
SSL-VPN Throughput 900 Mbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) 200
SSL Inspection Throughput 750 Mbps
SSL Inspection CPS (IPS, avg. HTTPS) 400
SSL Inspection Concurrent Session (IPS, avg. HTTPS) 55,000
Application Control Throughput 1.8 Gbps
CAPWAP Throughput (HTTP 64K) 15 Gbps
NGFW Throughput 250 Mbps
Threat Protection Throughput 180 Mbps
CAPWAP Throughput 1.5 Gbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of FortiSwitches Supported 16
Maximum Number of FortiAPs (Total / Tunnel Mode) 30 / 10
Maximum Number of FortiTokens 500
Maximum Number of Registered FortiClients 200
High Availability Configurations Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches) 1.5 x 8.5 x 6.3
Height x Width x Length (mm) 38 x 216 x 160
Weight 1.9 lbs (0.9 kg)
Form Factor Desktop
Operating Environment and Certifications
Power Required 100–240V AC, 50–60 Hz
(External DC Power Adapter, 12 VDC)
Maximum Current 115V AC / 0.2A, 230V AC / 0.1A
Power Consumption (Average / Maximum) 17.0 W / 18.5 W 17.2 W / 18.7 W
Heat Dissipation 63.1 BTU/hr 63.8 BTU/hr
Operating Temperature 32–104°F (0–40°C)
Storage Temperature -31–158°F (-35–70°C)
Humidity 10–90% non-condensing
Noise Level Fanless 0 dBA
Operating Altitude Up to 7,400 ft (2,250 m)
Compliance FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN

Documentation:

Download the Fortinet FortiGate 60F Series Data Sheet (PDF).

Pricing Notes:

Fortinet FortiGate Series
FortiGate-61F
10 x GE RJ45 ports (including 2 x WAN Ports, 1 x DMZ Port, 7 x Internal Ports), 128GB SSD onboard storage. Max managed FortiAPs (Total / Tunnel) 30 / 10
#FG-61F
List Price: $895.00
Our Price: $659.70
Fortinet FortiGate-61F Hardware plus ASE FortiCare and FortiGuard 360 Protection
FortiGate-61F Hardware plus 1 Year Hardware plus ASE FortiCare and FortiGuard 360 Protection
#FG-61F-BDL-988-12
List Price: $1,790.00
Our Price: $1,319.41
FortiGate-61F Hardware plus 3 Year Hardware plus ASE FortiCare and FortiGuard 360 Protection
#FG-61F-BDL-988-36
List Price: $3,580.00
Our Price: $2,638.82
FortiGate-61F Hardware plus 5 Year Hardware plus ASE FortiCare and FortiGuard 360 Protection
#FG-61F-BDL-988-60
List Price: $5,370.00
Our Price: $3,958.23
Fortinet FortiGate-61F Hardware plus 1 Year 24x7 FortiCare and FortiGuard Enterprise Protection
FortiGate-61F Hardware plus 1 Year 24x7 FortiCare and FortiGuard Enterprise Protection
#FG-61F-BDL-980-12
List Price: $1,655.75
Our Price: $1,220.45
FortiGate-61F Hardware plus 3 Year 24x7 FortiCare and FortiGuard Enterprise Protection
#FG-61F-BDL-980-36
List Price: $3,177.25
Our Price: $2,341.95
FortiGate-61F Hardware plus 5 Year 24x7 FortiCare and FortiGuard Enterprise Protection
#FG-61F-BDL-980-60
List Price: $4,698.75
Our Price: $3,463.45
Fortinet FortiGate-61F Hardware plus 1 Year 24x7 FortiCare and FortiGuard Unified (UTM) Protection
FortiGate-61F Hardware plus 1 Year 24x7 FortiCare and FortiGuard Unified (UTM) Protection
#FG-61F-BDL-950-12
List Price: $1,476.75
Our Price: $1,088.51
FortiGate-61F Hardware plus 3 Year 24x7 FortiCare and FortiGuard Unified (UTM) Protection
#FG-61F-BDL-950-36
List Price: $2,640.25
Our Price: $1,946.13
FortiGate-61F Hardware plus 5 Year 24x7 FortiCare and FortiGuard Unified (UTM) Protection
#FG-61F-BDL-950-60
List Price: $3,803.75
Our Price: $2,803.74
Fortinet FortiGate-61F 360 Protection (ASE FortiCare plus App Ctrl, IPS, AV, Web Filtering, Antispam, FSA Cloud, Security Rating, SD-WAN Cloud Assisted Monitoring, SD-WAN Overlay Ctrl VPN, FMG/FAZ Cloud, Industrial Security, FortiConverter Svc, and FortiCASB (10 users))
FortiGate-61F 1 Year 360 Protection (ASE FortiCare plus App Ctrl, IPS, AV, Web Filtering, Antispam, FSA Cloud, Security Rating, SD-WAN Cloud Assisted Monitoring, SD-WAN Overlay Ctrl VPN, FMG/FAZ Cloud, Industrial Security, FortiConverter Svc, and FortiCASB (10 users))
#FC-10-0061F-988-02-12
List Price: $895.00
Our Price: $774.89
FortiGate-61F 3 Year 360 Protection (ASE FortiCare plus App Ctrl, IPS, AV, Web Filtering, Antispam, FSA Cloud, Security Rating, SD-WAN Cloud Assisted Monitoring, SD-WAN Overlay Ctrl VPN, FMG/FAZ Cloud, Industrial Security, FortiConverter Svc, and FortiCASB (10 users))
#FC-10-0061F-988-02-36
List Price: $2,685.00
Our Price: $2,324.67
FortiGate-61F 5 Year 360 Protection (ASE FortiCare plus App Ctrl, IPS, AV, Web Filtering, Antispam, FSA Cloud, Security Rating, SD-WAN Cloud Assisted Monitoring, SD-WAN Overlay Ctrl VPN, FMG/FAZ Cloud, Industrial Security, FortiConverter Svc, and FortiCASB (10 users))
#FC-10-0061F-988-02-60
List Price: $4,475.00
Our Price: $3,874.45
Fortinet FortiGate-61F Enterprise Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering, Antispam, FortiSandbox Cloud, FortiCASB (10 users included), Industrial Security and Security Rating)
FortiGate-61F 1 Year Enterprise Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering, Antispam, FortiSandbox Cloud, FortiCASB (10 users included), Industrial Security and Security Rating)�
#FC-10-0061F-980-02-12
List Price: $760.75
Our Price: $658.66
FortiGate-61F 3 Year Enterprise Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering, Antispam, FortiSandbox Cloud, FortiCASB (10 users included), Industrial Security and Security Rating)
#FC-10-0061F-980-02-36
List Price: $2,282.25
Our Price: $1,975.97
FortiGate-61F 5 Year Enterprise Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering, Antispam, FortiSandbox Cloud, FortiCASB (10 users included), Industrial Security and Security Rating)
#FC-10-0061F-980-02-60
List Price: $3,803.75
Our Price: $3,293.29
Fortinet FortiGate-61F Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud)
FortiGate-61F 1 Year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud)
#FC-10-0061F-950-02-12
List Price: $581.75
Our Price: $503.68
FortiGate-61F 3 Year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud)
#FC-10-0061F-950-02-36
List Price: $1,745.25
Our Price: $1,511.04
FortiGate-61F 5 Year Unified (UTM) Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering and Antispam, FortiSandbox Cloud)
#FC-10-0061F-950-02-60
List Price: $2,908.75
Our Price: $2,518.40
Fortinet FortiGate-61F Advanced Threat Protection (24x7 FortiCare plus Application Control, IPS, AV and FortiSandbox Cloud)
FortiGate-61F 1 Year Advanced Threat Protection (24x7 FortiCare plus Application Control, IPS, AV and FortiSandbox Cloud)
#FC-10-0061F-928-02-12
List Price: $402.75
Our Price: $348.70
FortiGate-61F 3 Year Advanced Threat Protection (24x7 FortiCare plus Application Control, IPS, AV and FortiSandbox Cloud)
#FC-10-0061F-928-02-36
List Price: $1,208.25
Our Price: $1,046.10
FortiGate-61F 5 Year Advanced Threat Protection (24x7 FortiCare plus Application Control, IPS, AV and FortiSandbox Cloud)
#FC-10-0061F-928-02-60
List Price: $2,013.75
Our Price: $1,743.50
Fortinet FortiGate-61F FortiGate Cloud Management, Analysis and 1 Year Log Retention
FortiGate-61F 1 Year FortiGate Cloud Management, Analysis and 1 Year Log Retention
#FC-10-0061F-131-02-12
List Price: $179.00
Our Price: $154.98
Fortinet FortiGate-61F 3 Year FortiGate Cloud Management, Analysis and Log Retention
FortiGate-61F 3 Year FortiGate Cloud Management, Analysis and 1 Year Log Retention
#FC-10-0061F-131-02-36
List Price: $537.00
Our Price: $464.93
Fortinet FortiGate-61F 5 Year FortiGate Cloud Management, Analysis and Log Retention
FortiGate-61F 5 Year FortiGate Cloud Management, Analysis and 1 Year Log Retention
#FC-10-0061F-131-02-60
List Price: $895.00
Our Price: $774.89
Fortinet FortiGate-61F FortiGuard Advanced Malware Protection (AMP) including Antivirus, Mobile Malware and FortiSandbox Cloud Service
FortiGate-61F 1 Year FortiGuard Advanced Malware Protection (AMP) including Antivirus, Mobile Malware and FortiSandbox Cloud Service
#FC-10-0061F-100-02-12
List Price: $179.00
Our Price: $154.98
Fortinet FortiGate-61F FortiGuard IPS Service
FortiGate-61F 1 Year FortiGuard IPS Service
#FC-10-0061F-108-02-12
List Price: $179.00
Our Price: $154.98
Fortinet FortiGate-61F FortiGuard Web Filtering Service
FortiGate-61F 1 Year FortiGuard Web Filtering Service
#FC-10-0061F-112-02-12
List Price: $179.00
Our Price: $154.98
Fortinet FortiGate-61F FortiGuard Industrial Security Service
FortiGate-61F 1 Year FortiGuard Industrial Security Service
#FC-10-0061F-159-02-12
List Price: $179.00
Our Price: $154.98
Fortinet FortiGate-61F FortiGuard Security Rating Service
FortiGate-61F 1 Year FortiGuard Security Rating Service
#FC-10-0061F-175-02-12
List Price: $179.00
Our Price: $154.98
Fortinet FortiGate-61F SD-WAN Cloud Assisted Monitoring: Cloud-based SD-WAN Bandwidth & Quality Monitoring Service
FortiGate-61F 1 Year SD-WAN Cloud Assisted Monitoring:�Cloud-based SD-WAN�Bandwidth & Quality Monitoring Service
#FC-10-0061F-288-02-12
List Price: $179.00
Our Price: $154.98
Fortinet FortiGate-61F SD-WAN Overlay Controller VPN Service: Cloud-based SD-WAN VPN Overlay Service & Portal
FortiGate-61F 1 Year SD-WAN Overlay Controller VPN Service: Cloud-based SD-WAN VPN Overlay Service & Portal
#FC-10-0061F-289-02-12
List Price: $179.00
Our Price: $154.98
Fortinet FortiGate-61F FortiManager Cloud: Cloud-based Central Management & Orchestration Service
FortiGate-61F 1 Year FortiManager Cloud: Cloud-based�Central Management & Orchestration�Service
#FC-10-0061F-179-02-12
List Price: $60.00
Our Price: $51.95
Fortinet FortiGate-61F FortiAnalyzer Cloud: Base subscription for Cloud-based Events and Security Log Management plus IOC Service
FortiGate-61F 1 Year FortiAnalyzer Cloud: Base subscription�for Cloud-based Events and Security Log Management plus IOC Service
#FC-10-0061F-188-02-12
List Price: $90.00
Our Price: $77.92
Fortinet FortiGate-61F FortiConverter Service for one time configuration conversion service
FortiGate-61F 1 Year FortiConverter Service for one time configuration conversion service
#FC-10-0061F-189-02-12
List Price: $44.75
Our Price: $38.74
Fortinet FortiGate-61F 24x7 FortiCare Contract
FortiGate-61F 1 Year 24x7 FortiCare Contract
#FC-10-0061F-247-02-12
List Price: $179.00
Our Price: $154.98
FortiGate-61F 3 Year 24x7 FortiCare Contract
#FC-10-0061F-247-02-36
List Price: $537.00
Our Price: $464.93
FortiGate-61F 5 Year 24x7 FortiCare Contract
#FC-10-0061F-247-02-60
List Price: $895.00
Our Price: $774.89
Fortinet FortiGate-61F ASE FortiCare (24x7 plus Advanced Services Ticket Handling)
FortiGate-61F 1 Year ASE FortiCare (24x7 plus Advanced Services Ticket Handling)
#FC-10-0061F-284-02-12
List Price: $223.75
Our Price: $193.72
FortiGate-61F 3 Year ASE FortiCare (24x7 plus Advanced Services Ticket Handling)
#FC-10-0061F-284-02-36
List Price: $671.25
Our Price: $581.17
FortiGate-61F 5 Year ASE FortiCare (24x7 plus Advanced Services Ticket Handling)
#FC-10-0061F-284-02-60
List Price: $1,118.75
Our Price: $968.61
Fortinet FortiGate-61F Next Day Delivery Premium RMA Service (requires 24x7 support)
FortiGate-61F 1 Year Next Day Delivery Premium RMA Service (requires 24x7 support)
#FC-10-0061F-210-02-12
List Price: $244.75
Our Price: $211.90
Fortinet FortiGate-61F 4-Hour Hardware Delivery Premium RMA Service (requires 24x7 support)
FortiGate-61F 1 Year 4-Hour Hardware Delivery Premium RMA Service (requires 24x7 support)
#FC-10-0061F-211-02-12
List Price: $307.40
Our Price: $266.15
Fortinet FortiGate-61F 4-Hour Hardware and Onsite Engineer Premium RMA Service (requires 24x7 support)
FortiGate-61F 1 Year 4-Hour Hardware and Onsite Engineer� Premium RMA Service (requires 24x7 support)
#FC-10-0061F-212-02-12
List Price: $396.90
Our Price: $343.64
Fortinet FortiGate-61F Secure RMA Service
FortiGate-61F 1 Year Secure RMA Service
#FC-10-0061F-301-02-12
List Price: $200.00
Our Price: $173.16
