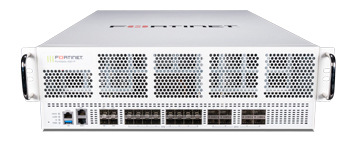

Fortinet FortiGate 4201F-DC
Secure SD-WAN Unified Threat Management
Click here to jump to more pricing!
Overview:
The FortiGate 4200F series delivers high performance next generation firewall (NGFW) capabilities for large enterprises and service providers. With multiple high-speed interfaces, high-port density, and highthroughput, ideal deployments are at the enterprise edge, hybrid data center core, and across internal segments. Leverage industry-leading IPS, SSL inspection, and advanced threat protection to optimize your network performance. Fortinet’s Security-Driven Networking approach provides tight integration of the network to the new generation of security.
Security
- Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement
- Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic
- Prevents and detects against known attacks using continuous threat intelligence from AI-powered FortiGuard Labs security services
- Proactively blocks unknown sophisticated attacks in realtime with the Fortinet Security Fabric integrated AI-powered FortiSandbox
Performance
- Engineered for Innovation using Fortinet’s purpose-built security processors (SPU) to deliver the industry’s best threat protection performance and ultra-low latency
- Provides industry-leading performance and protection for SSL encrypted traffic including the first firewall vendor to provide TLS 1.3 deep inspection
Certification
- Independently tested and validated best security effectiveness and performance
- Received unparalleled third-party certifications from NSS Labs, ICSA, Virus Bulletin, and AV Comparatives
Networking
- Application aware routing with built-in SD-WAN capabilities to achieve consistent application performance and the best user experience
- Built-in advanced routing capabilities to deliver high performance with encrypted IPSEC tunnels at scale
Management
- Includes a management console that is effective and simple to use, which provides a comprehensive network of automation and visibility
- Provides Zero Touch Provisioning leveraging Single Pane of Glass Management powered by the Fabric Management Center
- Predefined compliance checklists analyze the deployment and highlight best practices to improve the overall security posture
Security Fabric
- Enables Fortinet and Fabric-ready partners’ products to provide broader visibility, integrated end-to-end detection, threat intelligence sharing, and automated remediation
- Automatically builds Network Topology visualizations which discover IoT devices and provide complete visibility into Fortinet and Fabric-ready partner products
Firewall | IPS | NGFW | Threat Protection | Interfaces |
---|---|---|---|---|
800 Gbps | 52 Gbps | 47 Gbps | 45 Gbps | Multiple GE RJ45, 25 GE SFP28 / 10 GE SFP+ / GE SFP and 100 GE QSFP28 / 40 GE QSFP+ slots | DC Variants |
Specifications:

FG-4200F/-DC | FG-4201F/-DC | |
---|---|---|
Interfaces and Modules | ||
100 GE QSFP28 / 40 GE QSFP+ Slots | 8 | |
25 GE SFP28 / 10 GE SFP+ / GE SFP Slots | 16 | |
25 GE SFP28 / 10 GE SFP+ / GE SFP HA Slots | 2 | |
25 GE SFP28 / 10 GE SFP+ / GE SFP AUX Slots | 2 | |
GE RJ45 Management Ports | 2 | |
USB Ports | 1 | |
Console Port | 1 | |
Internal Storage | - | 2x 2TB SSD |
Included Transceivers | 2x SFP+ (SR 10GE) | |
System Performance — Enterprise Traffic Mix | ||
IPS Throughput | 52 Gbps | |
NGFW Throughput | 47 Gbps | |
Threat Protection Throughput | 45 Gbps | |
System Performance and Capacity | ||
Firewall Throughput (1518 / 512 / 64 byte, UDP) | 800 / 788 / 400 Gbps | |
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP) | 800 / 788 / 400 Gbps | |
Firewall Latency (64 byte, UDP) | 3.02 µs | |
Firewall Throughput (Packet per Second) | 600 Mpps | |
Concurrent Sessions (TCP) | 210 Million / 450 Million | |
New Sessions/Second (TCP) | 1 Million / 7 Million | |
Firewall Policies | 200,000 | |
IPsec VPN Throughput (512 byte) | 210 Gbps | |
Gateway-to-Gateway IPsec VPN Tunnels | 40,000 | |
Client-to-Gateway IPsec VPN Tunnels | 200,000 | |
SSL-VPN Throughput | 16 Gbps | |
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 30,000 | |
SSL Inspection Throughput (IPS, avg. HTTPS) | 50 Gbps | |
SSL Inspection CPS (IPS, avg. HTTPS) | 23,000 | |
SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 9 Million | |
Application Control Throughput (HTTP 64K) | 135 Gbps | |
CAPWAP Throughput (HTTP 64K) | 47 Gbps | |
Virtual Domains (Default / Maximum) | 10 / 500 | |
Maximum Number of FortiSwitches Supported | 300 | |
Maximum Number of FortiAPs (Total / Tunnel Mode) | 8,192 / 4,096 | |
Maximum Number of FortiTokens | 20,000 | |
Maximum Number of Registered FortiClients | 50,000 | |
High Availability Configurations | Active / Active, Active / Passive, Clustering | |
Dimensions and Power | ||
Height x Width x Length (inches) | 5.22 x 17.20 x 26.17 | |
Height x Width x Length (mm) | 132.5 x 437 x 664.8 | |
Weight | 59.75 lbs (27.10 kg) | 61.07 lbs (27.7 kg) |
Form Factor (supports EIA / non-EIA standards) | Rack Mount, 3 RU | |
AC Power Input | 100–240V AC, 50/60 Hz | |
AC Current (Maximum) | 13.5A@120V, 5.5A@240V | |
Power Consumption (Average/ Maximum) | 931 W / 1291 W | 940 W / 1306 W |
Heat Dissipation | 4405 BTU/h | 4456 BTU/h |
DC Power Supply | -48V to -60V DC | |
DC Current (Maximum Rated) | 25A to 32A per PSU | |
Redundant Power Supplies | Default 1+1 Redundant, Hot Swappable | |
Operating Environment and Certifications | ||
Operating Temperature | 32–104°F (0–40°C) | |
Storage Temperature | -31–158°F (-35–70°C) | |
Humidity | 20–90% non-condensing | |
Noise Level | 57 dBA | |
Operating Altitude | Up to 7,400 ft (2,250 m) | |
Compliance | FCC Part 15 Class A, RCM, VCCI, CE, UL/ cUL, CB | |
Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSLVPN; USGv6/IPv6 |
Documentation:
Download the Fortinet FortiGate 4200F Series Data Sheet (PDF).
Pricing Notes:
- Hardware plus ASE FortiCare and FortiGuard 360 Protection
Hardware unit, 24x7 Comprehensive Support, Advanced Services Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, 360 Services Bundle (Application Control, IPS, AV, Botnet IP/Domain, Mobile Malware Service, Web Filtering, Antispam, FortiSandbox Cloud, Security Rating, IoT Detection, SD-WAN Orchestrator, SD-WAN Cloud Assisted Monitoring, SD-WAN Overlay Controller VPN Service, FortiManager Cloud, FortiAnalyzer Cloud Base License, IPAM Cloud, Industrial Security and FortiConverter Service) plus term of contract - Hardware plus 24x7 FortiCare and FortiGuard Enterprise Protection
Hardware Unit, 24x7 Comprehensive Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Enterprise Services Bundle (Application Control, IPS, AV, Botnet IP/Domain, Mobile Malware Service, Web Filtering, Antispam, FortiSandbox Cloud including Virus Outbreak and Content Disarm & Reconstruct Service, Security Rating Service, Industrial Security Service and FortiConverter service) plus term of contract - Hardware plus 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP)
Hardware Unit, 24x7 Comprehensive Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (Application Control, IPS, AV, Botnet IP/Domain, Mobile Malware Service, Web Filtering, Antispam, FortiSandbox Cloud including Virus Outbreak and Content Disarm & Reconstruct Services) plus term of contract - 360 Protection (ASE FortiCare plus App Ctrl, IPS, AV, Web Filtering, AS, FSA Cloud, Security Rating, IoT Detection, SD-WAN Orchestrator/Cloud Monitoring/Overlay Ctrl VPN, FMG/FAZ/IPAM Cloud, Industrial Security and FortiConverter Svc)
24x7 Comprehensive Support, Advanced Services Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, 360 Services Bundle (Application Control, IPS, AV, Botnet IP/Domain, Mobile Malware Service, Web Filtering, Antispam, FortiSandbox Cloud, Security Rating, IoT Detection, SD-WAN Orchestrator, SD-WAN Cloud Assisted Monitoring, SD-WAN Overlay Controller VPN Service, FortiManager Cloud, FortiAnalyzer Cloud Base License, IPAM Cloud, Industrial Security and FortiConverter Service) - Enterprise Protection (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering, Antispam, FortiSandbox Cloud, IoT Detection, Industrial Security, Security Rating, and FortiConverter Svc)
24x7 Comprehensive Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Enterprise Services Bundle (Application Control, IPS, AV, Botnet IP/Domain, Mobile Malware Service, Web Filtering, Antispam, FortiSandbox Cloud including Virus Outbreak and Content Disarm & Reconstruct Service, Security Rating Service, Industrial Security Service and FortiConverter service) - Unified Threat Protection (UTP) (24x7 FortiCare plus Application Control, IPS, AV, Web Filtering, Antispam, FortiSandbox Cloud)
24x7 Comprehensive Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (Application Control, IPS, AV, Botnet IP/Domain, Mobile Malware Service, Web Filtering, Antispam, FortiSandbox Cloud including Virus Outbreak and Content Disarm & Reconstruct Services) - Advanced Threat Protection (24x7 FortiCare plus Application Control, IPS, AV and FortiSandbox Cloud)
24x7 Comprehensive Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Advanced Threat Protection Bundle (Application Control, IPS, AV, Botnet IP/Domain, Mobile Malware and FortiSandbox Cloud including Virus Outbreak and Content Disarm & Reconstruct Services) - 24x7 FortiCare Contract
24x7 Comprehensive Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Application Control - ASE FortiCare (24x7 plus Advanced Services Ticket Handling)
24x7 Comprehensive Support, Advanced Services Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Application Control. - Prices are for one year of Premium RMA support. Usual discounts can be applied.
- Annual contracts only. No multi-year SKUs are available for these services.
- Contact Fortinet Renewals team for upgrade quotations for existing FortiCare contracts.
- Pricing and product availability subject to change without notice.
