Fortinet FortiGate 3001F-DC
High Performance with Flexibility

Click here to jump to more pricing!

Overview:

The FortiGate 3000F Series enables organizations to build security-driven networks that can weave security deep into their datacenter and across their hybrid IT architecture to protect any edge at any scale.

Powered by a rich set of AI/ML-based FortiGuard Services and an integrated security fabric platform, the FortiGate 3000F Series delivers coordinated, automated, end-to-end threat protection across all use cases.

The industry’s first integrated Zero Trust Network Access (ZTNA) enforcement within an NGFW solution, FortiGate 3000F automatically controls, verifies, and facilitates user access to applications delivering consistent convergence with a seamless user experience.

IPS	NGFW	Threat Protection	Interfaces
36 Gbps	34 Gbps	33 Gbps	Multiple 10/1 GE RJ45, 100 GE QSFP28, 40 GE QSFP+, 25 GE SFP28, 10 GE SFP+ slots

Highlights

• Gartner Magic Quadrant Leader for both Network Firewalls and SD-WAN.
• Security-Driven Networking FortiOS delivers converged networking and security.
• Unparalleled Performance with Fortinet’s patented / SPU / vSPU processors.
• Enterprise Security with consolidated AI / ML-powered FortiGuard Services.
• Hyperscale Security to secure any edge at any scale.

Hardware:

Hyperscale Firewall License

This perpetual license empowers organizations by unlocking further performance boosts. The Hyperscale Firewall License enables the hardware acceleration of CGNAT features by utilizing Fortinet’s patented SPU NP7. These features include hardware session setup, firewall session logging, and NAT.

Trusted Platform Module (TPM)

The FortiGate 3000F Series features a dedicated module that hardens physical networking appliances by generating, storing, and authenticating cryptographic keys. Hardware-based security mechanisms protect against malicious software and phishing attacks.

100 GE Connectivity for Network

High-speed connectivity is essential for network security segmentation at the core of data networks. The FortiGate 3000F series provides multiple 100 GE QSFP28 slots, simplifying network designs without relying on additional devices to bridge desired connectivity.

Specifications:

	FG-3000F/FG-3000F-DC	FG-3001F/FG-3001F-DC

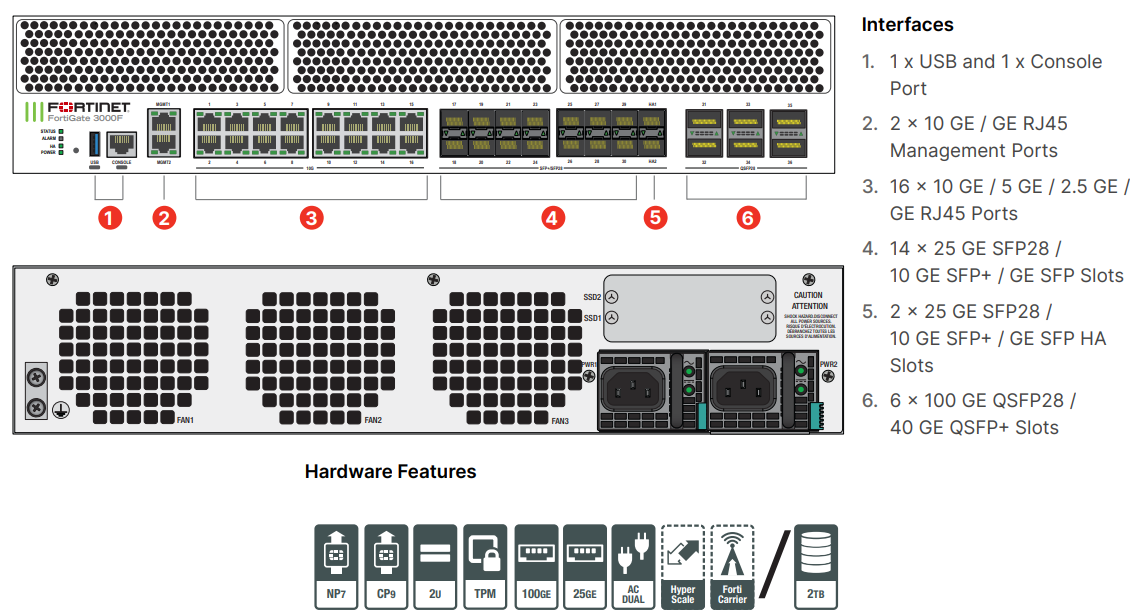

Interface and Modules
Hardware Accelerated 100 GE QSFP28 / 40 GE QSFP+ Slots	6
Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots	16 (include 2x HA Slots)
Hardware Accelerated 10 GE / 5 GE / 2.5 GE / GE RJ45 Ports	16
10GE/ GE RJ45 Management Ports	2
USB Ports (Client / Server)	1/1
Console Port	1
Onboard Storage	-	2x 1TB SSD
Trusted Platform Module (TPM)	Yes
Included Transceivers	2x SFP+ (SR 10 GE)
System Performance — Enterprise Traffic Mix
IPS Throughput	36 Gbps
NGFW Throughput	34 Gbps
Threat Protection Throughput	33 Gbps
System Performance and Capacity
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP)	397 / 389 / 221 Gbps
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP)	397/ 389/ 221 Gbps
Firewall Latency (64 byte, UDP)	3.92 μs
Firewall Throughput (Packet per Second)	331.5 Mpps
Concurrent Sessions (TCP)	70 Million / 230 Million
New Sessions/Second (TCP)	870 000 / 3 Million
Firewall Policies	200 000
IPsec VPN Throughput (512 byte)	105 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	40 000
Client-to-Gateway IPsec VPN Tunnels	200 000
SSL-VPN Throughput	11 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	30 000
SSL Inspection Throughput (IPS, avg. HTTPS)	29 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	29 000
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	7.5 Million
Application Control Throughput (HTTP 64K)	115 Gbps
CAPWAP Throughput (HTTP 64K)	65 Gbps
Virtual Domains (Default / Maximum)	10 / 500
Maximum Number of FortiSwitches Supported	300
Maximum Number of FortiAPs (Total / Tunnel)	4096 / 2048
Maximum Number of FortiTokens	20 000
High Availability Configurations	Active-Active, Active-Passive, Clustering
Dimensions and Power
Height x Width x Length (inches)	3.5 x 17.44 x 21.89
Height x Width x Length (mm)	88.9 x 443 x 556
Weight	37.3 lbs (16.9 kg)	38.2 lbs (17.3 kg)
Form Factor (supports EIA/non-EIA standards)	Rack Mount, 2 RU
Power Consumption (Average / Maximum)	425 W / 680 W	420 W / 690 W
AC Power Supply	100–240V AC, 50/60 Hz
AC Current (Maximum)	12A@100V, 9A@240V
DC Power Supply	48-60VDC
DC Current (Maximum)	12A@100V, 9A@240V
Heat Dissipation	2321 BTU/h	2356 BTU/h
Redundant Power Supplies (Hot Swappable)	Yes (Default dual AC PSU for 1+1 Redundancy)
Power Supply Efficiency Rating	80Plus Compliant
Operating Environment and Certifications
Operating Temperature	32°–104°F (0°–40°C)
Storage Temperature	-31°–158°F (-35°–70°C)
Humidity	5% to 90% non-condensing
Noise Level	69 dBA
Forced Airflow	Front to Back
Operating Altitude	Up to 10 000 ft (3048 m)
Compliance	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications	USGv6/IPv6

Documentation:

Download the Fortinet FortiGate 3000F Series Datasheet (PDF).

Pricing Notes:

• Hardware plus FortiCare Premium and FortiGuard Enterprise Protection
  Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Enterprise Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering, Antispam, Security Rating, Industrial Security and FortiConverter Service) plus term of contract
• Hardware plus FortiCare Premium and FortiGuard SMB Protection
  Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, SMB Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering , Antispam and FortiGate Cloud subscription service) plus term of contract
• Hardware plus FortiCare Premium and FortiGuard Unified Threat Protection (UTP)
  Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering and Antispam Service) plus term of contract
• Enterprise Protection (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam, Security Rating, IoT Detection, Industrial Security, FortiConverter Svc, and FortiCare Premium)
  FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Enterprise Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering, Antispam, Security Rating, Industrial Security and FortiConverter Service)
• SMB Protection (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam, plus FortiGate Cloud subscription and FortiCare Premium)
  FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, SMB Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering, Antispam and FortiGate Cloud subscription service)
• Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam Service, and FortiCare Premium)
  FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering and Antispam Service)
• Advanced Threat Protection (IPS, Advanced Malware Protection Service, Application Control, and FortiCare Premium)
  FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Advanced Threat Protection Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct Service, Application Control)
• FortiCare Essential Support
  FortiCare Essential Ticket Handling, Hardware Replacement, Firmware and General Upgrades, Application Control
• FortiCare Premium Support
  FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Application Control
• FortiCare Elite Support
  FortiCare Premium Support with FortiCare Elite Ticket Handling.
• Prices are for one year of Premium RMA support. Usual discounts can be applied.
• Annual contracts only. No multi-year SKUs are available for these services.
• Contact Fortinet Renewals team for upgrade quotations for existing FortiCare contracts.
• Pricing and product availability subject to change without notice.
