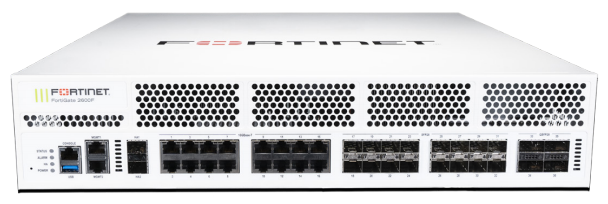

Fortinet FortiGate 2600F-DC
High-Performance Threat Protection and SSL Inspection

Click here to jump to more pricing!

Overview:

The FortiGate 2600F series delivers high-performance threat protection and SSL inspection for large enterprises and service providers, with the flexibility to be deployed at the enterprise/ cloud edge, in the data center core or internal segments. The multiple high-speed interfaces, high port density, superior security efficacy and high throughput of the 2600F series keep your network connected and secure.

Security

• Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement
• Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic environments
• Prevents and detects against known and unknown attacks using continuous threat intelligence supplied by AI powered FortiGuard Labs security services

Performance

• Delivers the industry’s best threat protection performance and ultra-low latency using purpose-built security processor (SPU) technology
• Provides industry-leading performance and protection for SSL encrypted traffic

Certification

• Independently tested and validated for industry-best security effectiveness and performance
• Received unparalleled third-party certifications from NSS Labs

Networking

• Delivers advanced networking capabilities that seamlessly integrate with advanced layer 7 security and virtual domains (VDOMs) to offer extensive deployment flexibility, multi-tenancy and effective utilization of resources
• Delivers high-density, flexible combinations of various highspeed interfaces to enable the best TCO for customers at data centers and WAN deployments

Management

• Includes a management console that is effective, simple to use, and provides comprehensive network automation & visibility.
• Provides Zero Touch Integration with the Security Fabric’s Single Pane of Glass Management
• Provides Zero Touch Integration with Security Fabric’s Single Pane of Glass Management
• Predefined compliance checklist analyzes the deployment and highlights best practices to improve overall security posture

Security Fabric

• Enables Fortinet and Fabric-ready partners’ products to provide broader visibility, integrated end-to-end detection, threat intelligence sharing and automated remediation

Firewall	IPS	NGFW	Threat Protection	Interfaces
198 Gbps	24 Gbps	19 Gbps	17 Gbps	Multiple GE RJ45, 25 GE SFP28 / 10 GE SFP+ / GE SFP and 100GE QSFP28 / 40 GE QSFP+ slots

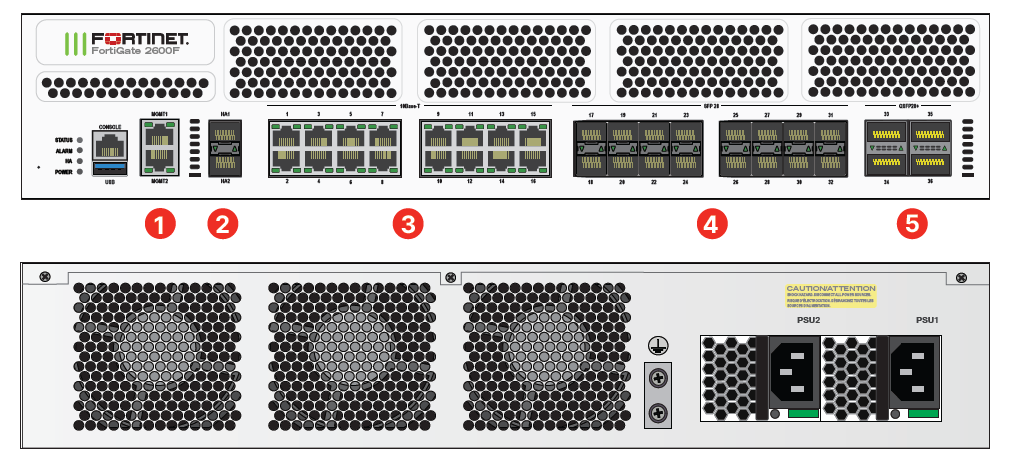

Hardware:

FortiGate 2600F/2601F

Interfaces

1. 2x GE RJ45 MGMT Ports
2. 2x 10 GE SFP+ / GE SFP HA Slots
3. 16x 10 GE / GE RJ45 Ports
4. 16x 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots
5. 4x 100 GE QSFP28 / 40 GE QSFP+ Slots

Hardware Features

Powered by SPU

• Fortinet’s custom SPU processors deliver the power you need to detect malicious content at multi-Gigabit speeds
• Other security technologies cannot protect against today’s wide range of content- and connectionbased threats because they rely on general-purpose CPUs, causing a dangerous performance gap
• SPU processors provide the performance needed to block emerging threats, meet rigorous third-party certifications, and ensure that your network security solution does not become a network bottleneck

Hyperscale Firewall License

Empower organizations by unlocking further performance boosts with this perpetual license. The Hyperscale Firewall License will enable the hardware acceleration of CGNAT features by utilizing the latest SPU NP7. These features include hardware session setup, firewall session logging, and NAT

Network Processor

Fortinet’s new, breakthrough SPU NP7 network processor works inline with FortiOS functions delivering:

• Superior firewall performance for IPv4/IPv6, SCTP and multicast traffic with ultra-low latency
• VPN, CAPWAP, and IP tunnel acceleration
• Anomaly-based intrusion prevention, checksum offload, and packet defragmentation
• Traffic shaping and priority queuing

Content Processor

Fortinet’s ninth generation custom SPU CP9 content processor works outside of the direct flow of traffic and accelerates the inspection.

Trusted Platform Module (TPM)

The FortiGate 2600F Series features a dedicated module that hardens physical networking appliances by generating, storing, and authenticating cryptographic keys. Hardwarebased security mechanisms protect against malicious software and phishing attacks.

Specifications:

	FG-2600F-DC	FG-2601F-DC
Interfaces and Modules
Hardware Accelerated 10 GE / GE RJ45 Ports	16
Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots	16
Hardware Accelerated 100 GE QSFP28 / 40 GE QSFP+ Slots	4
Hardware Accelerated 10 GE SFP+ / GE SFP HA Slots	2
GE RJ45 Management Ports	2
USB 3.0 Port	1
Console RJ45 Port	1
Onboard Storage	–	2x 1 TB NVME SSD
Included Transceivers	2x SFP+ (SR 10 GE)
System Performance — Enterprise Traffic Mix
IPS Throughput2	24 Gbps
NGFW Throughput2, 4	19 Gbps
Threat Protection Throughput2, 5	17 Gbps
System Performance and Capacity
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP)	198 / 196 / 120 Gbps
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP)	198 / 196 / 120 Gbps
Firewall Latency (64 byte, UDP)	3.41 μs
Firewall Throughput (Packet per Second)	180 Mpps
Concurrent Sessions (TCP)	24 Million / 40 Million*
New Sessions/Second (TCP)	1 Million / 2 Million*
Firewall Policies	100,000
IPsec VPN Throughput (512 byte)1	55 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	20,000
Client-to-Gateway IPsec VPN Tunnels	100,000
SSL-VPN Throughput	16 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	30,000
SSL Inspection Throughput (IPS, avg. HTTPS)3	20 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)3	16,000
SSL Inspection Concurrent Session (IPS, avg. HTTPS)3	2.7 Million
Application Control Throughput (HTTP 64K)2	64 Gbps
CAPWAP Throughput (HTTP 64K)	62.5 Gbps
Virtual Domains (Default / Maximum)	10 / 500
Maximum Number of FortiSwitches Supported	196
Maximum Number of FortiAPs (Total / Tunnel)	4,096 / 2,048
Maximum Number of FortiTokens	20,000
Maximum Number of Registered FortiClients	20,000
High Availability Configurations	Active-Active, Active-Passive, Clustering
Dimensions and Power
Height x Width x Length (inches)	3.5 x 17.25 x 21.1
Height x Width x Length (mm)	88.4 x 438 x 536
Weight	30.6 lbs (13.9 kg)	30.9 lbs (14.0 kg)
Form Factor (supports EIA/non-EIA standards)	Rack Mount, 2 RU
AC Power Supply	100–240VAC, 47/63 Hz
Power Consumption (Average / Maximum)	416 W / 510 W	420 W / 514 W
Current (Maximum)	6A
Heat Dissipation	1,740 BTU/h	1,754 BTU/h
Redundant Power Supplies	Yes, Hot Swappable
Operating Environment and Certifications
Operating Temperature	32–104°F (0–40°C)
Storage Temperature	-31–158°F (-35–70°C)
Humidity	10–90% non-condensing
Noise Level	71.72 dBA
Forced Airflow	Side and Front to Back
Operating Altitude	Up to 7,400 ft (2,250 m)
Compliance	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN, USGv6/IPv6

Note: All performance values are “up to” and vary depending on system configuration.

1. IPsec VPN performance test uses AES256-SHA256.
2. IPS (Enterprise Mix), Application Control, NGFW and Threat Protection are measured with Logging enabled.
3. SSL Inspection performance values use an average of HTTPS sessions of different cipher suites.
4. NGFW performance is measured with Firewall, IPS and Application Control enabled.
5. Threat Protection performance is measured with Firewall, IPS, Application Control and Malware Protection enabled.

Fabric Security:

Security Fabric

The industry’s highest-performing cybersecurity platform, powered by FortiOS, with a rich ecosystem designed to span the extended digital attack surface, delivering fully automated, self-healing network security.

• Broad: Coordinated detection and enforcement across the entire digital attack surface and lifecycle with converged networking and security across edges, clouds, endpoints and users
• Integrated: Integrated and unified security, operation, and performance across different technologies, location, deployment options, and the richest Ecosystem
• Automated: Context aware, self-healing network & security posture leveraging cloud-scale and advanced AI to automatically deliver near-real-time, user-to-application coordinated protection across the Fabric

FortiOS™ Operating System

FortiOS, Fortinet’s leading operating system enable the convergence of high performing networking and security across the Fortinet Security Fabric delivering consistent and context-aware security posture across network endpoint, and clouds. The organically built best of breed capabilities and unified approach allows organizations to run their businesses without compromising performance or protection, supports seamless scalability, and simplifies innovation consumption. The release of FortiOS 7 dramatically expands the Fortinet Security Fabric’s ability to deliver consistent security across hybrid deployment models consisting on appliances, software and As-a-Service with SASE, ZTNA and other emerging cybersecurity solutions.

Services

FortiGuard™ Security Services

FortiGuard Labs offers real-time intelligence on the threat landscape, delivering comprehensive security updates across the full range of Fortinet’s solutions. Comprised of security threat researchers, engineers, and forensic specialists, the team collaborates with the world’s leading threat monitoring organizations and other network and security vendors, as well as law enforcement agencies.

FortiCare™ Services

Fortinet is dedicated to helping our customers succeed, and every year FortiCare services help thousands of organizations get the most from their Fortinet Security Fabric solution. We have more than 1,000 experts to help accelerate technology implementation, provide reliable assistance through advanced support, and offer proactive care to maximize security and performance of Fortinet deployments.

Documentation:

Download the Fortinet FortiGate 2600F-DC/2601F-DC Data Sheet (PDF).

Pricing Notes:

• Hardware plus FortiCare Premium and FortiGuard Enterprise Protection
  Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Enterprise Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering, Antispam, Security Rating, Industrial Security and FortiConverter Service) plus term of contract
• Hardware plus FortiCare Premium and FortiGuard SMB Protection
  Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, SMB Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering , Antispam and FortiGate Cloud subscription service) plus term of contract
• Hardware plus FortiCare Premium and FortiGuard Unified Threat Protection (UTP)
  Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering and Antispam Service) plus term of contract
• Enterprise Protection (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam, Security Rating, IoT Detection, Industrial Security, FortiConverter Svc, and FortiCare Premium)
  FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Enterprise Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering, Antispam, Security Rating, Industrial Security and FortiConverter Service)
• SMB Protection (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam, plus FortiGate Cloud subscription and FortiCare Premium)
  FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, SMB Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering, Antispam and FortiGate Cloud subscription service)
• Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam Service, and FortiCare Premium)
  FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering and Antispam Service)
• Advanced Threat Protection (IPS, Advanced Malware Protection Service, Application Control, and FortiCare Premium)
  FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Advanced Threat Protection Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct Service, Application Control)
• FortiCare Essential Support
  FortiCare Essential Ticket Handling, Hardware Replacement, Firmware and General Upgrades, Application Control
• FortiCare Premium Support
  FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Application Control
• FortiCare Elite Support
  FortiCare Premium Support with FortiCare Elite Ticket Handling.
• Prices are for one year of Premium RMA support. Usual discounts can be applied.
• Annual contracts only. No multi-year SKUs are available for these services.
• Contact Fortinet Renewals team for upgrade quotations for existing FortiCare contracts.
• Pricing and product availability subject to change without notice.
