Fortinet FortiGate 1801F
High Performance Next Generation/Edge Firewall for the Enterprise

Purchasing Options:

We provide you with the freedom to choose and mix and match between:

A la carte
Optimized bundles for products and use cases
Enterprise Agreement

This data sheet includes purchasing options and bundles for the FortiGate product line. For enabling FortiGuard Security Services on all other products and for other use cases, please refer to the relevant product data sheet.

FortiGate Hardware and VM

SD-WAN and ZTNA capabilities are made available with FortiOS on all FortiGates

	Individual	Bundle
FortiGuard Security Services	A La Carte	Enterprise	SMB¹	UTP	ATP
IPS
Advanced Malware Protection (AMP)
Antivirus
Botnet
Mobile Malware
FortiGate Cloud Sandbox
Outbreak Prevention
Web Security
Web and Content Filtering
Secure DNS Filtering
Video Filtering
Antispam
IoT Query Service
OT Protocols Signature Service
NOC Services
FortiGate Cloud (SMB Logging and Cloud Management)
FortiManager Cloud²
Security Fabric Rating and Compliance Monitoring
FortiConverter Service
SD-WAN Bandwidth Monitoring
SOC Services
FortiCloud SOCaaS (managed service)
FortiCare Support Services
24x7
Web, Chat, and Telephone
1-hour Response Time SLA
Base Services (included with all FortiCare support contracts)
Application Control
Geo IP Updates
Device/OS Detection
IoT Mac Database
Trusted Certificate Database
Internet Service (SaaS) Database
DDNS (v4/v6)
Important Add-ons
FortiDeploy	Add-on (1 unit per P.O. to route all FortiGates for zero-touch provisioning)
FortiCloud Premium	Add-on (required to deploy base VMs for FortiManager Cloud and FortiAnalyzer Cloud)
FortiAnalyzer Cloud Storage top-up	Top up as needed using central FortiCloud account add-on

¹ SMB Bundle is available for FortiGate 80F-series and below.
² Requires FortiCloud Premium to deploy the base FortiManager Cloud.

Download the FortiGuard Security Services Data Sheet (PDF).

FortiGate Cloud

Management and Services for FortiGate Firewalls

FortiGate Cloud is a cloud-based SaaS, offering a range of management and services for Fortinet FortiGate Firewalls. FortiGate Cloud offers zero touch deployment, configuration management, reporting, and analytics. FortiGate Cloud can grow with your requirements from a single FortiGate to a complete MSP management solution for thousands of devices across multiple customers.

Free Service Option

FortiGate Cloud offers a free tier that allows deployment and visibility of FortiGates
Data retention is limited to seven days

Full Subscription Option

Configuration management and backup for FortiGates
One year of online logs, analysis, and reporting

Provisioning

Bulk import devices using FortiCloud Key
Simple zero touch deployment

SD-WAN

Configure SD-WAN interfaces
Setup and manage application prioritization
Deploy and manage the entire SD-WAN deployment

International Cloud Management

Isolated instances for Europe, America, and Asia ensure data separation for privacy laws
Built-in free Two-factor authentication

Multi-Tenancy

A single license enables multi-tenancy for many customers
Role based (Admin, Read Only) access control
Simple Central visibility and access

FortiGate Cloud Subscription is included in SMB Protection

Download the FortiGuard Cloud (PDF).

Fortinet Products

FortiGate 1801F Base ApplianceBack to top

Fortinet FortiGate 1801F Firewall
4 x 40GE QSFP+ slots, 12 x 25GE SFP28 /10GE SFP+ slots, 2x10GE SFP+ HA slots, 8 x GE SFP slots, 18 x GE RJ45 ports, 2x1TB on board SSD storage. SPU NP7 and CP9 accelerated, dual AC power supplies

#FG-1801F
List Price: ~~$50,035.00~~
Our Price: ~~$45,031.50~~
Call For Lowest Price!

FortiGate-1801F Hardware plus FortiCare Premium and FortiGuard Enterprise ProtectionBack to top

Includes: Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Enterprise Services Bundle (IPS, AI-based Inline Malware Prevention, Advanced Malware Protection, Inline CASB Database, Data Loss Prevention, Application Control, URL, DNS & Video Filtering, Antispam, Attack Surface Security, and FortiConverter Service) plus term of contract

FortiGate-1801F Hardware plus 1 Year Hardware plus FortiCare Premium and FortiGuard Enterprise Protection

#FG-1801F-BDL-809-12
List Price: ~~$92,564.75~~
Our Price: ~~$83,308.28~~
Call For Lowest Price!

FortiGate-1801F Hardware plus 3 Year Hardware plus FortiCare Premium and FortiGuard Enterprise Protection

#FG-1801F-BDL-809-36
List Price: ~~$177,624.25~~
Our Price: ~~$159,861.83~~
Call For Lowest Price!

FortiGate-1801F Hardware plus 5 Year Hardware plus FortiCare Premium and FortiGuard Enterprise Protection

#FG-1801F-BDL-809-60
List Price: ~~$262,683.75~~
Our Price: ~~$236,415.38~~
Call For Lowest Price!

FortiGate 1801F Hardware plus FortiCare Premium and FortiGuard Unified Threat Protection (UTP)Back to top

Includes: Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering and Antispam Service) plus term of contract

FortiGate-1801F Hardware plus 1 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP)

#FG-1801F-BDL-950-12
List Price: ~~$85,059.50~~
Our Price: ~~$76,553.55~~
Call For Lowest Price!

FortiGate-1801F Hardware plus 3 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP)

#FG-1801F-BDL-950-36
List Price: ~~$155,108.50~~
Our Price: ~~$139,597.65~~
Call For Lowest Price!

FortiGate-1801F Hardware plus 5 Year FortiCare Premium and FortiGuard Unified Threat Protection (UTP)

#FG-1801F-BDL-950-60
List Price: ~~$225,157.50~~
Our Price: ~~$202,641.75~~
Call For Lowest Price!

Click here to jump to more pricing!

Overview

Specifications

Documentation

Overview:

The FortiGate 1800F series delivers high performance next generation firewall (NGFW) capabilities for large enterprises and service providers. With multiple high-speed interfaces, high-port density and highthroughput, ideal deployments are at the enterprise edge, hybrid and hyperscale data center core and across internal segments. Leverage industry-leading IPS, SSL inspection and advanced threat protection to optimize your network’s performance. Fortinet’s Security-Driven Networking approach provides tight integration of the network to the new generation of security.

Security

Identifies thousands of applications inside network traffic for deep inspection and granular policy enforcement
Protects against malware, exploits, and malicious websites in both encrypted and non-encrypted traffic
Prevents and detects against known attacks using continuous threat intelligence from AI-powered FortiGuard Labs security services
Proactively blocks unknown sophisticated attacks in realtime with the Fortinet Security Fabric integrated AI-powered FortiSandbox

Performance

Engineered for Innovation using Fortinet’s purpose-built security processors (SPU) to deliver the industry’s best threat protection performance and ultra-low latency
Provides industry-leading performance and protection for SSL encrypted traffic including the first firewall vendor to provide TLS 1.3 deep inspection

Certification

Independently tested and validated best security effectiveness and performance
Received unparalleled third-party certifications from NSS Labs, ICSA, Virus Bulletin, and AV Comparatives

Networking

Application aware routing with in-built SD-WAN capabilities to achieve consistent application performance and the best user experience
Built-in advanced routing capabilities to deliver high performance with encrypted IPSEC tunnels at scale

Management

Includes a management console that is effective and simple to use, which provides a comprehensive network of automation & visibility
Provides Zero Touch Provisioning leveraging Single Pane of Glass Management powered by the Fabric Management Center
Predefined compliance checklists analyze the deployment and highlight best practices to improve the overall security posture

Security Fabric

Enables Fortinet and Fabric-ready partners’ products to provide broader visibility, integrated end-to-end detection, threat intelligence sharing, and automated remediation
Automatically builds Network Topology visualizations which discover IoT devices and provide complete visibility into Fortinet and Fabric-ready partner products

Specifications:

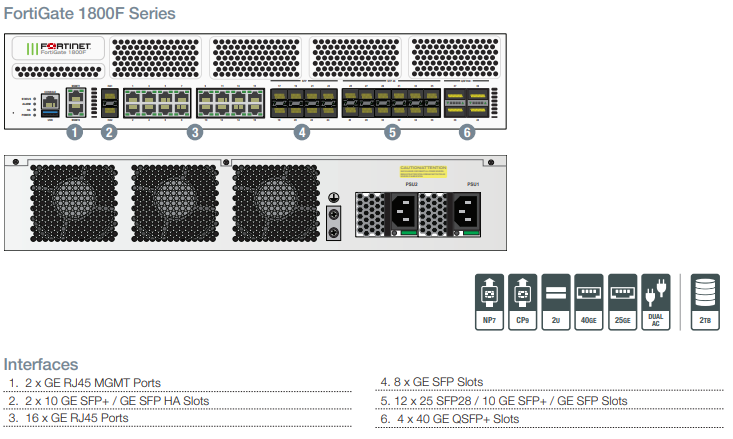

FortiGate 1800F

	FG-1800F / -DC	FG-1801F / -DC
Hardware Specifications
Hardware Accelerated GE RJ45 Ports	16
Hardware Accelerated GE SFP Slots	8
Hardware Accelerated 25 GE SFP28 / 10 GE SFP+ / GE SFP Slots	12
Hardware Accelerated 40GE QSFP+ Slots	4
GE RJ45 Management Ports	2
10 GE SFP+ / GE SFP HA Slots	2
USB 3.0 Port	1
Console RJ45 Port	1
Onboard Storage	-	2x 1TB NVMe SSD
Included Transceivers	2x SFP+ (SR 10GE)
System Performance — Enterprise Traffic Mix
IPS Throughput	13 Gbps
NGFW Throughput	11 Gbps
Threat Protection Throughput	9.1 Gbps
System Performance and Capacity
IPv4 Firewall Throughput (1518 / 512 / 64 byte, UDP)	198 / 197 / 140 Gbps
IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP)	198 / 197 / 140 Gbps
Firewall Latency (64 byte, UDP)	3.22 μs
Firewall Throughput (Packet per Second)	210 Mpps
Concurrent Sessions (TCP)	12 Million
New Sessions/Second (TCP)	750,000
Firewall Policies	100,000
IPsec VPN Throughput (512 byte)	55 Gbps
Gateway-to-Gateway IPsec VPN Tunnels	20,000
Client-to-Gateway IPsec VPN Tunnels	100,000
SSL-VPN Throughput	11 Gbps
Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)	10,000
SSL Inspection Throughput (IPS, avg. HTTPS)	17 Gbps
SSL Inspection CPS (IPS, avg. HTTPS)	9,500
SSL Inspection Concurrent Session (IPS, avg. HTTPS)	1.3 Million
Application Control Throughput (HTTP 64K)	34 Gbps
CAPWAP Throughput (HTTP 64K)	26.5 Gbps
Virtual Domains (Default / Maximum)	10 / 250
Maximum Number of FortiSwitches Supported	196
Maximum Number of FortiAPs (Total / Tunnel)	4,096 / 2,048
Maximum Number of FortiTokens	20,000
High Availability Configurations	Active-Active, Active-Passive, Clustering
Dimensions and Power
Height x Width x Length (inches)	3.5 x 17.25 x 21.1
Height x Width x Length (mm)	88.4 x 438 x 536
Weight	30.2 lbs (13.7 kg)	30.4 lbs (13.8 kg)
Form Factor (supports EIA/non-EIA standards)	Rack Mount, 2RU
AC Power Input	100–240VAC, 50-60 Hz
AC Maximum Current	7A@100VAC, 3A@240VAC
DC Power Input	-48V to -60V DC
DC Maximum Current	20A
Maximum Power Consumption	543.6W	558.8W
Average Power Consumption	388.3W	399.1W
Heat Dissipation	1,854.84 BTU/hr	1,906.70 BTU/hr
Redundant Power Supplies	Yes, Hot swappable
Operating Environment & Certifications
Operating Temperature	32 - 104 deg F (0 - 40 deg C)
Storage Temperature	-31 - 158 deg F (-35 - 70 deg C)
Humidity	10–90% non-condensing
Noise Level	62.74 dBA
Operating Altitude	Up to 7,400 ft (2,250 m)
Compliance	FCC Part 15 Class A, RCM, VCCI, CE, UL/cUL, CB
Certifications	ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6

Documentation:

Download the Fortinet FortiGate 1800F Series Datasheet (PDF).

Pricing Notes:

Hardware plus FortiCare Premium and FortiGuard Enterprise Protection
Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Enterprise Services Bundle (IPS, AI-based Inline Malware Prevention, Advanced Malware Protection, Inline CASB Database, Data Loss Prevention, Application Control, URL, DNS & Video Filtering, Antispam, Attack Surface Security, and FortiConverter Service) plus term of contract
Hardware plus FortiCare Premium and FortiGuard SMB Protection
Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, SMB Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering , Antispam and FortiGate Cloud subscription service) plus term of contract
Hardware plus FortiCare Premium and FortiGuard Unified Threat Protection (UTP)
Hardware Unit, FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering and Antispam Service) plus term of contract
Enterprise Protection (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam, Security Rating, IoT Detection, Industrial Security, FortiConverter Svc, and FortiCare Premium)
FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Enterprise Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering, Antispam, Security Rating, Industrial Security and FortiConverter Service)
SMB Protection (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam, plus FortiGate Cloud subscription and FortiCare Premium)
FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, SMB Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering, Antispam and FortiGate Cloud subscription service)
Unified Threat Protection (UTP) (IPS, Advanced Malware Protection, Application Control, Web & Video Filtering, Antispam Service, and FortiCare Premium)
FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, UTP Services Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct, Application Control, Web & Video Filtering and Antispam Service)
Advanced Threat Protection (IPS, Advanced Malware Protection Service, Application Control, and FortiCare Premium)
FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Advanced Threat Protection Bundle (IPS, AV, Botnet IP/Domain, Mobile Malware, FortiGate Cloud Sandbox including Virus Outbreak and Content Disarm & Reconstruct Service, Application Control)
FortiCare Essential Support
FortiCare Essential Ticket Handling, Hardware Replacement, Firmware and General Upgrades, Application Control
FortiCare Premium Support
FortiCare Premium Ticket Handling, Advanced Hardware Replacement (NBD), Firmware and General Upgrades, Application Control
FortiCare Elite Support
FortiCare Premium Support with FortiCare Elite Ticket Handling.
Prices are for one year of Premium RMA support. Usual discounts can be applied.
Annual contracts only. No multi-year SKUs are available for these services.
Contact Fortinet Renewals team for upgrade quotations for existing FortiCare contracts.
Pricing and product availability subject to change without notice.
