Fortinet FortiDDoS VM04
DDoS Attack Mitigation Appliances
Call For Lowest Price!
Distributed Denial of Service (DDoS) attacks remain a top threat to IT security and have evolved in almost every way to do what they do best: shut down access to your vital online services.
Unlike intrusion and malware attacks, DDoS attackers have learned that they don’t need to attack only end-point servers to shut you down. They attack any IP address that routes to your network: unused IP addresses, Inter-router-link public IP addresses, or Firewall/Proxy/WiFi Gateway public IP addresses.
Cloud-based CDN and DNS-based cloud mitigation cannot protect you from these attacks. What is the impact to your business if your users cannot reach cloud services because your firewall or demarc router public IP is being DDoSed? Your CDN-based web servers may be up but your business is down!
Sophisticated multi-vector and multi-layer DDoS attacks use direct and reflected packets where the spoofed, randomized source IP addresses are impossible to ACL. These attacks are increasingly common as Mirai-style code has morphed into many variants and has been commercialized by providers of “stresser” sites. Anyone can call down large attacks for a few dollars.
To combat these attacks, you need a solution that dynamically protects a large attack surface.
A Different and Better Approach to DDoS Attack Mitigation
FortiDDoS massively parallel machine-learning architecture delivers the most advanced and lowest-latency DDoS attack mitigation on the market today, without the performance compromises normally associated with CPU-based systems. FortiDDoS inspects 100% of both inbound and outbound Layer 3, 4, and 7 packets, to the smallest packet sizes, resulting in the fastest and most accurate detection and mitigation in the industry.
In place of pre-defined or subscription-based signatures to identify attack patterns, FortiDDoS uses autonomous machine learning to build an adaptive baseline of normal activity from hundreds-of-thousands of parameters and then monitors traffic patterns against those baselines. Should an attack begin, FortiDDoS sees the deviation and immediately takes action to mitigate it, often from the first packet.
- 100% packet inspection for Layer 3, 4, and 7 DDoS attack identification and mitigation, simultaneously monitoring hundreds of thousands of parameters — a massivelyparallel computing architecture
- 100% Machine Learning DDoS detection

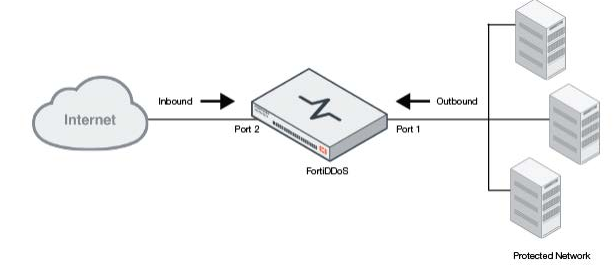

- Completely invisible to attackers with no IP and no MAC addresses in the data path. FortiDDoS is not a routing or terminating Layer 3 device.
- Continuous threat evaluation to minimize false positive detections
- Advanced DNS and NTP DDoS mitigation on selected models
- MSSP Portal for customer resale on selected models
- Central Manager for selected models
- Hybrid On-premise/Cloud mitigation available with Open Signaling
|100% Machine Learning Detection||FortiDDoS doesn’t rely on signature files that need to be updated with the latest threats so you’re protected from both known and unknown “zero-day” attacks. No “threat-protection” subscriptions required. Saves OPEX.|
|Massively Parallel Architecture||Parallel architecture provides 100% packet inspection with bidirectional detection and mitigation of Layer 3, 4, and 7 DDoS attacks even at the smallest packets sizes. Get the performance you pay for.|
|Continuous Attack Evaluation||Minimizes the risk of “false positive” detection by reevaluating the attack to ensure that “good” traffic isn’t disrupted. Less management time needed.|
|Advanced DNS Protection||FortiDDoS provides 100% inspection of all DNS Query and Response traffic up to 12 million QPS, for protection from a broad range of DNS-based volumetric, application and anomaly attacks. DNS Reflection floods are stopped from the FIRST packet.|
|Advanced NTP Protection||FortiDDoS provides 100% inspection of all NTP Query and Response traffic up to 6 million QPS. NTP Reflection floods are stopped from the FIRST packet.|
|Continuous Learning||With continuous background learning and minimal configuration, FortiDDoS will automatically build normal traffic and resources behavior profiles saving you time and IT management resources.|
|Autonomous Mitigation||No operator intervention required for any type or size of attack.|
|Hybrid On-premise/Cloud Support||Open, documented API allows integration with third-party cloud DDoS mitigation providers for flexible deployment options and protection from large-scale DDoS attacks.|
|Fortinet Security Fabric Integration||Single-pane visibility of attack mitigation and network performance reduces management and improves response time (on selected models).|
|RESTful API||FortiDDoS can be integrated into almost any environment through its RESTful API.|
|Central Manager||FortiDDoS-CM (for B-/E-Series) is available for users with multiple geographically dispersed FortiDDoS units. One management screen for all devices with single sign-on.|
Packet Inspection Technology
- 100% Packet Inspection
- Full IPv4/IPv6 Support to single IP addresses
- Machine learning for Predictive, Heuristic, Adaptive Analysis
- Deep Packet Inspection
- TCP State knowledge to instantly mitigate out-of-state attacks
- DNS Query Monitoring to instantly mitigate DNS Reflected attacks
- NTP Monitoring to instantly mitigate NTP reflection attacks (E/F)
- Complete invisibility with no MAC nor IP addresses in the data path
- Massively parallel processing for multiple simultaneous attack vectors
Behavioral Threshold Management
- Machine-learning thresholds for millions of L3-L7 parameters
- Automatic adaptive thresholds estimation for critical L3, L4 and L7 parameters
100% Anomaly Inspection
- L3/L4/L7 HTTP Headers
- DNS Header and Payload
- TCP State and Transition Anomalies
- NTP Header and Payload (E/F)
Layer 3 Attack Mitigation
- Protocol Floods (all 256 monitored)
- Fragment Floods (TCP/UDP/Other Protocols)
- Source Floods (up to 24M monitored)
- FortiGuard IP Reputation Subscription
- Full L3-L7 IP-inside-GRE Inspection
Layer 4 Attack Mitigation
- TCP Ports (all 65k)
- UDP Ports (all 65k)
- TCP / UDP Service Ports (>10,000)
- ICMP Type/Codes (all 65k)
- SYN, SYN/Destination with line-speed validation, SYN/Source
- First-packet TCP State flood mitigation
- Slow Connections
- L4 Aggressive Connection Aging
HTTP Attack Mitigation
- HTTP URL, Referer, Cookie, Host, User Agent
- HTTP METHOD Floods (all 8 METHODS +Total Methods/Source)
- Protocol Anomalies (F)
- SSL Renegotiation
- L7 Aggressive Aging
- Cypher Anomalies (F)
- GET/POST Client Validation (F)
- First-packet DNS (B/E/F) and NTP (E/F) Response Flood mitigation (DQRM/NRM)
- DNS / NTP Header/payload/state anomalies
- DNS Query / MX / ALL / ZT / fragment / per-Source Floods
- DNS Response Code Flood mitigation
- NTP Request / Response / Response-per-Destination Floods
- DNS Query Source validation, Unexpected Query, Legitimate Query
- DNS Query TTL validation
- DNS Response cache under flood
- DNS Domain Reputation Subscription
- DNS Resource Record ACLs
- NTP Amplified Reflected Mode 7(monlist) and Mode 6 (varlist) Response Flood First-packet mitigation
Access Control Lists
FortiDDoS is the ONLY product in the industry that supports large ACLs in hardware with no performance degradation. While most DDoS attacks use spoofed Source IPs, your existing Indicators of Compromise IP and Domain lists can be uploaded to FortiDDoS to offload other infrastructure
- IP Reputation – Fortinet FortiGuard subscription
- IP/subnet Blacklist/Whitelist
- Bulk IPv4 Blacklist Customer Upload (>1million addresses)
- Enhanced BCP38 Source Address Validation/Local Address Anti-Spoofing (>2000 subnets)
- Protocol, UDP, TCP and other Protocol Fragments, DNS Fragment, L4 Port, ICMP Type/Code
- HTTP Methods, URLs, Hosts, Referrers, User Agents
- DNS Domain Reputation – Fortinet FortiGuard subscription (>250k Malicious Domains)
- DNS Bulk Domain Blacklist Customer Upload (>500k Domains)
- DNS Resource Record ACLs (256 RRs)
- Packet Length, v4/v6, Protocol, TCP/UDP Port, ICMP Type-Code, TCP/UDP/Other fragment ACL
- Flowspec ACL script generatio

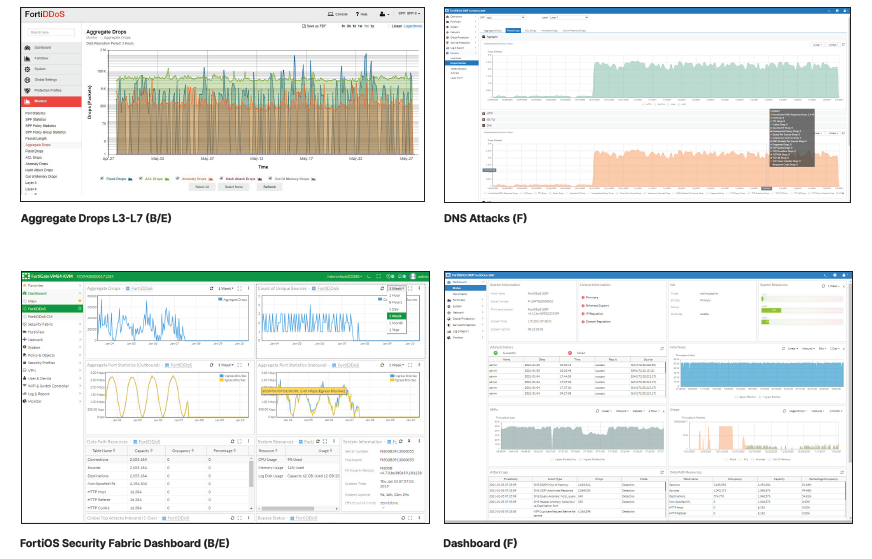

Comprehensive Built-In Reporting
- Filterable/Exportable Attack Log
- Summary Graphs and Logs for:
- Top Attacks / Top Attackers
- Top ACL Drops
- Top Attacked Subnets and IP Addresses
- Top Attacked Protocols
- Top Attacked TCP and UDP Ports
- Top Attacked ICMP Types/Codes
- Top Attacked URLs, HTTP Hosts, Referers, Cookies, User-Agents
- Top Attacked DNS Servers
- Top Attacked DNS Anomalies
- Physical Port, SPP, SPP Policy (subnet) and SPP Policy Group statistics: Mbps/pps and Drops graphing
- Custom, on-demand, on-schedule and/or on-Attack-Threshold reports in multiple formats
- Millions of built-in reporting graphs for real-time and forensic analysis
Centralized Event Reporting
- SNMP v2/v3 MIB and Traps
- Email Alerts and Reports
- Open RESTful API
- Syslog support for FortiAnalyzer, FortiSIEM and third-party servers
- FortiDDoS Central Manager centralized attack log and executive summary
- Login Audit Trail
- Configuration Audit Trail
- Full TLS 1.3 Management GUI
- Full CLI
- Open RESTful API
- RADIUS, LDAP, and TACACS+ Authentication including 2FA and Proxy
- Multi-Tenant MSSP Portal
- Central Manager for multiple FortiDDoS
- Open Cloud Mitigation Signaling
Powerful Parallel Architecture = Flexible, Autonomous Defenses
FortiDDoS protects you from known and “zero-day” attacks without creating local or downloading subscription signatures for mitigation. Other vendors try to conserve CPU real-time by inspecting a relatively small number of parameters at a low sample rate, unless and until an explicit signature is created. FortiDDoS’ massively parallel architecture samples 100% of even the smallest packets, for over 230,000 parameters for each Protection Profile. This method allows FortiDDoS to operate completely autonomously, finding some attacks on the FIRST packet and all attacks within two seconds — broader and faster mitigation than any other vendor or method. There is no need to adjust settings, read pcaps, or add regex-style manual signatures or ACLs in the middle of attacks. While attacks are being mitigated, FortiDDoS continues to monitor all other parameters to instantly react to added or changed vectors.
The Resurgence of Botnets
Easily-compromised IoT devices have allowed Botnet attacks to rise again and massive IoT growth assures us they are here to stay. While individual devices have little power, large groups can generate record traffic. Attackers want to hide the real source IP addresses of botted devices so UDP, SYN, TCP Out-of-State (FIN/ACK/RST), DNS and Protocol direct and reflected floods using spoofed source IP addresses are back in vogue. Attackers can launch an unprecedented variety of simultaneous attack vectors. Small-packet floods stress routers, firewalls, and many DDoS appliances, preventing full inspection with unexpected results. FortiDDoS’ 100% inspected small-packet rate is class-leading.
Botnet-driven DNS attacks are popular because they can target any type of infrastructure or they can co-opt your DNS servers to attack others with reflected DDoS attacks. FortiDDoS is the only DDoS mitigation platform that inspects 100% of all DNS traffic in both directions, to protect against all types of DDoS attacks directed at, or from DNS servers. It validates over 30 different parameters on every DNS packet at up to 12 M Queries/second. Its built-in cache can offload the local server during floods. FortiDDoS’s innovative DQRM feature stops inbound Reflected DNS attacks from the very first packet. FortiDDoS also supports FortiGuard’s Domain Reputation Service for ISPs to protect clients from known malicious domains.
FortiDDoS complements Fortinet’s full suite of Security Fabric products, each of which uses purpose-built hardware with dedicated engineering and support resources to provide best-in-class focused protection. FortiDDoS B-/E- Series display system performance and mitigation activities in real-time on a FortiOS Security Fabric Dashboard, providing a single-pane-of-glass view of DDoS threats and mitigations along with other Security Fabric products and partners.
Hybrid On-premise/Cloud DDoS Mitigation
While FortiDDoS can mitigate any DDoS attack to the limit of the incoming bandwidth, large attacks can saturate incoming links, forcing ISP routers to drop good traffic. FortiDDoS’s open and documented Attack Signaling API allows our Security Fabric partners to provide you a choice of best-in-class hybrid CPE/cloud DDoS mitigation when attacks threaten to congest upstream resources. FortiDDoS inspects incoming GRE clean traffic from cloud DDoS providers to ensure continuity of logging and reporting, and complete threat mitigation. FortiDDoS on-premise appliances can also provide your ISP with Flowspec scripts to support diversion and multiparameter blocking of attack traffic.
Always-On Inline vs. Out-of-Path Mitigation
Many hosting providers, MSSPs and ISPs are moving away from out-of-path detection, diversion and scrubbing as too limited and too slow for important infrastructure. Netflow-based detection and mitigation monitor a limited number of parameters for a few different attack types. FortiDDoS mitigates more than 150 attack events, many with “depth” (all 65,000 TCP and UDP ports are monitored and mitigated, for example). 100% packet inspection and leading packet performance ensure mitigation from single-packet anomalies to link-filling small-packet, fragmented UDP floods.
Studies are showing that 75% of DDoS attacks last less than 15 minutes. Customers are also seeing multi-vector attacks, attacks that sequentially change vectors and pulsed attacks that start and stop frequently. FortiDDoS begins mitigating in less than 2 seconds and its massively-parallel detection and mitigation ensures multi-vector, sequential and pulsed attacks are seen and stopped.
All FortiDDoS models offer High Availability and select models offer Optical Bypass (to 100GE) to ensure network continuity in the event of system failures. When attacks threaten link bandwidth, Flowspec scripts can be generated to configure upstream router ACLs.
FortiDDoS also offers a wide range of static and dynamic ACLs to offload other infrastructure. For example, FortiDDoS supports BCP- 38 (select models) and FortiGuard Domain Reputation blocks IoT and end-user communications to botnet controllers and malicious domains. FortiDDoS ACLs operate at line-rate with no impact on performance even with millions of blocklisted IP addresses.
Selected FortiDDoS models offer multi-tenant real-time graphing and attack reporting for resale to customers.
|FortiDDOS VM04||FortiDDOS VM08||FortiDDOS VM16|
|Hypervisor Support||VMware ESX/ESXi 6.x / 7.x with hardware-assisted virtualization (VT) enabled in the BIOS||VMware ESX/ESXi 6.x / 7.x with hardware-assisted virtualization (VT) enabled in the BIOS||VMware ESX/ESXi 6.x / 7.x with hardware-assisted virtualization (VT) enabled in the BIOS|
|Throughput1,3||3 Gbps||6 Gbps||9 Gbps|
|Mitigation2,3||2.3 Gbps/2.1 Mpps||2.3 Gbps/2.1 Mpps||2.3 Gbps/2.1 Mpps|
|Service Protection Profiles||4||8||16|
|Memory Support||16 GB||16 GB||32 GB|
|Network Interface Support||8 (4 bridged link pairs)||8 (4 bridged link pairs)||8 (4 bridged link pairs)|
|Storage Support||Requires at least 200 GB||Requires at least 200 GB||Requires at least 200 GB|
11.7KB HTTP Response
2Rate for 100% inspection of 64Byte packets
3Actual peformance will vary depending on underlying hardware. Performance results were observed using a bare-metal appliance with Intel(R) Xeon(R) W-3245 CPU @ 3.20GHz running VMware ESXI 7.0.0 and SR-IOV
Download the FortiDDOS VM04 (.PDF)
- FortiADC 24x7 Standard Bundle Contract
Advanced Hardware Replacement (NBD), Firmware and General Upgrades, 24x7 Support, FortiADC WAF Security Service, & IP Reputation Service
- FortiADC 24x7 Advanced Bundle Contract
Advanced Hardware Replacement (NBD), Firmware and General Upgrades, 24x7 Support, AV, WAF, IP Reputation, and FortiSandbox Cloud Service
- 24x7 FortiCare Contract
24x7 Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades
- FortiDDoS 24x7 FortiCare Contract
24x7 Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades. This service level includes a FortiDDoS responsiveness SLA of 30 minutes for Priority 1 incidents.
- Prices are for one year of Premium RMA support. Usual discounts can be applied.
- Annual contracts only. No multi-year SKUs are available for these services.
- Contact Fortinet Renewals team for upgrade quotations for existing FortiCare contracts.
- Pricing and product availability subject to change without notice.
