Fortinet FortiAP U432F
Unified Threat Protection Capable Access Points


Unified Management


Fortinet Products
FortiAP U432F Access Point

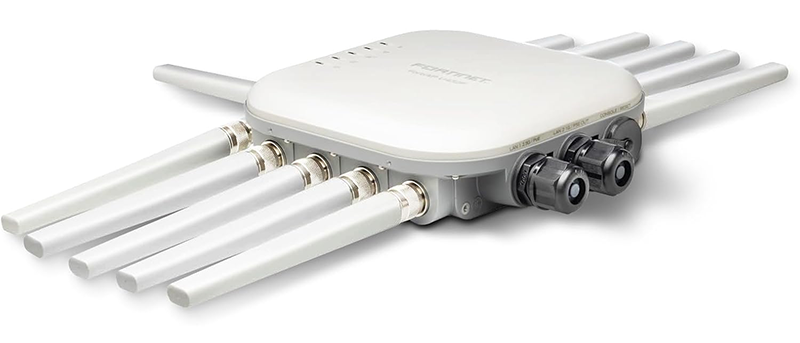

Fortinet FortiAP U432F Outdoor Universal Access Point
Tri radio (1x 2.4GHz/5GHz 4x4 Wi-Fi 6, 1x 5GHz 4x4 Wi-Fi 6, 1x 2.4GHz/5GHz 1x1 Wi-Fi 5), external antennas included, 1x 100/1000/2500 RJ45, 1x 10/100/1000 RJ45, IoT Enabled (BT/BLE), 1x RS-232 RJ45 Serial Port. Pole/wall mount kit and PoE injector included.
#FAP-U432F-A
List Price: $2,943.00
Our Price: $2,548.05

Click here to jump to more pricing!

Overview:

This enterprise class 802.11ax ruggedized indoor/outdoor AP provides three radios. As a top-of-the-line Wi-Fi 6 access point it provides OFDMA, a 2.5 Gigabit Ethernet port, plus an additional 1 Gbps Ethernet port with PoE out. The AP can be configured for dual 5 GHz band access while still providing coverage for devices on the 2.4 GHz band, or can be configured to offer dedicated scanning. The integrated BLE radio can be used for beacons and locationing applications.

  • 802.11ax | Tri-Radio 5 GHz + 5 GHz + 2.4 GHz or 5 GHz + 2.4 GHz + scanning | 10 Antennas
  • 4x4 MIMO | Up to 4,804 Mbps + 4,804 Mbps + 300 Mbps

Unified Management

Ability to intelligently support integrated security controllers (FortiGate), and cloud management options with FortiGuard services at the edge; and establish a new benchmark in flexibility, performance, and security.

Wi-Fi 6 technology with data rates of up to 4.8 Gbps and OFDMA improves client throughput and overall network efficiency.

Advanced Security Protection

Integrates with Fortinet’s Security Fabric, providing unparalleled cybersecurity protection at the network edge.


Deployments:

Fortinet UTP access points are designed to support a variety of deployments from branches, to medium to large offices, schools, universities, hospitals, hotels, and large retail stores. These access points can serve such a wide range of applications because they can be managed by any of Fortinet’s control and management. By supporting UTP services at the edge, deployments have the flexibility to enable security services wherever they need them in their network.

FortiGuard Services

Education

The Education sector is at rising risk from cyber attacks. This in conjunction with requirements to protect minors from inappropriate materials can make deploying wireless a challenge. Our integrated secure wireless controller (FortiGate) ensures secure student access to learning resources while FortiGuard services provides cybersecurity protection.

Fortinet Universal access points for education

Healthcare

Patient safety is priority one. Fortinet UTP APs empower hospitals to improve patient safety by enabling life-critical applications such as telemetry requiring low bandwidth but exceptionally high reliability. Our dedicated wireless controllers (integrated WLAN controller of any FortiGate security appliance) connected to our access points ensures patient safety remains paramount, while providing improved performance for wireless enabled medical devices.

Fortinet Universal access points for Healthcare

Small/Medium Business

Retailers can streamline WiFi store deployments through the combination of Universal APs and FortiCloud management. This, in combination with FortiDeploy for zero-touch provisioning and deployment offers a cost effective solution for retail IT.

Fortinet Universal access points for Retail

Specifications:

This enterprise class 802.11ax ruggedized indoor/outdoor AP provides three radios. As a top-of-the-line Wi-Fi 6 access point it provides OFDMA, a 2.5 Gigabit Ethernet port, plus an additional 1 Gbps Ethernet port with PoE out. The AP can be configured for dual 5 GHz band access while still providing coverage for devices on the 2.4 GHz band, or can be configured to offer dedicated scanning. The integrated BLE radio can be used for beacons and locationing applications.


FORTIAP U234F
Hardware
Hardware Type Outdoor AP
Number of Radios 3 + 1 BLE
Number of Antennas 11
Antenna Type and Peak Antenna Gain Dual band Dipole Omni Directional Peak Gain 5.5dBi for 2.4GHz and 7dBi for 5.0GHz
Frequency Bands (GHz) * 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
Radio 1 2.4 GHz a/b/g/n (4x4 4stream) (64 QAM) or 5.0 GHz (high band) a/b/g/n/ac/ax (4x4 4 stream) 20/40/80/160 MHz (64/256/1024 QAM)
Radio 2 5.0 GHz a/b/g/n/ac/ax (4x4 4 stream) 20/40/80/160 MHz (64/256/1024 QAM)
Radio 3 2.4/5.0 GHz dual band b/g/n/ac (2x2 2 stream) 20/40 MHz (64 QAM)
Maximum Data Rate Radio 1 up to 4,804 Mbps
Radio 2 up to 4,804 Mbps
Radio 3 up to 300 Mbps
Bluetooth Low Energy Radio Bluetooth scanning and iBeacon advertisement @ 10 dBm max TX power
Interfaces 1x 100/1000/2500 Base-T RJ45(802.2bt PoE) , 1 x 10/100/1000 Base-T RJ45 (802.3af PSE OUT), 1x RS-232 RJ45 Serial Port
Power over Ethernet (PoE) 802.3bt PoE default (ships with Passive PoE injector
• Powered by 802.3at PoE - Operate in 4x4 mode with reduced Tx power Radio1/R2 17dBm
• This product only supports PSE functionality when it is powered by PoE injector that ships
with the product.
Simultaneous SSIDs Up to 16 (14 if background scanning enabled)
EAP Type(s) EAP-TLS, EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-SIM, EAP-AKA, EAP-FAST
User/Device Authentication WPA™, WPA2™, and WPA3™ with 802.1x or Preshared key, WEP, Web Captive Portal, MAC blocklist and allowlist
Maximum Tx Power Radio 1 2.4 GHz 29 dBm / 794 mW (4 chains combined)* 5.0 GHz 28 dBm / 630 mW (4 chains combined)* Radio 2 5.0 GHz 26 dBm / 400 mW (2 chains combined)* Radio 3 2.4 GHz 26 dBm / 400 mW (2 chains combined) 5.0 GHz 24 dBm / 251 mW (2 chains combined)*
Kensington Lock No
IEEE Standards 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11k, 802.11n, 802.11r, 802.11v, 802.11w, 802.11ac, 802.1Q, 802.1X, 802.3ad, 802.3af, 802.3at, 802.3az, 802.11ax, 802.3bz
SSID Types Supported Local-Bridge, Mesh, and Tunnel
Per Radio Client Capacity Up to 512 clients per Radio1 and Radio2
Cellular Co-existence Yes
LED Off Mode No
Advanced 802.11 Features Yes
OFDMA Yes (UL and DL)
2.4 GHz OFDMA Yes
Spatial Reuse (BSS Coloring) Yes
UL MU-MIMO Yes
DL MU-MIMO Yes
Enhanced Target Wake Time (TWT) Yes
ZeroWait DFS /Agile DFS Yes
Wireless Monitoring Capabilities
Rogue Scan radio modes Background and Dedicated
WIPS / WIDS radio modes Background and Dedicated (recommended)
Packet Sniffer Mode Yes
Spectrum Analyzer Yes
Dimensions
Length x Width x Height (inches) 8.23 x 8.23 x 2.38 inches (209 x 209 x 60.5 mm)
Weight 0 lb 8 oz (0.232 kg)
Package (shipping) Weight 12 lb 9 oz (5.7 kg)
Mounting Options Wall/ Pole
Included Accessories 1-3. Wall/ Pole/ Sector Ant. bracket
4. POE adapter
5. Power cable - PIN060
6. Grounding cable
7. Mounting Kit (Pole straps; mounting bolts, screws; grounding screws)
8. External Ant.(2.4GHz; 5GHz; 2.4/5GHz)
Environment
Power Supply 802.3bt (ships with passive PoE injector with build in reset switch)
Power Consumption (Maximum) 32W max (without PSE) & 45W max (with PSE 12.99W)
Humidity 10–90% non condensing
Operating / Storage Temperature -22–140°F (-40 - 60°C) / -40–176°F (-40–80°C)
Directives Low Voltage Directive • RoHS
UL2043 Plenum Material No
Mean Time Between Failures >10 Years
Surge Protection Built In Yes
IP Rating IP67
Hit-less PoE Failover N/A
Certifications
Wi-Fi Alliance Certified No
DFS CE
Warranty
Limited Lifetime Warranty Yes

* Frequency selection and power may be restricted to abide by regional regulatory compliance laws.

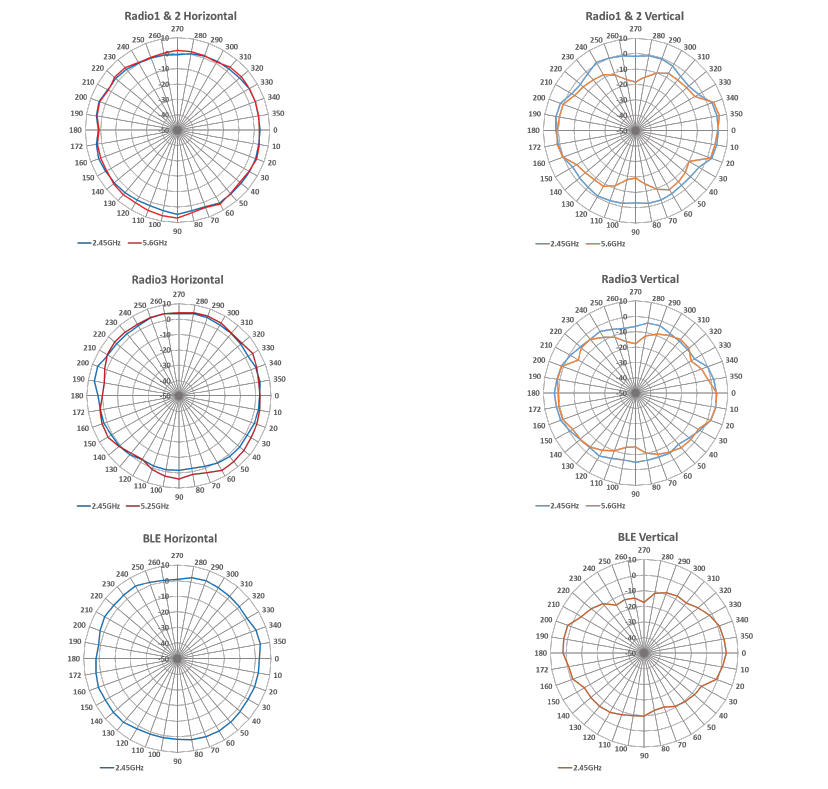

Antenna Radiation Patterns:

Antenna Radiation Patterns

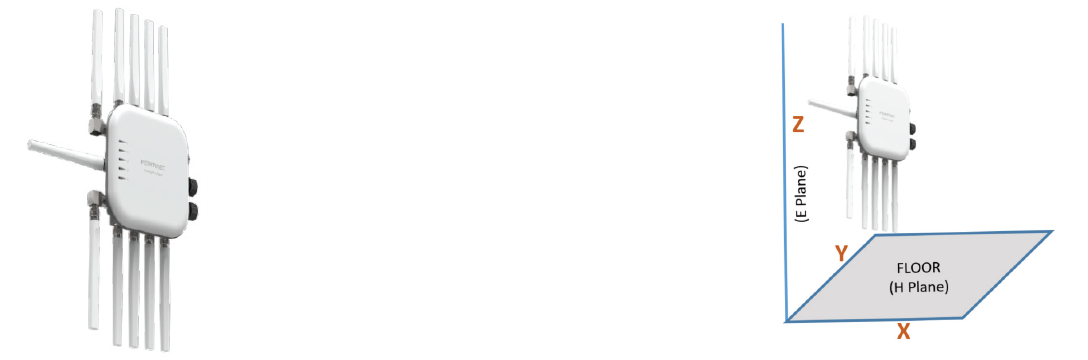

Mounting Options:

Mounting Options

Performance Matrix:


FORTIAP U234F

2.4 GHz

5 GHz

Tx Power (dBm)

Rx Sensitivity (dBm)

Tx Power (dBm)

Rx Sensitivity (dBm)

802.11 b

1 Mbps

22

-93

11 Mbps

21

-93

802.11 a/g

6 Mbps

21

-93

20

-91

54 Mbps

19

-75

17

-74

802.11 n HT20

MCS0

21

-91

20

-91

MCS7

19

-71

16

-72

802.11 n HT40

MCS0

20

-89

19

-88

MCS7

19

-69

16

-69

802.11 ac/ax VHT20

MCS0

21

-91

19

-91

MCS8

18

-68

18

-69

802.11 ac/ax VHT40

MCS0

20

-89

19

-88

MCS9

17

-66

16

-64

MCA 10 (QAM 1024)

15

-62

MCA 11 (QAM 1024)

15

-62

802.11 ac/ax VHT80

MCS0

19

-85

MCS9

15

-61

MCA 10 (QAM 1024)

14

-60

MCA 11 (QAM 1024)

14

-60

802.11 ac/ax VHT160

MCS0

17

-83

MCS9

13

-59

MCA 10 (QAM 1024)

13

-58

MCA 11 (QAM 1024)

13

-58

Documentation:

Download the Fortinet FortiAP Universal Access Points Datasheet (PDF).

Pricing Notes:

Fortinet Products
FortiAP U432F Access Point
Fortinet FortiAP U432F Outdoor Universal Access Point
Tri radio (1x 2.4GHz/5GHz 4x4 Wi-Fi 6, 1x 5GHz 4x4 Wi-Fi 6, 1x 2.4GHz/5GHz 1x1 Wi-Fi 5), external antennas included, 1x 100/1000/2500 RJ45, 1x 10/100/1000 RJ45, IoT Enabled (BT/BLE), 1x RS-232 RJ45 Serial Port. Pole/wall mount kit and PoE injector included.
#FAP-U432F-A
List Price: $2,943.00
Our Price: $2,548.05
FortiAP U432F FortiCare Premium Support
FortiAP-U432F 1 Year FortiCare Premium Support
#FC-10-PU432-247-02-12
List Price: $294.30
Our Price: $254.80
FortiAP-U432F 3 Year FortiCare Premium Support
#FC-10-PU432-247-02-36
List Price: $882.90
Our Price: $764.41
FortiAP-U432F 5 Year FortiCare Premium Support
#FC-10-PU432-247-02-60
List Price: $1,471.50
Our Price: $1,274.02
FortiAP U432F FortiCare Elite Support
FortiAP-U432F 1 Year FortiCare Elite Support
#FC-10-PU432-284-02-12
List Price: $441.45
Our Price: $382.21
FortiAP-U432F Upgrade FortiCare Premium to Elite
FortiAP-U432F 1 Year Upgrade FortiCare Premium to Elite (Require FortiCare Premium)
#FC-10-PU432-204-02-12
List Price: $147.15
Our Price: $127.40
FortiAP U432F FortiCare Elite Support
FortiAP-U432F 3 Year FortiCare Elite Support
#FC-10-PU432-284-02-36
List Price: $1,324.35
Our Price: $1,146.62
FortiAP-U432F Upgrade FortiCare Premium to Elite
FortiAP-U432F 3 Year Upgrade FortiCare Premium to Elite (Require FortiCare Premium)
#FC-10-PU432-204-02-36
List Price: $441.45
Our Price: $382.21
FortiAP U432F FortiCare Elite Support
FortiAP-U432F 5 Year FortiCare Elite Support
#FC-10-PU432-284-02-60
List Price: $2,207.25
Our Price: $1,911.04
FortiAP-U432F Upgrade FortiCare Premium to Elite
FortiAP-U432F 5 Year Upgrade FortiCare Premium to Elite (Require FortiCare Premium)
#FC-10-PU432-204-02-60
List Price: $735.75
Our Price: $637.01
