Fortinet FortiManager-4000E
Centralized Security Management

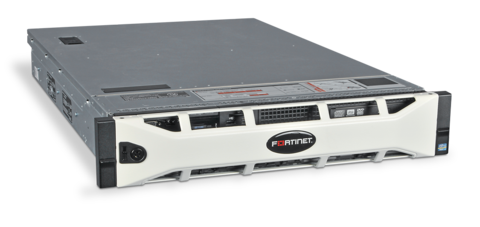

Fortinet FortiManager 4000E Appliance

The FortiManager-4000E has been discontinued. Services and subscriptions can be purchased below.

Click here to jump to more pricing!

Overview:


Take Control of Your Security Infrastructure

The FortiManager family delivers the versatility you need to effectively manage your Fortinet-based security infrastructure. FortiManager drastically reduces management costs, simplifies configuration, and accelerates deployment cycles, whether you are deploying new devices, installing security policies, or distributing updates.

FortiManager also provides crucial timesaving features like device auto-discovery, group management, global policies, auditing facilities, and the ability to manage complex VPN environments. FortiManager, coupled with the FortiAnalyzer™ family of centralized logging and reporting appliances, provides a comprehensive and powerful centralized management solution for your organization.

Fortinet's Versatile Management Solution

Networks are constantly evolving due to threats, organizational growth or new regulatory/business requirements. Traditional management products focus on mitigating company-wide threats through firewall policies, firmware updates and keeping content security current.

FortiManager offers enterprise class features to contain these threats, but also provides flexibility to evolve along with your ever-changing network.

In addition to being able to manage hundreds or even thousands of FortiGate devices, FortiManager now includes basic FortiAnalyzer logging and reporting functions for administrators who prefer a consolidated management platform.

Key tenets of Fortinet's management versatility:

  • Diversity of form factors
  • Architectural flexibility
  • Highly customizable
  • Simple licensing
Key Features & Benefits
Integrated FortiAnalyzer Logging This allows for a tighter integration and correlation of events and policies. A consolidated platform allows customers to more easily deploy Fortinet management products.
Hierarchical Objects Database Facilitates reuse of common configurations across the organization in both local and global ADOM levels.
Automated Device Provisioning / Centralized Policy Configuration Reduces cost of deploying new FortiGate or FortiClient installations and maintains policies across all managed assets.
Role-Based Administration Enables distributed administration, an important requirement for larger organizations.
Policy/Device Auditing Allows you to prove compliance, and track any deviations from the required security policy.
In-view Policy Object Editing Faster rulebase editing without opening new windows or changing context.
Device Profiles Aids in mass provisioning of managed devices.
XML API Web Services interface that enables users to integrate with provisioning systems and automate the configuration of the many devices that FortiManager is capable of managing.
JSON API JSON API allows MSSPs to offer administrative web portals to customers.

Features:


Administrative Domains (ADOMs) and Global Policy

Enables a primary administrator to create groups of devices for other administrators to monitor and manage

  • Administrators can manage devices in their geographic location or business division
  • Multiple FortiGate virtual domains (VDOMs) can be divided among multiple ADOMs
  • Granular permissions allow assigning ADOMs and policies to particular users
  • Administrators can only access devices or VDOMs assigned to them
  • Create device configuration templates to quickly configure a new Fortinet appliance
  • Within each ADOM, there is a common database of objects shared by all devices and policy packages allowing users to reuse similar configurations among a group of managed assets
  • Global Policy capabilities are available on all FortiManager hardware models and virtual machines

JSON and XML (Web Services) APIs

  • JSON API — Allows MSSPs/large enterprises to create customized, branded web portals for policy and object administrationXML
  • API — Enables administrators to automate common tasks such as provisioning new FortiGates and configuring existing devices

Fortinet Developer Network (FNDN)

Access tools, sample code, documentation and interact with the Fortinet developer community by subscribing to the Fortinet Developer Network.

Note: With the purchase of a FortiManager 1000 series or above, customers receive a complimentary 90 day trial access to FNDN.

FortiManager Deployment

Locally Hosted Security Content

Hosting security content locally allows the administrator greater control over security content updates and provides improved response time for rating databases. Includes support for:

  • Antivirus definition updates
  • Intrusion Prevention updates
  • Vulnerability and Compliance Management updates
  • Web Filtering (select systems)
  • Antispam (select systems)

Command and Control

  • Manage devices and endpoint agents individually or as logical groups
  • Update device firmware
  • Discover new devices automatically
  • Create, deploy, and monitor virtual private networks
  • Delegate control to other users with distributed administration features
  • Audit configuration changes to ensure compliance

Monitor, Analyze and Report

  • Access vital security and network statistics
  • Real-time monitoring and integrated basic reporting provide visibility into network and user activity.
  • For more powerful analytics, combine with a FortiAnalyzer appliance for additional data mining and graphical reporting capabilities

FortiManager Supported Devices

  • FortiGate and FortiCarrier Consolidated Security Appliances
  • FortiAP Wireless Access Points
  • FortiMail Messaging Security Systems
  • FortiWeb Web Application Security
  • FortiAnalyzer Reporting and Analysis Appliances
  • FortiSwitch ATCA Switching Platforms



Specifications:


FM-200D
FortiManager-200D
FM-200D
FortiManager-1000D
FM-200D
FortiManager-4000E
FM-200D
FortiManager-300D
FM-200D
FortiManager-3900E
FM-200D
FortiManager Virtual Appliance

  200D 300D 1000D 3900e 4000e
Capacity and performance
Licensed Network Devices/ADOMs (Maximum)1 30 300 1,000 10,000 4,000
Admin Web Portals / Maximum Portal Users 1,000 10,000 4,000
GB/Day of Logs 2 2 2 10 10
Hardware specifications
Hardware Form Factor 1 RU Rackmount 1 RU Rackmount 2 RU Rackmount 2 RU Rackmount 2 RU Rackmount
Total Interfaces 4x GE 4x GE 6x GE, 2x GE SFP 2x GE, 2x GE SFP+ 4x GE, 2x GE SFP
Console Port RJ45 RJ45 RJ45 DB-9 DB-9
LCD Display No No No Yes Yes
Number of Hard Drives 1 2 4 15 8 (8 Max)
Removable Hard Drives No No Yes Yes Yes
Storage Capacity 1x 1 TB 2x 2 TB (4 TB Maximum) 4x 2 TB (8 TB Maximum) 15x 960 GB (14.4 TB Maximum) 8x 2TB (16 TB Maximum)
RAID Storage Management No Yes (0, 1) Yes (0, 1, 5, 6, 10) Yes (0, 1, 5, 6, 10, 50, 60) Yes (0, 1, 5, 6, 10, 50, 60)
High Availability Support Yes Yes Yes Yes Yes
Redundant Hot Swap Power Supplies No No Yes Yes Yes
Dimensions
Height x Width x Length (inches) 1.8 x 17.1 x 13.9 1.7 x 17.1 x 14.3 3.5 x 17.1 x 14.5 3.5 x 17.2 x 26.9 3.4 x 19 x 29.7
Height x Width x Length (cm) 4.5 x 43.4 x 35.2 4.4 x 43.4 x 36.4 9 x 43.4 x 36.8 89 x 437 x 684 8.7 x 48.2 x 75.5
Weight 13.4 lbs (6.1 kg) 15.9 lbs (7.2 kg) 30.6 lbs (13.9 kg) 52 lbs (23.6 kg) 71.5 lbs (32.5 Kg)
Environment
AC Power Supply 100–240V AC, 50–60 Hz, 6 Amp Maximum 100–240V AC, 50–60 Hz, 4.0 Amp Maximum 100–240V AC, 50–60 Hz, 5 Amp Maximum 100–240V AC, 50–60 Hz, 10 Amp Maximum 100–240V AC, 50–60 Hz, 10 Amp Maximum
Power Consumption (Average) 60 W 162 W 133 W 470 W for 15 HDD 375.8 W
Heat Dissipation 205 BTU/h 666 BTU/h 546 BTU/h 1637 BTU/h 1947 BTU/h
Operating Temperature 32–104°F (0–40°C) 50–95°F (10–35°C) 32–104°F (0–40°C) 50–95°F (10–35°C) 50–95°F (10-35°C)
Storage Temperature -13–158ºF (-25–70ºC) -40–158ºF (-40–70ºC) -13–158°F (-25–70°C) -40–140°F (-40–60°C) -40–149°F (-40–65°C)
Humidity 5–95% non-condensing 8–90% non-condensing 5–95% non-condensing 5–95% (non-condensing) 20–90% non-condensing
Operating Altitude compliance Up to 7,400 ft (2,250 m) Up to 7,400 ft (2,250 m) Up to 7,400 ft (2,250 m) Up to 7,400 ft (2,250 m) Up to 7,400 ft (2,250 m)
Safety Certifications FCC Class A Part 15, UL/CB/cUL, C-Tick, VCCI, CE FCC Class A Part 15, UL/CB/cUL, C-Tick, VCCI, CE FCC Class A Part 15, C-Tick, VCCI, CE, BSMI, UL/CB/cUL FCC Part 15 Class A, C-Tick, VCCI, CE, BSMI, KC, UL/cUL, CB, GOST FCC Part 15 Class A, C-Tick, VCCI, CE, BSMI, KC, UL/cUL, CB, GOST

FortiManager Virtual Appliances FMG-VM-Base FMG-VM-10-UG FMG-VM-100-UG FMG-VM-1000-UG FMG-VM-5000-UG FMG-VM-U-UG
Capacity
Licensed Network Devices / ADOMs (Maximum)1 10 +10 +100 +1,000 +5,000 Unlimited2
Admin Web Portals / Maximum Portal Users2 10 +10 +100 +1,000 +5,000 Unlimited2
Device Quota3 100 GB 200 GB 1 TB 4 TB 8 TB 16 TB
GB/Day of Logs 1 2 5 10 25 50
Virtual Machine
Hypervisor Support VMware ESX/ESXi 4.0/4.1/5.0/5.1/5.5, Microsoft Hyper-V 2008 R2 / 2012, Amazon (Amazon Web Services) AMI
vCPU Support (Minimum / Maximum) 1 / Unlimited
Network Interface Support (Minimum / Maximum) 1 / 4
Storage Support (Minimum / Maximum) 80 GB / 16 TB
Memory Support (Minimum / Maximum) 1 GB / 4 GB for 32-bit and 2 GB / Unlimited for 64-bit
High Availability Support Yes
1Each Virtual Domain (VDOM) operating on a physical or virtual device counts as one (1) licensed net work device.
2Limited in soft ware to 10,000 devices, ADOMs, Web Portals, and Web Portal users.
3Device quota is not stackable, this represents the maximum quota available with purchased license.
Locally Hosted Security Content Misc. Features
Antivirus Intrusion Prevention Vulnerability Management Web Filtering Antispam Databases Shelf Manager (VM activation) Closed Network Mode Global Policies Web portal
FortiManager 200D Yes Yes Yes Yes Yes No No Yes No
FortiManager 300D Yes Yes Yes Yes Yes No No Yes No
FortiManager 1000D Yes Yes Yes Yes Yes Yes Yes Yes Yes
FortiManager 3900E Yes Yes Yes Yes Yes Yes Yes Yes Yes
FortiManager 4000E Yes Yes Yes Yes Yes Yes Yes Yes Yes
FortiManager VM Base Yes Yes Yes No No No Yes Yes Yes
FortiManager VM Base +
FMG-VM-10-UG
Yes Yes Yes No No No Yes Yes Yes
FortiManager VM Base +
FMG-VM-100-UG
Yes Yes Yes Yes Yes No Yes Yes Yes
FortiManager VM Base +
FMG-VM-1000-UG
Yes Yes Yes Yes Yes Yes Yes Yes Yes
FortiManager VM Base +
FMG-VM-5000-UG
Yes Yes Yes Yes Yes Yes Yes Yes Yes
FortiManager VM Base +
FMG-VM-U-UG
Yes Yes Yes Yes Yes Yes Yes Yes Yes

Documentation:

Download the Fortinet FortiManager Series Datasheet (PDF).

Pricing Notes:

Fortinet FortiManager 4000E Series
Fortinet FortiManager-4000E
8x5 FortiCare Contract - 1 Year
#FC-10-M4001-311-02-12
Our Price: $21,999.00
24x7 FortiCare Contract - 1 Year
#FC-10-M4001-247-02-12
Our Price: $32,999.00
FortiManager - Add-On License
License to operate FortiManager as a dedicated Secure DNS server appliance (3000 series and above - hardware only)
#FMG-SDNS
Our Price: $10,000.00
