Fortinet ADM-FE8 Security Processing Module
Performance Enhancing Options for FortiGate Platforms

Fortinet ADM-FE8 Security Processing Module

Fortinet Products
Fortinet Security Processing Module
Fortinet ADM-FE8 Module
- Security Processing Module accelerates IPS/FW/Multicast, double-width AMC form factor, 8 SFP ports, 2 1000Base-SX SFP transceivers included
#ADM-FE8
Our Price: $24,995.00



Live Demo! Click here to loadOverview:

Large enterprises often use applications that subject the network to high rates of transactions in the course of daily business. Some applications employ IP multicast techniques to optimize traffic, while others may simply require higher network bandwidth to scale. Unfortunately, some networking and security devices can become bottlenecks as requirements grow, forcing administrators to either reduce the amount of security inspection applied to network traffic or implement higher performance equipment. From the financial sector to the telecommunications industry, enterprises are seeking new ways to optimize their infrastructure while reducing their security risk. To meet the needs of these types of customers, Fortinet offers specialized security processing modules for FortiGate multi-threat security platforms.

Fortinet ADM-XE2 and ASM-CE4 security processing modules provide multi-gigabit throughput increases for intrusion prevention, firewall, and IP multicast applications. Both models are based on the carrier-class Advanced Mezzanine Card™ (AMC) specification used in enterprise-class FortiGate multi-threat security platforms. The ADM-XE2 is a dual-width AMC module for 10-Gigabit Ethernet networks. The ASM-CE4 is a single-width AMC module for 10/100/1000 Ethernet networks. Fortinet security processing modules work to increase overall system performance by offloading select security applications and network processing functions from the FortiGate host system while maintaining all the benefits of a unified security platform.

Key Features and Benefits:

  • The security and network processor capabilities relieve processing burden from the FortiGate host system for intrusion prevention, firewall, and IP multicast applications. The module offloads inspection duties for these applications for traffic traversing the module's network interfaces, and thus increases the combined system's performance.
  • The modular form factors of the security processing modules empower customers with the ability to build the ideal system configuration, or upgrade an existing system with an available AMC expansion bay.
  • Integration with the FortiOS system allows users to fully realize the benefits of security consolidation with the wide array of multi-threat security features offered by FortiGate and FortiOS solutions.

The Fortinet Advantage

Fortinet's comprehensive portfolio of security products offer a powerful blend of integrated multi-threat protection, ASIC-accelerated performance, and in-depth threat intelligence. This unique combination delivers the highest levels of security to enterprises of all sizes. Fortinet products reduce total cost of ownership and provide a flexible, scalable path for expansion.

Features Benefits
Security and Network Processor Relieves processing burden from the host FortiGate host system for intrusion prevention, firewall, and IP multicast applications. The module offloads inspection duties for traffic traversing the module's network interfaces, and thus increases the combined system's performance.
Modular Form Factor Empowers customers with the ability to build the ideal system configuration, or upgrade an existing system with an available AMC expansion bay. Combine multiple security processing modules for additional performance enhancement.
FortiOS™ Integration Lowers operational burden through total integration with the FortiGate operating system, FortiOS. Realize the benefits of security consolidation with the multi-threat security features offered by FortiGate and FortiOS.

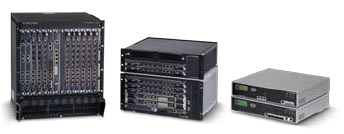

FortiGate SeriesFortiGate Multi-Threat Security Solutions:

FortiGate multi-threat security solutions provide an integrated set of security services in a single, easyto- manage platform that is capable of supporting a wide range of deployment scenarios. FortiGate systems provide essential security services, with fully integrated firewall, Virtual Private Network (VPN), intrusion prevention, antivirus/antispyware, Web filtering, antispam, and application control. To ensure that the security effectiveness of the FortiGate solutions remains at the highest levels possible, Fortinet offers FortiGuardĀ® subscription services that include antivirus updates, intrusion prevention updates, an antispam rating service, and a Web filtering rating service. A wide range of hardware models is available for any network size—from the remote office or branch office to the high-speed core or data center.

Specifications:

Security Processing Modules Models ASM-CE4 ADM-FE8 ADM-XE2
  ASM-CE4 ADM-FE8 ADM-XE2
Hardware Specifications
Module Form Factor Single-Width AMC Double-Width AMC Double-Width AMC
10-GbE Interfaces 0 0 2
GbE SFP Interfaces 0 8 0
10/100/1000 Interfaces 4 0 0
Transceivers Included N/A 2 Short-Range SFP 2 Short-Range XFP
Compatible FortiGate System(s) FortiGate-1240B
FortiGate-3016B
FortiGate-3810A
FortiGate-5001A-SW
FortiGate-3810A FortiGate-3810A
FortiGate-5001A-DW
Module Performance
Firewall 4 Gbps 8 Gbps 20 Gbps
Intrusion Prevention 1.3 Gbps 1.2 Gbps 1.5 Gbps
Environmental
Operating temperature 32 to 104 deg F (0 to 40 deg C)
Storage temperature -13 to 158 deg F (-25 to 70 deg C)
Humidity 5 to 95% non-condensing
Compliance
Compliance FCC Class A, Part 15, UL/CUL, C Tick, CE, VCCI

Services & Support:


FortiGuard Security Subscription Services

FortiGuard Security Subscription Services deliver dynamic, automated updates for Fortinet products. The Fortinet Global Security Research Team creates these updates to ensure up-to-date protection against sophisticated threats. Subscriptions include antivirus, intrusion prevention, web filtering, antispam, vulnerability and compliance management, application control, and database security services.

FortiCare Support Services

FortiCare Support Services provide global support for all Fortinet products and services. FortiCare support enables your Fortinet products to perform optimally. Support plans start with 8x5 Enhanced Support with "return and replace" hardware replacement or 24x7 Comprehensive Support with advanced replacement. Options include Premium Support, Premium RMA, and Professional Services. All hardware products include a 1-year limited hardware warranty and 90-day limited software warranty.

Documentation:

Download the Fortinet Security Processing Modules Datasheet (.PDF)
