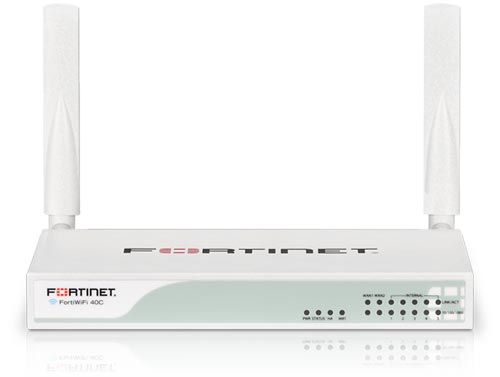

Fortinet FortiWifi 40C
Secure Connectivity and Compliance for the Small Office

Overview:

The FortiGate-40C and FortiWiFi-40C are ideal for small businesses, small branch offices and retail outlets requiring the consolidated security functions of larger FortiGate devices in a small form factor. The appliances deliver enterprise-grade network security and performance to smaller locations at an entry-level price.

FortiGate-40C Features & Benefits:

• 200 Mbps performance delivers fast throughput for high-bandwidth deployments.
• Multi-threat protection, including firewall, application control, IPS, antivirus, antispyware, antispam, VPN, web filtering, application control, and data leakage prevention for comprehensive protection for small businesses, retail locations and branch office environments.
• One WAN interface and four internal switch ports offer two security zones for policy enforcement at remote sites
• Unlimited user licensing minimizes operating costs and ensures that changes in the number of users does not interfere with network availability
• Available FortiManager and FortiAnalyzer appliances simplify security management and reduce operating expenses in multiple deployments
• FortiGuard Subscription Services deliver automated, real-time, up-to-date protection against security threats and exploits.

The Power of Unified Threat Management

The FortiGate-40C and FortiWiFi-40C appliances combine the purpose-built FortiOS™ 4.0 operating system with the Fortinet System on a Chip (SoC) purpose-built processor to deliver unmatched security and performance advantages. These devices feature all of Fortinet's unified threat management (UTM) inspection capabilities; firewall, IPS, application control, VPN, and web filtering - all managed from a 'single pane of glass' console. They also include other security technologies such as data leakage prevention, vulnerability management, and WAN optimization. You can deploy security technologies as needed for your unique requirements.

The FortiGate-40C and FortiWiFi-40C provide you with a strategic and cost-effective solution that you can provision and manage from anywhere in the world. The appliances capitalize on multiple security enforcement technologies to protect your remote networks in today's sophisticated threat landscape, helping you maintain compliance with PCI, HIPAA, and GLBA regulations for data protection.

By consolidating multiple security technologies into a single appliance, the FortiGate-40C and FortiWiFi-40C eliminate multiple hardware devices and software solutions, greatly simplifying security at small offices, branch offices and retail locations while substantially reducing total cost of ownership. Installation and configuration is made easy with FortiExplorer setup wizard. The wizard provides an easy, inexpensive way to configure the initial settings for the FortiGate unit, enabling non-IT staff to set up the device for remote management in a few minutes.

FortiGate Consolidated Security Solutions

Fortinet's consolidated security solutions provide an integrated set of core security and networking services in a single, easy-to-manage, high-performance appliance that is capable of supporting a wide range of deployment scenarios. Consolidating stand-alone security products into a single device allows you to improve your network visibility and increase control over users, applications, and data.

The Fortinet Systemon-a-Chip

The FortiGate-40C and FortiWiFi-40C devices include the Fortinet System-on-a-chip (SoC). Designed by Fortinet to provide real-time network protection, the SoC integrates FortiASIC security acceleration logic with a RISC-based main processor and other system components. This simplifies appliance design and delivers breakthrough performance for smaller networks. The FortiGate/FortiWiFi-40C series appliances enable large distributed enterprises to provide integrated, multi-threat protection across all points on their network without sacrificing performance.

FortiOS: Redefining Network Security

FortiOS is the software foundation of FortiGate multi-threat security platforms. Developed solely for security, performance and reliability, it is a purpose-built operating system that leverages the power of the FortiASIC content and network processors. FortiOS software enables a comprehensive suite of security services: Firewall, VPN, intrusion prevention, application control, antivirus, antispam, web filtering, data loss prevention, and end point network access control.

The FortiASIC Advantage

FortiASIC processors power FortiGate platforms. With exclusive hardware, the purpose-built, high performance Network, Security, and Content processors use intelligent and proprietary digital engines to accelerate security services.

Features & Benefits:

Integrated Multi-Threat Protection

The FortiGate product family provides cost-effective, comprehensive protection against network, content, and application-level threats. It defends your environment from complex, sophisticated attacks without degrading network availability and affecting application performance.

FortiGate platforms combine the purpose-built FortiOS™ security operating system with custom FortiASIC processors and other hardware to provide a comprehensive and highperformance array of security and networking functions.

The FortiGate product family delivers the highest level of network, content, and application security for enterprises of all sizes, while reducing total cost of ownership. With Fortinet, you deploy the network security you need to protect your intellectual property, preserve the privacy of critical customer information, and maintain regulatory compliance.

FortiOS 5.0 Software

FortiOS 5.0, the world's most powerful security operating system, is the foundation for all Fortinet FortiGate integrated security platforms. It provides more security, intelligence and control to help enterprises be better protected against today's advanced threats and enable more secure BYOD environments.

	More Security Fighting Advanced Threats More Security to fight advanced threats. A client reputation feature gives enterprises a cumulative security ranking of each device based on a range of behaviors and provides specific, actionable information that enables organizations to identity compromised systems and potential zero-day attacks in real time. The new advanced anti-malware detection system adds an on-device behavior-based heuristic engine and cloud-based AV services that includes an operating system sandbox and botnet IP reputation database. Together with superior industry-validated AV signatures, FortiOS 5.0 delivers unbeatable multi-layered protection against today's sophisticated malware. Client Reputation with Cumulative Rankings OS Sandbox Advanced Botnet Protection
	More Control Securing Mobile Devices More Control to secure mobile devices and BYOD environments by identifying devices and applying specific access policies as well as ecurity profiles, according to the device type or device group, location and usage. Device Identification & Visibility New Identity Based Policies Endpoint Control
	More Intelligence Build Smart Policies More Intelligence with automatic adjustment of role-based policies for users and guests based on location, data and application profile. Enhanced reporting and analysis also provides administrators with more intelligence on the behavior of their network, users, devices, applications and threats. Provide Guest Access with Confidence Enhanced Visibility & Reporting and Overal User Experience Extended Single Sign On Capabilities

Technical Specifications:

FortiGate Model	FortiGate-40C	FortiWiFi-40C
Hardware Specifications
LAN 10/100/1000 Interfaces (Switched)	5	5
WAN 10/100/1000 Interface	2	2
Wireless Interface	N/A	802.11 a/b/g/n
USB (Client/Server)	1/1	1/1
RJ45 Serial Console	1	1
Internal Storage	4 GB	4 GB
System Performance
Firewall Throughput (1514 byte UDP)	200 Mbps
Firewall Throughput (66 byte UDP)	200 Mbps
Firewall Throughput (512 byte UDP)	200 Mbps
IPSec VPN Throughput (512 byte packet)	60 Mbps
IPS Throughput	40 Mbps
Antivirus Throughput (Proxy Based)	20 Mbps
Antivirus Throughput (Flow Based)	40 Mbps
Gateway-to-Gateway IPSec VPN Tunnels (System / VDOM)	20 / 20
Client-to-Gateway IPSec VPN Tunnels	20
SSL-VPN Users (Recommended Max)	40
SSL-VPN Throughput	15 Mbps
Concurrent Sessions (TCP)	40,000
New Sessions/Sec (TCP)	2,000
Firewall Policies (Max)	400
Unlimited User Licenses	Yes
Virtual Domains (VDOMs)	10
Dimensions
Height x Width x Length	1.2 x 8.5 x 5.3 in (3 x 21.6 x 13.4 cm)
Weight	1.7 lb (0.8 kg)
Rack Mountable	Yes
Environmental
AC Power Required	100-240 VAC, 60-50 Hz
Heat Dissipation	50.5 BTU/h
Power Consumption (AVG)	12.3 W
Power Consumption (Max)	14.8 W
Redundant Power Supplies	No
Operating Temperature	32 - 104 °F (0 - 40 °C)
Storage Temperature	-13 - 158 °F (-25 - 70 °C)
Humidity	20 to 90% non-condensing
Compliance & Certifications
Compliance	FCC Class A Part 15, UL/CUL, CE, C Tick, VCCI
Certifications	ICSA Labs: Firewall, SSL VPN, IPS, Antivirus

All performance values are "up to" and vary depending on system configuration. Antivirus performance is benchmarked using traffic containing 32 Kbyte HTTP objects. IPS performance measured using 44 Kbyte HTTP files (similar to NSS Labs test methodology).

Services & Support:

FortiGuard® Security Subscription Services deliver dynamic, automated updates for Fortinet products. The Fortinet Global Security Research Team creates these updates to ensure up-to-date protection against sophisticated threats. Subscriptions include antivirus, intrusion prevention, web filtering, antispam, vulnerability and compliance management, application control, and database security services.

FortiCare™ Support Services provide global support for all Fortinet products and services. FortiCare support enables your Fortinet products to perform optimally. Support plans start with 8x5 Enhanced Support with return and replace hardware support or 24x7 Comprehensive Support with advanced hardware replacement. Options include Premium Support, Premium RMA, and Professional Services. All hardware products include a 1-year limited hardware warranty and a 90-day limited software warranty.

Documentation:

Download the Fortinet FortiGate and FortiWiFi 40C Datasheet (PDF).
