Fortinet FortiWiFi 60CX-ADSL-A
Integrated Threat Management for Front Line Locations

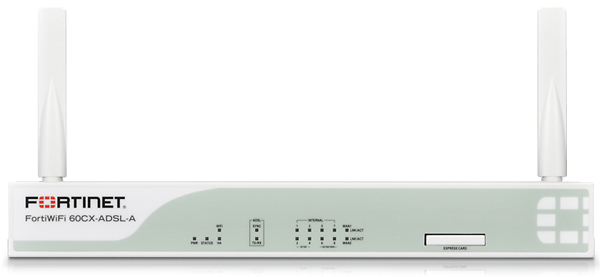

Fortinet FortiWiFi 60CX-ADSL-A

Fortinet FortiWiFi 60CX-ADSL-A Series
FortiWiFi-60CX-ADSL-A
Fortinet FortiWiFi-60CX-ADSL-A Firewall
#FWF-60CX-ADSL-A
List Price: $995.00
Our Price: $778.00
Fortinet FortiWiFi-60CX-ADSL-A Hardware plus 8x5 Forticare and FortiGuard UTM Bundle
*Hardware Unit, Hardware Replacement, Firmware and General Upgrades, 8x5 Enhanced Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam) plus term of contract
FortiWiFi-60CX-ADSL-A Hardware plus 8x5 Forticare and FortiGuard UTM Bundle, 1 Year
#FWF-60CX-ADSL-A-BDL
List Price: $1,542.00
Our Price: $1,206.00
FortiWiFi-60CX-ADSL-A Hardware plus 8x5 Forticare and FortiGuard UTM Bundle, 2 Year
#FWF-60CX-ADSL-A-BDL-900-24
List Price: $1,930.00
Our Price: $1,509.00
FortiWiFi-60CX-ADSL-A Hardware plus 8x5 Forticare and FortiGuard UTM Bundle, 3 Year
#FWF-60CX-ADSL-A-BDL-900-36
List Price: $2,219.00
Our Price: $1,735.00
Fortinet FortiWiFi-60CX-ADSL-A Hardware plus 24x7 Forticare and FortiGuard UTM Bundle
*Hardware Unit, Hardware Replacement, Firmware and General Upgrades, 24x7 Comprehensive Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam) plus term of contract
FortiWiFi-60CX-ADSL-A Hardware plus 24x7 Forticare and FortiGuard UTM Bundle, 1 Year
#FWF-60CX-ADSL-A-BDL-950-12
List Price: $1,642.00
Our Price: $1,284.00
FortiWiFi-60CX-ADSL-A Hardware plus 24x7 Forticare and FortiGuard UTM Bundle, 2 Year
#FWF-60CX-ADSL-A-BDL-950-24
List Price: $2,159.00
Our Price: $1,688.00
FortiWiFi-60CX-ADSL-A Hardware plus 24x7 Forticare and FortiGuard UTM Bundle, 3 Year
#FWF-60CX-ADSL-A-BDL-950-36
List Price: $2,517.00
Our Price: $1,968.00

Click here to jump to more pricing!

Live Demo! Click here to load

Overview:

The FortiGate/FortiWiFi-60C series of consolidated security appliances deliver comprehensive enterprise-class protection for smaller locations, branch offices, customer premise equipment (CPE) and retail networks. An integrated set of essential security technologies protects all of your applications and data. Simple per-device pricing, an integrated management console, and remote management capabilities significantly reduce procurement, deployment and administrative costs.

FortiWiFi-60CX Features & Benefits:

  • Delivers market-leading 1 Gbps firewall throughput with 2 GbE WAN and 5 GbE switched LAN interfaces
  • FortiWiFi-60C/CM offers dual-band capabilities and support for 802.11a/b/g/n standards to ensure compatibility with your existing wireless infrastructure
  • Rich feature set to protect next generation with application control, built-in wireless controller, local logging, and endpoint policy enforcement
  • IPv6-ready platform with strong authentication options for secure network access and security policy compliance
  • A “single pane of glass” management console makes it easy for you to deploy and manage
  • Back-up modem for redundant connectivity (FortiWiFi-60CM), ADSL-A support for deployment as a combination wireless DSL router and firewall (FortiWiFi-60CX-ADSL-A).

Enterprise-Class Protection for Remote Offices, Retail, and Customer Premise Equipment

FortiGate/FortiWiFi-60C series consolidated security appliances deliver comprehensive enterprise-class protection for smaller locations, branch offices, customer premise equipment (CPE) and retail networks. An integrated set of essential security technologies deployed in a single device protects all of your applications and data. Simple per-device pricing, an integrated management console, and remote management capabilities significantly reduce your procurement, deployment and administration costs.

Comprehensive Protection and Optional Wireless

FortiGate consolidated security appliances deliver an unmatched range of security technologies. They integrate firewall, IPSec and SSL VPN, antivirus, antispam, intrusion prevention, and web filtering into a single device at a single price. They also include data loss prevention (DLP), application control, SSL inspection, endpoint NAC and vulnerability management. In addition, Fortinet's FortiGuard® Labs is on duty around the clock and around the world, monitoring changes in the threat landscape. FortiGuard Labs deliver dynamic threat updates to protect your network against emerging threats.

FortiWiFi-60C/CM/CX appliances deliver the protection and performance you need with the convenience of wireless networking. Dual-band capabilities and support for 802.11a/b/g/n standards ensure compatibility with your existing network infrastructure. Multiple SSID support allows you to create multiple wireless access networks, enabling unencrypted guest or contractor access to the Internet while limiting access to corporate networks.

FORTIGATE AND FORTIWIFI IN THE DISTRIBUTED ENTERPRISE

Purpose-Built Performance and Reliability

Fortinet's purpose-built hardware and software prevent your network security from becoming your network bottleneck. Custom FortiASIC processors maximize throughput while blocking unauthorized access and eliminating unwanted traffic from your network. The purpose-built FortiOS operating system minimizes delays in processing your data while efficiently enforcing your security policies.The Fortinet FS1 System-on-a-Chip

The Fortinet FS1 System-on-a-Chip

Fortinet has integrated FortiASIC acceleration logic together with a RISC-based main processor and other system components to form the FS1 SoC. The advantage that this design offers, in addition to simplifying the appliance design, is that it allows FortiGate appliances which use the FS1 SoC to deliver very impressive performance numbers for smaller networks.

The FS1 and resulting FortiGate/FortiWiFi-60C series appliances allow large distributed enterprises to provide integrated, multi-threat protection across all points on their network without sacrificing performance.



Fortinet Multi-Threat SecurityFortiOS Software:


Integrated Multi-Threat Protection

The FortiGate product family provides cost-effective, comprehensive protection against network, content, and application-level threats. It defends your environment from complex, sophisticated attacks without degrading network availability and affecting application performance.

FortiGate platforms combine the purpose-built FortiOS™ security operating system with custom FortiASIC processors and other hardware to provide a comprehensive and highperformance array of security and networking functions.

The FortiGate product family delivers the highest level of network, content, and application security for enterprises of all sizes, while reducing total cost of ownership. With Fortinet, you deploy the network security you need to protect your intellectual property, preserve the privacy of critical customer information, and maintain regulatory compliance.

FortiOS 5.0 Software

FortiOS 5.0, the world's most powerful security operating system, is the foundation for all Fortinet FortiGate integrated security platforms. It provides more security, intelligence and control to help enterprises be better protected against today's advanced threats and enable more secure BYOD environments.

More Security More Security Fighting Advanced Threats
More Security to fight advanced threats. A client reputation feature gives enterprises a cumulative security ranking of each device based on a range of behaviors and provides specific, actionable information that enables organizations to identity compromised systems and potential zero-day attacks in real time. The new advanced anti-malware detection system adds an on-device behavior-based heuristic engine and cloud-based AV services that includes an operating system sandbox and botnet IP reputation database. Together with superior industry-validated AV signatures, FortiOS 5.0 delivers unbeatable multi-layered protection against today's sophisticated malware.
  • Client Reputation with Cumulative Rankings
  • OS Sandbox
  • Advanced Botnet Protection
More Control More Control Securing Mobile Devices
More Control to secure mobile devices and BYOD environments by identifying devices and applying specific access policies as well as ecurity profiles, according to the device type or device group, location and usage.
  • Device Identification & Visibility
  • New Identity Based Policies
  • Endpoint Control
More Intelligence More Intelligence Build Smart Policies
More Intelligence with automatic adjustment of role-based policies for users and guests based on location, data and application profile. Enhanced reporting and analysis also provides administrators with more intelligence on the behavior of their network, users, devices, applications and threats.
  • Provide Guest Access with Confidence
  • Enhanced Visibility & Reporting and Overal User Experience
  • Extended Single Sign On Capabilities

FortiOS Security Services
Firewall
  • ICSA Labs Certified (Enterprise Firewall)
  • NAT, PAT, Transparent (Bridge)
  • Routing Mode (RIP, OSPF, BGP, Multicast)
  • Policy-Based NAT
  • Virtual Domains (NAT/Transparent mode)
  • VLAN Tagging (802.1Q)
  • Group-Based Authentication & Scheduling
  • SIP/H.323 /SCCP NAT Traversal
  • WINS Support
  • Granular Per-Policy Protection Profiles
  • Explicit Proxy Support

Virtual Private Network (VPN)

  • ICSA Labs Certvified (IPSec)
  • PPTP, IPSec, and SSL
  • Dedicated Tunnels
  • DES, 3DES, and AES Encryption Support
  • SHA-1/MD5 Authentication
  • PPTP, L2TP, VPN Client Pass Through
  • Hub and Spoke VPN Support
  • IKE Certificate Authentication (v1 & v2)
  • IPSec NAT Traversal
  • Automatic IPSec Configuration
  • Dead Peer Detection
  • RSA SecurID Support
  • SSL Single Sign-On Bookmarks
  • SSL Two-Factor Authentication
  • LDAP Group Authentication (SSL)

Networking/Routing

  • Multiple WAN Link Support
  • PPPoE Support
  • DHCP Client/Server
  • Policy-Based Routing
  • Dynamic Routing for IPv4 and IPv6 (RIP, OSPF, BGP, & Multicast for IPv4)
  • Multi-Zone Support
  • Route Between Zones
  • Route Between Virtual LANs (VDOMS)
  • Multi-Link Aggregation (802.3ad)
  • IPv6 Support (Firewall, DNS, Transparent Mode, SIP, Dynamic Routing, Administrative Access, Management)
  • VRRP and Link Failure Control
  • sFlow Client

User Authentication Options

  • Local Database
  • Windows Active Directory (AD) Integration
  • External RADIUS/LDAP Integration
  • Xauth over RADIUS for IPSEC VPN
  • RSA SecurID Support
  • LDAP Group Support

Data Center Optimization

  • Web Server Caching
  • TCP Multiplexing
  • HTTPS Offloading
Antivirus
  • ICSA Labs Certified (Gateway Antivirus)
  • Includes Antispyware and Worm Prevention: HTTP/HTTPS, SMTP/SMTPS, POP3/POP3S, IMAP/IMAPS, FTP, IM Protocols
  • Automatic “Push” Content Updates from
  • FortiGuard
  • File Quarantine Support
  • IPv6 Support

Web Filtering

  • 76 Unique Categories
  • FortiGuard Web Filtering Service Categorizes over 2 Billion Web pages
  • HTTP/HTTPS Filtering
  • URL/Keyword/Phrase Block
  • URL Exempt List
  • Content Profiles
  • Blocks Java Applet, Cookies, Active X
  • MIME Content Header Filtering
  • IPv6 Support

Application Control

  • Identifiy and Control Over 1400 Applications
  • Control Popular IM/P2P Apps Regardless of Port/Protocol:
    • AOL-IM, Yahoo, MSN, KaZaa, ICQ, Gnutella, BitTorrent, MySpace, WinNY, Skype, eDonkey, Facebook

High Availability (HA)

  • Active-Active, Active-Passive
  • Stateful Failover (FW and VPN)
  • Device Failure Detection and Notification
  • Link Status Monitor
  • Link failover
  • Server Load Balancing

WAN Optimization

  • Bi-Directional / Gateway to Client/Gateway
  • Integrated Caching and Protocol Optimization
  • Accelerates CIFS/FTP/MAPI
  • /HTTP/HTTPS/Generic TCP
  • Requires a FortiGate device with Hard Drive

Virtual Domains (VDOMs)

  • Separate Firewall/Routing Domains
  • Separate Administrative Domains
  • Separate VLAN Interfaces
  • 10 VDOM License Standard, Upgradable to More

Traffic Shaping

  • Policy-based Traffic Shaping
  • Application-based and Per-IP Traffic Shaping
  • Differentiated Services (DiffServ) Support
  • Guarantee/Max/Priority Bandwidth
  • Shaping via Accounting, Traffic Quotas, and Per-IP
Intrustion Prevention System (IPS)
  • ICSA Labs Certified (NIPS)
  • Protection From Over 3000 Threats
  • Protocol Anomaly Support
  • Custom Signature Support
  • Automatic Attack Database Update
  • IPv6 Support

Data Loss Prevention (DLP)

  • Identification and Control Over Sensitive Data in Motion
  • Built-in Pattern Database
  • RegEx-based Matching Engine for Customized Patterns
  • Configurable Actions (block/log)
  • Supports IM, HTTP/HTTPS, and More
  • Many Popular File Types Supported
  • International Character Sets Supported

Antispam

  • Support for SMTP/SMTPS, POP3/POP3S, IMAP/IMAPS
  • Real-Time Blacklist/Open Relay Database Server
  • MIME Header Check
  • Keyword/Phrase Filtering
  • IP Address Blacklist/Exempt List
  • Automatic Real-Time Updates From FortiGuard Network

Endpoint Compliance and Control

  • Monitor & Control Hosts Running FortiClient Endpoint Security

Management/Administration

  • Console Interface (RS-232)
  • WebUI (HTTP/HTTPS)
  • Telnet / Secure Command Shell (SSH)
  • Command Line Interface
  • Role-Based Administration
  • Multi-language Support: English, Japanese, Korean, Spanish, Chinese (Simplified & Traditional), French
  • Multiple Administrators and User Levels
  • Upgrades and Changes via TFTP and WebUI
  • System Software Rollback
  • Configurable Password Policy
  • Optional FortiManager Central Management

Logging/Monitoring

  • Local Event Logging
  • Log to Remote Syslog/WELF server
  • Graphical Real-Time and Historical Monitoring
  • SNMP
  • Email Notification of Viruses And Attacks
  • VPN Tunnel Monitor
  • Optional FortiAnalyzer Logging / Reporting
  • Optional FortiGuard Analysis and Management Service

Technology:


Firewall

Fortinet firewall technology delivers industry-leading performance for network and application firewalling including Web 2.0 application policies based on the application identity, up to and beyond 10 Gbps throughput. Our technology identifies traffic patterns and links them to the use of specific applications, such as instant messaging and peer-to-peer applications, permitting application access control. By coupling application intelligence with firewall technology, the FortiGate platform is able to deliver realtime security with integrated application content level inspection, thereby simplifying security deployments.

Features:

  • NAT, PAT and Transparement (Bridge)
  • Policy-Based NAT SIP/H.323/SCCP NAT Traversal
  • VLAN Tagging (802.1Q)
  • IPv6 Support

Model: FortiGate-60C / FortiWiFi-60C
Firewall (1518 Byte): 1 Gbps
Firewall (512 Byte): 1 Gbps

Antivirus / Antispyware

Antivirus content inspection technology protects against viruses, spyware, worms, and other forms of malware which can infect network infrastructure and endpoint devices. By intercepting and inspecting application-based traffic and content, antivirus protection ensures that malicious threats hidden within legitimate application content are identified and removed from data streams before they can cause damage. FortiGuard subscription services ensure that FortiGate devices are updated with the latest malware signatures for high levels of detection and mitigation.

Features Supported:

  • Automatic Database Updates
  • Proxy Antirus
  • Flow-based Antirus
  • File Quarantine
  • IPv6 Support

Model: FortiGate-60C / FortiWiFi-60C
Antivirus: 20 Mbps

VPN

Fortinet VPN technology provides secure communications between multiple networks and hosts, using SSL and IPsec VPN technologies. Both services leverage our custom FortiASIC processors to provide acceleration in the encryption and decryption steps. The FortiGate VPN service enforces complete content inspection and multithreat protections including antivirus, intrusion prevention and Web filtering. Traffic optimization provides prioritization for critical communications traversing VPN tunnels.

Features:

  • IPSec and SSL VPN
  • DES, 3DES, AES and SHA-1/MD5 Authentication
  • PPTP, L2TP, VPN Client Pass Through
  • SSL Single Sign-On Bookmarks
  • Two-Factor Authentication

Model: FortiGate-60C / FortiWiFi-60C
IPSec VPN Throughput: 70 Mbps
SSL VPN Throughput: 70 Mbps
Concurrent SSL VPN Users Recommended (Max): 50
Client-to-Gateway IPSec VPN Tunnels:
100

Intrusion Prevention

IPS technology protects against current and emerging networklevel threats. In addition to signature-based threat detection, IPS performs anomaly-based detection which alerts users to any traffic that matches attack behavior profiles. The Fortinet threat research team analyzes suspicious behavior, identifies and classifies emerging threats, and generate new signatures to include with FortiGuard Service updates.

Features Supported:

  • Automatic Attack Database Update
  • Protocol Anomaly Support
  • IPS and DoS Prevention Sensor
  • Custom Signature Support
  • IPv6 Support

Model: FortiGate-60C / FortiWiFi-60C
IPS Throughput: 100 Mbps

WAN Optimization

Wide Area Network (WAN) optimization accelerates applications over geographically dispersed networks, while ensuring multithreat inspection of all network traffic. WAN optimization eliminates unnecessary and malicious traffic, optimizes legitimate traffic, and reduces the amount of bandwidth required to transmit data between applications and servers. Improved application performance and delivery of network services reduces bandwidth and infrastructure requirements, along with associated expenditures.

Features:

  • Gateway-to-Gateway Optimization
  • Bi-directional Gateway-to-client Optimization
  • Web Caching
  • Secure Tunnel
  • Transparent Mode

Model: FortiGate 60C / FortiWiFi-60C with optional 16GB SD Card

SSL Inspection

SSL-Encrypted Traffic Inspection protects clients and web and application servers from malicious SSL-encrypted traffic, to which many security devices are blind. SSL Inspection intercepts encrypted traffic and inspects it for threats, prior to routing it to its final destination. SSL Inspection applies to both client-oriented SSL traffic (such as users connecting to an SSL-encrypted hosted CRM site) and inbound traffic destined an organization’s own web and application servers. You now have the ability to enforce appropriate use policies on inappropriate encrypted web content, and protect servers from threats within encrypted traffic flows.

Features:

  • Protocol: HTTPS, SMTPS, POP3S, IMAPS
  • Inspection support: Antivirus, Web Filtering, Antispam, Data Loss Prevention
  • SSL Offload

End-Point NAC

Endpoint NAC can enforce the use of FortiClient Endpoint Security for users connecting to corporate networks. Endpoint NAC verifies FortiClient Endpoint Security installation, firewall operation and upto- date antivirus signatures before allowing network access. Noncompliant endpoints, such as endpoints running applications that violate security policies can be quarantined or sent to remediation.

Features:

  • Monitor & Control Hosts Running FortiClient
  • Vulnerability Scanning of Network Nodes
  • Quarantine Portal
  • Application Detection and Control
  • Built-in Application Database

Data Loss Prevention

DLP uses a sophisticated pattern-matching engine to identify and prevent the transfer of sensitive information outside of your network perimeter, even when applications encrypt their communications. In addition to protecting your organization's critical data, Fortinet DLP provides audit trails to aid in policy compliance. You can select from a wide range of configurable actions to log, block, and archive data, and quarantine or ban users.

Features:

  • Identification And Control Over Data in Motion
  • Built-in Pattern Database
  • RegEx Based Matching Engine
  • Common File Format Inspection
  • International Character Sets Supported

SSL-Encrypted Traffic Inspection

SSL-encrypted traffic inspection protects endpoint clients and Web and application servers from hidden threats. SSL Inspection intercepts encrypted traffic and inspects it for threats prior to routing it to its final destination. It can be applied to client-oriented SSL traffic, such as users connecting to cloud-based CRM site, and to inbound Web and application server traffic. SSL inspection enables you to enforce appropriate use policies on encrypted Web content and to protect servers from threats which may be hidden inside encrypted traffic flows.

Features:

  • Protocol support:
  • HTTPS, SMTPS, POP3S, IMAPS
  • Inspection support: Antivirus, Web Filtering, Antispam, Data Loss Prevention, SSL Offload

Logging, Reporting & Monitoring

FortiGate consolidated security appliances provide extensive logging capabilities for traffic, system, and network protection functions. They also allow you to assemble drill-down and graphical reports from detailed log information. Reports can provide historical and current analysis of network activity to aid with identification of security issues and to prevent network misuse and abuse.

Features:

  • Internal Log storage and Report Generation
  • Graphical Real-Time and Historical Monitoring
  • Graphical Report Scheduling Support
  • Optional FortiAnalyzer Logging (including per VDOM)
  • Optional FortiGuard Analysis and Management Service

Web Filtering

Web filtering protects endpoints, networks and sensitive information against Web-based threats by preventing users from accessing known phishing sites and sources of malware. In addition, administrators can enforce policies based on Website categories to easily prevent users from accessing inappropriate content and clogging networks with unwanted traffic.

Features:

  • HTTP/HTTPS Filtering
  • URL / Keyword / Phrase
  • Block Blocks Java Applet, Cookies or Active X
  • MIME Content Header Filtering
  • IPv6 Support

Virtual Domains

Virtual Domains (VDOMs) enable a single FortiGate system to function as multiple independent virtual FortiGate systems. Each VDOM contains its own virtual interfaces, security profiles, routing table, administration, and many other features. FortiGate VDOMs reduce the complexity of securing disparate networks by virtualizing security resources on the FortiGate platform, greatly reducing the power and footprint required as compared to multiple point products. Ideal for large enterprise and managed service providers.

Features:

  • Separate Firewall / Routing Domains
  • Separate Administrative Domains
  • Separate VLAN Interfaces

VDOMs (Max / Default): 10 / 10

Application Control

Application control enables you to define and enforce policies for thousands of applications running across networks regardless of port or the protocol used for communication. The explosion of new Internet-based and Web 2.0 applications bombarding networks today make application control essential, as most application traffic looks like normal Web traffic to traditional firewalls. Fortinet application control provides granular control of applications along with traffic shaping capabilities and flow-based inspection options.

Features:

  • Identify and Control Over 1000 Applications
  • Traffic Shaping (Per Application)
  • Control Popular IM/P2P Apps Regardless of Port / Protocol
  • Popular Applications include: AOL-IM Yahoo MSN KaZaa ICQ Gnutella BitTorrent MySpace WinNY Skype eDonkey Facebook and more

Setup / Configuration Options

Fortinet provides administrators with a variety of methods and wizards for configuring FortiGate appliances during deployment. From the easy-to-use Web-based interface to the advanced capabilities of the command-line interface, FortiGate systems offer the flexibility and simplicity you need.

Features:

  • FortiExplorer Setup Wizard over USB (FG-60C/FWF-60C Only)
  • Web-based User Interface
  • Command Line Interface (CLI) over serial connection
  • Pre-Configured settings from USB drive

High Availability

High Availability (HA) configurations enhance reliability and increase performance by clustering multiple FortiGate appliances into a single entity. FortiGate High Availability supports Active-Active and Active-Passive options to provide maximum flexibility for utilizing each member within the HA cluster. The HA feature is included as part of the FortiOS operation system and is available with most FortiGate appliances.

Features:

  • Active-Active and Active-Passive
  • Stateful Failover (FW and VPN)
  • Link State Monitor and Failover
  • Device Failure Detection and Notification
  • Server Load Balancing

Wireless Controller

All FortiGate and FortiWiFi consolidated security platforms have an integrated wireless controller, enabling centralized management of FortiAP™ secure access points and wireless LANs. Unauthorized wireless traffic is blocked, while allowed traffic is subject to identityaware firewall policies and multi-threat security inspection. From a single console you can control network access, update security policies, and enable automatic identification and suppression of rogue access points.

Features:

  • Managed and Monitor FortiAP product
  • Rogue AP Detection, Control and Reporting
  • Virtual AP with different SSID

Specifications:

FortiWiFi-60CX-ADSL-A Front

FortiWiFi-60CX-ADSL-A Rear

Technical Specifications FortiGate-60C FortiWiFi-60C FortiWiFi-60CM FortiWiFi-60CX-ADSL-A
Interfaces
10/100/1000 Internal Switch Interfaces (Copper, RJ-45) 5 5 5 4
10/100 Internal Switch Interfaces (Copper, RJ-45) - - - 4
10/100 WAN Interfaces (Copper, RJ-45) 2 2 2 2
10/100 DMZ Interfaces (Copper, RJ-45) 1 1 1 -
Modem Port - - - -
ADSL2+ Annex A Interface - - - 1
Management Console Interface (Copper, RJ-45) 1 1 1 1
USB Interfaces 2 (1 Type-A, 1 Type-B) 2 (1 Type-A, 1 Type-B) 2 (1 Type-A, 1 Type-B) 2 (1 Type-A, 1 Type-B)
ExpressCard Slot 1 1 1 1
Internal Storage 8 GB 8 GB 8 GB 8 GB
Wireless Standards Supported N/A 802.11 a/b/g/n 802.11 a/b/g/n 802.11 a/b/g/n
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets) 1 / 1 / 1 Gbps
Firewall Latency (64 byte UDP packets) 4 μs
Firewall Throughput (Packets Per Second) 1.5 Mpps
Concurrent Sessions (TCP) 400,000
New Sessions/Sec (TCP) 3,000
Firewall Policies (System / VDOM) 5,000 / 500
IPSec VPN Throughput (512 byte packets) 70 Mbps
Gateway-to-Gateway IPSec VPN Tunnels (System / VDOM) 50 / 50
Client-to-Gateway IPSec VPN Tunnels 500
SSL-VPN Throughput 15 Mbps
Concurrent SSL-VPN Users (Recommended Max) 60
IPS Throughput 135 Mbps
Antivirus Throughput (Proxy Based / Flow Based) 20 / 40 Mbps
Virtual Domains (Max / Default) 10 / 10
Max Number of FortiAPs 5
Max Number of FortiTokens 500
High Availability Configurations Active/Active, Active/Passive, Clustering
Unlimited User Licenses Y
Dimensions
Height x Width x Length (in) 1.44 x 8.50 x 5.81 in (3.66 x 21.59 x 14.76 cm) 1.74 x 13.51 x 8.27 in (4.44 x 34.33 x 21.0 cm)
Weight 1.9 lb (0.86 kg) 2.1 lb (0.95 kg) 1.89 lb (0.85 kg) 4.67lb (2.12 kg)
Wall Mountable No Yes Yes No
Power and Environment
Power Required 100-240 VAC, 50-60 Hz, 1.5 Amp max
Power Consumption (AVG) 15.7W 19W 11.6 W 19.7 W
Heat Dissipation 53.6 BTU 64.8 BTU 47.5 BTU 81.9 BTU
Operating Temperature 32 – 104°F (0 – 40°C)
Storage Temperature -13 to 158°F (-25 to 70°C)
Humidity 5 to 95% non-condensing
Compliance & Certification
Industry Certifications ICSA Labs: Firewall, Antivirus, SSL VPN, Intrusion Prevention
Safety Certifications FCC Part 15, UL/CUL, C Tick, CE, VCCI

* Antivirus performance is measured using HTTP traffic with 32 Kbyte file attachments. IPS performance is measured base on NSS like test methodology with 44K HTTP files.

FortiGuard and FortiCare Services:

FortiGuard® Security Subscription Services deliver dynamic, automated updates for Fortinet products. The Fortinet Global Security Research Team creates these updates to ensure up-to-date protection against sophisticated threats. Subscriptions include antivirus, intrusion prevention, web filtering, antispam, vulnerability and compliance management, application control, and database security services.

FortiCare™ Support Services provide global support for all Fortinet products and services. FortiCare support enables your Fortinet products to perform optimally. Support plans start with 8x5 Enhanced Support with return and replace hardware support or 24x7 Comprehensive Support with advanced hardware replacement. Options include Premium Support, Premium RMA, and Professional Services. All hardware products include a 1-year limited hardware warranty and a 90-day limited software warranty.

FortiGuard Subscription Services
Product Antivirus Intrusion Prevention Web Filtering Antispam Application Control Vulnerability & Compliance
FortiGate-60C Supported Supported Supported Supported Supported Supported
FortiWiFi-60C Supported Supported Supported Supported Supported Supported
FortiWiFi-60CM Supported Supported Supported Supported Supported Supported
FortiWiFi-60CX-ADSL-A Supported Supported Supported Supported Supported Supported

Documentation:

Download the Fortinet FortiGate and FortiWiFi 60C Series Datasheet (PDF).

Pricing Notes:

Fortinet FortiWiFi 60CX-ADSL-A Series
FortiWiFi-60CX-ADSL-A
Fortinet FortiWiFi-60CX-ADSL-A Firewall
#FWF-60CX-ADSL-A
List Price: $995.00
Our Price: $778.00
Fortinet FortiWiFi-60CX-ADSL-A Hardware plus 8x5 Forticare and FortiGuard UTM Bundle
*Hardware Unit, Hardware Replacement, Firmware and General Upgrades, 8x5 Enhanced Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam) plus term of contract
FortiWiFi-60CX-ADSL-A Hardware plus 8x5 Forticare and FortiGuard UTM Bundle, 1 Year
#FWF-60CX-ADSL-A-BDL
List Price: $1,542.00
Our Price: $1,206.00
FortiWiFi-60CX-ADSL-A Hardware plus 8x5 Forticare and FortiGuard UTM Bundle, 2 Year
#FWF-60CX-ADSL-A-BDL-900-24
List Price: $1,930.00
Our Price: $1,509.00
FortiWiFi-60CX-ADSL-A Hardware plus 8x5 Forticare and FortiGuard UTM Bundle, 3 Year
#FWF-60CX-ADSL-A-BDL-900-36
List Price: $2,219.00
Our Price: $1,735.00
FortiWiFi-60CX-ADSL-A Hardware plus 8x5 FortiCare and FortiGuard UTM Bundle, 4 Year
#FWF-60CX-ADSL-A-BDL-900-48
List Price: $2,801.00
Our Price: $2,521.00
FortiWiFi-60CX-ADSL-A Hardware plus 8x5 FortiCare and FortiGuard UTM Bundle, 5 Year
#FWF-60CX-ADSL-A-BDL-900-60
List Price: $3,143.00
Our Price: $2,829.00
Fortinet FortiWiFi-60CX-ADSL-A Hardware plus 24x7 Forticare and FortiGuard UTM Bundle
*Hardware Unit, Hardware Replacement, Firmware and General Upgrades, 24x7 Comprehensive Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam) plus term of contract
FortiWiFi-60CX-ADSL-A Hardware plus 24x7 Forticare and FortiGuard UTM Bundle, 1 Year
#FWF-60CX-ADSL-A-BDL-950-12
List Price: $1,642.00
Our Price: $1,284.00
FortiWiFi-60CX-ADSL-A Hardware plus 24x7 Forticare and FortiGuard UTM Bundle, 2 Year
#FWF-60CX-ADSL-A-BDL-950-24
List Price: $2,159.00
Our Price: $1,688.00
FortiWiFi-60CX-ADSL-A Hardware plus 24x7 Forticare and FortiGuard UTM Bundle, 3 Year
#FWF-60CX-ADSL-A-BDL-950-36
List Price: $2,517.00
Our Price: $1,968.00
FortiWiFi-60CX-ADSL-A Hardware plus 24x7 FortiCare and FortiGuard UTM Bundle, 4 Year
#FWF-60CX-ADSL-A-BDL-950-48
List Price: $3,129.00
Our Price: $2,816.00
FortiWiFi-60CX-ADSL-A Hardware plus 24x7 FortiCare and FortiGuard UTM Bundle, 5 Year
#FWF-60CX-ADSL-A-BDL-950-60
List Price: $3,533.00
Our Price: $3,180.00
FortiWiFi-60CX-ADSL-A 1 Year Hardware Bundle Upgrade
*24X7 Comprehensive Support, Advanced Hardware Replacement (Next Business Day)
1 Year HW bundle Upgrade from 8x5 to 24x7 FortiCare Contract for FortiWiFi-60CX-ADSL-A
#FC-10-00W6A-274-01-12
List Price: $171.00
Our Price: $134.00
FortiWiFi-60CX-ADSL-A 8x5 FortiCare plus FortiGuard Bundle
*8X5 Hardware Replacement (Next Business Day), Firmware and General Upgrades, 8x5 Enhanced Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam Services)
8x5 FortiCare plus FortiGuard Bundle for FortiWiFi-60CX-ADSL-A, 1 Year
#FC-10-00W6A-900-02-12
Our Price: $547.00
8x5 FortiCare plus FortiGuard Bundle for FortiWiFi-60CX-ADSL-A, 2 Year
#FC-10-00W6A-900-02-24
Our Price: $1,026.00
8x5 FortiCare plus FortiGuard Bundle for FortiWiFi-60CX-ADSL-A, 3 Year
#FC-10-00W6A-900-02-36
Our Price: $1,437.00
8x5 FortiCare plus FortiGuard Bundle for FortiWiFi-60CX-ADSL-A, 4 Year
#FC-10-00W6A-900-02-48
Our Price: $1,806.00
8x5 FortiCare plus FortiGuard Bundle for FortiWiFi-60CX-ADSL-A, 5 Year
#FC-10-00W6A-900-02-60
Our Price: $2,148.00
FortiWiFi-60CX-ADSL-A 24x7 Bundle Subscription
*Advanced Hardware Replacement (Next Business Day), Firmware and General Upgrades, 24X7 Comprehensive Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam Services)
24x7 FortiCare plus FortiGuard Bundle for FortiWiFi-60CX-ADSL-A, 1 Year
#FC-10-00W6A-950-02-12
Our Price: $647.00
24x7 FortiCare plus FortiGuard Bundle for FortiWiFi-60CX-ADSL-A, 2 Year
#FC-10-00W6A-950-02-24
Our Price: $1,213.00
24x7 FortiCare plus FortiGuard Bundle for FortiWiFi-60CX-ADSL-A, 3 Year
#FC-10-00W6A-950-02-36
Our Price: $1,698.00
24x7 FortiCare plus FortiGuard Bundle for FortiWiFi-60CX-ADSL-A, 4 Year
#FC-10-00W6A-950-02-48
Our Price: $2,134.00
24x7 FortiCare plus FortiGuard Bundle for FortiWiFi-60CX-ADSL-A, 5 Year
#FC-10-00W6A-950-02-60
Our Price: $2,538.00
Fortinet FortiGuard Subscriptions 1-Year
FortiGuard FortiSandbox Cloud Service for FortiWiFi-60CX-ADSL-A
#FC-10-00W6A-123-02-12
Our Price: $199.00
Fortinet FortiWiFi-60CX-ADSL-A FortiCloud Analysis and 1 Year Log Retention
Fortinet FortiWiFi-60CX-ADSL-A FortiCloud Analysis and 1 Year Log Retention, 1 Year
#FC-10-00W6A-131-02-12
Our Price: $120.00
Fortinet FortiWiFi-60CX-ADSL-A FortiCloud Analysis and 1 Year Log Retention, 2 Year
#FC-10-00W6A-131-02-24
Our Price: $225.00
Fortinet FortiWiFi-60CX-ADSL-A FortiCloud Analysis and 1 Year Log Retention, 3 Year
#FC-10-00W6A-131-02-36
Our Price: $315.00
FortiWiFi-60CX-ADSL-A FortiCare 8x5
*8x5 Support, Hardware Replacement, Firmware and General Upgrades, VPN, Traffic Management
8x5 FortiCare for FortiWiFi-60CX-ADSL-A, 1-Year
#FC-10-00W6A-311-02-12
Our Price: $150.00
8x5 FortiCare for FortiWiFi-60CX-ADSL-A, 2-Year
#FC-10-00W6A-311-02-24
Our Price: $282.00
8x5 FortiCare for FortiWiFi-60CX-ADSL-A, 3-Year
#FC-10-00W6A-311-02-36
Our Price: $394.00
FortiWiFi-60CX-ADSL-A FortiCare 24x7
*24x7 Support, Advanced Hardware Replacement (Next Business Day), Firmware and General Upgrades, VPN, and Traffic Management
24x7 FortiCare for FortiWiFi-60CX-ADSL-A, 1-Year
#FC-10-00W6A-247-02-12
Our Price: $249.00
24x7 FortiCare for FortiWiFi-60CX-ADSL-A, 2-Year
#FC-10-00W6A-247-02-24
Our Price: $467.00
24x7 FortiCare for FortiWiFi-60CX-ADSL-A, 3-Year
#FC-10-00W6A-247-02-36
Our Price: $654.00
FortiWiFi-60CX Services
1 Year FortiGuard IPS Service for FortiWiFi-60CX-ADSL-A
#FC-10-00W6A-108-02-12
Our Price: $199.00
1 Year FortiGuard Industrial Security Service for FortiWiFi-60CX-ADSL-A
#FC-10-00W6A-159-02-12
Our Price: $199.00
1 Year FortiGuard AV and Botnet IP/Domain Services for FortiWiFi-60CX-ADSL-A
#FC-10-00W6A-100-02-12
Our Price: $199.00
1 Year FortiGuard Web Filtering Service for FortiWiFi-60CX-ADSL-A
#FC-10-00W6A-112-02-12
Our Price: $199.00
