Fortinet FortiSwitch 548B

Gigabit Ethernet Switches

Fortinet FortiSwitch 548B

Fortinet Products
FortiSwitch-548B

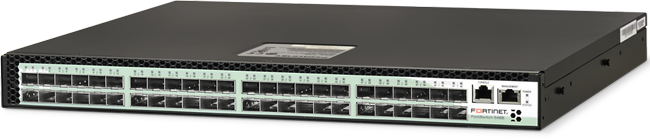

Fortinet FortiSwitch 548B
- 48 10GigE SFP+ ports top of rack Layer-2 switch		 #FS-548B
Our Price: $31,495.00

Click here to jump to more pricing!

Live Demo! Click here to loadOverview:

The FortiSwitch-548B is the high-end datacenter top-of-rack server aggregation switch that provides 960 Gbps of Ethernet switch capacity over 48 10 GbE SFP+ ports. The FortiSwitch- 548B & 248B-DPS are equipped with dual hot swappable power supplies for maximum availability and advanced link aggregation support for capacity planning.

Both the FortiSwitch-248B-DPS and 548B models are packaged in a compact 1RU form factor and designed to connect network devices to the Ethernet fabric, thereby reducing your overall datacenter deployment costs.

Rightsize switch deployment

Fortinet's FortiSwitch family of Gigabit Ethernet (GbE) and 10 Gigabit switches delivers outstanding price, performance, and scalability to organizations with diverse operational needs. The FortiSwitch platforms are purpose-built to meet the Ethernet infrastructure and provisioning needs of today's network edge. You can scale up/out your operations performance needs with ease of use and low cost of ownership to meet the demands of bandwidth-intensive applications from small offices to large datacenters.

FortiSwitch-548B Benefits:

  • Supports deployments such as Three-tiered networks or 10 Gbps Server Top of Rack Switch application.
  • Up to 960 Gbps capacity and 128K MAC address support with 80 Gbps link aggregation.
  • High capacity switching helps transition to Virtualized and cloud computing.

Features & Benefits:

Fortiswitch-248B-DPS/548B Features

Layer 2 Features

  • Wire speed L2 switching performance 10/100/1000 BASE-T ports supporting auto-sensing, auto-negotiation
  • MDI/MDIX Jumbo frame support:
    • 9K Flow control – IEEE 802.3x full duplex mode
    • Back-pressure flow control in half duplex mode
  • Broadcast, unicast and multicast storm protection
  • IGMP snooping
  • VLAN
    • IEEE 802.1Q VLAN
    • GARP/GVRP/GMRP
    • Up to 512 VLANs, with up to 3965 VLAN IDs
    • Port-based VLAN
    • Protocol-based VLAN Spanning tree
    • IEEE 802.1d Spanning Tree Protocol
    • IEEE 802.1w Rapid Spanning Tree
    • IEEE 802.1s Multiple Spanning Tree Link aggregation
    • Up to 6 trunk groups
    • Up to 8 ports per trunk group
    • 802.3ad link aggregation and LACP
    • Static trunk group
    • Load balance for unicast and multicast traffic
  • Port mirror (many-to-1)

Performance Specifications

  • Forwarding mode: Store-and-forward Mean Time Between Failures (MTBF): 46,140 hours

Security

  • User/password-protected system management
  • RADIUS client
  • TACACS+ client
  • SSH v1/v2
  • SSL v3/TLS v1
  • IEEE 802.1x
  • Port MAC lock

Mulitcast

  • Layer-2 IGMP snooping

Management

  • BOOTP and DHCP for IP address assignment
  • DHCP relay
  • XMODEM/FTP/TFTP
  • Dual firmware images
  • Up to three configuration files including factory default
  • SSH v1/v2 switch management
  • SSL v3/TLS v1 switch management
  • Simple Network Time Protocol (SNTP)
  • Telnet, Ping and Trace route functions
  • DNS client and DNS relay functions
  • Message/event/error/trap logs
  • Logging to local file and syslog server
  • Common command line interface (CLI) switch management
  • Web switch management
  • SNMP v1, v2c, and v3 switch management
  • Private Enterprise MIB
  • RMON groups 1, 2, 3, and 9
  • Port mirror (many-to-1)

Network Protocols and Standards Compatility

  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TRX
  • IEEE 802.3z 1000BASE-SX
  • IEEE 802.3x Flow Control
  • IEEE 802.3ad Link Aggregation
  • IEEE 802.1v Protocol VLAN and Port VLAN
  • IEEE 802.1d Spanning Tree Protocol
  • IEEE 802.1s Multiple Spanning Tree Protocol

Quality of Service

  • 802.1p-based CoS
  • 8 priority queues per port
  • IP TOS/precedence-based CoS
  • DSCP-based CoS
  • Policy-based Diffserv

System Parameters

  • Maximum RADIUS servers 3
  • Maximum RADIUS accounting servers 1
  • Maximum TACACS servers 3
  • Maximum IP filter addresses 5
  • Maximum telnet or SSH sessions 5
  • Maximum WEB sessions 8
  • Number of 802.1p traffic classes 8
  • Number of MSTP instances 5
  • Number of ACL 100
  • Number of rules in an ACL 10
  • Maximum classes 32
  • Maximum rules per class 7
  • Maximum member classes per policy 10
  • Maximum attributes per class 1

Switch Security Features

  • Port security and Broadcast, Multicast, Unicast Storm control
  • Dynamic ARP inspection
  • DHCP snooping
  • Spanning tree guards : BPDU filter + BPDU guard + loop guard + root guard + TCN guard
  • Denial of service protection: TCP fragment, Min TCP HDR, ICMP Size, ICMP fragment, SIP=DIP, TCP Flag checking, TCP Fragment offset checking

Firewall Loadbalancing

  • HASH function for symmetric distribution of traffic across 8 firewalls

Technical Specifications:

FortiSwitch-548B Front View
Front View

FortiSwitch-548B Back View
Back View

  FortiSwitch-80-PoE FortiSwitch-248B-DPS FortiSwitch-548B
  FortiSwitch-80-PoE FortiSwitch-248B FortiSwitch-548B
Performance Specifications
Switch Type Unmanaged Managed Managed
Switch Capacity 2 Gbps 176 Gbps 960 Gbps
MAC Address Storage 4,000 32,000 128,000
VLANs Supported N/A 3965 configurable with support for VTP v1/v2 3965 configurable with support for VTP v1/v2
Link Aggregation Group Size N/A Up to 8 ports Up to 8 ports
Total Link Aggregation Groups N/A 8 8
Hardware Specifications
10/100/1000 Ports 8 48 0
1000/10000 Ports 0 4 Dual Speed SFP+ capable of 1-GbE and 10-GbE speeds 48 dual-speed SFP+ cages capable of 1G & 10 GbE speeds
10/100/1000 Service Ports N/A 1 1
RJ-45 serial console Port 0 1 1
POE Ports 4 802.3af 0 0
POE Power Budget 62 Watts N/A N/A
Dimensions
Rack Mountable Desktop Appliance 1 RU Rack-Mount Appliance 1 RU Rack-Mount Appliance
Height x Width x Length 1.5 in x 4.7 in x 7.5 in
(3.8 cm x 12 cm x 19 cm)		 1.67 in x 17.32 in x 10.8 in
(4.24 cm x 44.00 cm x 27.44 cm)		 1.7 in x 17.1 in x 15.5 in
(4.28 cm x 43.5 cm x 39.37 cm)
Weight 1.64 lbs (.75 kg) 12.83 lbs (5.82 Kg) 16.5 lbs (7.5 Kg
Environment
Voltage Range 100-240V AC 50-60 Hz 100-240V AC 50-60 Hz 100-240V AC 50-60 Hz
Power Consumption 6.2 W (P0E off) 68.2W (POE on, based on 4 POE devices) Up to 140 W Up to 250 W
Power Supply External power supply adaptor Dual hot swappable AC Dual hot swappable AC
Storage Temperature 32 - 122 deg F (0 - 50 deg C)
Operating Temperature 32 - 104 deg F (0 - 40 deg C) 32 - 113 F (0 - 45 C)
Humidity 5 - 95% RH non-condensing 80% maximum relative humidity
Compliance Directive RoHS-Compliant

Deployment:

FortiSwitch 548B/248B-DPS Deployment Example

FortiSwitch 548B/248B-DPS Deployment Example

Documentation:

PDF File
Download the Fortinet FortiSwitch Series Datasheet (.PDF)
