Fortinet FortiSwitch 5203B
Scalable Data Center and Carrier-Graded Security Systems

Fortinet FortiSwitch 5203B

Fortinet FortiSwitch 5203B Series
FortiSwitch 5203B

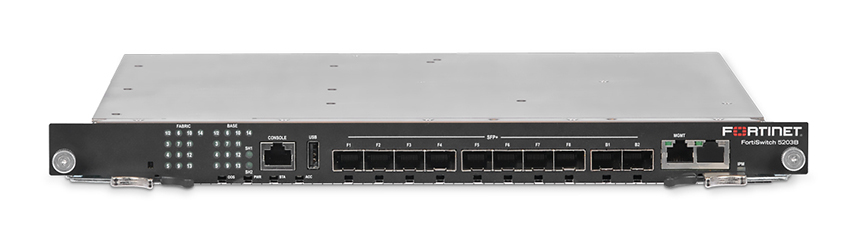

Fortinet FortiSwitch 5203B
Networking blade with 8 x 10GE SFP+ Fabric slots, 2 x 10GE SFP+ Base slots, 1 x GE RJ45 management ports
#FS-5203B
Our Price: $70,000.00
Fortinet FortiSwitch-5203B Hardware plus 8x5 Forticare and FortiGuard UTM Bundle
*Hardware Unit, Hardware Replacement, Firmware and General Upgrades, 8x5 Enhanced Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam) plus term of contract
FortiSwitch-5203B Hardware plus 8x5 Forticare and FortiGuard UTM Bundle, 1 Year
#FS-5203B-BDL
Our Price: $108,500.00
FortiSwitch-5203B Hardware plus 8x5 Forticare and FortiGuard UTM Bundle, 2 Year
#FS-5203B-BDL-900-24
Our Price: $135,800.00
FortiSwitch-5203B Hardware plus 8x5 Forticare and FortiGuard UTM Bundle, 3 Year
#FS-5203B-BDL-900-36
Our Price: $156,100.00
Fortinet FortiSwitch-5203B Hardware plus 24x7 Forticare and FortiGuard UTM Bundle
*Hardware Unit, Hardware Replacement, Firmware and General Upgrades, 24x7 Comprehensive Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam) plus term of contract
FortiSwitch-5203B Hardware plus 24x7 Forticare and FortiGuard UTM Bundle, 1 Year
#FS-5203B-BDL-950-12
Our Price: $115,500.00
FortiSwitch-5203B Hardware plus 24x7 Forticare and FortiGuard UTM Bundle, 2 Year
#FS-5203B-BDL-950-24
Our Price: $151,900.00
FortiSwitch-5203B Hardware plus 24x7 Forticare and FortiGuard UTM Bundle, 3 Year
#FS-5203B-BDL-950-36
Our Price: $177,100.00

Click here to jump to more pricing!

Live Demo! Click here to load

Overview:

FortiGate 5000 series chassis-based security systems use highly-flexible AdvancedTCA™ (ATCA)-compliant architecture that enable the FortiGate 5000 series to protect complex, multi-tenant cloud-based security-as-a-service and infrastructure-as-a-service environments. Purpose-built by Fortinet, the FortiGate 5000 series integrates modular carrier-class hardware components with advanced FortiASIC™ acceleration and consolidated security from the FortiOS™ operating system.

Consolidated Security Solutions

FortiGate 5000 series appliances give you the ability to deploy a wide range of Fortinet's UTM inspection capabilities, including firewall, IPS, application control, VPN, and web filtering. These features can be scaled as required by adding more security blades. Each system also supports FortiGuard® security subscription services to deliver dynamic, automated updates and ensure up-to-date protection against sophisticated threats. In addition, the devices support a web-based GUI, 'single pane of glass' management console, and on-board reporting.

By consolidating multiple security enforcement technologies into a single system, the FortiGate 5000 series eliminate disparate hardware devices and software solutions, greatly simplifying security gateway implementation and reducing total cost of ownership.

Highly Scalable, Flexible and Unmatched Performance

  • Ideal for high-speed service provider, large enterprise or telecommunications carrier network.
  • Security blades that are powered by FortiASICs that provide outstanding Firewall, VPN and UTM performance.
  • Runs on FortiOS 5 — the most powerful security operating system in the world.
  • Backed by world class technical support and threat research team.
Key Features & Benefits
Unmatched Performance and Security ASICs powered security blades with industry's validated security OS deliver outstanding capability for massive networks.
Highly Scalable Chassis system that allows organizations to add capability when needed.
High Speed Interfaces Keeping pace with today's network infrastructure and demands with high density 40 Gbps and 10 Gbps connectivity.

Architecture:

Next-Generation Perimeter Security

Flexible and Scalable

  • Chassis and blades systems that can be configured for various resiliency and network requirements.
  • Security blades can be added as demand grows.
  • Ease of maintenance and minimum disruption with hot swappable components
Chassis

The chassis enables the flexible system to scale effortlessly and with little disruptions by allowing hot swapped blades to be added according to desired requirements. The system can also be configured for various resilience designs within the chassis as well as between chassis. The rack mount ATCA chassis provides centralized and redundant power supplies to its blades. With exception of the FortiGate 5020, the chassis may be powered by either DC or AC with additional power interface. It facilitates backplane communications between the blades which may be used for HA heartbeat and other control and data communications.

The FortiGate 5060, FortiGate 5140B and FortiGate 5144C may house shelf managers that control chassis power allocation, monitor chassis operating parameters, monitor and control chassis cooling, and can signal alerts via alarm module if the chassis encounters problems.

Security Blades

High performance, ASICs powered security blades run on FortiOS or FortiCarrier which apply access policies and security profiles on the traffic they received from the networking blades via backplane or front panel interfaces. These blades may operate in NAT/route and/or transparent mode. They also support virtual systems (VDOMs) within the cluster.

Networking Blades

Up to two networking blades may be installed on a FortiGate 5060, FortiGate 5140B and FortiGate 5144C on designated slots. These blades connect the system to the network while connected to the multiple security blades via the chassis's backplane. The networking blade clusters the security blades with traffic distribution.

Networking blades can assign security blades into service groups which are isolated clusters coexisting in a single chassis. Two networking blades may either operate as activepassive HA or separately with its own clusters.

Deployment:

Next Generation Perimeter Security

Firewalls alone aren't enough to block today's blended threats and attacks. Data centers require multi-layered security technologies that examine entire packet flows, from content inspection through reassembly, stopping threats at the perimeter. The FortiGate 5000 series offers this critical functionality without compromising performance and scalability.

Next Generation Perimeter Security

MSSP Core Security

The FortiGate 5000 series delivers comprehensive security for Managed Security Service Providers (MSSPs). The full suite of ASIC-accelerated security modules allows for customizable features for specific customers, while virtualization features like Virtual Domains (VDOMs) provide up to 6,000 separate security domains. Finally, the full suite of Fortinet integrated management applications — including granular reporting features — offer unprecedented visibility into the security posture of customers while identifying their highest risks.

MSSP Core Security

Carrier-Graded Security

The ATCA chassis and components of the FortiGate 5000 series are ideal for telecommunication operators and service providers with standard-based assurance for reliability and robustness. Its unbeatable high capacity is essential as data networks continue to grow rapidly in the near future.

Carrier-Graded Security

Chassis:

FortiGate 5020
Compact 4U chassis that contains two redundant AC power modules and can install one or two FortiGate 5000 security blades.

FortiGate 5020

FortiGate 5060
Mid-sized 5U 19-inch rack mount ATCA chassis that contains two redundant hot swappable DC Power Entry Modules (PEMs) and can install up to six FortiGate 5000 series blades.

FortiGate 5060

FortiGate 5140B
13U 19-inch rack mount ATCA chassis that contains two redundant hot swappable DC Power Entry Modules (PEMs) and can install up to 14 FortiGate 5000 series blades. It also includes four hot swappable front pluggable cooling fan trays.

FortiGate 5140B

FortiGate 5144C
Next Generation 13U 19-inch rack mount ATCA chassis with 40 Gbps Backplane and capable of Dual-Dual-Star topology. It can install up to 14 FortiGate 5000 series blades.

FortiGate 5144C

AdvancedTCA™ (ATCA)-compliant Chassis

  • Based on industry's conforming standards assuring carrier-grade performance, reliability, 99.999% availability and serviceability.
  • Redundant fans, power modules and self managers and alarm modules options.*
  • Highly scalable with minimum service disruptions as hot swapped blades may be added to increase capacity with ease.
  • Comprehensive management and monitoring facilities via shelf managers and alarm modules.**

* Available options depending on chassis models *
* Available on 5060 and 5140B

Blades:


Security Blades

FortiGate 5001B
Security blade ideal for basic firewalling using NP4.

FortiGate 5001B

FortiGate 5001C
Security blade that is powered by CP8 and NP4 for superior firewall and UTM performance.

FortiGate 5001C

FortiGate 5101C
Powered by FortiASIC SP3 to provide unmatched UTM and IPv6 Firewall Performance, most ideal for next generation networks.

FortiGate 5101C

FortiGate 5001D
Latest purpose-built FortiGate security blade with carrier-class capacity and protection.

FortiGate 5001D

FortiController 5902D
Hybrid blade that can operate either as networking or security blade, benefits users who need to scale up UTM performance as traffic grows.

FortiControlleer 5902D

FortiSwitch 5203B
Flexible security blade that provides investment protection by transforming into a networking blade when scalability is required.

FortiSwitch 5203B

Powered by FortiASIC

  • FortiGate® consolidated security appliances are purpose-built to provide essential security technologies for your network. Powered by FortiASIC custom processors, FortiGate platforms deliver unmatched cost/performance for any size network.

Content Processor: Accelerate computationally intensive tasks

  • Accelerates packet content matching with signatures
  • High performance VPN bulk data engine
  • Key Exchange Processor support high performance IKE and RSA computation
  • Message authentication module offers high performance cryptographic engine, used by applications such as WAN optimization and SSL Inspection

Network Processor: The heart of low latency and high performance traffic processing

  • Supports firewall acceleration with large capacity, including multicast traffic
  • Provides IPsec ESP encryption/decryption processing at blazing speed
  • Scale firewall throughput independent of packet size
  • Operates at the interface level to provide an ultra low latency performance
  • Up to 10 million sessions of searching and dynamic network address translation (DNAT)

Networking Blade

FortiSwitch 5003B
Basic L2 switching blade for aggregating security blades within a chassis.

FortiSwitch 5003B

FortiSwitch 5203B
Flexible networking blade that can either operate as a standalone full featured FortiGate or in content cluster mode, as a FortiGate unit (weighted) load balancing traffic to one or more security blades.

FortiSwitch 5203B

FortiController 5103B
As a high capacity stateful load balancer, this networking blade distributes sessions to multiple FortiGate security blades using state of the art FortiASIC TP acceleration.

FortiController 5103B

FortiController 5902D
Hybrid blade that can operate either as networking or security blade, benefits users who need to scale up UTM performance as traffic grows.

FortiControlleer 5902D

FortiController 5903C/5913C
High Performance networking blade that provides 10/40-gigabit fabric and 1-gigabit base backplane channel layer-2 switching in a dual star architecture.

FortiSwitch 5003B

Clustering Options

FortiGate 5000-Series Clustering

The networking blades, security blades and the chassis together form clusters. This technique load balances network traffic across the cluster, helping to enhance the scalability, reliability, and availability of mission-critical IP-based services, such as firewall, antivirus, web filtering and IPS. It also provides high availability by detecting host failures and automatically redistributing traffic to the hosts within a chassis. Clustering simplifies large scale security gateway deployment as configuration synchronization and firmware upgrades can be executed automatically within the clusters.

AC Power Supplies

FortiGate 5053B and PowerSupplyUnit 5000B
The FortiGate 5053B is a 1U 19-inch rack mount power supply shelf with PSU-5000B hot swappable power supplies to convert AC pow er to DC power and to supply power to a FortiGate 5000-series chassis.

FortiGate 5053B and PowerSupplyUnit 5000B

Software Features:

FortiSwitch 5003B
FortiOS Dashboard — Single Pane of Glass Management

Ease of Use
FortiOS lowers operation costs and reduces IT staff workloads. Physical or virtual FortiGate appliances give you the flexibility to match your security to your environment while enforcing a uniform security policy. Single pane of glass management and centralized analysis ensure consistent policy creation and enforcement while minimizing deployment and configuration challenges.

Comprehensive Systems Integration
Integration with external systems is possible with wide range of interfacing protocol support and certified solution partners. Network operators can rely on facilities such as SNMP, sFlow and syslog for monitoring purposes. Integration with provisioning systems and custom portals are also possible with Web Service APIs via FortiManager. Scripting using various scripting languages is also supported by manipulating CLI commands.

Superior IPS Capabilities
The FortiGuard IPS subscription service provides FortiGate customers with the latest defenses against stealthy network-level threats. With signatures of more than 4000 known threats, it enables FortiGate to stop attacks that evade conventional firewall defenses. It also provides behavior-based heuristics, enabling the system to recognize threats for which no signature has yet been developed.

Unique Visibility and Control
FortiOS allows greater traffic visibility and more consistent, granular control over users, devices, applications and sensitive data. Dashboard widgets allow administrators to quickly view and understand real-time network activities and threat situations.

Robust Virtual Systems
FortiOS VDOMs is a proven method of dividing a FortiGate unit/cluster into two or more virtual units that function as multiple independent units. It has the industry’s most comprehensive virtualization capabilities that meet today’s complex MSSP deployments.

Flexible Role-based Administration
Access profiles can be defined to provide granular access to VDOMs and system functionalities. This is valuable in facilitating enterprise-class or complaint security operation workflows.

Identity-Centric Enforcement
FortiOS supports both local and remote authentication services such as LDAP, RADIUS and TACACS+ to identify users and apply appropriate access policies and security profiles accordingly. It may also simplify identity-based implementations and also provide seamless users authorization experience with various single sign-on capabilities. One such application is to retrieve subscriber’s information via RADIUS accounting messages and apply appropriate security services dynamically for a managed service provider. FortiOS has strong PKI and certificate-based authentication services and also integrates an internal two-factor token server for additional security.

Proven with Industry Validation
FortiGate received the most industry’s certifications among its competitions, assuring top-notch feature quality to provide you with air tight security and best-of-breed security protection.

Powerful Policy Management
It is common in service provider and data center networks to have hundreds, if not thousands of security policies, hence to be able to manage these policies effectively is critical to minimize configuration errors and complexity. FortiOS has the unique ability to provide two forms of policy management views — Global and Section view helps administrators to choose an option that they are most familiar with or suit their requirements best. It also provides powerful features such as policy object search, tagging, sorting and filtering. Policy objects can easily be edited from the policy table. With FortiManager integration, customers may also have the ability to setup sophisticated policy implementation and provisioning workflows for compliance or operation requirements. Detailed configuration audit trail is supported and can reside externally for secured storage with FortiAnalyzer.

Extensive Network Support
FortiOS supports numerous network design requirements and interops with other networking devices. This includes support for a wealth of routing, multicasting and network resiliency protocols. Administrators can also configure interfaces for VLANs, VLAN trunks, port aggregation and one-arm sniffer mode.

Broad IPv6 Support
Maintaining security for both IPv4 and IPv6 traffic will be crucial to the success of mixed networks. Malware and network threats are independent of IPv4 or IPv6. FortiOS is able to use IPv6 security policies to provide access control and UTM protection for IPv6 traffic. FortiOS has been successfully evaluated as compliant with core protocol and interoperability tests defined by IPv6 Ready Logo Phase 2.

More Features with FortiCarrier Software License

  • SIP/IMS signaling firewall protects internal infrastructure and service against malicious messages and overload while providing NAT services and redundancy, providing VoIP edge scalability and a platform for managed security services
  • MMS security — content scanning and protection (keyword blocking, antivirus, file-type blocking, antispam detection) with per-user services provide enhanced end-user security for increased uptime and higher customer satisfaction
  • GTP firewall delivers protocol anomaly detection and prevention with multiple filter options for end-to- end security

Specifications:


FortiGate 5020 FortiGate 5060 FortiGate 5140B FortiGate 5144C
Hardware Specifications
Available Slots 2 6 14 14
High Availability Backplane Fabric Built-in Built-in Built-in Built-in
40 Gbps Backplane Support Yes
Shelf Manager (Default / Maximum) 1 / 2 1 / 2 1 / 2
Dual Networking Blade Support No Yes Yes Yes
Dimensions
Height x Width x Length (inches) 5.25 x 17 x 15.5 8.86 x 17.64 x 18.82 22.63 x 19 x 22.6 24.44 x 19.06 x 21.63
Height x Width x Length (cm) 13.3 x 43.2 x 39.4 22 x 44.8 x 47.8 57.5 x 48.3 x 57.4 62.1 x 48.4 x 55.0
Weight 35.5 lb (16.1 kg) 38 (17.3 kg) 84 lb (38 kg) 108 lb (50 kg)
Maximum Capacity**
Firewall Throughput 160 Gbps 480 Gbps 1.12 Tbps 1.12 Tbps
Power and Environment
Power Required AC DC/AC1 DC/AC1 DC/AC1
Chassis Only Power Consumption (Maximum) *** 350 W 530 W 960 W
Heat Dissipation (Maximum) *** 1194 BTU/h 1808 BTU/h 3,276 BTU/h
Operating Temperature 32–104°F (0–40°C) 41–104°F (5–40°C) 32–104°F (0–40°C) 32–104°F (0–40°C)
Storage Temperature -13–158°F (-35–70°C) 23–131°F (-5–55°C) -13–158°F (-35–70°C) -13–158°F (-35–70°C)
Humidity 5–90% non-condensing 5–85% non-condensing 5–90% non-condensing 5–90% non-condensing
Compliance
Certifications FCC Part 15 Class A, C-Tick, VCCI, CE, BSMI, UL/cUL
1 Optional FortiGate 5053B Power Supply Shelf used to provide AC power to the FortiGate
** Based on fully populated FortiGate 5001D
*** Please refer to respective Chassis Guide for computation of total power requirement.
FortiGate 5001B FortiGate 5001C FortiGate 5101C FortiGate 5001D FortiSwitch 5203B* FortiController 5902D*
Interfaces and Storage
40 GE QSFP+ Ports 2 4
10 GE SFP+ Ports 8 2 4 2 10 2
GE RJ45 Ports 2 2 2 2 1 1
RJ45 Console Port 1 1 1 1 1 1
Included Transceivers 2x 10 GE SFP+ SR 2x 10 GE SFP+ SR 2x 10 GE SFP+ SR 2x 10 GE SFP+ SR 2x 10 GE SFP+ SR 2x 10 GE SFP+ SR
Local Storage 64 GB 128 GB 64 GB 200 GB 64 GB 128 GB
Syetem Performance
Firewall Throughput (1518 / 512 / 64 byte UDP packets) 40 / 40 / 40 Gbps 40 / 40 / 40 Gbps 40 / 40 / 10 Gbps 80 / 80 / 45 Gbps 40 / 40 / 40 Gbps 80 / 80 / 50 Gbps
Firewall Latency (64 byte UDP packets) 4 μs 4 μs 7 μs 3 μs 4 μs 3 μs
Firewall Throughput (Packets Per Second) 60 Mpps 60 Mpps 15 Mpps 67.5 Mbpps 60 Mpps 75 Mpps
Concurrent Sessions (TCP) 20 Mil 29.5 Mil 10 Mil 23 Mil 20 Mil 50 Million
New Sessions/Sec (TCP) 170,000 210,000 235,000 565,000 170,000 155,000
Maximum Firewall Policies 100,000 100,000 100,000 100,000 100,000 100,000
IPsec VPN Throughput (512 byte packets) 17 Gbps 17 Gbps 22 Gbps 25 Gbps 17 Gbps 15 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 40,000 40,000 40,000 40,000 40,000 40,000
Client-to-Gateway IPsec VPN Tunnels 64,000 64,000 64,000 64,000 64,000 64,000
SSL-VPN Throughput 1.3 Gbps 3.6 Gbps 1.3 Gbps 6.5 Gbps 1.3 Gbps 6.5 Gbps
Concurrent SSL-VPN Users (Recommended Maximum) 20,000 20,000 25,000 25,000 20,000 25,000
IPS Throughput 7.8 Gbps 12 Gbps 9.4 Gbps 18 Gbps 7.8 Gbps 18 Gbps
Antivirus Throughput (Proxy Based / Flow Based) 2 / 2.5 Gbps 3 / 4 Gbps 2 / 5 Gbps 5.6 / 13 Gbps 2 / 2.5 Gbps 3.8 Gbps
Virtual Domains (Default / Maximum) 10 / 500 10 / 500 10 / 500 10 / 500 10 / 500 10 / 500
Maximum Number of FortiTokens 5,000 5,000 5,000 5,000 5,000 5,000
Maximum Number of Registered FortiClients 20,000 20,000 20,000 20,000 20,000 20,000
Maximum Number of FortiAPs 1,024 1,024 1,024 1,024 1,024 1,024
Power and Environment
Power Consumption (Average / Maximum) 194 / 233 W 187 / 225 W 197 / 236 W 189 / 226 W 210 / 250W 223 / 270 W
Heat Dissipation (Average) 795 BTU/h 768 BTU/h 805 BTU/h 774 BTU/h 853 BTU/h 919 BTU/h
Operating Temperature 32–104°F (0–40°C) 32–104°F (0–40°C) 32–104°F (0–40°C) 32–104°F (0–40°C) 32–104°F (0–40°C) 32–104°F (0–40°C)
Storage Temperature -13–158°F (-25–70°C) -13–158°F (-25–70 °C) -13–158°F (-25–70°C) -13–158°F (-25–70°C) -13–158°F (-25–70°C) -13–158°F (-25–70°C)
Humidity 20–90% non-condensing 20–90% non-condensing 20–90% non-condensing 20–90% non-condensing 20–90% non-condensing 20–90% non-condensing
Compliance
Certifications FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB, ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN
NEBS Certified Yes Yes Yes

* Operating in Standalone Mode
Note: All performance values are "up to" and vary depending on system configuration. Antivirus performance is measured using 44 Kbyte HTTP files. IPS performance is measured using 1 Mbyte HTTP files.

FortiSwitch 5003B FortiSwitch 5203B* FortiController 5103B FortiController 5902D* FortiController 5903C FortiController 5913C
Interfaces
Fabric Channel Interfaces 8x 10 GE SFP+ 8x 10 GE SFP+ 8x 10 GE SFP+ 4x 40 GE QSFP+ 4x 40 GE QSFP+ 2x 100 GE CFP2
Base Channel Interfaces 2x 10 GE SFP+ 2x 10 GE SFP+ 2x 10 GE SFP+ 2x 10 GE SFP+ 2x 10 GE SFP+ 2x 10 GE SFP+
Management Interfaces 1x GE RJ45 1x GE RJ45 1x GE RJ45 1x GE RJ45 1x GE RJ45 1x GE RJ45
Included Transceivers 2x 10 GE SFP+ SR 2x 10 GE SFP+ SR 2x 10 GE SFP+ SR 2x 10 GE SFP+ SR 2x 10 GE SFP+ SR 2x 10 GE SFP+ SR
40 GE Backplane Fabric Support – – Yes Yes Yes
10 GE Backplane Fabric Support Yes Yes Yes Yes Yes Yes
GE Backplane Fabric Support Yes Yes Yes
System Performance
Maximum Traffic Throughput 80 Gbps 40 Gbps 60 Gbps 80 Gbps 120 Gbps 200 Gbps
Maximum Concurrent Sessions 20 Million 110 Million 50 Million 135 Million 135 Million
New Sessions/Second (TCP) 170,000 1.26 Million 155,000 3.2 Million 3.6 Million
Power and Environment
Power Consumption (Average / Maximum) 150 / 180 W 210 / 250 W 213 / 255 W 223 / 270 W 250 / 400 W 280 / 400 W
Heat Dissipation 614 BTU/h 853 BTU/h 754 BTU/h 919 BTU/h 1360 BTU/h 955 BTU/h
Operating Temperature 32–104°F (0–40°C) 32–104°F (0–40°C) 32–104°F (0–40°C) 32–104°F (0–40°C) 32–104°F (0–40°C) 32–104°F (0–40°C)
Storage Temperature -13–158°F (-35–70°C) -13–158°F (-35–70°C) -13–158°F (-35–70°C) -13–158°F (-35–70°C) -13–158°F (-35–70°C) -13–158°F (-35–70°C)
Humidity 20–90% non-condensing 20–90% non-condensing 20–90% non-condensing 20–90% non-condensing 20–90% non-condensing 5–90% non-condensing
Compliance
Certifications FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB

Clustering Options

FortiGate Chassis Platforms Clustering The networking blades, security blades and the chassis together form clusters. This technique load balances network traffic across the cluster, helping to enhance the scalability, reliability, and availability of mission-critical IP-based services, such as firewall, antivirus, web filtering, IPS, and so on. It also provides high availability by detecting host failures and automatically redistributing traffic to the hosts within a chassis. Clustering simplifies large scale security gateway deployment as configuration synchronization and firmware upgrades can be executed automatically within the clusters.

Content Clustering (CC) Session-aware load Balancing Clustering
Clustering Features
Technology Modified FortiOS Active-Active HA cluster with Chassis Intelligent Network load balancing within Chassis
Ideal Use Case Scaling UTM performance for MSSP High performance CGN and Internet security gateway for Service Provider
Configuration Synchronization and Firmware Upgrades Yes Yes
Session Termination (eg, VPN, Explicit Proxy) Yes Yes. On Primary Security Blade
Multi-segmentation Yes Limited
High Availability Setup Intra Chassis Inter & Intra Chassis
Networking Blades
Supported Networking Blades FSW-5203B FCTL-5103B
Security Blades
Supported Security Blades FG-5001B, FG-5001C, FG-5101C, FG-5001D FG-5001B, FG-5001C, FG-5101C, FG-5001D

AC Power Supplies

FortiGate 5053B and PowerSupplyUnit 5000B The FortiGate 5053B is a 1U 19-inch rack mount power supply shelf with PSU-5000B hot swappable power supplies to convert AC power to DC power and to supply power to a FortiGate 5000 series chassis.

Non-redundant Redundant
Number of PSUs 1 2 3 4 1+1 2+1 3+1
5053B with PSU-5000B
(185–307V AC High Line Input)
2,725 W 5,450 W 8,175 W 10,900 W 2,725 W 5,450 W 8,175 W
5053B with PSU-5000B
(100–184V AC Low Line Input, North America, Mexico, Japan, etc.)
1,200 W 2,400 W 3,600 W 4,800 W 1,200 W 2,400 W 3,600 W

Documentation:

Download the Fortinet FortiGate-5000 Series Datasheet (.PDF)

Pricing Notes:

Fortinet FortiSwitch 5203B Series
FortiSwitch 5203B
Fortinet FortiSwitch 5203B
Networking blade with 8 x 10GE SFP+ Fabric slots, 2 x 10GE SFP+ Base slots, 1 x GE RJ45 management ports
#FS-5203B
Our Price: $70,000.00
Fortinet FortiSwitch-5203B Hardware plus 8x5 Forticare and FortiGuard UTM Bundle
*Hardware Unit, Hardware Replacement, Firmware and General Upgrades, 8x5 Enhanced Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam) plus term of contract
FortiSwitch-5203B Hardware plus 8x5 Forticare and FortiGuard UTM Bundle, 1 Year
#FS-5203B-BDL
Our Price: $108,500.00
FortiSwitch-5203B Hardware plus 8x5 Forticare and FortiGuard UTM Bundle, 2 Year
#FS-5203B-BDL-900-24
Our Price: $135,800.00
FortiSwitch-5203B Hardware plus 8x5 Forticare and FortiGuard UTM Bundle, 3 Year
#FS-5203B-BDL-900-36
Our Price: $156,100.00
FortiSwitch-5203B Hardware plus 8x5 FortiCare and FortiGuard UTM Bundle, 4 Year
#FS-5203B-BDL-900-48
Our Price: $197,050.00
FortiSwitch-5203B Hardware plus 8x5 FortiCare and FortiGuard UTM Bundle, 5 Year
#FS-5203B-BDL-900-60
Our Price: $221,113.00
Fortinet FortiSwitch-5203B Hardware plus 24x7 Forticare and FortiGuard UTM Bundle
*Hardware Unit, Hardware Replacement, Firmware and General Upgrades, 24x7 Comprehensive Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam) plus term of contract
FortiSwitch-5203B Hardware plus 24x7 Forticare and FortiGuard UTM Bundle, 1 Year
#FS-5203B-BDL-950-12
Our Price: $115,500.00
FortiSwitch-5203B Hardware plus 24x7 Forticare and FortiGuard UTM Bundle, 2 Year
#FS-5203B-BDL-950-24
Our Price: $151,900.00
FortiSwitch-5203B Hardware plus 24x7 Forticare and FortiGuard UTM Bundle, 3 Year
#FS-5203B-BDL-950-36
Our Price: $177,100.00
FortiSwitch-5203B Hardware plus 24x7 FortiCare and FortiGuard UTM Bundle, 4 Year
#FS-5203B-BDL-950-48
Our Price: $220,150.00
FortiSwitch-5203B Hardware plus 24x7 FortiCare and FortiGuard UTM Bundle, 5 Year
#FS-5203B-BDL-950-60
Our Price: $248,588.00
FortiSwitch 5203B 1 Year Hardware Bundle Upgrade
*24X7 Comprehensive Support, Advanced Hardware Replacement (Next Business Day)
FortiSwitch-5203B 1 Year Upgrade from 8x5 to 24x7 FortiCare
#FC-10-W5203-274-01-12
Our Price: $11,970.00
Fortinet FortiSwitch 5203B 8x5 Bundle Subscription
*8X5 Hardware Replacement (Next Business Day), Firmware and General Upgrades, 8x5 Enhanced Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam Services)
8x5 for FortiSwitch 5203B, 1-Year Bundle
#FC-10-W5203-900-02-12
Our Price: $38,497.00
8x5 for FortiSwitch 5203B, 2-Year Bundle
#FC-10-W5203-900-02-24
Our Price: $72,188.00
8x5 for FortiSwitch 5203B, 3-Year Bundle
#FC-10-W5203-900-02-36
Our Price: $101,063.00
8x5 for FortiSwitch 5203B, 4-Year Bundle
#FC-10-W5203-900-02-48
Our Price: $127,050.00
8x5 for FortiSwitch 5203B, 5-Year Bundle
#FC-10-W5203-900-02-60
Our Price: $151,113.00
Fortinet FortiSwitch 5203B 24x7 Bundle Subscription
*Advanced Hardware Replacement (Next Business Day), Firmware and General Upgrades, 24X7 Comprehensive Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam Services)
24x7 for FortiSwitch 5203B, 1-Year Bundle
#FC-10-W5203-950-02-12
Our Price: $45,496.00
24x7 for FortiSwitch 5203B, 2-Year Bundle
#FC-10-W5203-950-02-24
Our Price: $85,306.00
24x7 for FortiSwitch 5203B, 3-Year Bundle
#FC-10-W5203-950-02-36
Our Price: $119,438.00
24x7 for FortiSwitch 5203B, 4-Year Bundle
#FC-10-W5203-950-02-48
Our Price: $150,150.00
24x7 for FortiSwitch 5203B, 5-Year Bundle
#FC-10-W5203-950-02-60
Our Price: $178,588.00
Fortinet FortiGuard Subscriptions 1-Year
FortiGuard FortiSandbox Cloud Service
#FC-10-W5203-123-02-12
Our Price: $14,000.00
Antivirus (AV) Service for FortiSwitch-5203B, 1-Year
#FC-10-W5203-100-02-12
Our Price: $14,000.00
FortiGuard NGFW Service for FortiSwitch-5203B, 1-Year
#FC-10-W5203-108-02-12
Our Price: $14,000.00
Web Filtering Service for FortiSwitch-5203B, 1-Year
#FC-10-W5203-112-02-12
Our Price: $14,000.00
FortiSwitch 5203B FortiCare 8x5
*8x5 Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades
8x5 FortiCare for FortiSwitch 5203B, 1-Year
#FC-10-W5203-311-02-12
Our Price: $10,500.00
8x5 FortiCare for FortiSwitch 5203B, 2-Year
#FC-10-W5203-311-02-24
Our Price: $19,688.00
8x5 FortiCare for FortiSwitch 5203B, 3-Year
#FC-10-W5203-311-02-36
Our Price: $27,563.00
FortiSwitch 5203B FortiCare 24x7
*24x7 Support, Advanced Hardware Replacement (Next Business Day), Firmware and General Upgrades, VPN, and Traffic Management
24x7 FortiCare for FortiSwitch 5203B, 1-Year
#FC-10-W5203-247-02-12
Our Price: $17,498.00
24x7 FortiCare for FortiSwitch 5203B, 2-Year
#FC-10-W5203-247-02-24
Our Price: $32,811.00
24x7 FortiCare for FortiSwitch 5203B, 3-Year
#FC-10-W5203-247-02-36
Our Price: $45,935.00
