Fortinet FortiSwitch 248B-DPS

High Performance Gigabit and 10 Gigabit Ethernet Switches

Fortinet FortiSwitch 248B

Fortinet Products
FortiSwitch-248B-DPS

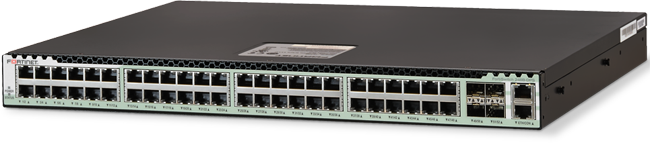

Fortinet FortiSwitch 248B-DPS
- 48 10/100/1000 Copper GigE plus 4 dual speed 1G/10G Fiber SFP+ ports Layer-2 switch (Not Licensed for OSPF, RIP, Multicast, L3 features)		 #FS-248B-DPS
Our Price: $9,695.00

Click here to jump to more pricing!

Live Demo! Click here to loadOverview:

The FortiSwitch-248B-DPS is a high performance 10/100/1000 Ethernet switch with quad dual-speed 1/10 SFP+ fiber uplinks ports, allowing up to 40 Gbps of core traffic. This switching platform is designed for datacenter top-of-rack server aggregation, or as a high performance access edge switch for the wire closet. It also ensures compatibility with existing 1 GbE fiber ports and your future 10 GbE fiber at no additional cost.

Both the FortiSwitch-248B-DPS and 548B models are packaged in a compact 1RU form factor and designed to connect network devices to the Ethernet fabric, thereby reducing your overall datacenter deployment costs.

Rightsize switch deployment

Fortinet's FortiSwitch family of Gigabit Ethernet (GbE) and 10 Gigabit switches delivers outstanding price, performance, and scalability to organizations with diverse operational needs. The FortiSwitch platforms are purpose-built to meet the Ethernet infrastructure and provisioning needs of today's network edge. You can scale up/out your operations performance needs with ease of use and low cost of ownership to meet the demands of bandwidth-intensive applications from small offices to large datacenters.

FortiSwitch-248B-DPS Benefits:

  • High performance LAN edge with investment protection for 10 Gbps uplink.
  • Up to 176 Gbps capacity and 32K MAC address support.
  • 4 dual-speed uplink ports offer maximum deployment flexibility and up to 40 Gbps traffic.
  • Switch security features protect vulnerable infrastructure without adding latency.
  • Supports high availability through dual hot swappable power supplies.

Features & Benefits:

Fortiswitch-248B-DPS/548B Features

Layer 2 Features

  • Wire speed L2 switching performance 10/100/1000 BASE-T ports supporting auto-sensing, auto-negotiation
  • MDI/MDIX Jumbo frame support:
    • 9K Flow control – IEEE 802.3x full duplex mode
    • Back-pressure flow control in half duplex mode
  • Broadcast, unicast and multicast storm protection
  • IGMP snooping
  • VLAN
    • IEEE 802.1Q VLAN
    • GARP/GVRP/GMRP
    • Up to 512 VLANs, with up to 3965 VLAN IDs
    • Port-based VLAN
    • Protocol-based VLAN Spanning tree
    • IEEE 802.1d Spanning Tree Protocol
    • IEEE 802.1w Rapid Spanning Tree
    • IEEE 802.1s Multiple Spanning Tree Link aggregation
    • Up to 6 trunk groups
    • Up to 8 ports per trunk group
    • 802.3ad link aggregation and LACP
    • Static trunk group
    • Load balance for unicast and multicast traffic
  • Port mirror (many-to-1)

Performance Specifications

  • Forwarding mode: Store-and-forward Mean Time Between Failures (MTBF): 46,140 hours

Security

  • User/password-protected system management
  • RADIUS client
  • TACACS+ client
  • SSH v1/v2
  • SSL v3/TLS v1
  • IEEE 802.1x
  • Port MAC lock

Mulitcast

  • Layer-2 IGMP snooping

Management

  • BOOTP and DHCP for IP address assignment
  • DHCP relay
  • XMODEM/FTP/TFTP
  • Dual firmware images
  • Up to three configuration files including factory default
  • SSH v1/v2 switch management
  • SSL v3/TLS v1 switch management
  • Simple Network Time Protocol (SNTP)
  • Telnet, Ping and Trace route functions
  • DNS client and DNS relay functions
  • Message/event/error/trap logs
  • Logging to local file and syslog server
  • Common command line interface (CLI) switch management
  • Web switch management
  • SNMP v1, v2c, and v3 switch management
  • Private Enterprise MIB
  • RMON groups 1, 2, 3, and 9
  • Port mirror (many-to-1)

Network Protocols and Standards Compatility

  • IEEE 802.3 10BASE-T
  • IEEE 802.3u 100BASE-TRX
  • IEEE 802.3z 1000BASE-SX
  • IEEE 802.3x Flow Control
  • IEEE 802.3ad Link Aggregation
  • IEEE 802.1v Protocol VLAN and Port VLAN
  • IEEE 802.1d Spanning Tree Protocol
  • IEEE 802.1s Multiple Spanning Tree Protocol

Quality of Service

  • 802.1p-based CoS
  • 8 priority queues per port
  • IP TOS/precedence-based CoS
  • DSCP-based CoS
  • Policy-based Diffserv

System Parameters

  • Maximum RADIUS servers 3
  • Maximum RADIUS accounting servers 1
  • Maximum TACACS servers 3
  • Maximum IP filter addresses 5
  • Maximum telnet or SSH sessions 5
  • Maximum WEB sessions 8
  • Number of 802.1p traffic classes 8
  • Number of MSTP instances 5
  • Number of ACL 100
  • Number of rules in an ACL 10
  • Maximum classes 32
  • Maximum rules per class 7
  • Maximum member classes per policy 10
  • Maximum attributes per class 1

Switch Security Features

  • Port security and Broadcast, Multicast, Unicast Storm control
  • Dynamic ARP inspection
  • DHCP snooping
  • Spanning tree guards : BPDU filter + BPDU guard + loop guard + root guard + TCN guard
  • Denial of service protection: TCP fragment, Min TCP HDR, ICMP Size, ICMP fragment, SIP=DIP, TCP Flag checking, TCP Fragment offset checking

Firewall Loadbalancing

  • HASH function for symmetric distribution of traffic across 8 firewalls

Technical Specifications:

FortiSwitch-248B Front
Front View

FortiSwitch-248B Back
Back View

  FortiSwitch-80-PoE FortiSwitch-248B-DPS FortiSwitch-548B
  FortiSwitch-80-PoE FortiSwitch-248B FortiSwitch-548B
Performance Specifications
Switch Type Unmanaged Managed Managed
Switch Capacity 2 Gbps 176 Gbps 960 Gbps
MAC Address Storage 4,000 32,000 128,000
VLANs Supported N/A 3965 configurable with support for VTP v1/v2 3965 configurable with support for VTP v1/v2
Link Aggregation Group Size N/A Up to 8 ports Up to 8 ports
Total Link Aggregation Groups N/A 8 8
Hardware Specifications
10/100/1000 Ports 8 48 0
1000/10000 Ports 0 4 Dual Speed SFP+ capable of 1-GbE and 10-GbE speeds 48 dual-speed SFP+ cages capable of 1G & 10 GbE speeds
10/100/1000 Service Ports N/A 1 1
RJ-45 serial console Port 0 1 1
POE Ports 4 802.3af 0 0
POE Power Budget 62 Watts N/A N/A
Dimensions
Rack Mountable Desktop Appliance 1 RU Rack-Mount Appliance 1 RU Rack-Mount Appliance
Height x Width x Length 1.5 in x 4.7 in x 7.5 in
(3.8 cm x 12 cm x 19 cm)		 1.67 in x 17.32 in x 10.8 in
(4.24 cm x 44.00 cm x 27.44 cm)		 1.7 in x 17.1 in x 15.5 in
(4.28 cm x 43.5 cm x 39.37 cm)
Weight 1.64 lbs (.75 kg) 12.83 lbs (5.82 Kg) 16.5 lbs (7.5 Kg
Environment
Voltage Range 100-240V AC 50-60 Hz 100-240V AC 50-60 Hz 100-240V AC 50-60 Hz
Power Consumption 6.2 W (P0E off) 68.2W (POE on, based on 4 POE devices) Up to 140 W Up to 250 W
Power Supply External power supply adaptor Dual hot swappable AC Dual hot swappable AC
Storage Temperature 32 - 122 deg F (0 - 50 deg C)
Operating Temperature 32 - 104 deg F (0 - 40 deg C) 32 - 113 F (0 - 45 C)
Humidity 5 - 95% RH non-condensing 80% maximum relative humidity
Compliance Directive RoHS-Compliant

Deployment:

FortiSwitch 548B/248B-DPS Deployment Example

FortiSwitch 548B/248B-DPS Deployment Example

Documentation:

PDF File
Download the Fortinet FortiSwitch Series Datasheet (.PDF)



Fortinet Products
FortiSwitch-248B-DPS
Fortinet FortiSwitch 248B-DPS
- 48 10/100/1000 Copper GigE plus 4 dual speed 1G/10G Fiber SFP+ ports Layer-2 switch (Not Licensed for OSPF, RIP, Multicast, L3 features)		 #FS-248B-DPS
Our Price: $9,695.00
Fortinet FortiCare 24x7 Subscriptions
FortiSwitch 248B-DPS FortiCare 24x7
The FortiCare 24x7 includes 24x7 Support, Advanced Hardware Replacement (NBD), and Firmware Upgrades.
24x7 FortiCare for FortiSwitch 248B-DPS, 1-Year #FC-10-W0249-247-02-12
Our Price: $2,424.00
