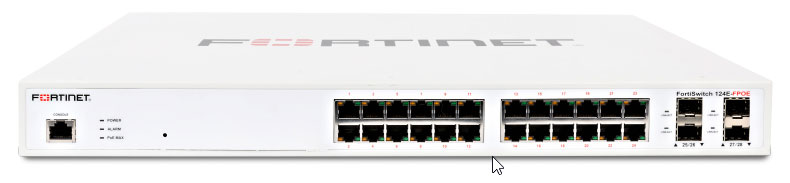

Fortinet FortiSwitch 124E-POE
Secure Access Switches



FortiSwitch-124E

Fortinet FortiSwitch-124E-POE Series
FortiSwitch-124E-POE
USA: FREE Ground ShippingL2+ managed POE switch
with 24GE +4SFP, 12 port POE with max 185W limit and smart fan temperature control
#FS-124E-POE
List Price: $800.00
Our Price: $590.00

Click here to jump to more pricing!

Overview:

FortiSwitch Secure Access switches deliver a Secure, Simple, Scalable Ethernet solution with outstanding security, performance and manageability for threat conscious small to mid-sized businesses, distributed enterprises and branch offices.

Tightly integrated into the FortiGate® Network Security Platform, the FortiSwitch Secure Access switches can be managed directly from the familiar FortiGate interface. This single pane of glass management provides complete visibility and control of all users and devices on the network, regardless of how they connect.

Security Fabric Integration

Reduces complexity and decreases management cost with network security functions managed through a single console via FortiGate.

This integration allows all users to be authenticated against the same user database, regardless of whether they connect to the wired or wireless network, including temporary guest users.

In addition, same security policy can apply to a user or device regardless of how or where they connect to the network.

Simplify Network Deployment

The Power over Ethernet (PoE) capability in some models, enables simple installation of wireless Access Points and IP phones in the network.

Highlights

  • Secure Access switches suitable for wire closet and desktop installations
  • Devices are identified and users authenticated prior to being granted access to the network
  • Centralized security management and reporting from FortiGate interface
  • Up to 48 ports in a compact 1 RU form factor
  • Stackable up to 256 switches per FortiGate depending on model
  • Power over Ethernet capable, including PoE+
  • Ideal for converged network environments; enabling voice, data and wireless traffic to be delivered across a single network

Features

Management and Configuration
Auto Discovery of Multiple Switches Yes
Number of Managed Switches per FortiGate 8 to 256 Depending on FortiGate Model (Please refer to admin guide)
FortiLink Stacking (Auto Inter-Switch Links) Yes
Software Upgrade of Switches Yes
Centralized VLAN Configuration Yes
Switch POE Control Yes
Link Aggregation Configuration Yes
Spanning Tree Yes
LLDP/MED Yes
IGMP Snooping Yes (not supported on 1xxE-Series)
L3 Routing and Services Yes (FortiGate)
Policy-Based Routing Yes (FortiGate)
Virtual Domain Yes (FortiGate)
Security and Visibility
802.1x Authentication (Port-based, MAC-based, MAB) Yes
Syslog Collection Yes
DHCP Snooping Yes
Device Detection Yes
MAC Black/While Listing Yes (FortiGate)
Policy Control of Users and Devices Yes (FortiGate)
UTM Features
Firewall Yes (FortiGate)
IPC, AV, Application Control, Botnet Yes (FortiGate)
High Availability
Support FortiLink FortiGate in HA Cluster Yes
LAG support for FortiLink Connection Yes
Active-Active Split LAG from FortiGate to FortiSwitches for Advanced Redundancy Yes (with FS-2xx, 4xx, 5xx)

Deployment

Fortilink Mode

The FortiSwitch Secure Access Switch series integrates directly into the FortiGate* Connected UTM, with switch administration and access port security managed from the familiar FortiGate interface. Regardless of how users and devices connect to the network, you have complete visibility and control over your network security and access through this single pane of glass, perfectly suited to threatconscious organizations of any size.

FortiSwitch-124E



Standalone Mode

Virtualization and cloud computing have created dense high-bandwidth Ethernet networking requirements in the data center, pushing the limits of existing data center switching. FortiSwitch Data Center switches meet these challenges by providing a high performance 10 or 40 GE capable switching platform, with a low Total Cost of Ownership. Ideal for Top of Rack server or firewall aggregation applications, as well as enterprise network core or distribution deployments, these switches are purpose-built to meet the needs of today’s bandwidth intensive environments.

FortiSwitch-124E

Specifications:


FortiSwitch 124E-POE FortiSwitch 124E-FPOE
Hardware Specifications
Total Network Interfaces 24x GE RJ45 and 4x GE SFP 24x GE RJ45 and 4x GE SFP
Dedicated Management 10/100 Port 0 0
RJ-45 Serial Console Port 1 1
Form Factor 1 RU Rack Mount 1 RU Rack Mount
Power over Ethernet (PoE) Ports 12 (802.3af/at) 24 (802.3af/at)
PoE Power Budget 185 W 370 W
Mean Time Between Failures > 10 years > 10 years
System Specifications
Switching Capacity 56 Gbps 56 Gbps
Packets Per Second 41.66 Mpps 41.66 Mpps
MAC Address Storage 8K 8K
Network Latency 4ms 4ms
VLANs Supported 4K 4K
Link Aggregation Group Size 8 8
Total Link Aggregation Groups 8 8
Packet Buffers 512 KB 512 KB
DRAM 256 MB DDR3 256 MB DDR3
FLASH 32 MB 32 MB
Dimensions
Height x Depth x Width (inches) 1.7 x 12.2 x 17.3 1.7 x 12.2 x 17.3
Height x Depth x Width (mm) 44 x 309 x 440 44 x 309 x 440
Weight 11.1 lbs (5.03 kg) 11.2 lbs (5.03 kg)
Environment
Power Required 100–240V AC, 50–60 Hz 100–240V AC, 50–60 Hz
Power Supply AC Built in AC Built in
Redundant Power 17.78 W / 20.45 W 17.78 W / 20.45 W
Power Consumption (Average / Maximum) 60.67 BTU/h 60.67 BTU/h
Heat Dissipation 60.67 BTU/h 60.67 BTU/h
Operating Temperature 32–104°F (0–40°C) 32–104°F (0–40°C)
Storage Temperature -40–158°F (-40–70°C) -40–158°F (-40–70°C)
Humidity 10–90% non-condensing 10–90% non-condensing
Certification and Compliance
FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2 FCC, CE, RCM, VCCI, BSMI, UL, CB, RoHS2
Warranty
Limited lifetime* warranty on all models Limited lifetime* warranty on all models

Documentation:

Download the Fortinet FortiSwitch Secure Access Series Datasheet (PDF).

Pricing Notes:

Fortinet FortiSwitch 124E-POE Series
FortiSwitch-124E-POE
USA: FREE Ground ShippingL2+ managed POE switch
with 24GE +4SFP, 12 port POE with max 185W limit and smart fan temperature control
#FS-124E-POE
List Price: $800.00
Our Price: $590.00
FortiSwitch-124E-POE 24x7 FortiCare Contract
FortiSwitch-124E-POE 1 Year 24x7 FortiCare Contract
#FC-10-S248P-247-02-12
List Price: $80.00
Our Price: $69.00
FortiSwitch-124E-POE 3 Year 24x7 FortiCare Contract
#FC-10-S248P-247-02-36
List Price: $240.00
Our Price: $207.79
FortiSwitch-124E-POE 5 Year 24x7 FortiCare Contract
#FC-10-S248P-247-02-60
List Price: $400.00
Our Price: $346.32
FortiSwitch-124E-POE 8x5 FortiCare Contract
FortiSwitch-124E-POE 1 Year 8x5 FortiCare Contract
#FC-10-S248P-311-02-12
List Price: $40.00
Our Price: $35.00
FortiSwitch-124E-POE 3 Year 8x5 FortiCare Contract
#FC-10-S248P-311-02-36
List Price: $120.00
Our Price: $103.90
FortiSwitch-124E-POE 5 Year 8x5 FortiCare Contract
#FC-10-S248P-311-02-60
List Price: $200.00
Our Price: $173.16
