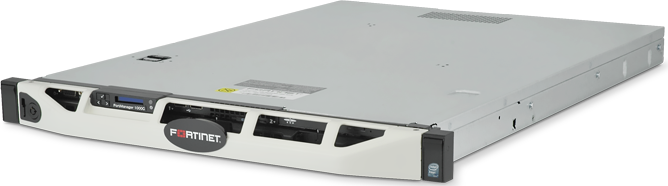

Fortinet FortiManager 1000C Appliance

Overview:

FortiManager-1000C centralized management appliances simplify policy-based provisioning, configuration, and update management in mid-enterprise networks. FortiManager consolidates the management of your FortiGate®, FortiWiFi™, FortiMail™ and FortiAnalyzer™ appliances and virtual appliances, as well as FortiClient™ endpoint security agents. Easily manage hundreds of devices and thousands of endpoint security agents in your mid-to-large size enterprise or service provider environment.

FortiManager-1000C Features & Benefits:

• Easy centralized configuration, policy-based provisioning, update management and end-to-end network monitoring for your Fortinet installation
• Control and configure up to 800 devices and virtual domains (VDOMs) and up to 25,000 FortiClient agents from a single interface
• Use administrative domains (ADOMs) to manage and control large deployments easily and securely by adding devices and agents to geographic or functional management groups
• Reduce your administrative burden and operational costs with fast device and agent provisioning, detailed revision tracking, and thorough auditing capabilities
• Easily manage complex mesh and star VPN environments while leveraging FortiManager as a local distribution point for software and policy updates
• Integrates seamlessly with FortiAnalyzer appliances to provide in-depth discovery, analysis, prioritization and reporting of network security events

Take Control of Your Security Infrastructure

FortiManager centralized management appliances deliver the essential tools needed to effectively manage your Fortinet-based security infrastructure. Whether deploying a few or thousands of new devices or agents, distributing updates, or installing security policies across managed assets, FortiManager appliances drastically reduce management costs and overhead. Device discovery, group management, auditing facilities, and the ability to manage complex mesh and star VPN environments are just of a few of the time-saving features that FortiManager appliances offer. Complemented by the FortiAnalyzer centralized logging and reporting appliance, the FortiManager appliance is a comprehensive and powerful centralized management solution for your organization.

Be The Master of Your Domain

Because FortiManager appliances scale to manage thousands of Fortinet devices and agents, we offer a choice of two management modes for increased flexibility. You may choose to manage all assets centrally, with configuration choices being made from the FortiManager user interface. Alternately, you can enable a distributed network of administrators to manage sets of devices and agents based on your definitions. Groupings of devices and agents, along with their administrators, form the FortiManager concept of Administration Domains (ADOMs). And whether you choose the fully centralized or distributed management model, with one or one hundred ADOMs, FortiManager appliances always allow you to manage your Fortinet assets effectively and efficiently.

Fortinet's Integrated Management Solution

FortiManager appliances provide you with a secure web-based interface for the command and control of your Fortinet security infrastructure. FortiManager appliances also provide centralized policy-based provisioning, configuration, and update management for FortiGate, FortiWiFi, and FortiMail appliances, as well as FortiClient endpoint security agents. Finally, FortiManager includes real-time monitoring capabilities for added visibility.

To complete your centralized management solution, FortiManager seamlessly integrates with our FortiAnalyzer appliances. These appliances provide in-depth discovery, analysis, prioritization, and reporting of the security events detected within your environment. Together, the FortiManager and FortiAnalyzer systems form a comprehensive and enterpriseclass management solution.

Features & Benefits:

Administrative Domains (ADOMs)
Enables the primary administrator (admin) to create groupings of devices for other administrators to monitor and manage

• Administrators can manage devices in their geographic location or business division
• FortiGate devices with multiple VDOMs can be divided among multiple ADOMs
• Administrative users can only access devices or VDOMs assigned to them
• The primary admin can access all administrative domains and devices
• Licenses are available for configuring up to 1000 ADOMs

Hierarchical Objects Database
There are two levels of centralized repositories within FortiManager that house the configuration details of various assets:

• Create device configuration templates to quickly configure a new Fortinet appliance
• Within each ADOM, there is a common database of objects shared by all devices and policy packages allowing users to reuse similar configurations among a group of managed assets
• Using the Global Policy add-on license, a global ADOM can have a global policy and a global database common to all ADOMs in the system

Web Portal SDK
Designed for multi-tenancy applications within a single management platform

• JSON-based API allows MSSPs to offer administrative web portals to customers
• Provides an administrative web portal for customers who require some degree of control over their network security management
• Enables MSSP customers to manage their own SSL-VPN user list and Web Filtering URL filters and categories
• If configured, customers can also view the firewall policies for their FortiGate device or VDOM

Locally Hosted Security Content
Hosting security content locally allows the administrator greater control over security content updates and provides improved response time for rating databases. Includes support for:

• Antivirus definition updates
• Intrusion Prevention updates
• Vulnerability and Compliance Management updates
• Web Filtering (select systems)
• Antispam (select systems)

Unified Management Model
Single, united workflow enables configuration of multiple management components per ADOM:

• Objects and Dynamic Objects
• Import and VPN Wizards
• Device Settings Management including Device Summary & Status, VDOM Synchronization, GUI-based Scripts

FortiManager XML API
The FortiManager XML API is a Web Services interface used to facilitate

• Private/Public Cloud customers can
• Configure managed FortiGate devices through a Web Services interface.
• Obtain information, create and run FortiOS CLI scripts on the FortiManager database, and then install the changes on FortiGate units.

Deployment:

Technical Specifications:

	FMG-200D	FMG-400C	FMG-1000C	FMG-3000C
Capacity Specification
Licensed Network Devices1 (Max)	30	300	800	5,000
Administration Domains (ADOMs)	30	300	800	5,000
Administrative Web Portals	–	–	800	5,000
Web Portal Users (Max)	–	–	800	5,000
Global Policy (Included)	Yes	Yes	Yes	Yes
Hardware Specifications
Hardware Form Factor	Desktop	Rack Mount (1-RU)	Rack Mount (1-RU)	Rack Mount (2-RU)
10/100/1000 Ethernet (Base-T)	4	4	4	4
Console Port	RJ45	RJ45	DB-9	DB-9
LCD Display	No	No	Yes	Yes
Disk Storage Capacity	1 TB	1 TB	2 TB	4 TB
High Availability Support	Yes	Yes	Yes	Yes
Hot-Swappable Power Supplies	–	–	–	Yes
Dimensions
Height	1.75 in (4.5 cm)	1.7 in (4.4 cm)	1.69 in (4.30 cm)	3.5 in (8.9 cm)
Width	17.05 in (43.3 cm)	17.1 in (43.5 cm)	17.09 in (43.4 cm)	17.5 in (44.5 cm)
Length	13.86 in (35.2 cm)	14.3 in (36.4 cm)	24.69 in (62.71 cm)	29.0 in (73.7 cm)
Weight	13.4 lb (6.08 kg)	14.7 lb (6.7 kg)	24.2 lbs (11 kg)	63 lbs (28.6 kg)
Environment
Power Required	1100 – 240 VAC 50 – 60 Hz, 0.8 Amp (Max)	100 – 240 VAC 50 – 60 Hz, 4.0 Amp (Max)	100 – 240 VAC 50 – 60 Hz, 7.0 Amp (Max)	100 – 240 VAC 50 – 60 Hz, 9.0 Amp (Max)
Power Consumption (AVG)	60 W	100 W	189 W	200 W
Operating Temperature	32 – 104 deg F (0 – 40 deg C)
Storage Temperature	-13 – 158 deg F (-25 – 70 deg C)
Humidity	5 to 95% noncondensing
Certifications
Safety Certifications	FCC Class A Part 15, UL/CB/CUL, C Tick, VCCI, CE

Command and Control

• Manage devices and endpoint agents individually or as logical groups
• Discover new devices automatically
• Create, deploy, and monitor virtual private networks
• Delegate control to other users with distributed administration features
• Audit configuration changes to ensure compliance

Manage Updates

• Simplify the ongoing maintenance of your Fortinet-based security infrastructure by scheduling device updates

Monitor, Analyze, and Report

• Access vital security and network statistics
• Combine with a FortiAnalyzer appliance for additional data mining and graphical reporting capabilities.

Supported Devices & Agents

• FortiGate Multi-Threat Security Appliances
• FortiClient Endpoint Security Software
• FortiMail Messaging Security Appliances
• FortiAnalyzer Analysis & Reporting Appliances
• FortiSwitch Security Appliances
• FortiCarrier Multi-Threat Security Appliances

Security Features:

Services & Support:

FortiGuard Security Subscription Services

FortiGuard Security Subscription Services deliver dynamic, automated updates for Fortinet products. The Fortinet Global Security Research Team creates these updates to ensure up-to-date protection against sophisticated threats. Subscriptions include antivirus, intrusion prevention, web filtering, antispam, vulnerability and compliance management, application control, and database security services.

FortiCare Support Services

FortiCare Support Services provide global support for all Fortinet products and services. FortiCare support enables your Fortinet products to perform optimally. Support plans start with 8x5 Enhanced Support with "return and replace" hardware replacement or 24x7 Comprehensive Support with advanced replacement. Options include Premium Support, Premium RMA, and Professional Services. All hardware products include a 1-year limited hardware warranty and 90-day limited software warranty.

Documentation:

Download the Fortinet FortiManager Series Datasheet (PDF).
