Fortinet FortiMail 3000E
Comprehensive Email Security

Fortinet FortiMail 3000E

Fortinet FortiMail 60D Series
FortiMail-60D

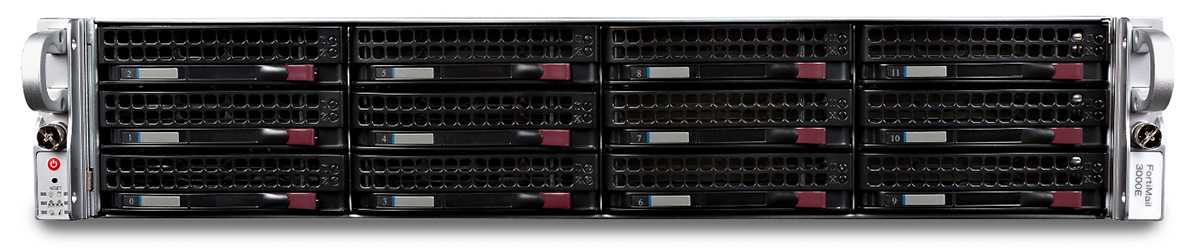

FortiMail-3000E Email Security Appliance
4 x GE RJ45 ports, 2 x GE SFP slots, , dual AC power supplies, 4TB HDD Default Storage
#FML-3000E
Our Price: $39,000.00

Click here to jump to more pricing!

Live Demo! Click here to load

Overview:

Proven Security

FortiMail appliances and virtual appliances are proven, powerful email security platforms for any size organization — from small businesses to carriers, service providers, and large enterprises. Purpose-built for the most demanding messaging systems, FortiMail appliances employ Fortinet’s years of experience in protecting networks against spam, malware, and other message-borne threats.

Intelligent Protection

FortiMail prevents your email systems from becoming threat delivery systems. Its inbound filtering engine blocks spam and malware before it can clog your network and affect users. Its outbound inspection technology prevents other antispam gateways from blacklisting your users by blocking outbound spam and malware, including mobile traffic.

Enforce secure content delivery with FortiMail Identity-Based Encryption (IBE), S/MIME, or TLS email encryption options. Prevent accidental and intentional loss of confidential data using predefined HIPAA, GLBA, SOX or customized dictionaries.

High Performance and Unmatched Flexibility

FortiMail appliances provide high-performance email routing and security by utilizing multiple high-accuracy antispam filters. When coupled with industry leading real-time antivirus and antispyware protection from FortiGuard Services, FortiMail provides you with extremely fast and accurate email security that won’t affect end users or delay their communications. FortiMail can be deployed in the cloud or on premises and gateway, inline and server modes in a range of appliance or virtual machine form factors. This flexibility allows you to deploy FortiMail in the mode that best suits your environment.

Advanced Threat Protection

In addition to FortiGuard antivirus, FortiMail supports on-board code emulation to identify and block suspicious files based on their intended behavior. Optional cloud-based or on-premise “sandboxing” provide a full, contained, run-time environment to thwart the highly targeted and tailored attacks that increasingly bypass traditional defenses. Rich threat intelligence, actionable insight and the option to share information with FortiGuard Labs in order to receive automated protection updates help organizations reduce the risk of compromise and breach from such sophisticated attacks.

Comprehensive Email Security

  • Scalable solution from SME to the largest ISP and carrier networks
  • Advanced Threat Outbreak Protection methods to protect against new emerging and targeted attacks
  • Apply Identity-Based Encryption in both push and pull methods
  • Data Leak Prevention, and Policy- Based Encryption and Archiving enable compliance with SOX, GLBA, HIPAA, PCI DSS
  • Enforce email and security policies at a granular level
  • Receive real-time security updates from FortiGuard® Services
  • Industry leading price/performance
  • Flexible deployment modes and architectures support the widest range of organizations
  • Multi-layer threat detection delivers highest level of user protection
  • Scalable solution delivers long term investment protection

Key Features & Benefits

Flexible Deployment Options FortiMail can be deployed in gateway, transparent mode and as a fully featured mail server. With hardware, VM and cloud form factors, FortiMail is flexible enough to cater to every customer requirement.
Apply Data Loss Prevention and Identity-Based Encryption Detect sensitive information using defined data patterns and ensure secure delivery with no additional hardware or software to install, no user provisioning, no recipient pre-enrollment.
Prevent Phishing and Other Advanced Threats Apply embedded URL inspection, top rated antimalware and optional sandbox integration to detect highly targeted attacks.
Identify and Block Spamming Endpoints Carriers and Service Providers, prevent blacklisting of legitimate subscribers by identifying and blocking endpoints sending spam.
No Per-User or Per-Mailbox Pricing Complete, multi-layered antivirus, antispam, antispyware and antiphishing protection for an unlimited number of users. Greatly reduces TCO.

Features & Benefits:

System

  • Transparent, Gateway and Server Mode Deployment Options
  • Flexible Interface Configuration Including VLAN and Redundant Interface Support
  • Inbound and Outbound Inspection
  • Multiple Email Domains with Domain Level Customization
  • IPv6 and IPv4 Address Support
  • Virtual Hosting using Source and/or Destination IP Address Pools
  • Policy-Based Mail Archiving with Remote Storage Options
  • SMTP Authentication Support via LDAP, RADIUS, POP3 and IMAP
  • LDAP-Based Email Routing
  • Per User Inspection using LDAP Attributes on a Per Policy (Domain) Basis
  • Comprehensive Webmail Interface for Server Mode Deployments and Quarantine Management
  • Mail Queue Management
  • Multiple Language Support for Webmail and Admin Interface
  • Email RFC Compliance
  • Maintains Local Sender Reputation List Based on:
    – Sender Policy Framework (SPF)
    – Domain Keys Identified Mail (DKIM

Antivirus

  • FortiGuard Antivirus Service
  • Quarantine, Repackage, Replace, and Monitor Actions
  • Nested Archive Scanning
  • Malware Detection
  • On-board code emulation
  • Integration with FortiSandbox and FortiGuard Analytics for advanced threat protection
    – Emails are queued by FortiMail whilst FortiSandbox inspects the email contents for threats

Content-Based Protection

  • Dictionary-based filtering in inbound or outbound direction
  • Predefined HIPAA, GLBA and SOX dictionaries
  • Filter by Attachment File Type
  • Banned Word Filtering

Management, Logging, and Reporting

  • QuickStart Setup Wizard
  • Basic / Advanced Management Modes
  • Role-Based Administration Accounts Per Domain
  • Comprehensive activity and incident logging and reporting
  • Configuration Change and Management Event Logging
  • Built-in Reporting module
  • Centralized logging and reporting with FortiAnalyzer
  • Centralized Quarantine for large scale deployments
  • SNMP Support using Standard and Private MIB with Threshold-Based Traps
  • External or Local Storage Server Support, including iSCSI devices
  • External Syslog support

High Availability (HA)

  • Supported in all Modes
  • Active-Passive Mode
  • Configuration Synchronization Mode (Configuration Master and Slave Mode)
  • Quarantine and Mail Queue Synchronization
  • Device Failure Detection and Notification
  • Link Status, Failover and Redundant Interface Support

Denial-of-Service Protection

  • Inbound and Outbound Message Rate Limiting
  • Recipient Address Attack
  • Reverse DNS Check (Anti-Spoofing)
  • Forged Sender Address Encryption
  • Identity-based Encryption for Push/Pull Delivery of Encrypted Messages
  • S/MIME Support for Gateway-to-

Gateway Encryption

  • Support for strong-crypto protocols including HTTPS, SMTPS, SSH, IMAPS and POP3S

Antispam Profile

  • FortiGuard Antispam Service
    – Global Sender Reputation
    – Spam and phishing URIs and email addresses
    – Spam Object checksums
    – Dynamic Heuristic Rules
  • Outbreak Protection
  • Greylisting for IPv4, IPv6 addresses and email accounts
  • Local Sender Reputation (IPv4, IPv6 and End Point ID-based)
  • Behavioral Analysis
  • Deep Email Header Inspection
  • Flexible Action and Notification Profiles
  • Third party Spam URI and Real-Time Blacklists (SURBL/RBL)
  • Full category FortiGuard URL Filtering
  • Quarantining, tagging and end user reporting
  • PDF Scanning and Image Analysis
  • Black/White Lists at Global, Domain, and User levels
  • Bayesian Statistic Filtering
  • Newsletter detection

Server Mode Specific Features

  • SMTP, IMAP, and POP3 Email Services
  • SMTP over SSL Support
  • Disk Quota Policy Support for User Accounts
  • Secure WebMail Client Access
  • User, Group and Alias List Support
  • Local Account and LDAP Authentication
  • WebMail Calendar
  • Email Auto Reply and Forwarding Preference
  • Address Book Synchronize with LDAP



Deployment Options:

Choose from three modes of deployment — Transparent, Gateway, or Server mode – to meet your specific email security requirements, while minimizing infrastructure changes and service disruptions:

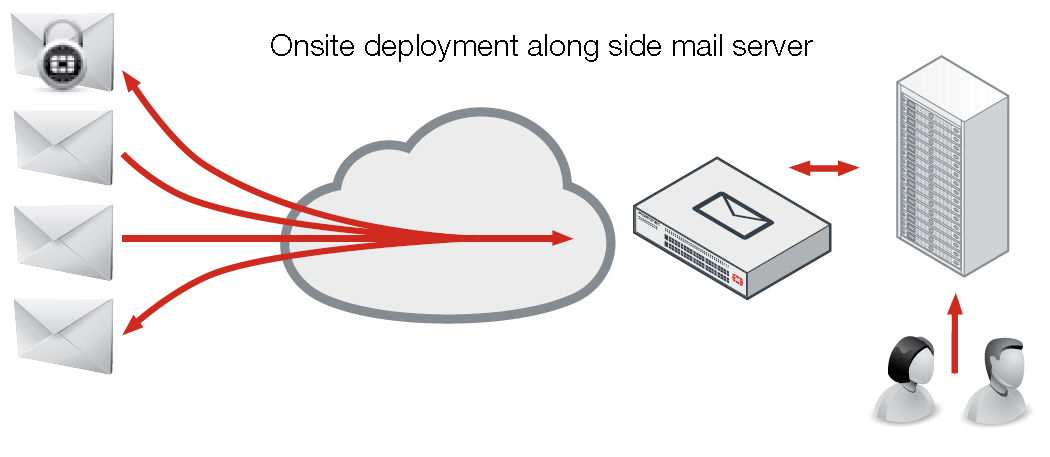

Gateway Mode: Provides inbound and outbound proxy mail transfer agent (MTA) services for existing email gateways. A simple DNS MX record change redirects email to FortiMail for antispam and antivirus scanning. The FortiMail device receives messages, scans for viruses and spam, then relays email to its destination email server for delivery.

Gateway Mode

Transparent Mode: Each network interface includes a proxy that receives and relays email. Each proxy can intercept SMTP sessions even though the destination IP address is not the FortiMail appliance. FortiMail scans for viruses and spam, then transmits email to the destination email server for delivery. This eliminates the need to change the DNS MX record, or to change the existing email server network configuration.

Transparent Mode

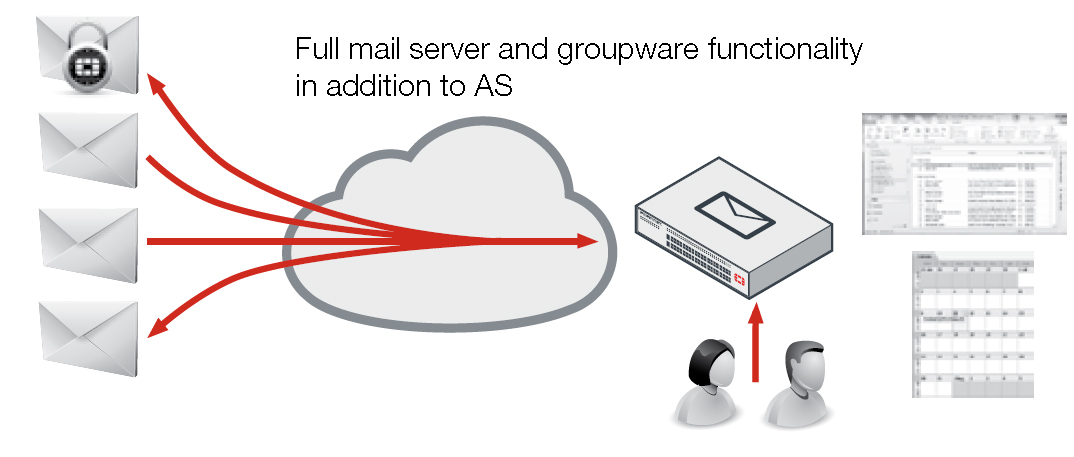

Server Mode: The FortiMail device acts as a stand-alone messaging server with full SMTP email server functionality, including flexible support for secure POP3, IMAP and WebMail access. FortiMail scans email for viruses and spam before delivery. As in Server mode, external MTAs connect to FortiMail, allowing it to function as a protected server.

Server Mode

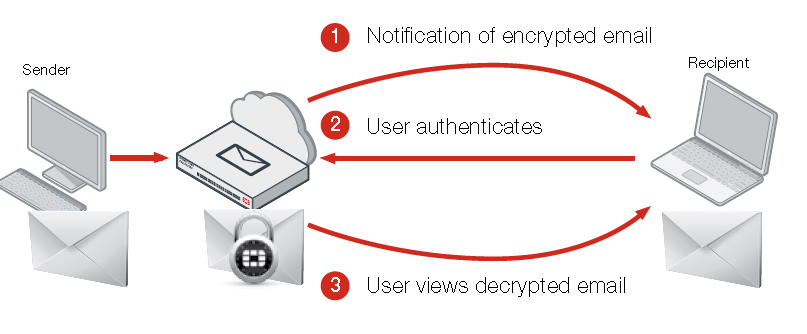

Identity-Based Encryption (IBE) IBE allows FortiMail to deliver confidential and regulated email securely — without requiring additional hardware, software user provisioning, or extra license fees. Use IBE to eliminate paper-based communications and reduce costs.

Policy-Based Encryption: Automatically encrypt messages for compliance, based on content or recipient.
Push or Pull Mode: Use Push, Pull, or a combination of modes to meet your requirements.
Easy to Deploy, Use, and Manage: Deploy IBE in any mode, including Transparent mode, without user provisioning or additional hardware or software.

Identity-Based Encryption (IBE)

Specifications:

  FortiMail 60D FortiMail 200E FortiMail 400E
Suggested Deployment Scenarios
  Demo, testing, training and small enterprise use with fewer than 100 users* Small businesses, branch offices, and organizations with fewer than 400 users* Small-to-midsized organizations with up to 1000 users*
Hardware Specifications
10/100/1000 Interfaces (Copper, RJ-45) 4 4 4
SFP Gigabit Ethernet Interface 0 0 0
Storage 1x 500 GB 1x 1 TB 2x 1 TB
RAID Storage Management No No Software: 0, 1
Form Factor Desktop 1U Rack Mount 1U Rack Mount
Power Supply External Single Single
System Specification
Configured Domains ** 2 20 100
Recipient-based Policies (per Domain / per System)— Incoming or Outgoing 15 / 30 60 / 300 400 / 1,500
Server Mode Mailboxes 50 150 400
Antispam, Antivirus, Authentication, and Content Profiles (per Domain / per System) 10 / 15 50 / 60 50 /200
Performance (Messages/Hour) [Without queuing based on 100 KB message size]
Email Routing 3.6 K 80 K 157 K
FortiGuard Antispam 3.1 K 71 K 147 K
FortiGuard Antispam + Antivirus 2.7 K 61 K 126 K
Dimensions
Height x Width x Length (inches) 1.61 x 8.27 x 5.24 1.75 x 17.05 x 13.86 1.75 x 17.05 x 13.86
Height x Width x Length (mm) 41 x 210 x 133 45 x 433 x 352 45 x 433 x 352
Weight 2.6 lbs (1.2 kg) 13.4 lbs (6.1 kg) 13.4 lbs (6.1 kg)
Environment
Power Source External Power Supply 19V DC 2.1A 40 W 100–240V AC, 50–60 Hz 100–240V AC, 50–60 Hz
Maximum Current 110V / 1.2A, 220V / 1.2A 100V / 4A, 240V / 2A 100V / 5A, 240V / 3A
Maximum Power Required 22 W 71 W 131 W
Power Consumption (Average) 24 W 59 W 103 W
Heat Dissipation 78 BTU/h 280 BTU/h 482 BTU/h
Humidity 10–90% non-condensing 5–95% non-condensing 5–95% non-condensing
Operating Temperature 32–104°F (0–40°C) 32–104°F (0–40°C) 32–104°F (0–40°C)
Storage Temperature -13–158°F (-25–70°C) -13–158°F (-25–70°C) -13–167°F (-25–75°C)
Compliance
  FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB, BSMI FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB
Certification
  VBSpam and VB100 rated VBSpam and VB100 rated, Common Criteria NDPP, FIPS 140-2 Compliant VBSpam and VB100 rated, Common Criteria NDPP, FIPS 140-2 Compliant

  FortiMail 1000D FortiMail 2000E FortiMail 3000E FortiMail 3200E
Recommended Deployment Scenarios
Mid to large enterprise, education and government departments with up to 3000 users* Large enterprise, education and government deparments* Highest performing appliance for the largest University, corporate, ISP and carrier customers Highest performing appliance for the largest University, corporate, ISP and carrier customers
Hardware Specifications
GE RJ45 Ports 6 4 4 4
GE SFP Interfaces 2 2 2 2
10GE SFP+ Interfaces - 0 - 2
Storage 2x 2 TB (2x 2 TB Optional) 2x 2 TB (6x 2 TB Optional) 2x 2TB (6 x 2 TB Optional) 2x 2 TB (10x 2 TB Optional)
RAID Storage Management Hardware: 1, 5, 10, 50, Hot Spare
(Based on Drive Count)
Hardware: 1, 5, 10, 50, Hot Spare
(Based on Drive Count)
Hardware: 1, 5, 10, 50, Hot Spare
(Based on Drive Count)
Hardware: 1, 5, 10, 50, Hot Spare
(Based on Drive Count)
Form Factor 2U 2U 2U 2U
Power Supply Dual Dual Dual Dual
System Specification
Configured Domains ** 800 2,000 2,000 2,000
Recipient-Based Policies (per Domain / per System) — Incoming or Outgoing 800 / 3,000 800 / 3,000 1,500 / 7,500 1,500 / 7,500
Server Mode Mailboxes 1,500 1,500 3,000 3,000
Antispam, Antivirus, Authentication, and Content 50 / 400 50 / 400 50 / 600 50 / 600
Profiles (per Domain / per System)
Performance (Messages/Hour) [Without queuing based on 100 KB message size]
Email Routing 680 K 1.1 Million 1.8 Million 1.8 Million
FortiGuard Antispam 620 K 1.0 Million 1.6 Million 1.6 Million
FortiGuard Antispam + Antivirus 500 K 900 K 1.5 Million 1.5 Million
Dimensions
Height x Width x Length (inches) 3.50 x 17.24 x 14.49 3.5 x 17.2 x 25.5 3.3 x 17.2 x 25.5 3.3 x 17.2 x 25.5
Height x Width x Length (mm) 88 x 438 x 368 89 x 437 x 647 89 x 437 x 647 89 x 437 x 647
Weight 27.6 lbs (12.52 kg) 32 lbs (14.5 kg) 40.0 lbs (18.2 kg) 40.0 lbs (18.2 kg)
Environment
Power Source 100–240V AC, 50–60 Hz 100–240V AC, 50–60 Hz 100–240V AC, 50–60 Hz 100–240V AC, 50–60 Hz
Maximum Current 3.50A / 110V, 1.75A / 220V 10.0A /110V, 3.5A /240V 9.8A / 110V, 4.9A / 220V 9.8A / 110V, 4.9A / 220V
Maximum Power Required 138 W 219 W 379W 382W
Power Consumption (Average) 115 W 189 W 348W 351W
Heat Dissipation 471 BTU/h 781 BTU/h 1325 BTU/h 1335 BTU/h
Humidity 5–95% non-condensing 8–90% non-condensing 8% to 90% non-condensing 8% to 90% non-condensing
Operating Temperature 32–104°F (0–40°C) 41–95°F (5–35°C) 50–95°F (10–35°C) 50–95°F (10–35°C)
Storage Temperature -13–158°F (-25–70°C) -40–140°F (-40–60°C) -40–158°F (-40–70°C) -40–158°F (-40–70°C)
Compliance
FCC Part 15 Class A, C-Tick, VCCI, CE,UL/cUL, CB FCC Part 15 Class A, VCCI, CE, RCM, BSMI, UL/cUL, CB FCC Part 15 Class A, C-Tick, VCCI, CE, BSMI, KC, UL/cUL, CB, GOST FCC Part 15 Class A, C-Tick, VCCI, CE,BSMI, KC, UL/cUL, CB, GOST

Certification
VBSpam and VB100 rated, Common Criteria NDPP, FIPS 140-2 Certified VBSpam and VB100 rated, Common Criteria NDPP, FIPS 140-2 Certified VBSpam and VB100 rated, NDPP, FIPS 140-2 Compliant VBSpam and VB100 rated, NDPP, FIPS 140-2 Compliant
* Recommended sizing for Gateway and Transparent deployments. For Server Mode, see Server Mode Mailbox metric. If unsure, please validate the model selection by checking the peak mail flow rates and average message size detail with a FortiMail specialist..
** Configured domains is the total number of email domains that can be configured on the appliance. Domain Associations can be used to enable additional domains which share configuration with the primary domain to which they are assigned.

Documentation:

Download the Fortinet FortiMail Datasheet (PDF).

Pricing Notes:

Fortinet FortiMail 60D3000ESeries
FortiMail-3000E
FortiMail-3000E Email Security Appliance
4 x GE RJ45 ports, 2 x GE SFP slots, , dual AC power supplies, 4TB HDD Default Storage
#FML-3000E
Our Price: $39,000.00
Hardware plus x5 Forticare and FortiGuard Bundle
Hardware plus 1 Year 8x5 Forticare and FortiGuard Bundle for FortiMail-3000E
#FML-3000E-BDL
Our Price: $54,600.00
Hardware plus 2 Year 8x5 Forticare and FortiGuard Bundle for FortiMail-3000E
#FML-3000E-BDL-954-24
Our Price: $68,250.00
Hardware plus 3 Year 8x5 Forticare and FortiGuard Bundle for FortiMail-3000E
#FML-3000E-BDL-954-36
Our Price: $79,950.00
Hardware plus 24x7 Forticare and FortiGuard Bundle
Hardware plus 1 Year 24x7 Forticare and FortiGuard Bundle for FortiMail-3000E
#FML-3000E-BDL-953-12
Our Price: $58,500.00
Hardware plus 2 Year 24x7 Forticare and FortiGuard Bundle for FortiMail-3000E
#FML-3000E-BDL-953-24
Our Price: $75,563.00
Hardware plus 3 Year 24x7 Forticare and FortiGuard Bundle for FortiMail-3000E
#FML-3000E-BDL-953-36
Our Price: $90,188.00
HW bundle Upgrade from 8x5 to 24x7 FortiCare Contract
*24X7 Comprehensive Support, Advanced Hardware Replacement (Next Business Day)
1 Year HW bundle Upgrade from 8x5 to 24x7 FortiCare Contract for FortiMail-3000E
#FC-10-FE3KE-274-01-12
Our Price: $6,630.00
8x5 FortiCare plus FortiGuard Bundle Contract
1 Year 8x5 FortiCare plus FortiGuard Bundle Contract for FortiMail-3000E
#FC-10-FE3KE-954-02-12
Our Price: $15,600.00
2 Year 8x5 FortiCare plus FortiGuard Bundle Contract for FortiMail-3000E
#FC-10-FE3KE-954-02-24
Our Price: $29,250.00
3 Year 8x5 FortiCare plus FortiGuard Bundle Contract for FortiMail-3000E
#FC-10-FE3KE-954-02-36
Our Price: $40,950.00
24x7 FortiCare plus FortiGuard Bundle Contract
1 Year 24x7 FortiCare plus FortiGuard Bundle Contract for FortiMail-3000E
#FC-10-FE3KE-953-02-12
Our Price: $19,500.00
2 Year 24x7 FortiCare plus FortiGuard Bundle Contract for FortiMail-3000E
#FC-10-FE3KE-953-02-24
Our Price: $36,563.00
3 Year 24x7 FortiCare plus FortiGuard Bundle Contract for FortiMail-3000E
#FC-10-FE3KE-953-02-36
Our Price: $51,188.00
FortiMail-3000E Services
1 Year FortiGuard AV Services for FortiMail-3000E
#FC-10-FE3KE-100-02-12
Our Price: $7,800.00
1 Year AS Service for FortiMail-3000E
#FC-10-FE3KE-114-02-12
Our Price: $7,800.00
1 Year FortiGuard FortiSandbox Cloud Service for FortiMail-3000E
#FC-10-FE3KE-123-02-12
Our Price: $7,800.00
8x5 FortiCare Contract
*8x5 Support, Hardware Replacement, Firmware and General Upgrades, VPN, Traffic Management
1 Year 8x5 FortiCare Contract for FortiMail-3000E
#FC-10-FE3KE-311-02-12
Our Price: $5,850.00
2 Year 8x5 FortiCare Contract for FortiMail-3000E
#FC-10-FE3KE-311-02-24
Our Price: $10,969.00
3 Year 8x5 FortiCare Contract for FortiMail-3000E
#FC-10-FE3KE-311-02-36
Our Price: $15,356.00
24x7 FortiCare Contract
*24x7 Support, Advanced Hardware Replacement (Next Business Day), Firmware and General Upgrades, VPN, and Traffic Management
1 Year 24x7 FortiCare Contract for FortiMail-3000E
#FC-10-FE3KE-247-02-12
Our Price: $9,750.00
2 Year 24x7 FortiCare Contract for FortiMail-3000E
#FC-10-FE3KE-247-02-24
Our Price: $18,281.00
3 Year 24x7 FortiCare Contract for FortiMail-3000E
#FC-10-FE3KE-247-02-36
Our Price: $25,594.00
