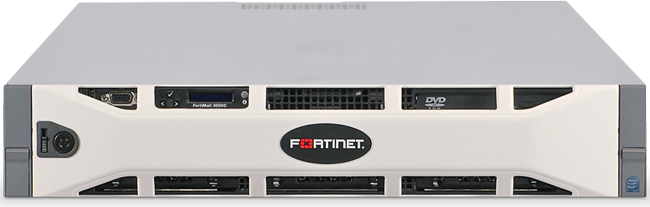

Fortinet FortiMail 2000B

FortiMail - Comprehensive Messaging Security

The FortiMail-200B delivers proven, powerful messaging security for large enterprises, carriers, service providers. Purpose-built for high volume messaging systems, the FortiMail-200B appliance utilizes Fortinet's years of experience in protecting global enterprises, carriers and service providers from spam, malware, and other message-borne threats. The FortiMail-2000B can process up to 1.0 million emails per hour with full antivirus and antispam filtering, inspecting inbound and outbound messages without affecting performance.

The FortiMail-2000B enables local storage of messages and content to facilitate policy compliance. Its two TB of storage (user upgradable to 6 TB) reduces the need to deploy and configure additional storage devices or services.

The range of policy monitoring, reporting, and enforcement options gives you the ability to manage your policies down to individual employees or subscribers. FortiMail's outbound inspection technology prevents outbound spam or malware (including 3G mobile traffic) from causing other antispam gateways to blacklist your users or subscribers, protecting your domain's reputation.

Proven Security:

The FortiMail family of appliances is a proven, powerful messaging security platform for any size organization, from small businesses to carriers, service providers, and large enterprises. Purpose-built for the most demanding messaging systems, the FortiMail appliances utilize Fortinet’s years of experience in protecting networks against spam, malware, and other message-borne threats.

Intelligent Protection:

You can prevent your messaging systems from becoming threat delivery systems with FortiMail. Its inbound filtering engine blocks spam and malware before it can clog your network and affect users. Its outbound inspection technology prevents outbound spam or malware from causing other antispam gateways to blacklist your users (including 3G mobile traffic). FortiMail’s dynamic and static user blocking gives you granular control over all of your policies and users.

Fast, Flexible Filtering:

The high-performance threat filtering technology delivered by the FortiMail appliances will not affect your users or delay their communications, as the custom-built hardware and software processes and filters messages in real-time. FortiMail also gives you unmatched flexibility to deploy your messaging security in the mode that best suits your environment and your users. You can deploy FortiMail in Transparent, Gateway, or Server mode, maximizing the effectiveness of the FortiMail technology while minimizing the impact on existing services and users.

• Transparent Mode: Each network interface includes a proxy that receives and relays email. Each proxy can intercept SMTP sessions even though the destination IP is not the FortiMail appliance, eliminating the need to change the DNS MX record or change the existing mail server network configuration.
• Gateway Mode: Provides inbound and outbound proxy MTA services for existing email gateways. A simple DNS MX record change redirects email to FortiMail for antispam and antivirus scanning.
• Server Mode: Delivers full-featured SMTP mail server functionality, with flexible support for secure POP3, IMAP and WebMail access.

Technical Specifications:

FortiMail Series Specifications:
FortiMail Series
	FortiMail-100C	FortiMail-400B	FortiMail-2000B	FortiMail-5001A
Hardware Specifications
10/100 Interfaces (copper, R-45)	1	0	0	0
10/100/1000 Interfaces (copper, R-45)	2	4	6	2
Internal Backplane Base / Fabric Channel Interfaces	0	0	0	2/2
Expansion Slot	0	0	0	1 Single-Width AMC
Redundant Hot Swappable Power Supplies	No	No	Yes	N/A
Storage	1 TB	1 x 500 GB (1 TB Optional)	2 x 1 TB (6 TB Optional)	1 x 80 GB HDD (ASM Storage Module)
RAID Storage Management	No	Software: 0, 1 (RAID 1 Requires second 500 GB HD)	Hardware: 1, 5, 10, 50, Hot Spare (Based on Number of Drives)	No
Form Factor	Desktop	Rack Mount	Rack Mount	ATCA Chassis
System Specifications
Email Domains	50	500	5,000	10,000
Recipient-Based Policies (Per Domain / Per System) -Incoming or Outgoing	60 / 300	600 / 3,000	1,500 / 7,000	1,500 / 7,000
Server Mode Mailboxes	200	1,000	3,000	3,000
Antispam, Antivirus, Authentication, and Content Profiles (per Domain / per System)	50 / 60	50 / 200	50 / 600	50 / 600
Unlimited Users Licenses	Yes	Yes	Yes	Yes
Performance: (Messages / hour) *Without queuing, based on 3 KB message Size
Email Routing	90,000	264,600	1.1 Million	1.4 Million
FortiGuard Antispam	85,000	234,000	1.1 Million	1.3 Million
FortiGuard Antispam + AntiVirus	77,000	185,400	1.0 Million	1.1 Million
Dimensions
Dimensions	1.75 x 15 x 6.3 in (4.4 x 38 X 16 cm)	1.7 x 17.3 x 14.5 in (4.5 x 43.8 X 36.8 cm)	3.4 x 17.4 x 26.8 in (8.6 x 44.3 X 68.1 cm)	1.2 x 14 x 12.2 in (3 x 35.5 X 31 cm)
Weight	4 lbs (1.8 kg)	10 lbs (4.5 kg)	57.5 lbs (26.1 kg)	8 lbs (3.6 kg)
Environment
Power Required	100-240VAC	100-240VAC	100-240VAC 50/60Hz, 7.0 - 3.5A	-40.5 V (DC) to -57 V (DC)
Power Consumption (AVG)	56 W	121 W	152 W	148 W
Operating Temperature	32 to 104 deg F (0 to 40 deg C)	32 to 104 deg F (0 to 40 deg C)	50 to 95 deg F (10 to 35 deg C)	32 to 104 deg F (0 to 40 deg C)
Storage Temperature	-13 to 158 deg F (-25 to 70 deg C)	-13 to 158 deg F (-25 to 70 deg C)	-40 to 149 deg F (-40 to 65 deg C)	-31 to 158 deg F (-35 to 70 deg C)
Humidity	5 to 95% non-condensing	5 to 95% non-condensing	5 to 95% non-condensing	5 to 95% non-condensing
Compliance
Regulatory Compliance	FCC Class A Part 15, CE Mark	FCC Class A Part 15, UL/CUL, C Tick, VCCI	FCC Class A, UL/CB/CUL, C Tick, VCCI, US EPA Energy Star Compliant	FCC Class A Part 15, UL/CB/CUL, C Tick, VCCI
Certifications
Industry Certifications	ICSA Labs Antispam, VBSpam Platinum

FortiMail-100C Features & Benfits:

• Flexible deployment options (Transparent, Gateway, and Server) adapt to your organizational needs and budget, minimizing infrastructure improvements and service disruptions
• Device-based licensing ensures opportunity to grow without incurring costly user-based licensing fees
• FortiGuard subscription services deliver dynamic updates to antispam and antivirus functionality automatically, through intelligence gathered by Fortinet's dedicated global threat research team
• Quick-start setup wizard and basic-mode GUI improve the simplicity of deployment and management.
• Integrated security with no per-user pricing delivers complete multi-layered antivirus, antispam, antispyware, and antiphishing security protection for an unlimited number of users or mailboxes
• Internal storage enables local archive of message content
• High availability (HA) options for increased reliability
• Reduces burden on network and system resources by stopping threats before they reach end-users
• Specialized MTA engine delivers high peak capacity, intelligent routing, QoS, virtualization, and inbound and outbound SMTP routing for maximum messaging performance.
• Integrated logging and reporting engine provides visibility into messaging usage, quarantine statistics, and other management information
• Device-based licensing eliminates per-user fees to significantly lower entry cost and ongoing maintenance costs
• Delivers complementary, layered protection (when used in conjunction with FortiGate appliances) that provides messaging security and separates low-latency perimeter and high-latency email functions for more efficient operation

Transparent, Gateway and Server Mode Features:

Services & Support:

FortiGuard Subscription Services:

Includes:

• Antispam
• Antivirus

FortiCare Support Services:

Includes:

• 24 X 7 X 365 Comprehensive Support
• 8 x 5 Enhanced Support
• 1-Year Limited Hardware Warranty
• 90-Day Limited Software Warranty

Documentation:

Download the Fortinet FortiMail Datasheet (PDF).
