Fortinet FortiGate 92D
High Performance UTM for Small Networks

Fortinet FortiGate 92D
Wireless Model Available!

Fortinet FortiGate Series

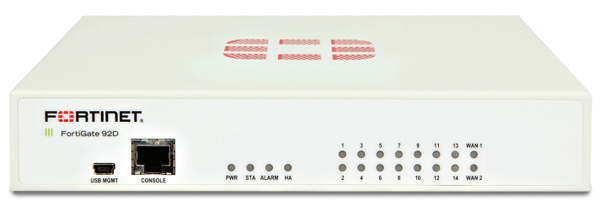

Fortinet FortiGate-92D
FortiGate-92D Security Appliance
*16 x GE RJ45 ports (2x WAN ports, 14x Switch ports), 16GB onboard storage. Max managed FortiAPs (Total / Tunnel) 32 / 16
#FG-92D
List Price: $1,198.00
Our Price: $936.00
Fortinet FortiGate-92D Hardware plus 8x5 Forticare and FortiGuard UTM Bundle
*Hardware Unit, Hardware Replacement, Firmware and General Upgrades, 8x5 Enhanced Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam) plus term of contract
FortiGate-92D Hardware plus 8x5 Forticare and FortiGuard UTM Bundle, 1 Year
#FG-92D-BDL
List Price: $1,856.00
Our Price: $1,452.00
FortiGate-92D Hardware plus 8x5 Forticare and FortiGuard UTM Bundle, 2 Year
#FG-92D-BDL-900-24
List Price: $2,324.00
Our Price: $1,817.00
FortiGate-92D Hardware plus 8x5 Forticare and FortiGuard UTM Bundle, 3 Year
#FG-92D-BDL-900-36
List Price: $2,671.00
Our Price: $2,089.00
Fortinet FortiGate-92D Hardware plus 24x7 Forticare and FortiGuard UTM Bundle
*Hardware Unit, Hardware Replacement, Firmware and General Upgrades, 24x7 Comprehensive Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam) plus term of contract
FortiGate-92D Hardware plus 24x7 Forticare and FortiGuard UTM Bundle, 1 Year
#FG-92D-BDL-950-12
List Price: $1,976.00
Our Price: $1,545.00
FortiGate-92D Hardware plus 24x7 Forticare and FortiGuard UTM Bundle, 2 Year
#FG-92D-BDL-950-24
List Price: $2,599.00
Our Price: $2,032.00
FortiGate-92D Hardware plus 24x7 Forticare and FortiGuard UTM Bundle, 3 Year
#FG-92D-BDL-950-36
List Price: $3,030.00
Our Price: $2,370.00

Click here to jump to more pricing!

Live Demo! Click here to load

Overview:

The FortiGate/FortiWiFi 92D is compact, cost-effective, all-in-one security appliance that delivers Fortinet's Connected UTM. Ideal for small business, remote, customer premise equipment (CPE) and retail networks, these appliances offer the network security, connectivity and performance you need.

High Performance Network Security

Built on the foundation FortiOS 5, the FortiGate/FortiWiFi 92D provides an integrated set of essential security technologies to protect all of your applications and data. You get advanced threat protection including firewall, application control, IPS, VPN, and web filtering, all from one device that's easy to deploy and manage. With our FortiGuard® security subscription services you'll have automated protection against today's sophisticated threats.

Advanced Features

The FortiGate/FortiWiFi 92D offers beyond the industry's best firewall with the latest in Advanced Threat Protection including Sandboxing and anti-bot protection, Feature Select Options for simplifying configurations and deployments, and Contextual Visibility for enhanced reporting and management.

VDOMs on the FortiGate/FortiWiFi 92D let you segment networks to enable guest and employee access, or protect things like cardholder data. You get the flexibility to match your business needs and meet compliance standards like PCI and HIPAA.

With 16 GB of robust internal storage, the FortiGate/FortiWiFi 92D allows you to implement integrated WAN optimization and web caching to improve user production when securely accessing remote applications and documents.

Enterprise-Class Protection that's Easy to Deploy and Manage

  • High performance UTM — firewall, VPN, IPS, application control, web filtering, antivirus, antispam, DLP and more
  • Runs on FortiOS 5 — the most powerful security operating system in the world delivers more protection for fighting advanced threats and visibility with deep contextual information
  • Reliable internal storage for logging, reporting, web caching and WAN optimization
Key Features & Benefits
Unified Security Multi-threat protection from a single device increases security and lowers costs.
Simplified Licensing Unlimited user licensing and comprehensive features.
Built-in Storage Allows implementation of WAN optimization and web cache, as well as extensive internal logging and reporting.

Highlights:


FortiOS — The World's Most Advanced Security Operating System

  • Feature Select
    Instantly fine-tunes the FortiGate based on desired deployment needs using feature presets. Simplifies user administration and configurations while providing flexibility for different deployment modes.
  • Contextual Visibility
    Presents critical deep insights into historic or real-time network activities with data on threat details, IPs, users, devices, applications and more. Allows administrators to quickly understand threats and stop them.
  • Advanced Security
    Multiple advanced technologies can be coordinated to look for and stop today's blended, targeted or unknown attacks. Efficient packet handling improves performance while lowering latencies and reducing network complexities.

Industry Validation The FortiGate family of physical and virtual appliances has earned more certifications than any other vendor by consistently meeting rigorous third-party standards. Our industry-leading technology provides you with air-tight security which you can safely count on.

More Protection and Better ROI The FortiGate constantly evolves itself in its mission to provide more value for users. Extended features such as WiFi controller, integrated token server, endpoint control and WAN optimization add more security to organizations without incurring additional cost.

Complete and Real-time Security Fortinet FortiGuard Subscription Services provide automated, real-time, up-to-date protection against the latest security threats. Our threat research labs are located worldwide, providing 24x7 updates when you most need them.

World-Class Technical Support and Documentation Fortinet FortiCare support offerings provide comprehensive global support for all Fortinet products and services. You can rest assured your Fortinet security products are performing optimally and protecting your users, applications, and data around the clock.

FortiOS Dashboard — Single Pane of Glass Management
FortiOS Dashboard — Single Pane of Glass Management

Hardware:


FortiGate 92D FortiWiFi 92D
FortiGate 92D FortiWiFi 92D
1. USB Management Port
2. Console Port
3. USB Port
4. 16x GE RJ45 Ports
1. USB Management Port
2. Console Port
3. USB Port
4. 16x GE RJ45 Ports

Install in Minutes with FortiExplorer The FortiExplorer™ wizard enables you to easily and quickly set up and configure FortiGate platforms with easy-to-follow instructions. The application runs on Windows, Mac OS X desktops and laptops as well as popular mobile devices. Simply connect to the appropriate USB port on the appliance, and be fully protected in minutes.

3G/4G WAN Connectivity The FortiGate/FortiWiFi 92D includes USB ports that allow you to plug in a compatible third-party 3G/4G USB modem, providing additional WAN connectivity or a redundant link for maximum reliability.

Compact and Reliable Form Factor Designed for small environments, you can simply place the FortiGate/FortiWiFi 92D on a desktop. It is small, lightweight yet highly reliable with superior MTBF (Mean Time Between Failure), minimizing the chance of a network disruption.

Superior Wireless Coverage A built-in dual-band, dual-stream access point with internal antennas is integrated on the FortiWiFi 92D and provides speedy 802.11n coverage on both 2.4 GHz and 5 GHz bands. The dual-band chipset addresses the PCI-DSS compliance requirement for rogue AP wireless scanning, providing maximum protection for regulated environments.

Built-in Fan The FortiGate/FortiWiFi 92D comes with a built-in fan for additional reliability and is suitable for enclosed environment.

Specifications:


FortiGate 92D FortiWiFi 92D
Hardware specifications
GE RJ45 Ports 16 16
USB Ports 2 2
Console (RJ45) 1 1
Wireless Interface 802.11 a/b/g/n
Internal Storage 16 GB 16 GB
System Performance
Firewall Throughput (1518 / 512 / 64 byte UDP Packets) 2,000 / 1,000 / 200 Mbps
Firewall Latency (64 byte UDP Packets) 46 μs
Firewall Throughput (Packets Per Second) 300 Kpps
Concurrent Sessions (TCP) 1.5 Million
New Sessions/Sec (TCP) 22,000
Firewall Policies 5,000
IPSec VPN Throughput (512 byte Packets) 130 Mbps
Gateway-to-Gateway IPSec VPN Tunnels 200
Client-to-Gateway IPSec VPN Tunnels 1,000
SSL-VPN Throughput 170 Mbps
Concurrent SSL-VPN Users (Recommended Maximum) 200
IPS Throughput 950 Mbps
Antivirus Throughput (Proxy Based / Flow Based) 300 / 700 Mbps
CAPWAP Clear-text Throughput (HTTP) 1.78 Gbps
Virtual Domains (Default / Maximum) 10 / 10
Maximum Number of FortiAPs (Total / Tunnel Mode) 32 / 16
Maximum Number of FortiTokens 100
Maximum Number of Registered FortiClients 200
High Availability Configurations Active / Active, Active / Passive, Clustering
Dimensions
Height x Width x Length (inches) 1.61 x 7.05 x 8.50
Height x Width x Length (mm) 41 x 179 x 216
Form Factor Desktop
Weight 1.36 lbs (3.0 kg)
Environment
Power Required 100–240V AC, 50–60 Hz
Maximum Current 110V / 2.54A, 220V / 1.27A
Power Consumption (Average / Maximum) 27.7 W / 36.4 W
Heat Dissipation 124.2 (BTU/h)
Operating Temperature 32–104°F (0–40°C)
Storage Temperature -31–158°F (-35–70°C)
Humidity 20–90% non-condensing
Noise Level 38.8 at 25°C @ 1m (Maximum: 40 dB at 25°C)
Operating Altitude Up to 7,400 ft (2,250 m)
Compliance
FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB
Certifications
ICSA Labs: Firewall, IPSec, IPS, Antivirus, SSL VPN

Documentation:

Download the Fortinet FortiGate and FortiWiFi 92D Datasheet (PDF).

Pricing Notes:

Fortinet FortiGate Series
Fortinet FortiGate-92D
FortiGate-92D Security Appliance
16 x GE RJ45 ports (2x WAN ports, 14x Switch ports), 16GB onboard storage. Max managed FortiAPs (Total / Tunnel) 32 / 16
#FG-92D
List Price: $1,198.00
Our Price: $936.00
Fortinet FortiGate-92D Hardware plus 8x5 Forticare and FortiGuard UTM Bundle
*Hardware Unit, Hardware Replacement, Firmware and General Upgrades, 8x5 Enhanced Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam) plus term of contract
FortiGate-92D Hardware plus 8x5 Forticare and FortiGuard UTM Bundle, 1 Year
#FG-92D-BDL
List Price: $1,856.00
Our Price: $1,452.00
FortiGate-92D Hardware plus 8x5 Forticare and FortiGuard UTM Bundle, 2 Year
#FG-92D-BDL-900-24
List Price: $2,324.00
Our Price: $1,817.00
FortiGate-92D Hardware plus 8x5 Forticare and FortiGuard UTM Bundle, 3 Year
#FG-92D-BDL-900-36
List Price: $2,671.00
Our Price: $2,089.00
Fortinet FortiGate-92D Hardware plus 24x7 Forticare and FortiGuard UTM Bundle
*Hardware Unit, Hardware Replacement, Firmware and General Upgrades, 24x7 Comprehensive Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam) plus term of contract
FortiGate-92D Hardware plus 24x7 Forticare and FortiGuard UTM Bundle, 1 Year
#FG-92D-BDL-950-12
List Price: $1,976.00
Our Price: $1,545.00
FortiGate-92D Hardware plus 24x7 Forticare and FortiGuard UTM Bundle, 2 Year
#FG-92D-BDL-950-24
List Price: $2,599.00
Our Price: $2,032.00
FortiGate-92D Hardware plus 24x7 Forticare and FortiGuard UTM Bundle, 3 Year
#FG-92D-BDL-950-36
List Price: $3,030.00
Our Price: $2,370.00
Fortinet FortiGate-92D Hardware plus 8x5 Forticare and FortiGuard Enterprise Bundle
FortiGate-92D Hardware plus 8x5 Forticare and FortiGuard Enterprise Bundle, 1 Year
#FG-92D-BDL-871-12
List Price: $2,156.00
Our Price: $1,686.00
FortiGate-92D Hardware plus 8x5 FortiCare and FortiGuard Enterprise Bundle, 2 Year
#FG-92D-BDL-871-24
List Price: $2,995.00
Our Price: $2,342.00
FortiGate-92D Hardware plus 8x5 FortiCare and FortiGuard Enterprise Bundle, 3 Year
#FG-92D-BDL-871-36
List Price: $3,714.00
Our Price: $2,904.00
Fortinet FortiGate-92D Hardware plus 24x7 Forticare and FortiGuard Enterprise Bundle
FortiGate-92D Hardware plus 24x7 FortiCare and FortiGuard Enterprise Bundle, 1 Year
#FG-92D-BDL-974-12
List Price: $2,276.00
Our Price: $1,780.00
FortiGate-92D Hardware plus 24x7 FortiCare and FortiGuard Enterprise Bundle, 2 Year
#FG-92D-BDL-974-24
List Price: $3,220.00
Our Price: $2,518.00
FortiGate-92D Hardware plus 24x7 FortiCare and FortiGuard Enterprise Bundle, 3 Year
#FG-92D-BDL-974-36
List Price: $4,028.00
Our Price: $3,150.00
Fortinet FortiGate-92D 1 Year Hardware Bundle Upgrade
*24X7 Comprehensive Support, Advanced Hardware Replacement (Next Business Day)
1 Year Hardware Bundle Upgrade from 8x5 to 24x7 FortiCare Contract for FortiGate-92D
#FC-10-0092D-274-01-12
List Price: $205.00
Our Price: $160.00
Fortinet FortiGate-92D 8x5 UTM Bundle
*8X5 Hardware Replacement (Next Business Day), Firmware and General Upgrades, 8x5 Enhanced Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam Services)
FortiGate-92D 1 Year UTM Bundle (8x5 FortiCare plus NGFW, AV, Web Filtering and Antispam Services)
#FC-10-0092D-900-02-12
Our Price: $658.00
FortiGate-92D 2 Year UTM Bundle (8x5 FortiCare plus NGFW, AV, Web Filtering and Antispam Services)
#FC-10-0092D-900-02-24
Our Price: $1,235.00
FortiGate-92D 3 Year UTM Bundle (8x5 FortiCare plus NGFW, AV, Web Filtering and Antispam Services)
#FC-10-0092D-900-02-36
Our Price: $1,729.00
Fortinet FortiGate-92D 24x7 UTM Bundle
*Advanced Hardware Replacement (Next Business Day), Firmware and General Upgrades, 24X7 Comprehensive Support, UTM Services Bundle (NGFW, AV, Web Filtering, and Antispam Services)
FortiGate-92D 1 Year UTM Bundle (24x7 FortiCare plus NGFW, AV, Web Filtering and Antispam Services)
#FC-10-0092D-950-02-12
Our Price: $778.00
FortiGate-92D 2 Year UTM Bundle (24x7 FortiCare plus NGFW, AV, Web Filtering and Antispam Services)
#FC-10-0092D-950-02-24
Our Price: $1,460.00
FortiGate-92D 3 Year UTM Bundle (24x7 FortiCare plus NGFW, AV, Web Filtering and Antispam Services)
#FC-10-0092D-950-02-36
Our Price: $2,044.00
Fortinet FortiGate-92D 8x5 Enterprise Bundle Subscription
FortiGate-92D Enterprise Bundle (8x5 FortiCare plus NGFW, AV, Web Filtering, Antispam, Botnet IP/Domain, FortiSandbox Cloud and Mobile Security Services), 1 Year
#FC-10-0092D-871-02-12
Our Price: $958.00
FortiGate-92D Enterprise Bundle (8x5 FortiCare plus NGFW, AV, Web Filtering, Antispam, Botnet IP/Domain, FortiSandbox Cloud and Mobile Security Services), 2 Year
#FC-10-0092D-871-02-24
Our Price: $1,797.00
FortiGate-92D Enterprise Bundle (8x5 FortiCare plus NGFW, AV, Web Filtering, Antispam, Botnet IP/Domain, FortiSandbox Cloud and Mobile Security Services), 3 Year
#FC-10-0092D-871-02-36
Our Price: $2,516.00
Fortinet FortiGate-92D 24x7 Enterprise Bundle Subscription
FortiGate-92D Enterprise Bundle (24x7 FortiCare plus NGFW, AV, Web Filtering, Antispam, Botnet IP/Domain, FortiSandbox Cloud and Mobile Security Services) , 1 Year
#FC-10-0092D-974-02-12
Our Price: $1,078.00
FortiGate-92D Enterprise Bundle (24x7 FortiCare plus NGFW, AV, Web Filtering, Antispam, Botnet IP/Domain, FortiSandbox Cloud and Mobile Security Services) , 2 Year
#FC-10-0092D-974-02-24
Our Price: $2,022.00
FortiGate-92D Enterprise Bundle (24x7 FortiCare plus NGFW, AV, Web Filtering, Antispam, Botnet IP/Domain, FortiSandbox Cloud and Mobile Security Services)  , 3 Year
#FC-10-0092D-974-02-36
Our Price: $2,830.00
FortiGuard Mobile Security Service
FortiGuard Mobile Security (Mobile Platform AV) for FortiGate-92D, 1-Year
#FC-10-0092D-122-02-12
Our Price: $240.00
FortiGate-92D FortiGuard FortiSandbox Cloud Service
FortiGuard FortiSandbox Cloud Service for FortiGate-92D
#FC-10-0092D-123-02-12
Our Price: $239.00
Fortinet FortiGate-92D FortiCloud Analysis and 1 Year Log Retention
Fortinet FortiGate-92D FortiCloud Analysis and 1 Year Log Retention, 1 Year
#FC-10-0092D-131-02-12
Our Price: $240.00
Fortinet FortiGate-92D FortiCloud Analysis and 1 Year Log Retention, 2 Year
#FC-10-0092D-131-02-24
Our Price: $449.00
Fortinet FortiGate-92D FortiCloud Analysis and 1 Year Log Retention, 3 Year
#FC-10-0092D-131-02-36
Our Price: $629.00
Fortinet FortiGate-92D FortiCare 8x5
*8x5 Support, Hardware Replacement, Firmware and General Upgrades, VPN, Traffic Management
8x5 FortiCare for FortiGate-92D, 1-Year
#FC-10-0092D-311-02-12
Our Price: $180.00
8x5 FortiCare for FortiGate-92D, 2-Year
#FC-10-0092D-311-02-24
Our Price: $338.00
8x5 FortiCare for FortiGate-92D, 3-Year
#FC-10-0092D-311-02-36
Our Price: $473.00
Fortinet FortiGate-92D FortiCare 24x7
*24x7 Support, Advanced Hardware Replacement (Next Business Day), Firmware and General Upgrades, VPN, and Traffic Management
24x7 FortiCare for FortiGate-92D, 1-Year
#FC-10-0092D-247-02-12
Our Price: $300.00
24x7 FortiCare for FortiGate-92D, 2-Year
#FC-10-0092D-247-02-24
Our Price: $563.00
24x7 FortiCare for FortiGate-92D, 3-Year
#FC-10-0092D-247-02-36
Our Price: $788.00
Fortinet FortiGate-92D 360 FortiCare Contract
1 Year FortiCare 360 Contract
#FC-10-0092D-280-02-12
Our Price: $419.00
2 Year FortiCare 360 Contract
#FC-10-0092D-280-02-24
Our Price: $786.00
3 Year FortiCare 360 Contract
#FC-10-0092D-280-02-36
Our Price: $1,101.00
