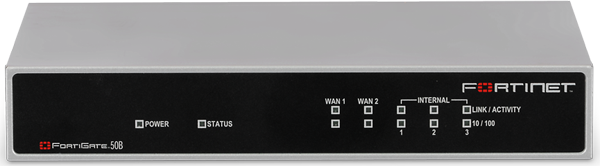

Fortinet FortiGate 50B Series

Overview:

The FortiGate-50B appliance offers complete security and high performance for telecommuters and small office/home office (SOHO) applications. Its FortiOS operating system offers a full suite of security services in one hardened platform: antivirus/antispyware/antimalware, intrusion prevention (IPS), web filtering, stateful firewall and traffic shaping, and IPSec/SSL VPN. This combination offers superior protection against threats such as IM/P2P traffic, phishing and pharming, and sophisticated blended threats. Rapid, turn-key deployment and easy management deliver low total cost of ownership and facilitate compliance with important legislative requirements such as PCI-DSS and Sarbanes-Oxley.

FortiGate-50B Benefits:

• Integrated, all-in-one security delivers enterprise-class multi-threat protection for small-businesses, remote offices, and home offices.
• Dual WAN links for redundant ISP connections deliver higher availability with load balancing and failover, and bring scalability and reliability to telecommuters and SOHO applications.
• Three internal switch ports eliminate need for additional hub, reducing equipment investment and management burden.
• Available FortiManager and FortiAnalyzer appliances simplify security management and reduce operating expenses in multiple deployments.
• FortiGuard Subscription Services deliver automated, real-time, up-to-date protection against security threats and exploits.

Blended Security Threats Within Small Businesses and Enterprises:

Cyber crime and network attacks pose serious threats to small businesses. Intellectual property, revenue, customer and company records, and other mission critical resources are at risk. As larger companies work to increasingly lock down their networks, more and more security threats are being targeted at smaller companies. Small office/home offices (SOHO) often lack the infrastructure to meet the technical sophistication of today’s complex blended-attack methods and remote offices/branch offices (ROBO) often lack the on-site expertise to tackle such complex security issues. Point-based security appliances are inadequately equipped to protect against these types of attacks because of the multitude of attack vectors used. The Fortinet FortiGate series of SOHO and ROBO security appliances tightly integrate multi-threat protection onto a purpose-built platform to effectively block application- and network-borne attacks.

Cost-Effective Security Platform:

The Fortinet FortiGate series of security appliances deliver high performance, multi-threat protection at a compelling cost that is ideal for securing smaller locations. Complete Unified Threat Management (UTM) features including firewall, VPN, intrusion prevention, Web filtering, antispam, antivirus, antispyware, traffic shaping and IM/P2P controls prevent blended attacks or unauthorized use from interrupting business. All FortiGate devices support High Availability (HA) configurations to ensure maximum uptime. FortiGate appliances operate in either transparent or routing modes and are available with integrated multi-port switches and modems, integrated WiFi access points and PC Card slots for 3G/UMTS modems, all of which enable FortiGate devices to adapt to any network environment. Moreover, with Fortinet FortiGuard Security Subscription Services, the FortiGate-50 thru -100 Series become an affordable and easy-to-manage security solution for an enterprise’s remote/branch offices, a service provider’s customer premise equipment (CPE) or as an all-in-one solution for small-to-medium businesses.

Key Problems: Solutions: Small Offices and Home Offices (SOHO) are particularly vulnerable to cyber attacks due to the lack of resources and budgets to combat complex network and content based threats All-in-one Unifed Threat Management (UTM) system provides multi-layer threat protection with automatic updates all in a cost-effective package Deploying multiple point-products from different vendors does not provide integrated protection from blended threats and is costly to own and complex to maintain UTM security solutions provide tightly integrated protection services with a unified management, logging and reporting interface Adoption of WiFi wireless technology opens another window for attack from inside of the network Built-in WiFi wireless ensures the same level of protection across both wired and wireless networks SOX and PCI compliance requirements adds a new dimension of complexity to logging and reporting Unified tools with a common user interface simplify analyzing, reporting and managing compliance

Fortinet’s Multi-Layered Security Solution:

Fortinet’s multi-layered security solutions efficiently and economically provide an integrated set of security services in a single, easy-to-manage high-performance appliance that is capable of supporting a wide range of deployment scenarios. In addition, FortiGuard Subscription Services include everything from technical support, antivirus updates, antispyware, antispam, and Web content filtering to ensure that your security environment remains current and your corporate resources are protected against the latest blended threats. FortiGate systems come with a one-year limited hardware warranty and 90-day limited software warranty.

Deployments:

FortiGate 50-100 series appliances are designed to secure small size offices and businesses.

Secure Wired and Wireless Gateways for Small Business

Through the integration of essential security technologies, Fortinet protects both mobile workers and workstations at SOHO and ROBO locations. To keep resources safe, Fortinet’s advanced antivirus, antispyware, antispam, and intrusion prevention systems utilize the integrated FortiASIC processor and a combination of signature and heuristic detection engines to provide multi-layered, real-time protection against a multitude of attacks. The FortiWifi series offers the ability to broadcast multiple SSIDs (Service Set Identifiers), maximizing infrastructure flexibility in multi-provider environments and conserving spectrum. Moreover, different security policies can be set for each SSID, increasing security flexibility. FortiGate 60-series models provide a PC card slot that allows a 3G/UMTS PC card to be used for secure network connectivity.

Enterprise ROBO Deployment

Workers at various remote offices are tasked with vastly different business processes: some use messaging applications while others use database applications. Sales offices that use email and IM applications are protected from blended threats that use multiple methods to attack a system: viruses that spawn dormant Trojans, rootkits, and bots, for example. Combining Fortinet’s antivirus and antispam technology with IM and P2P controls, employees are assured that email and IM messaging remain secure and won’t result in lost revenue or lost data. Application and database users, such as a remote manufacturing site, are guaranteed secure connectivity—via firewalls and VPNs—to the application servers it uses at the central office. Finally, Fortinet offers a complete management solution for centralized monitoring, reporting, logging, and analysis to ensure that remote offices remain up and running.

Managed Security Service Provider Deployment

Managed Security Service Providers (MSSPs) can distribute FortiGate appliances throughout their Customer Premise Equipment (CPE) deployments because of the wide array of connectivity options and the modular security architecture. Different customers can be protected in different ways, according to their needs. For example, one set of customers can be protected with a firewall and intrusion prevention system, while another can be protected with a firewall and web content filtering. MSSPs can centrally monitor and manage all customers using FortiManager and FortiAnalyzer for end-to-end reporting, logging, and even forensic analysis of security events.

Technical Specifications:

FortiGate 50-100 Series Specifications
FortiGate Models
	FortiGate-50B	FortiWiFi-50B	FortiGate-60B	FortiWiFi-60B	FortiGate-100A
Hardware Specifications:
LAN Switching Interfaces	3	3	6	6	4
WAN Interfaces	2	2	2	2	2
DMZ Interfaces	-	-	1	1	2
Analog Modem	-	-	Yes	Yes	-
Wireless LAN 802.11a/b/g	-	802.11 b/g	-	802.11 a/b/g	-
USB Ports	2	2	2	2	2
Power Over Ethernet (PoE)	-	Yes	-	-	-
PC Card Slot1	-	-	Yes	Yes	-
Supported VDOMs	10	10	10	10	10
System Performance2
Firewall Throughput	50 Mbps	50 Mbps	100 Mbps	100 Mbps	100 Mbps
VPN IPSec Throughput	48 Mbps	48 Mbps	50 Mbps	64 Mbps	40 Mbps
Antivirus Throughput	19 Mbps	19 Mbps	20 Mbps	20 Mbps	20 Mbps
IPS Throughput	30 Mbps	30 Mbps	60 Mbps	60 Mbps	70 Mbps
Dedicated IPSec VPN Tunnels	20	20	50	50	80
Unlimited User Licenses	Yes	Yes	Yes	Yes	Yes
Concurrent Sessions	25,000	25,000	70,000	70,000	200,000
New Sessions/Second	2,000	2,000	3,000	3,000	4,000
Policies	2,000	2,000	2,000	2,000	2,000
Physical Specifications:
Dimensions (inches)	1.38x8.63x5.8	1.38x8.63x5.8	1.75x10.87x6.13	1.75x10.87x6.13	1.75x10.87x6.13
Weight (lbs)	1.5	1.5	5.5	5.5	3.35
AC Power Required	100-240 VAC, 50-60 Hz, 0.8 Amp (Max)td>
Power Consumption (AVG)	6W	6W	15W	15W	14W
Environmental	Operating temperature: 32 to 104 deg F (0 to 40 deg C) Storage temperature: -13 to 158 deg F (-25 to 70 deg C) Humidity: 5 to 95% non-condensing
Compliance	FCC Class A Part 15 (FG-100A), FCC Class B Part 15 (FG-50-60), UL/CUL, C Tick, CE, VCCI
Certifications	ICSA Labs Certified: Firewall, Antivirus, IPS, IPSec VPN, SSL-VPN, NSS Labs Approved (UTM), Common Criteria (EAL 4+), FIPS 140-2. (for a complete list of certifications, please contact us)

¹PC card is sold separately
²Antivirus performance is measured based on HTTP traffic with 32Kbyte file attachments and IPS performance is measured base on UDP traffic with 512 byte packet size. Actual performance may vary depends on network traffic and environment.

Benefits:

Fortinet’s ASIC-Based Advantage:

FortiASIC is the foundation of Fortinet’s unique hardware technology. FortiASIC is a family of purpose built, high-performance network and content processors that uses an intelligent proprietary content scanning engine and multiple algorithms to accelerate compute-intensive security services. FortiASIC provides the performance required to deliver enterprise and carriers-class UTM services. Coupled with the FortiOS security hardened Operating System, FortiASIC delivers extreme performance and security.

FortiOS: Developed for Security:

FortiOS is the software foundation of FortiGate multi-threat security platforms. Developed solely for security, performance and reliablity, it is a purpose-built operating system that leverages power of the the FortiAISC content and network processors. FortiOS enables a comprehensive suite of security services – content inspection firewall, IPS, antivirus, web filtering, antispam, IM/P2P, virtual network security and bandwidth shaping. FortiOS is a complete suite of UTM security services and is certified for Common Criteria EAL 4+.

Features:

FortiGate-50-100-series platforms provide the following security features:


Services & Support:

FortiGuard Security Subscription Services:

With FortiGuard™ Security Subscription services enabled, customers can rest assured that their Fortinet security platforms are performing optimally and protecting their corporate assets with the latest security intelligence. FortiGuard services deliver the latest security content directly to Fortinet products. Fortinet offers four standard subscription services: Antivirus, Intrusion Prevention, Web Filtering and Antispam services to protect against multiple types of new and emerging threats. FortiGuard services are updated by the Fortinet Global Threat Research Team, a team of experts working around the clock and around the world to keep Fortinet customers secure. The Fortinet Global Threat Research Team enables Fortinet to deliver comprehensive multi-threat protection, including zero-day protection from new and emerging threats. The FortiGuard Network is a network of global data centers that automatically deliver updates quickly and reliably to Fortinet products.

For customers requiring guaranteed response time to suspicious malware threats, Fortinet offers a premier version of the FortiGuard Antivirus Security Subscription service. Along with Service Level Agreements (SLAs), the premier service provides the customer with a direct conduit to the Fortinet Global Threat Research Team.

Fortinet also offers a premier version of the FortiGuard Web Filtering Security Subscription service. This higher-tier service offering includes guaranteed SLAs and a larger quota for rating URLs submitted to the Fortinet Global Threat Research Team.

FortiCare Support Services:

Includes:

• 24/7/365 FortiCare Web-based support
• 8x5 telephone-based technical support (24x7 - optional)
• 1-Year limited hardware warranty
• 90-day limited software warranty
• Technical account management service available
• Professional services available

Documentation:

Download the Fortinet FortiGate 50-100 Series Datasheet (.PDF)
