Fortinet FortiGate 3810D
Data Center Firewall with 100 GE Interfaces

Fortinet FortiGate 3810D

Fortinet FortiGate Series
FortiGate-3810D
Fortinet FortiGate-3810D Firewall
6 x 100GE LR4/SR10 CFP2 slots, 2 x GE RJ45 Management Ports, FortiASIC NP6 and CP8 hardware accelerated, 960 GB SSD onboard storage, dual AC power supplies
#FG-3810D
Our Price: $180,000.00

Click here to jump to more pricing!

Overview:

Fortinet's FortiGate 3800D Series are the only security appliances capable of delivering an unprecedented 300+ Gbps throughput, while also featuring 100 GE interface ports and IPv4 to IPv6 performance parity integral in supporting next generation fabric.

Fortinet Enterprise Firewall Solution

The Fortinet Enterprise Firewall Solution delivers end-to-end network security with one platform, one network security operating system and unified policy management with a single pane of glass — for the industry's best protection against the most advanced security threats and targeted attacks.

Future-Proofing the Next Generation Data Center

They deliver their breakthrough performance and protection in a compact 3U form factor with six 100 GE interfaces that preserve scarce rack space while maximizing capacity. Powered by the new FortiASIC NP6 processor, the FortiGate 3800D Series allow customers to build 100G data centers without worrying about high speed connectivity or throughput of the core firewall.

Flexible Deployment

The FortiGate 3800D Series give you the flexibility to choose the firewall personality that best fits your requirements at the Edge or Core. You can take advantage of the high port density for physical segmentation of your network, as well as the virtual domains (VDOMs) for virtual segmentation.
  • Industry-leading 10x data center firewall offers exceptional throughput and ultra-low latency
  • Highly available and Virtual Domain (VDOM) support for multi-tenant data center environment
  • Integrated high-speed 10 GE+ port delivers maximum flexibility and scalability
  • Intuitive management interface enables broad and deep visibility and control
  • NSS Labs Recommended consolidated security delivers top-rated protection

Hardware:

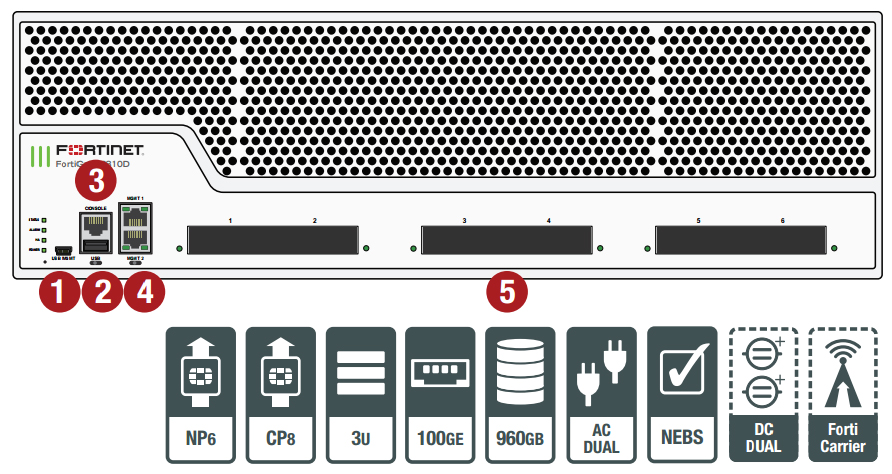

FortiGate 3810D/-DC

FortiGate 3810D/-DC

Interfaces

  1. USB Management Port
  2. USB Port
  3. Console Port
  4. 2x GE RJ45 Management Ports
  5. 6x 100 GE CFP2 Slots

Powered by SPU

  • Custom SPU processors deliver the power you need to detect malicious content at multi-Gigabit speeds
  • Other security technologies cannot protect against today's wide range of content- and connection-based threats because they rely on general-purpose CPUs, causing a dangerous performance gap
  • SPU processors provide the performance needed to block emerging threats, meet rigorous third-party certifications, and ensure that your network security solution does not become a network bottleneck

Network Processor

Fortinet's new, breakthrough SPU NP6 network processor works inline with FortiOS functions delivering:

  • Superior firewall performance for IPv4/IPv6, SCTP and multicast traffic with ultra-low latency down to 2 microseconds
  • VPN, CAPWAP and IP tunnel acceleration
  • Anomaly-based intrusion prevention, checksum of fload and packet defragmentation
  • Traf fic shaping and priority queuing

Content Processor

The SPU CP8 content processor works outside of the direct flow of traffic, providing high-speed cryptography and content inspection services including:

  • Signature-based content inspection acceleration
  • Encryption and decryption offloading

Software:

FortiOS

Control all the security and networking capabilities across the entire FortiGate platform with one intuitive operating system. Reduce operating expenses and save time with a truly consolidated next generation security platform.

FortiOS

  • A truly consolidated platform with one OS for all security and networking services for all FortiGate platforms.
  • Industry-leading protection: NSS Labs Recommended, VB100, AV Comparatives and ICSA validated security and performance.
  • Control thousands of applications, block the latest exploits, and filter web traffic based on millions of real-time URL ratings.
  • Detect, contain and block advanced attacks automatically in minutes with integrated advanced threat protection framework.
  • Solve your networking needs with extensive routing, switching, WiFi, LAN and WAN capabilities.
  • Activate all the ASIC-boosted capabilities you need on the fastest firewall platform available.

Services:

FortiGuard Security Services

FortiGuard Labs offers real-time intelligence on the threat landscape, delivering comprehensive security updates across the full range of Fortinet's solutions. Comprised of security threat researchers, engineers, and forensic specialists, the team collaborates with the world's leading threat monitoring organizations, other network and security vendors, as well as law enforcement agencies:

  • Real-time Updates — 24x7x365 Global Operations research security intelligence, distributed via Fortinet Distributed Network to all Fortinet platforms.
  • Security Research — FortiGuard Labs have discovered over 170 unique zero-day vulnerabilities to date, totaling millions of automated signature updates monthly
  • Validated Security Intelligence — Based on FortiGuard intelligence, Fortinet's network security platform is tested and validated by the world's leading third-party testing labs and customers globally.

FortiCare Support Services

Our FortiCare customer support team provides global technical support for all Fortinet products. With support staff in the Americas, Europe, Middle East and Asia, FortiCare offers services to meet the needs of enterprises of all sizes:

  • Enhanced Support — For customers who need support during local business hours only.
  • Comprehensive Support — For customers who need around- the-clock mission critical support, including advanced exchange hardware replacement.
  • Advanced Services — For global or regional customers who need an assigned Technical Account Manager, enhanced service level agreements, extended software support, priority escalation, on-site visits and more.
  • Professional Services — For customers with more complex security implementations that require architecture and design services, implementation and deployment services, operational services and more.

Enterprise Bundle

FortiGuard Labs delivers a number of security intelligence services to augment the FortiGate firewall platform. You can easily optimize the protection capabilities of your FortiGate with the FortiGuard Enterprise Bundle. This bundle contains the full set of FortiGuard security services plus FortiCare service and support offering the most flexibility and broadest range of protection all in one package.

Specifications:


FortiGate 3800D and 3800D-DC FortiGate 3810D and 3810D-DC FortiGate 3815D and 3815D-DC
Interfaces and Modules
100 GE CFP2 Slots 4 6 4
40 GE QSFP+ Slots 4
10 GE SFP+ Slots 8 (supports GE SFP as well) 10
GE RJ45 Management Ports 2 2 2
USB Ports 1 1 1
Console Port 1 1 1
Internal Storage 2x 480 GB 2x 480 GB 2x 480 GB
Included Transceivers 2x SFP+ (SR 10 GE) NIL 2x SFP+ (SR 10 GE)
System Performance and Capacity
Firewall Throughput (1518 / 512 / 64 byte, UDP) 320 / 300 / 150 Gbps
Firewall Latency (64 byte, UDP) 5 µs
Firewall Throughput (Packet per Second) 262.5 Mpps
Concurrent Sessions (TCP) 95 Million
New Sessions/Second (TCP) 480,000
Firewall Policies 200,000
IPsec VPN Throughput (512 byte) 135 Gbps
Gateway-to-Gateway IPsec VPN Tunnels 40,000
Client-to-Gateway IPsec VPN Tunnels 64,000
SSL-VPN Throughput 10 Gbps
Concurrent SSL-VPN Users (Recommended Maximum) 30,000
IPS Throughput (HTTP / Enterprise Mix) 1 75 / 21 Gbps
SSL Inspection Throughput 2 23 Gbps
Application Control Throughput 3 44 Gbps
NGFW Throughput 4 17 Gbps
Threat Protection Throughput 5 12 Gbps
CAPWAP Throughput 6 22 Gbps
Virtual Domains (Default / Maximum) 10 / 500
Maximum Number of FortiAPs (Total / Tunnel Mode) 4,096 / 1,024
Maximum Number of FortiTokens 5,000
Maximum Number of Registered FortiClients 20,000
High Availability Configurations Active / Active, Active / Passive, Clustering
Dimensions and Power
Height x Width x Length (inches) 5.2 x 17.4 x 26.5 5.2 x 17.4 x 26.5 5.2 x 17.4 x 26.5
Height x Width x Length (mm) 133 x 442 x 673 133 x 442 x 673 133 x 442 x 673
Weight 51 lbs (23.0 kg) 59 lbs (26.8 kg) 59 lbs (26.8 kg)
Form Factor 3 RU 3 RU 3 RU
AC Power Supply 100–240V AC, 50–60 Hz 100–240V AC, 50–60 Hz 100–240V AC, 50–60 Hz
DC Power Supply (FG-3700D-DC) 48–72V DC 48–72V DC 48–72V DC
Power Consumption (Average / Maximum) 536 / 768 W 832 / 1100 W 829 / 1100 W
Current (Maximum) 12A@100V, 5A@240V 12A@100V, 5A@240V 12A@100V, 5A@240V
Heat Dissipation 2621 BTU/h 3754 BTU/h 3754 BTU/h
Redundant Power Supplies Yes, Hot Swappable Yes, Hot Swappable Yes, Hot Swappable
Operating Environment and Certifications
Operating Temperature 32–104°F (0–40°C)
Storage Temperature -31–158°F (-35–70°C)
Humidity 20–90% non-condensing
Operating Altitude Up to 7,400 ft (2,250 m)
Compliance FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB
Certifications ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; USGv6/IPv6
Note: All performance values are "up to" and vary depending on system configuration. IPsec VPN performance is based on 512 byte UDP packets using AES-256+SHA1.
1. IPS performance is measured using 1 Mbyte HTTP and Enterprise Traffic Mix.
2. SSL Inspection is measured with IPS enabled and HTTP traffic, using TLS v1.2 with AES256-SHA.
3. Application Control performance is measured with 64 Kbytes HTTP traffic.
4. NGFW performance is measured with IPS and Application Control enabled, based on Enterprise Traffic Mix.
5. Threat Protection performance is measured with IPS and Application Control and Malware protection enabled, based on Enterprise Traffic Mix.
6. CAPWAP performance is based on 1444 byte UDP packets.

Documentation:

Download the Fortinet FortiGate 3800D Series Datasheet (PDF).

Pricing Notes:

Fortinet FortiGate Series
FortiGate-3810D
Fortinet FortiGate-3810D Firewall
6 x 100GE LR4/SR10 CFP2 slots, 2 x GE RJ45 Management Ports, FortiASIC NP6 and CP8 hardware accelerated, 960 GB SSD onboard storage, dual AC power supplies
#FG-3810D
Our Price: $180,000.00
Hardware plus 8x5 FortiCare and FortiGuard UTM Bundle
FortiGate-3810D Hardware plus 1 Year 8x5 FortiCare and FortiGuard UTM Bundle
#FG-3810D-BDL
Our Price: $279,000.00
FortiGate-3810D Hardware plus 2 Year 8x5 FortiCare and FortiGuard UTM Bundle
#FG-3810D-BDL-900-24
Our Price: $349,200.00
FortiGate-3810D Hardware plus 3 Year 8x5 FortiCare and FortiGuard UTM Bundle
#FG-3810D-BDL-900-36
Our Price: $401,400.00
FortiGate-3810D Hardware plus 4 Year 8x5 FortiCare and FortiGuard UTM Bundle
#FG-3810D-BDL-900-48
Our Price: $506,700.00
FortiGate-3810D Hardware plus 5 Year 8x5 FortiCare and FortiGuard UTM Bundle
#FG-3810D-BDL-900-60
Our Price: $568,575.00
Hardware plus 24x7 FortiCare and FortiGuard UTM Bundle
FortiGate-3810D Hardware plus 1 Year 24x7 FortiCare and FortiGuard UTM Bundle
#FG-3810D-BDL-950-12
Our Price: $297,000.00
FortiGate-3810D Hardware plus 2 Year 24x7 FortiCare and FortiGuard UTM Bundle
#FG-3810D-BDL-950-24
Our Price: $390,600.00
FortiGate-3810D Hardware plus 3 Year 24x7 FortiCare and FortiGuard UTM Bundle
#FG-3810D-BDL-950-36
Our Price: $455,400.00
FortiGate-3810D Hardware plus 4 Year 24x7 FortiCare and FortiGuard UTM Bundle
#FG-3810D-BDL-950-48
Our Price: $566,100.00
FortiGate-3810D Hardware plus 5 Year 24x7 FortiCare and FortiGuard UTM Bundle
#FG-3810D-BDL-950-60
Our Price: $639,225.00
Hardware plus 8x5 Forticare and FortiGuard Enterprise Bundle
FortiGate-3810D Hardware plus 1 Year 8x5 Forticare and FortiGuard Enterprise Bundle
#FG-3810D-BDL-871-12
Our Price: $324,000.00
FortiGate-3810D Hardware plus 2 Year 8x5 Forticare and FortiGuard Enterprise Bundle
#FG-3810D-BDL-871-24
Our Price: $450,000.00
FortiGate-3810D Hardware plus 3 Year 8x5 Forticare and FortiGuard Enterprise Bundle
#FG-3810D-BDL-871-36
Our Price: $558,000.00
FortiGate-3810D Hardware plus 4 Year 8x5 Forticare and FortiGuard Enterprise Bundle
#FG-3810D-BDL-871-48
Our Price: $655,200.00
FortiGate-3810D Hardware plus 5 Year 8x5 Forticare and FortiGuard Enterprise Bundle
#FG-3810D-BDL-871-60
Our Price: $745,200.00
Hardware plus 24x7 Forticare and FortiGuard Enterprise Bundle
FortiGate-3810D Hardware plus 1 Year 24x7 Forticare and FortiGuard Enterprise Bundle
#FG-3810D-BDL-974-12
Our Price: $342,000.00
FortiGate-3810D Hardware plus 2 Year 24x7 Forticare and FortiGuard Enterprise Bundle
#FG-3810D-BDL-974-24
Our Price: $483,750.00
FortiGate-3810D Hardware plus 3 Year 24x7 Forticare and FortiGuard Enterprise Bundle
#FG-3810D-BDL-974-36
Our Price: $605,250.00
FortiGate-3810D Hardware plus 4 Year 24x7 Forticare and FortiGuard Enterprise Bundle
#FG-3810D-BDL-974-48
Our Price: $714,600.00
FortiGate-3810D Hardware plus 5 Year 24x7 Forticare and FortiGuard Enterprise Bundle
#FG-3810D-BDL-974-60
Our Price: $815,850.00
FortiGate-3810D 1 Year Hardware Bundle Upgrade
*24X7 Comprehensive Support, Advanced Hardware Replacement (Next Business Day)
1 Year Hardware Bundle Upgrade from 8x5 to 24x7 FortiCare Contract for FortiGate-3810D
#FC-10-03810-274-01-12
Our Price: $30,600.00
8x5 UTM Bundle Subscription
FortiGate-3810D UTM Bundle (8x5 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering and Antispam Services), 1 Year
#FC-10-03810-900-02-12
Our Price: $137,500.00
FortiGate-3810D UTM Bundle (8x5 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering and Antispam Services), 2 Year
#FC-10-03810-900-02-24
Our Price: $257,813.00
FortiGate-3810D UTM Bundle (8x5 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering and Antispam Services), 3 Year
#FC-10-03810-900-02-36
Our Price: $360,938.00
FortiGate-3810D UTM Bundle (8x5 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering and Antispam Services), 4 Year
#FC-10-03810-900-02-48
Our Price: $453,750.00
FortiGate-3810D UTM Bundle (8x5 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering and Antispam Services), 5 Year
#FC-10-03810-900-02-60
Our Price: $539,688.00
24x7 UTM Bundle Subscription
FortiGate-3810D UTM Bundle (24x7 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering and Antispam Services), 1 Year
#FC-10-03810-950-02-12
Our Price: $162,500.00
FortiGate-3810D UTM Bundle (24x7 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering and Antispam Services), 2 Year
#FC-10-03810-950-02-24
Our Price: $304,688.00
FortiGate-3810D UTM Bundle (24x7 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering and Antispam Services), 3 Year
#FC-10-03810-950-02-36
Our Price: $426,563.00
FortiGate-3810D UTM Bundle (24x7 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering and Antispam Services), 4 Year
#FC-10-03810-950-02-48
Our Price: $536,250.00
FortiGate-3810D UTM Bundle (24x7 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering and Antispam Services), 5 Year
#FC-10-03810-950-02-60
Our Price: $637,813.00
8x5 Enterprise Bundle Subscription
FortiGate-3810D Enterprise Bundle (8x5 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering, Antispam, FortiSandbox Cloud and Mobile Security Services), 1 Year
#FC-10-03810-871-02-12
Our Price: $200,000.00
FortiGate-3810D Enterprise Bundle (8x5 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering, Antispam, FortiSandbox Cloud and Mobile Security Services), 2 Year
#FC-10-03810-871-02-24
Our Price: $375,000.00
FortiGate-3810D Enterprise Bundle (8x5 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering, Antispam, FortiSandbox Cloud and Mobile Security Services), 3 Year
#FC-10-03810-871-02-36
Our Price: $525,000.00
FortiGate-3810D Enterprise Bundle (8x5 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering, Antispam, FortiSandbox Cloud and Mobile Security Services), 4 Year
#FC-10-03810-871-02-48
Our Price: $660,000.00
FortiGate-3810D Enterprise Bundle (8x5 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering, Antispam, FortiSandbox Cloud and Mobile Security Services), 5 Year
#FC-10-03810-871-02-60
Our Price: $785,000.00
24x7 Enterprise Bundle Subscription
FortiGate-3810D Enterprise Bundle (24x7 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering, Antispam, FortiSandbox Cloud and Mobile Security Services), 1 Year
#FC-10-03810-974-02-12
Our Price: $225,000.00
FortiGate-3810D Enterprise Bundle (24x7 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering, Antispam, FortiSandbox Cloud and Mobile Security Services), 2 Year
#FC-10-03810-974-02-24
Our Price: $421,875.00
FortiGate-3810D Enterprise Bundle (24x7 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering, Antispam, FortiSandbox Cloud and Mobile Security Services), 3 Year
#FC-10-03810-974-02-36
Our Price: $590,625.00
FortiGate-3810D Enterprise Bundle (24x7 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering, Antispam, FortiSandbox Cloud and Mobile Security Services), 4 Year
#FC-10-03810-974-02-48
Our Price: $742,500.00
FortiGate-3810D Enterprise Bundle (24x7 FortiCare plus Application Control, IPS, AV, Botnet IP/Domain, Web Filtering, Antispam, FortiSandbox Cloud and Mobile Security Services), 5 Year
#FC-10-03810-974-02-60
Our Price: $883,125.00
FortiGuard Subscriptions 1-Year
FortiGuard Mobile Security (Mobile Platform AV) for FortiGate-3810D, 1-Year
#FC-10-03810-122-02-12
Our Price: $36,000.00
FortiGuard FortiSandbox Cloud Service for FortiGate-3810D
#FC-10-03810-123-02-12
Our Price: $36,000.00
FortiGuard AV and Botnet IP/Domain Services for FortiGate-3810D, 1-Year
#FC-10-03810-100-02-12
Our Price: $50,000.00
FortiGuard IPS Service for FortiGate-3810D, 1-Year
#FC-10-03810-108-02-12
Our Price: $50,000.00
Web Filtering Service for FortiGate-3810D, 1-Year
#FC-10-03810-112-02-12
Our Price: $36,000.00
FortiGuard Industrial Security Service for FortiGate-3810D, 1-Year
#FC-10-03810-159-02-12
Our Price: $50,000.00
8x5 FortiCare Contract
8x5 FortiCare for FortiGate-3810D, 1-Year
#FC-10-03810-311-02-12
Our Price: $27,000.00
8x5 FortiCare for FortiGate-3810D, 2-Year
#FC-10-03810-311-02-24
Our Price: $50,625.00
8x5 FortiCare for FortiGate-3810D, 3-Year
#FC-10-03810-311-02-36
Our Price: $70,875.00
24x7 FortiCare Contract
24x7 FortiCare for FortiGate-3810D, 1-Year
#FC-10-03810-247-02-12
Our Price: $45,000.00
24x7 FortiCare for FortiGate-3810D, 2-Year
#FC-10-03810-247-02-24
Our Price: $84,375.00
24x7 FortiCare for FortiGate-3810D, 3-Year
#FC-10-03810-247-02-36
Our Price: $118,125.00
FortiCare 360 Contract
1 Year FortiCare 360 Contract for FortiGate-3810D
#FC-10-03810-280-02-12
Our Price: $63,000.00
2 Year FortiCare 360 Contract for FortiGate-3810D
#FC-10-03810-280-02-24
Our Price: $118,125.00
3 Year FortiCare 360 Contract for FortiGate-3810D
#FC-10-03810-280-02-36
Our Price: $165,375.00
Full Package Contract
1 Year Courier 4 hours Full Package Contract for FortiGate-3810D
#FC-10-03810-253-02-12
Our Price: $72,200.00
1 Year On-Site 4 hours Full Package Contract for FortiGate-3810D
#FC-10-03810-254-02-12
Our Price: $59,600.00
