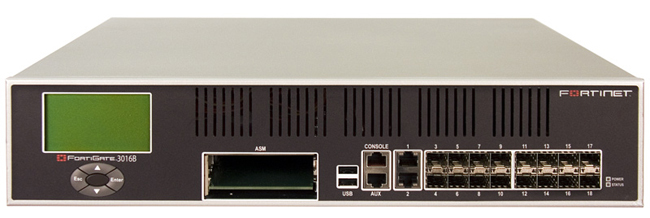

Fortinet FortiGate 3016B

Overview:

The FortiGate-3016B is the ideal choice for core network or data center multi-segment firewall implementations. It offers sixteen (16) ASIC-accelerated Gigabit Ethernet SFP interfaces, delivering wire-speed firewall and near-wire-speed VPN performance along with improved protection against IP denial of service attacks.

FortiGate-3016B Benefits:

• Sixteen (16) ASIC-accelerated Gigabit Ethernet SFP interfaces support high-performance internal firewalling implementations for added core network and data center protection.
• Single-width AMC expansion bay supports Fortinet's expansion modules including accelerated Gigabit Ethernet ports or internal storage for localized logging, archiving and quarantining.
• Complement or upgrade existing security infrastructure by enabling only the services needed.
• Segment network by customer, business unit, or any other logical division for more control with optional support for up to 500 virtual domains (VDOMs).
• Redundant, hot-swappable power supplies minimize single-point failures.
• Available FortiManager and FortiAnalyzer integration simplifies security management, reporting, and analysis while reducing operating expenses.
• FortiGuard Subscription Services deliver automated, real-time, and up-to-date protection against security threats.

High Performance Enterprise Network Security:

FortiGate enterprise security solutions deliver next-generation firewall technology and multi-threat protection integrated into cost-effective security platforms that effectively block blended network threats. Point-product security solutions do not provide protection against a new breed of blended threats that utilize a multitude of attack vectors. Furthermore, assembling an array of point products is costly and requires significant expertise to engineer, maintain and manage. FortiGate solutions cost-effectively deliver complete multi-threat protection against: unauthorized access, intrusion attempts, viruses, worms, trojans, spyware, phishing attempts, spam and other types of content-based and network-based threats.

Industry-Leading Unified Threat Management (UTM):

Fortinet incorporates ICSA Labs-certified UTM functions into a single ASIC-based appliance that is simple to install and manage. Stateful firewall, IPSec and SSL-VPN, intrusion prevention, antivirus, antispam, and Web filtering features combine to form a complete enterprise-focused network security platform that offers compelling total cost of ownership.

Key Problems: Solutions: Holes left open in corporate firewalls for applications are commonly used to attack network resources and users FortiGate appliances prevent successful attacks through commonly allowed applications including: email, web-based applications, instant messaging and VoIP Remote access threatens the secured perimeter, allowing threats a direct conduit into the private network FortiGate appliances enforce the secure perimeter model by inspecting traffic for network-level and content-left threats after termination of the encrypted tunnel and before being allowed onto the private network Standalone intrusion prevention products do little to protect networks from the abundance of file-based threats commonly found in email attachments and instant messaging downloads FortiGate appliances intelligently integrate firewall, intrusion prevention, antivirus, Web filtering, antispam and application controls together for the best threat protection possible Managing multiple security products and extracting value from the purchases is increasingly difficult in the face of shrinking budgets and dwindling technical resources FortiGate appliances combine essential security technologies into one cost-effective unified solution, which eases strains on resources while also reducing complexity, space and power consumption requirements

Fortinet’s Multi-Layered Security Solution:

Fortinet’s multi-layered security solutions efficiently and economically provide an integrated set of security services in a single, easy-to-manage high-performance appliance that is capable of supporting a wide range of deployment scenarios. In addition, FortiGuard Subscription Services include everything from technical support, antivirus updates, antispyware, antispam, and Web content filtering to ensure that your security environment remains current and your corporate resources are protected against the latest blended threats. FortiGate systems come with a one-year limited hardware warranty and 90-day limited software warranty.

Deployments:

FortiGate multi-threat security solutions are designed for enterprise networks.

Secure Network Perimeters / Internal Segmentation

Firewall and VPN services are deployed at the perimeter of the internal network to securely connect remote offices and mobile users to an organization’s private resources while at the same time preventing any other unauthorized access. Intrusion prevention, antivirus and Web filtering services ensure that network-based threats and contentbased threats are stopped inbound as well as outbound.

Inside the network, segmentation can be achieved using firewall, intrusion prevention and antivirus technologies. Internal segmentation effectively isolates outbreaks before they are allowed to spread throughout an organization’s network.

Virtual Security Domains / Distributed Enterprises

FortiGate platforms support multiple security zones and virtual security domains to customize a network’s security policy anywhere requirements demand. Virtual Domains (VDOMs) can also be used to provision services for external customers.

All FortiGate solutions start from the same flexible high performance architecture. Core networking features found in every model such as High Availability (HA) and support for dynamic routing protocols enable the FortiGate to be deployed into highly distributed and fully meshed network environments.

Datacenter and Critical Applications Security

Effectively protecting an organization’s mission critical applications from a new generation of application-based threats that are now targeting Web 2.0, VoIP and even IPTV applications requires a comprehensive security strategy that contains multiple layers of network-based defenses. Unfortunately, many of these new applications are time-critical, forcing administrators to choose between performance and security. The FortiGate family of multi-gigabit performance solutions deliver real-time protection against multi-layered security threats which target application servers. In addition to protecting against these new threat types, advanced antispam filtering relieves the ever evolving problem of unsolicited bulk mail while also filtering mail for spyware and security policy violating content.

Technical Specifications:

FortiGate 1000-3800 Series Specifications
FortiGate Models
	FortiGate-1000A	FortiGate-1000AFA2	FortiGate-3016B	FortiGate-3600A	FortiGate-3810A
Hardware Specifications
10/100/1000 Interfaces (Copper)	10	10	2	8	8
1Gb SFP Interfaces	0	2	16 - 20*	2 - 6*	2 - 26*
SFP Transceivers Provided	NA	2 (SX)	4 (SX) / 4 (TX)	2 (SX)	2 (SX)
USB Ports	1	1	2	2	1
AMC Expansion Slots	0	0	1 single width	1 single width	2 single width 2 double width
System Performance
Concurrent Sessions	600,000	600,000 with optional license	1,000,000	1,000,000	2,000,000
New Sessions/Second	15,000	15,000	25,000	40,000	40,000
Firewall Throughput (Gbps)	2 Gbps	2 Gbps	16 - 20* Gbps	6 - 10* Gbps	7 - 37* Gbps
VPN Throughput (IPSec)	400 Mbps	400 Mbps	12 - 15* Gbps	0.8 - 3.8* Gbps	1 - 19* Gbps
IPS Throughput	1 Gbps	1 Gbps	2 Gbps	3 Gbps	4 Gbps
Antivirus Throughput	200 Mbps	200 Mbps	300 Mbps	400 Mbps	500 Mbps
Unlimited Concurrent Users	Yes	Yes/	Yes	Yes	Yes
Dedicated IPSec VPN Tunnels	10,000	10,000	64,000	64,000	64,000
Policies	100,000	100,000	100,000	100,000	100,000
Virtual Domains (VDOMS)	10 / NA	10 / NA	10 / 500	10 / 500	10 / 500.
(standard / with optional license)
Physical Specifications
Dimensions (H, W, L, weight)	3.5 in (88.9 mm) 16.75 in (425.5 mm) 20.5 in (520.7 mm) 17.5 lbs (8 kg)	3.5 in (88.9 mm) 16.75 in (425.5 mm) 20.5 in (520.7 mm) 17.5 lbs (8 kg)	3.5 in (88.9 mm) 16.9 in (429.3 mm) 18.3 in (464.8 mm) 25.6 lbs (11.6 kg)	3.5 in (88.9 mm) 16.9 in (429.3 mm) 16.9 in (429. 3mm) 26 lbs (11.8 kg)	3.5 in (88.9 mm) 16.9 in (429.3 mm) 18.5 in (469.9 mm) 36 lbs (16.4 kg)
AC Power Option	Dual 100-240 VAC, 50-60 Hz, 8 Amp (Max)
DC Power Option	N/A	N/A	N/A	N/A	-48V DC (Normal)(-36 ~ -72V DC / 500W Max)
(AC power standard / DC power is a factory installed option)
Power Consumption (AVG)	220W	220W	168W	220W	275W
Environmental	Operating temperature: 32 to 104 deg F (0 to 40 deg C) Storage temperature: -13 to 158 deg F (-25 to 70 deg C) Humidity: 5 to 95% non-condensing
Compliance	FCC Class A, Part 15, UL/CUL, C Tick, CE, VCCI
Certifications	ICSA Labs, NSS Labs, Common Criteria, FIPS 140-2. * Higher Values Include Properties of Optional Expansion Modules
* Higher Values Include Properties of Optional Expansion Modules

Benefits:


Fortinet’s ASIC-Based Advantage:

FortiASIC is the foundation of Fortinet’s unique hardware technology. FortiASIC is a family of purpose built, high-performance network and content processors that uses an intelligent proprietary content scanning engine and multiple algorithms to accelerate compute-intensive security services. FortiASIC provides the performance required to deliver enterprise and carriers-class UTM services. Coupled with the FortiOS security hardened Operating System, FortiASIC delivers extreme performance and security.

FortiOS: Developed for Security:

FortiOS is the software foundation of FortiGate multi-threat security platforms. Developed solely for security, performance and reliablity, it is a purpose-built operating system that leverages power of the the FortiAISC content and network processors. FortiOS enables a comprehensive suite of security services – content inspection firewall, IPS, antivirus, web filtering, antispam, IM/P2P, virtual network security and bandwidth shaping. FortiOS is a complete suite of UTM security services and is certified for Common Criteria EAL 4+.

Features:

FortiGate-1000-3800-series platforms provide the following security features:


Services & Support:

FortiGuard Security Subscription Services:

With FortiGuard™ Security Subscription services enabled, customers can rest assured that their Fortinet security platforms are performing optimally and protecting their corporate assets with the latest security intelligence. FortiGuard services deliver the latest security content directly to Fortinet products. Fortinet offers four standard subscription services: Antivirus, Intrusion Prevention, Web Filtering and Antispam services to protect against multiple types of new and emerging threats. FortiGuard services are updated by the Fortinet Global Threat Research Team, a team of experts working around the clock and around the world to keep Fortinet customers secure. The Fortinet Global Threat Research Team enables Fortinet to deliver comprehensive multi-threat protection, including zero-day protection from new and emerging threats. The FortiGuard Network is a network of global data centers that automatically deliver updates quickly and reliably to Fortinet products.

For customers requiring guaranteed response time to suspicious malware threats, Fortinet offers a premier version of the FortiGuard Antivirus Security Subscription service. Along with Service Level Agreements (SLAs), the premier service provides the customer with a direct conduit to the Fortinet Global Threat Research Team.

Fortinet also offers a premier version of the FortiGuard Web Filtering Security Subscription service. This higher-tier service offering includes guaranteed SLAs and a larger quota for rating URLs submitted to the Fortinet Global Threat Research Team.

FortiCare Support Services:

Includes:

• 24/7/365 FortiCare Web-based support
• 8x5 telephone-based technical support (24x7 - optional)
• 1-Year limited hardware warranty
• 90-day limited software warranty
• Technical account management service available
• Professional services available

Documentation:

Download the Fortinet FortiGate 1000-3800 Series Datasheet (.PDF)
