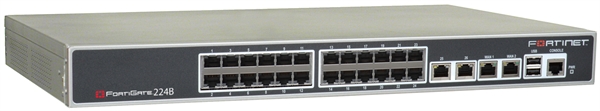

Fortinet FortiGate 224B

Overview:

Accelerated by the FortiASIC processor, the FortiGate-224B appliance yields unmatched multi-threat performance across the highest port density of any product in its class. The FortiGate-224B's 24 10/100 ports allow SMB organizations to enjoy a degree of internal network security segmentation and policy control previously available only to larger enterprises.

FortiGate-224B Features & Benefits:

• ASIC acceleration delivers superior threat detection throughput.
• High port density facilitates flexibility in deployment and policy.
• Internal network security segmentation provides layered security, security event isolation, policy granularity and network visibility.
• Available FortiManager and FortiAnalyzer integration simplifies security management, reporting, and analysis while reducing operating expenses.
• FortiGuard Subscription Services deliver automated, real-time, up-to-date protection against security threats and exploits.

Blended Security Threats:

Network security threats are devastating to enterprise networks. Intellectual property, revenue, customer and company records, and other mission-critical resources are at risk. Unfortunately enterprise networks often lack adequate security solutions much less the human resources to recognize the business risks – that is until the damage is already done. Point-products providing security solutions for specific purposes may provide adequate protection against specific single-threaded threats, however a new breed of blended-threats and attacks utilize a multitude of attack vectors. Furthermore assembling an array of point products is costly and requires significant expertise to engineer, maintain and manage. Most small to medium size businesses cannot afford such overhead, yet should tragedy strike the potential business costs are enormous. Fortunately cost-effective, evergreen multi-threat protection is now available to businesses of any size. The FortiGate-200 through -800 series of advanced security systems integrate all-in-one multi-threat protection into cost-effective plug-n-play security platforms that effectively block today’s blended attacks including intrusion attempts, viruses, worms, phishing, spyware, spam and many other types of malware. The Fortinet FortiGuard® global 24x7 threat detection and update service provides the networking industry’s fastest response time to ensure latest security threats are detected and automatic security updates are available before your business is impacted.

Security Platforms That Meet the Challenge:

FortiGate security platforms are based on Fortinet’s revolutionary FortiASIC Content Processor technology, which enables a comprehensive suite of real-time security solutions while delivering the highest levels of network performance. The FortiGate-200-800 series platforms provide a complete security solution including content inspection firewall, IPSEC and SSL VPN, intrusion prevention, Web filtering, antispam, antivirus, antispyware, and IM and P2P controls that prevent blended attacks, as well as providing integrated traffic shaping functions, making them the most cost effective, convenient and powerful network protection solutions available. In addition, Fortinet’s per-device security subscriptions and turnkey appliance design makes them an affordable and easy-to-manage security solution for small-to-medium enterprises.

Fortinet’s Multi-Layered Security Solution:

Fortinet’s multi-layered security solutions efficiently and economically provide an integrated set of security services in a single, easy-to-manage high-performance appliance that is capable of supporting a wide range of deployment scenarios. In addition, FortiGuard Subscription Services include everything from technical support, antivirus updates, antispyware, antispam, and Web content filtering to ensure that your security environment remains current and your corporate resources are protected against the latest blended threats. FortiGate systems come with a one-year limited hardware warranty and 90-day limited software warranty.

Features & Benefits:

Integrated Multi-Threat Protection

The FortiGate product family provides cost-effective, comprehensive protection against network, content, and application-level threats. It defends your environment from complex, sophisticated attacks without degrading network availability and affecting application performance.

FortiGate platforms combine the purpose-built FortiOS™ security operating system with custom FortiASIC processors and other hardware to provide a comprehensive and highperformance array of security and networking functions.

The FortiGate product family delivers the highest level of network, content, and application security for enterprises of all sizes, while reducing total cost of ownership. With Fortinet, you deploy the network security you need to protect your intellectual property, preserve the privacy of critical customer information, and maintain regulatory compliance.

FortiOS 5.0 Software

FortiOS 5.0, the world's most powerful security operating system, is the foundation for all Fortinet FortiGate integrated security platforms. It provides more security, intelligence and control to help enterprises be better protected against today's advanced threats and enable more secure BYOD environments.

	More Security Fighting Advanced Threats More Security to fight advanced threats. A client reputation feature gives enterprises a cumulative security ranking of each device based on a range of behaviors and provides specific, actionable information that enables organizations to identity compromised systems and potential zero-day attacks in real time. The new advanced anti-malware detection system adds an on-device behavior-based heuristic engine and cloud-based AV services that includes an operating system sandbox and botnet IP reputation database. Together with superior industry-validated AV signatures, FortiOS 5.0 delivers unbeatable multi-layered protection against today's sophisticated malware. Client Reputation with Cumulative Rankings OS Sandbox Advanced Botnet Protection
	More Control Securing Mobile Devices More Control to secure mobile devices and BYOD environments by identifying devices and applying specific access policies as well as ecurity profiles, according to the device type or device group, location and usage. Device Identification & Visibility New Identity Based Policies Endpoint Control
	More Intelligence Build Smart Policies More Intelligence with automatic adjustment of role-based policies for users and guests based on location, data and application profile. Enhanced reporting and analysis also provides administrators with more intelligence on the behavior of their network, users, devices, applications and threats. Provide Guest Access with Confidence Enhanced Visibility & Reporting and Overal User Experience Extended Single Sign On Capabilities

Fortinet’s ASIC-Based Advantage:

FortiASIC is the foundation of Fortinet’s unique hardware technology. FortiASIC is a family of purpose built, high-performance network and content processors that uses an intelligent proprietary content scanning engine and multiple algorithms to accelerate compute-intensive security services. FortiASIC provides the performance required to deliver enterprise and carriers-class UTM services. Coupled with the FortiOS security hardened Operating System, FortiASIC delivers extreme performance and security.

Technical Specifications:

FortiGate Model	FortiGate-224B	FortiGate-800	FortiGate-800F
Hardware Specifications
Total 10/100 Interfaces	26	4	4
Switch Interfaces	24	N/A	N/A
Configurable Ports	N/A	4	4
Fixed WAN / DMZ Ports	2	N/A	N/A
Total 10/100/1000 Interfaces (Copper)	2 (switched)	4	N/A
1Gb SFP Interfaces (Fiber)*	N/A	N/A	4
System Performance
Firewall Throughput	150 Mbps	1 Gbps	1 Gbps
VPN 3DES Throughput	70 Mbps	200 Mbps	200 Mbps
Antivirus Throughput	30 Mbps	150 Mbps	150 Mbps
IPS Throughput	100 Mbps	600 Mbps	600 Mbps
Dedicated IPSec VPN Tunnels	200	3,000	3,000
Unlimited User Licenses	Yes	Yes	Yes
Concurrent Sessions	400,000	400,000	400,000
New Sessions/Second.	4K	10K	10K
Policies	2,000	20,000	20,000
Dimensions
Dimensions (H x W x L)	1.75 x 16.8 x 10 inches	1.75 x 16.75 x 12 inches,	1.75 x 16.75 x 12 inches,
Weight	7.3 lbs	10 lbs	10 lbs
Rack Mountable	Yes	Yes	Yes
Environmental
AC Power Required	100-240 VAC, 50-60 Hz, 8.0 Amp (Max)
Power Consumption (AVG)	110W	100W	100W
Operating Temperature	32 - 104 °F (0 - 40 °C)
Storage Temperature	-13 - 158 °F (-25 - 70 °C)
Humidity	5 to 95% non-condensing
Compliance and Certifications
Compliance	FCC Class A Part 15, UL/CUL, C Tick, CE, VCCI
Certifications	ICSA Labs Certified: Firewall, Antivirus, IPS

* SX transceivers are standard; LX transceivers are available as an additional option
** Antivirus performance is measured based on HTTP traffic with 32Kbyte file attachments and IPS performance is measured base on UDP traffic with 512 byte packet size. Actual performance may vary depends on network traffic and environment

Security Features:

FortiGate-200-800-series platforms provide the following security features:


Deployments:

Fortinet’s family of mid-range security appliances are designed for mid-size enterprise networks.

Secure Web Access

The primary source of threats to the Enterprise network is undoubtedly from uncontrolled employee access to the Internet and Web-based services. Yet today every business not only relies on the Internet for productivity enhancements and competitive advantage, but literally depends on the Internet for business success. With all the benefits of the Internet, also come potential risks such as viruses and worms that disrupt services or destroy valuable data, and a myriad of security challenges including information theft/ leakage, inappropriate usage and the need to comply with regulatory mandates. The FortiGate-200-800 series of midrange security appliances provide a turn-key suite of ICSA Labs certified multi-layered security applications to stop blended attacks from affecting your business.

Secure Perimeter Access

Enterprises often have complex network topologies and, therefore, complex network security requirements. Typical deployments mean linking several sites together—ranging from home offices to larger remote offices—and ensuring that the security implementation is seamless. Security devices for these environments need to provide a wide variety of performance metrics and connectivity options. Fortinet’s line of mid-range security appliances offer integrated 4-port switches, 10/100/1000 Ethernet ports, up to 1 Gbps firewall throughput, and up to 200 Mbps 3DES VPN throughput. These options include the full security suite of ICSA Labs certified multi-layered security applications to stop blended attacks from affecting your enterprise’s productivity.

Secure Messaging Access

The FortiGate line of security appliances has a flexible architecture that allows each one to quickly adapt to emerging technologies and threats such as IM, P2P, and VOIP applications and identity theft methods such as spyware, phishing, and pharming attacks. Flexible deployment options such as NAT, Route, and Transparent modes allow FortiGate devices to be easily deployed into most network designs. Core networking features, such as High Availability (HA) and support for dynamic routing protocols like RIP, OSPF, and BGP, allow them to be deployed into complex full mesh network environments that require maximum network availability.

Services & Support:

FortiGuard Security Subscription Services:

FortiGuard Security Subscription Services deliver dynamic, automated updates for Fortinet products. The Fortinet Global Security Research Team creates these updates to ensure up-to-date protection against sophisticated threats. Subscriptions include antivirus, intrusion prevention, web filtering, antispam, vulnerability and compliance management, application control, and database security services.

FortiCare Support Services

FortiCare Support Services provide global support for all Fortinet products and services. FortiCare support enables your Fortinet products to perform optimally. Support plans start with 8x5 Enhanced Support with "return and replace" hardware replacement or 24x7 Comprehensive Support with advanced replacement. Options include Premium Support, Premium RMA, and Professional Services. All hardware products include a 1-year limited hardware warranty and 90-day limited software warranty.

Documentation:

Download the Fortinet FortiGate 200-800 Series Datasheet (.PDF)
