Fortinet FortiGate 110C

Overview:

The FortiGate-110C raises the bar for security devices designed for the needs of small-to-medium businesses as well as Remote Office/Branch Office applications. Incorporating the FortiASIC Content Processor for content-inspection acceleration, the FortiGate-110C yields unmatched multi-threat performance in an easily-configured appliance. The FortiGate-110C's accelerated security throughput, high port density, and ease of management allow smaller organizations and office sites to deploy enterprise-class security in minutes, with minimal maintenance required. Its appliance form factor and ease of configuration allow organizations to quickly deploy any or all of its multi-threat functionality. This makes it ideal as a complement to existing solutions or as an all-in-one security gateway with firewall, VPN, intrusion prevention, web filtering, antivirus/antispyware/antimalware and antispam capabilities.

FortiGate-110C/111C Features & Benefits:

• Delivers up to 1 Gbps firewall throughput with two GbE and 8 10/100 interfaces (8 internal switch ports facilitate creation of separate security zones to segregate users and data)
• IPv6-ready platform with strong authentication options for secure network access and security policy compliance
• Rich feature set to protect next generation with application control, built-in wireless controller, local logging, and endpoint policy enforcement
• A “single pane of glass” management console makes it easy for you to deploy and manage
• Available FortiManager and FortiAnalyzer integration reduces operating costs through simple, comprehensive security management, reporting, and analysis
• Internal storage (FortiGate-111C) provides local archiving of data for policy compliance, local reporting, or WAN optimization

Secure Networking

Small Today's network security threats have evolved into highly sophisticated assaults using multiple attack vectors to penetrate networks and steal valuable information. Small and medium enterprises and remote branch offices of larger enterprises face these attacks while storing and transferring increasing amounts of sensitive data across their networks. To ensure the security of this sensitive data, legislation such as PCI, HIPAA, Sarbanes-Oxley, and others have warranted the implementation of security measures.

The Needs of Small and Medium Enterprises and Branch Offices

In order to comply with legislation and secure the valuable data traversing networks, small and medium enterprises and remote branch offices need a security solution that integrates multiple attack recognition technologies into a single device. With limited budgets and modest remote resources, these smaller networks desire a cost effective solution that is simple to install, connect and maintain. Just as importantly, networks are ever-expanding and need a solution that leaves them with room to grow over time.

Simple, Powerful, Secure

The FortiGate-110C and FortiGate-111C are ideal security solution for small and medium enterprise or remote branch office networks, because they combine firewall, IPSec and SSL VPN, intrusion prevention, antivirus, antimalware, antispam, P2P security, and web filtering to identify numerous types of threats from a single device. The FortiGate-110C installs in minutes, automatically downloading regular updates to protect against the latest viruses, network vulnerabilities, worms, spam and phishing attacks, and nefarious websites with no administrator intervention. Leveraging patented FortiASIC acceleration, the FortiGate-110C offers marketleading performance, with ten ports that facilitate network growth and expansion. The FortiGate-111C ships with a built-in solid state disk drive, it can support the new WAN Optimization features of the FortiOS 4.0. This WAN Optimization functionality increases network performance by reducing the amount of communication and data transmitted between applications and servers across a WAN. In addition to the simplicity of uniting multiple ICSA-Labs certified security technologies on a single device, the FortiGate-111C leverage the power of FortiOS 4.0 to reduce resource and bandwidth requirements and save networking costs.

Fortinet’s Multi-Layered Security Solution:

Fortinet’s multi-layered security solutions efficiently and economically provide an integrated set of security services in a single, easy-to-manage high-performance appliance that is capable of supporting a wide range of deployment scenarios. In addition, FortiGuard Subscription Services include everything from technical support, antivirus updates, antispyware, antispam, and Web content filtering to ensure that your security environment remains current and your corporate resources are protected against the latest blended threats. FortiGate systems come with a one-year limited hardware warranty and 90-day limited software warranty.

Features & Benefits:

Integrated Multi-Threat Protection

The FortiGate product family provides cost-effective, comprehensive protection against network, content, and application-level threats. It defends your environment from complex, sophisticated attacks without degrading network availability and affecting application performance.

FortiGate platforms combine the purpose-built FortiOS™ security operating system with custom FortiASIC processors and other hardware to provide a comprehensive and highperformance array of security and networking functions.

The FortiGate product family delivers the highest level of network, content, and application security for enterprises of all sizes, while reducing total cost of ownership. With Fortinet, you deploy the network security you need to protect your intellectual property, preserve the privacy of critical customer information, and maintain regulatory compliance.

FortiOS 5.0 Software

FortiOS 5.0, the world's most powerful security operating system, is the foundation for all Fortinet FortiGate integrated security platforms. It provides more security, intelligence and control to help enterprises be better protected against today's advanced threats and enable more secure BYOD environments.

	More Security Fighting Advanced Threats More Security to fight advanced threats. A client reputation feature gives enterprises a cumulative security ranking of each device based on a range of behaviors and provides specific, actionable information that enables organizations to identity compromised systems and potential zero-day attacks in real time. The new advanced anti-malware detection system adds an on-device behavior-based heuristic engine and cloud-based AV services that includes an operating system sandbox and botnet IP reputation database. Together with superior industry-validated AV signatures, FortiOS 5.0 delivers unbeatable multi-layered protection against today's sophisticated malware. Client Reputation with Cumulative Rankings OS Sandbox Advanced Botnet Protection
	More Control Securing Mobile Devices More Control to secure mobile devices and BYOD environments by identifying devices and applying specific access policies as well as ecurity profiles, according to the device type or device group, location and usage. Device Identification & Visibility New Identity Based Policies Endpoint Control
	More Intelligence Build Smart Policies More Intelligence with automatic adjustment of role-based policies for users and guests based on location, data and application profile. Enhanced reporting and analysis also provides administrators with more intelligence on the behavior of their network, users, devices, applications and threats. Provide Guest Access with Confidence Enhanced Visibility & Reporting and Overal User Experience Extended Single Sign On Capabilities

Fortinet’s ASIC-Based Advantage

FortiASIC is the foundation of Fortinet’s unique hardware technology. FortiASIC is a family of purpose built, high-performance network and content processors that uses an intelligent proprietary content scanning engine and multiple algorithms to accelerate compute-intensive security services. FortiASIC provides the performance required to deliver enterprise and carrier-class UTM services. Coupled with the FortiOS security hardened Operating System, FortiASIC delivers extreme performance and security.

Technical Specifications:

FortiGate Models	FortiGate-110C	FortiGate-111C
Hardware Specifications

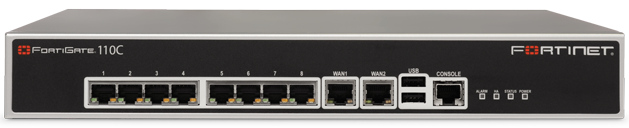

10/100/1000 WAN Interfaces (Copper, RJ-45)	2	2
10/100 Configurable Interfaces (Copper, RJ-45)	8	8
Console (Copper, RJ-45)	1	1
USB Interface	2	2
Solid State Disk Storage	-	64 GB
System Performance
Firewall Throughput (1518 byte UDP packets)	1 Gbps	1 Gbps
Firewall Throughput (512 byte UDP packets)	500 Mbps	500 Mbps
IPSec VPN Throughput	100 Mbps	100 Mbps
IPS Throughput	450 Mbps	450 Mbps
Antivirus (Proxy-based)	65 Mbps	65 Mbps
Antivirus (Flow-based)	160 Mbps	160 Mbps
Gateway-to-Gateway IPSec VPN Tunnels	1,500	1,500
Client-to-Gateway IPSec VPN Tunnels	1,500	1,500
Concurrent Sessions	400,000	400,000
New Sessions/Sec	10,000	10,000
Concurrent SSL-VPN Users (Recommended Max)	100	100
SSL-VPN Throughput	80 Mbps	80 Mbps
Firewall Policies (Max)	4,000	4,000
Virtual Domains (Max / Default)	10 / 10	10 / 10
Unlimited User Licenses	Yes	Yes
Mean Time Between Failures	More than 6 years	More than 6 years
Dimensions
Height x Width x Length	1.8 x 13 x 11 in (4.6 x 33 x 28 cm)	1.8 x 13 x 11 in (4.6 x 33 x 28 cm)
Weight	6 lb (2.7 Kg)	6 lb (2.7 Kg)
Rack Mountable	Yes	Yes
Environmental
Power Required	100 -240 VAC 50-60 Hz, 2 Amp (Max)
Power Consumption (AVG)	32 W	55 W
Heat Dissipation	109 BTU	188 BTU
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-31 to 158°F (-35 to 70°C)
Humidity	20 to 80% non-condensing
Compliance & Certifications
Compliance	FCC Class A Part 15, / CE Mark
Certifications	ICSA Labs: Firewall, SSL VPN, IPS, Antivirus

Antivirus performance is measured based on HTTP traffic with 32 Kbyte file attachments.
IPS performance is measured base on NSS like test methodology with 44K HTTP files.

Services & Support:

FortiGuard® Security Subscription Services deliver dynamic, automated updates for Fortinet products. The Fortinet Global Security Research Team creates these updates to ensure up-to-date protection against sophisticated threats. Subscriptions include antivirus, intrusion prevention, web filtering, antispam, vulnerability and compliance management, application control, and database security services.

FortiCare™ Support Services provide global support for all Fortinet products and services. FortiCare support enables your Fortinet products to perform optimally. Support plans start with 8x5 Enhanced Support with return and replace hardware support or 24x7 Comprehensive Support with advanced hardware replacement. Options include Premium Support, Premium RMA, and Professional Services. All hardware products include a 1-year limited hardware warranty and a 90-day limited software warranty.

FortiCare Support Services:

Available:

• 24/7/365 FortiCare Web-based support
• 24x7 telephone-based technical support
• 1-year limited hardware warranty
• Technical account management service
• Professional services
• 90-day limited software warranty

Documentation:

Download the Fortinet FortiGate 110C/111C Datasheet(PDF).
