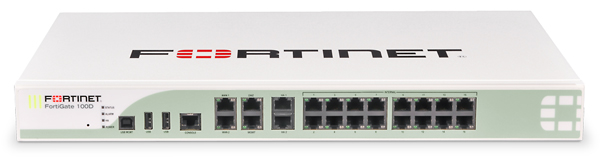

Fortinet FortiGate 100D

Overview:

The FortiGate-100D is an ideal security solution for small and medium enterprises or remote branch offices of larger networks. It combines firewall, IPSec and SSL VPN, application control, intrusion prevention, antivirus, antimalware, antispam, P2P security, and web filtering into a single device.

Secure Networking

Small Today's network security threats have evolved into highly sophisticated assaults using multiple attack vectors to penetrate networks and steal valuable information. Small and medium enterprises and remote branch offices of larger enterprises face these attacks while storing and transferring increasing amounts of sensitive data across their networks. To ensure the security of this sensitive data, legislation such as PCI, HIPAA, Sarbanes-Oxley, and others have warranted the implementation of security measures.

The Needs of Small and Medium Enterprises and Branch Offices

In order to comply with legislation and secure the valuable data traversing networks, small and medium enterprises and remote branch offices need a security solution that integrates multiple attack recognition technologies into a single device. With limited budgets and modest remote resources, these smaller networks desire a cost effective solution that is simple to install, connect and maintain. Just as importantly, networks are ever-expanding and need a solution that leaves them with room to grow over time.

Simple, Powerful, Secure

The FortiGate-100D installs in minutes, automatically downloading regular updates to protect against the latest viruses, network vulnerabilities, worms, spam and phishing attacks, and malicious websites with no administrator intervention. Leveraging patented FortiASIC acceleration, the FortiGate-100D offers market-leading performance, with twenty-two GbE interfaces that facilitate network growth and expansion. Onboard storage provides local archiving of data for policy compliance and/or WAN Optimization. The WAN Optimization functionality increases network performance by reducing the amount of communication and data transmitted between applications and servers across a WAN.

Features & Benefits:

Integrated Multi-Threat Protection

The FortiGate product family provides cost-effective, comprehensive protection against network, content, and application-level threats. It defends your environment from complex, sophisticated attacks without degrading network availability and affecting application performance.

FortiGate platforms combine the purpose-built FortiOS™ security operating system with custom FortiASIC processors and other hardware to provide a comprehensive and highperformance array of security and networking functions.

The FortiGate product family delivers the highest level of network, content, and application security for enterprises of all sizes, while reducing total cost of ownership. With Fortinet, you deploy the network security you need to protect your intellectual property, preserve the privacy of critical customer information, and maintain regulatory compliance.

FortiOS 5.0 Software

FortiOS 5.0, the world's most powerful security operating system, is the foundation for all Fortinet FortiGate integrated security platforms. It provides more security, intelligence and control to help enterprises be better protected against today's advanced threats and enable more secure BYOD environments.

	More Security Fighting Advanced Threats More Security to fight advanced threats. A client reputation feature gives enterprises a cumulative security ranking of each device based on a range of behaviors and provides specific, actionable information that enables organizations to identity compromised systems and potential zero-day attacks in real time. The new advanced anti-malware detection system adds an on-device behavior-based heuristic engine and cloud-based AV services that includes an operating system sandbox and botnet IP reputation database. Together with superior industry-validated AV signatures, FortiOS 5.0 delivers unbeatable multi-layered protection against today's sophisticated malware. Client Reputation with Cumulative Rankings OS Sandbox Advanced Botnet Protection
	More Control Securing Mobile Devices More Control to secure mobile devices and BYOD environments by identifying devices and applying specific access policies as well as ecurity profiles, according to the device type or device group, location and usage. Device Identification & Visibility New Identity Based Policies Endpoint Control
	More Intelligence Build Smart Policies More Intelligence with automatic adjustment of role-based policies for users and guests based on location, data and application profile. Enhanced reporting and analysis also provides administrators with more intelligence on the behavior of their network, users, devices, applications and threats. Provide Guest Access with Confidence Enhanced Visibility & Reporting and Overal User Experience Extended Single Sign On Capabilities

Fortinet’s ASIC-Based Advantage

FortiASIC is the foundation of Fortinet’s unique hardware technology. FortiASIC is a family of purpose built, high-performance network and content processors that uses an intelligent proprietary content scanning engine and multiple algorithms to accelerate compute-intensive security services. FortiASIC provides the performance required to deliver enterprise and carrier-class UTM services. Coupled with the FortiOS security hardened Operating System, FortiASIC delivers extreme performance and security

Technical Specifications:

FortiGate Models	FortiGate-100D

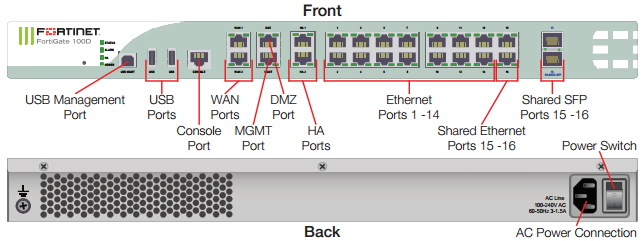

Hardware Specifications
Total 10/100/1000 Interfaces (RJ-45)	22
Maximum Network Interfaces	22
USB (Client/Server)	1 / 2
RJ-45 Serial Console	1
Internal Storage	16 GB
System Performance
Firewall Throughput (1518 byte UDP packets)	2.5 Gbps
Firewall Throughput (512 byte UDP packets)	1 Gbps
Firewall Throughput (64 byte UDP)	200 Mbps
Firewall Latency (64 byte UDP)	37 us
Packets Per Second	290 Kpps
IPSec VPN Throughput (512 byte packets)	450 Mbps
IPS Throughput (1 MB HTTP files)	900 Mbps
IPS Throughput (44 KB HTTP files)	400 Mbps
Proxy-based Antivirus Throughput	300 Mbps
Flow-based Antivirus Throughput	700 Mbps
Gateway-to-Gateway IPSec VPN Tunnels (System/VDOM)	1,500 / 1,500
Client-to-Gateway IPSec VPN Tunnels	5,000
SSL-VPN Users (Recommended Max)	200
SSL-VPN Throughput	300 Mbps
Concurrent Sessions (TCP)	2.5 M
New Sessions/Sec (TCP)	22,000
Firewall Policies (System/VDOM)	8,000 / 4,000
Unlimited User Licenses	Yes
Virtual Domains (VDOMs)	10
Max Number of FortiAPs	32
Max Number of FortiTokens	1,000
High Availability Configurations	Active/Active, Active/Passive, Clustering
Dimensions
Height	1.7 in (4.4 mm)
Width	17 in (43.1 mm)
Length	11.5 in (29.1 mm)
Weight	9.4 lb (4.3 kg)
Rack Mountable	Yes (Attachable Ears)
AC Power	100 - 240 VAC, 60 - 50 Hz
Power Consumption (AVG / Max)	52.6 / 63.1 W
Heat Dissipation	215.3 BTU/h
Redundant Power Supplies	Requires External Option
Environmental
Operating Temperature	32 to 104°F (0 to 40°C)
Storage Temperature	-31 to 158°F (-35 to 70°C)
Humidity	20 to 90% non-condensing
Compliance & Certifications
Compliance	FCC Class A Part 15, UL/CUL, CE, C Tick, VCCI
Certifications	ICSA Labs: Firewall, SSL VPN, IPS, Antivirus

Note: All performance values are "up to" and vary depending on system configuration.
Antivirus performance is measured using 44 KB HTTP files (similar to NSS Labs test methodology).

Services & Support:

FortiGuard® Security Subscription Services deliver dynamic, automated updates for Fortinet products. The Fortinet Global Security Research Team creates these updates to ensure up-to-date protection against sophisticated threats. Subscriptions include antivirus, intrusion prevention, web filtering, antispam, vulnerability and compliance management, application control, and database security services.

FortiCare™ Support Services provide global support for all Fortinet products and services. FortiCare support enables your Fortinet products to perform optimally. Support plans start with 8x5 Enhanced Support with return and replace hardware support or 24x7 Comprehensive Support with advanced hardware replacement. Options include Premium Support, Premium RMA, and Professional Services. All hardware products include a 1-year limited hardware warranty and a 90-day limited software warranty.

FortiCare Support Services:

Available:

• 24/7/365 FortiCare Web-based support
• 24x7 telephone-based technical support
• 1-year limited hardware warranty
• Technical account management service
• Professional services
• 90-day limited software warranty

Documentation:

Download the Fortinet FortiGate 100D Datasheet (PDF).
