Fortinet FortiCache-3000E
ISP & Enterprise-Class Content Caching

Fortinet FortiCache 3000E Series
Fortinet FortiCache-3000E

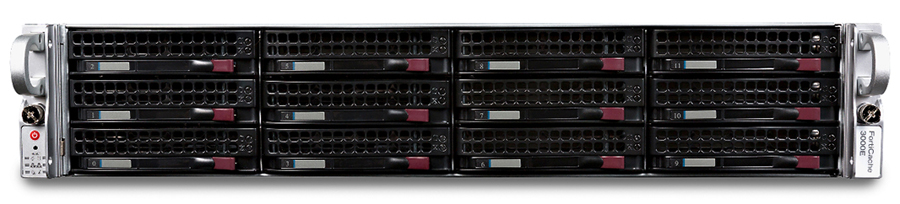

FortiCache-3000E Web Cache appliance
4 x GE RJ45 Ports, 2 x GE RJ45 Bypass Ports, 2 x GE SFP Ports, 2 x 10GbE SFP+ Ports, 8 TB SAS(RAID) HDD Storage, dual power supplies
#FCH-3000E
Our Price: $66,000.00

Click here to jump to more pricing!

Overview:

FortiCache Features

  • Content Caching
    – Static and dynamiccontent caching
    – Multiple Content DeliveryNetwork (CDN) detection
    – Seek backward/forwardin video
    – Advertisement detection
  • Inspect and Control Content
    – Web content filtering
    – Antivirus scanning
    – Antimalware scanning
  • WAN Optimization
    – Decrease network latency
    – Lower bandwidth overhead

Dealing With Bandwidth Demand

The Internet is experiencing dramatic changes in usage patterns as users shift from fixed to mobile access and the volume of interactive and video content increases dramatically. Carriers, service providers, large enterprises and educational grids all face a similar problem: Exponential growth in bandwidth requirements that consume capacity as soon as they create it. Networks have to be able to keep up with volatile demand, avoiding network congestion while maintaining service functionality and profitability.

Take Back Control of the Network

The FortiCache range of appliances provides a combination of content caching, WAN acceleration, and filtering controls to ensure the content you want is delivered promptly, bandwidth overheads are minimized, and controls are in place to ensure bandwidth misuse is mitigated.

Content caching enables organizations to reuse popular content rather than download it every time a user requests it. WAN acceleration techniques minimize the overhead on transactions, lowering the per-user bandwidth cost and speeding up connectivity. The integrated FortiGuard web filtering allows network administrators to selectively control or block access to content by type, (e.g. adult, or malicious content) to protect users and offer them differentiated services.

Features Benefits
Enterprise Class Content Caching Increases network performance, improves user satisfaction and reduces bandwidth costs.
Video Caching Minimizes impact of viral video on network resource by caching common resource intensive web video formats including YouTube.
FortiGuard Antivirus and Web Content Filtering Protects users from accessing unwanted content and secures network from malicious malware threats.
Real-Time Content Analysis Detect and block adult content, even in “good” web sites.
WAN Optimization Lower network transaction overheads, improving speed and decreasing network utilization.

Bandwidth Reduction and Application Acceleration

The Internet is increasingly driven by short-term phenomena as news stories, sporting events, viral videos and games drive spikes in bandwidth demand. Interest in such content can spread within minutes, proliferate quickly and generate huge loads on the network. The result is congestion, latency and unplanned cost. By reducing the amount of bandwidth used, particularly during demand spikes, service providers and enterprises can deliver a higher quality of service to their customers, improve customer satisfaction, retain a larger customer base and ultimately drive profitability.

FortiCache Network Control

You may be battling against the continuous need to upgrade bandwidth and the associated costs. In some locations, it may not be possible to purchase additional bandwidth. In these situations, FortiCache can enable your organization to remove the need for costly upgrades and gain more performance from your existing investments.

FortiCache enables the network administrator to optimize and accelerate the network by keeping as much traffic as possible "on net" and thus decrease the utilization of valuable external connectivity. This allows upgrades to be planned strategically rather than reactively. FortiCache understands the delivery format of content delivery networks, enabling caching of dynamic, distributed and streaming video content, even if such video is padded with advertisements or the file is served from different locations within the Content Delivery Network.

Highlights:

Content Caching

Internet access is critical to the smooth functioning of any enterprise and latency or network congestion can disrupt business critical business apps. FortiCache acts as the enterprise’s network “memory”, remembering content and returning it locally rather than wasting precious internet bandwidth:

  • Caches HTTP objects whilst observing HTTP/1.0 and 1.1 standards
  • Caches Microsoft, Apple and common AV signature updates
  • Caches video formats and understands popular DDNs to maximize performance benefits
  • Detects same video ID when content comes from different CDN hosts
  • Seek forward/backward in video
  • Video RTMP/RTMPT stream splitting

Content Caching

FortiGuard Antivirus and Web Content Filtering

Organizations of all types and sizes have a duty of care to protect users from unwanted content and to secure the network against malware threats. FortiCache helps achieve these goals:

  • FortiGuard Web filtering consists of 79 content categories in 8 groups, which can be filtered or blocked based on the user credentials. Additional features such as safe search enforcement and keyword filtering are also included.
  • The FortiClient network anti-malware solution has received 28 Virus Bulletin VB100 awards.

FortiGuard Antivirus and Web Content Filtering

WAN Optimization

Remote or satellite offices often suffer from latency to the head office network which results in excessive file transfer, open and save times and critically, frustrated staff. FortiCache WAN Optimization alleviates this with object and byte caching to reduce traffic between offices and datacenters and through optimization of “chatty” protocols. Such optimizations can generate significant improvement to network performance and improve staff satisfaction.

WAN Optimization

Specifications:


Models: FortiCache 400E FortiCache 1000D FortiCache 3000E FortiCache 3900E
Hardware
10/100/1000 Interfaces (Copper, RJ-45) 4 2 4 2
10/100/1000 with bypass Interfaces (Copper, RJ-45) 0 4 2 0
SFP Gigabit Ethernet Interfaces 0 2 2 0
10 GE SFP+ Interfaces - - 2 2
Local Storage 2x 2 TB Hard Disk 4x 2 TB Hard Disk Drive 4x 2 TB SAS (Additional 8x 2 TB Optional) 15x 960 GB SSD
Power Supply Single (Dual optional) Dual Dual Dual
System Performance
Throughput 500 Mbps 1,200 Mbps 2.5 Gbps* 4.0 Gbps
Deployment Modes Transparent Inline Proxy, Routed Inline Proxy, Partial Inline Proxy (via policy routing), Explicit Proxy, SOCKSv5 Proxy, WCCP Target
High Availability Configuration Yes Yes Yes Yes
Unlimited User License Yes Yes Yes Yes
Dimensions
Height x Width x Length (inches) 1.73 x 17.24 x 16.38 3.54 x 17.24 x 14.49 3.50 x 17.20 x 26.90 3.50 x 17.20 x 26.90
Height x Width x Length (mm) 44 x 438 x 416 90 x 438 x 368 89 x 437 x 684 89 x 437 x 684
Weight 25 lbs (11.34 kg) 30.6 lbs (13.9 kg) 43 lbs (19.5 kg) 52 lbs (23.6 kg)
Environment
Form Factor Rack Mountable (1 RU) Rack Mountable (2 RU) Rack Mountable (2 RU) Rack Mountable (2 RU)
Power Source 100–240V AC, 50–60 Hz 100–240V AC, 50–60 Hz 100–240V AC, 50–60 Hz 100–240V AC, 50–60 Hz
Current (Maximum) 4A / 110V, 2A / 220V 5A / 110V, 3A / 220V 12A / 110V, 6A / 220V 12A / 110V, 6A / 220V
Power Consumption (Average) 103 W 133 W 420 W 470 W
Heat Dissipation 482 BTU/h 546 BTU/h 1622 BTU/h 1637 BTU/h
Operating Temperature 32–104°F (0–40°C) 32–104°F (0–40°C) 50-95°F (10–35°C 50-95°F (10–35°C
Storage Temperature -13–167ºF (-25–75ºC) -40–149ºF (-40–65ºC) -40–158°F (-40–70°C) -40–140°F (-40–60°C)
Humidity 5–95% non-condensing 5-95% non-condensing 8–90% non-condensing 5–95% non-condensing
System
Management Management Direct Console DB9 CLI, SSH, TELNET, HTTP/S
Compliance
Safety FCC Part 15 Class A, C-Tick, VCCI, CE, BSMI, UL/cUL, CB FCC Part 15 Class A, C-Tick, VCCI, CE, BSMI, UL/cUL, CB FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB FCC Part 15 Class A, C-Tick, VCCI, CE, UL/cUL, CB

* Fully populated

Documentation:

Download the Fortinet FortiCache Series Datasheet (PDF).

Pricing Notes:

Fortinet FortiCache 3000E Series
Fortinet FortiCache-3000E
FortiCache-3000E Web Cache appliance
4 x GE RJ45 Ports, 2 x GE RJ45 Bypass Ports, 2 x GE SFP Ports, 2 x 10GbE SFP+ Ports, 8 TB SAS(RAID) HDD Storage, dual power supplies
#FCH-3000E
Our Price: $66,000.00
FortiCache-3000E Services
1 Year FortiGuard AV Services for FortiCache-3000E
#FC-10-CH3KE-100-02-12
Our Price: $16,500.00
1 Year FortiGuard Web Filtering Service for FortiCache-3000E
#FC-10-CH3KE-112-02-12
Our Price: $26,400.00
1 Year Content Analysis Service for FortiCache-3000E
#FC-10-CH3KE-160-02-12
Our Price: $16,500.00
24x7 FortiCare Contract
*24x7 Support, Advanced Hardware Replacement (Next Business Day), Firmware and General Upgrades, VPN, and Traffic Management
1 Year 24x7 FortiCare Contract for FortiCache-3000E
#FC-10-CH3KE-247-02-12
Our Price: $16,500.00
2 Year 24x7 FortiCare Contract for FortiCache-3000E
#FC-10-CH3KE-247-02-24
Our Price: $30,938.00
3 Year 24x7 FortiCare Contract for FortiCache-3000E
#FC-10-CH3KE-247-02-36
Our Price: $43,313.00
