Fortinet FortiBridge 2002 Bypass Appliances
Ensuring availability of network resources


Fortinet FortiBridge 2002 Bypass Appliance

Fortinet FortiBridge 2002 Series
FortiBridge-2002
Fortinet FortiBridge-2002
- Power failure bypass functionality for two network segments. 8 RJ45 10/100/1000, 2 RJ45 Management Ports, Dual Power Supply, Dual CPU
#FBG-2002
Our Price: $2,995.00

Click here to jump to more pricing!

Live Demo! Click here to loadOverview:

The FortiBridge-2002 appliances provides bypass functionality to FortiGate consolidated security systems. Operating in transparent mode during normal operation, these appliances automatically bridge network traffic in the event of a system failure or power outage to ensure mission critical network continuity. The FortiBridge-2002 appliance provides eight 10/100/1000 interfaces for fail-to-wire bypass protection.

FortiBridge-2002 Features & Benefits:

  • The 1-RU appliance form factor allows you to add bypass functionality to any existing inline security system, including FortiGate® consolidated security systems
  • Maximizes network availability and uptime with bypass protection for Gigabit Ethernet networks
  • Automatically re-routing traffic in the event of a power outage or event that would cause an inline security device to fail and disrupt availability of the network segment
  • Remote configuration and monitoring allow you to monitor and control the bypass status of network segments remotely
  • Ability to view mode of operation, manually switch the appliance into bypass or normal operation mode, and configure thresholds for automatic bypass fail-to-wire

You are faced with the challenge of securing your network while also ensuring that it is always available. This could mean that you are forced to choose network availability over ensuring that all traffic is inspected for malicious activity. You are already using high availability features of the security infrastructure, where a system fails over to either an active or standby unit. While this can reduce the risk of a network outage and still providing security services, to further reduce the risk of a network outage, additional steps have to be taken. To preserve availability in the event of a power failure or a device malfunction, bypassing the device altogether with a fail-to-wire solution can ensure network continuity at times when security cannot be provided.

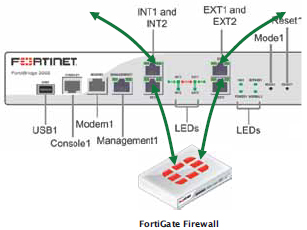

FortiBridge in Normal Mode

In normal operation of the FortiBridge, data flows from the Internal ports of the FortiBridge to the Internal port of the FortiGate unit. The traffic flows from the FortiGate unit through the External ports of the FortiBridge unit to the external network.

FortiBridge in Normal Mode

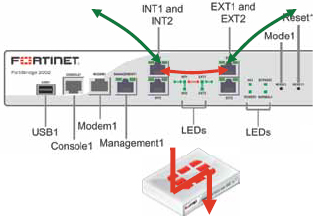

FortiBridge in Bypass Mode

FortiBridge enters Bypass Mode when traffic failure is detected or power loss occurs (zero power fail open). The INT2 and EXT2 ports are directly connected mechanically. Traffic between Internal and External interfaces continues to flow.

FortiBridge in Bypass Mode

Features & Benefits:


Features: Benefits:
Fail-to-Wire Bypass Maximizes network uptime by automatically re-routing traffic in the event of a power outage or any other type of event that would cause an in line security device to degrade the availability of the network segment.
Standalone 1-RU appliance Enables you to add bypass functionality to any existing in line security system, including FortiGate® consolidated security systems.
Remote configuration and monitoring Enables you to monitor and control the bypass status of network segments remotely, with the ability to view mode of operation, manually switch the appliance into bypass or normal operation mode, and configure thresholds for automatic bypass fail-to-wire.

Specifications:

FortiBridge-2002 Front

FortiBridge-2002 Rear

Models FBG-2001 FBG-2001F FBG-2002 FBG-2002F FBG-2002X
  Fortibridge 2001 FortiBridge 2001F FortiBridge 2002 FortiBridge 2002F Fortibridge 2002X
Hardware Specifications
10/100/1000
(Copper, RJ-45)
4 0 8 0 0
SFP Interfaces 0 2 0 4 0
SFP+ Interfaces
(10 GbE)
0 0 0 0 4
LC Interfaces (1 GbE) 0 2 0 4 0
LC Interfaces (10 GbE) 0 0 0 0 4
Management Interfaces 1 1 2 2 2
Console Interfaces
(RJ-45)
1 1 2 2 2
USB Interfaces 1 1 2 2 2
Modem 1 1 2 2 2
Link Protection 1 x Gbps segment 1 x Gbps segment 2 x Gbps segment 2 x Gbps segment 2 x 10 GbE segment
Enviromental
Power Required 100-240 VAC, 50-60 Hz, 0.3 Amp 100-240 VAC, 50-60 Hz, 0.3 Amp 100-240 VAC, 50-60 Hz, 0.8 Amp max 100-240 VAC, 50-60 Hz, 0.8 Amp max 100-240 VAC, 50-60 Hz, 1.54 Amp max
Power Consumption (AVG) 15W 15W 28W 22W 120W
Heat Dissipation 85 BTU 85 BTU 96 BTU 75 BTU 409 BTU
Operating Temperature 32 – 104 deg F (0 – 40 deg C)
Storage Temperature -13 to 158 deg F (-25 to 70 deg C)
Humidity 20 to 90% non-condensing 20 to 80% non-condensing
Dimensions
Height x Length x Width (in) 1.75 x 17.4 x 11.85 1.75 x 17.4 x 11.85 1.75 x 17.4 x 11.85 1.75 x 17.4 x 11.85 1.75 x 17.4 x 17.25
Height x Length x Width (cm) 4.4 x 44.2 x 3.01 cm 4.4 x 44.2 x 3.01 cm 4.4 x 44.2 x 3.01 cm 4.4 x 44.2 x 3.01 cm 4.4 x 44.2 x 4.38 cm
Weight 7.1 lb (3.2 kg) 7.1 lb (3.2 kg) 8.4 lb (3.8 kg) 8.4 lb (3.8 kg) 15 lb (6.8 kg)
Rack Mountable Yes Yes Yes Yes Yes
Compliance
  FCC Class A Part 15, / CE Mark

Services & Support:

FortiGuard Security Subscription Services

FortiGuard Security Subscription Services deliver dynamic, automated updates for Fortinet products. The Fortinet Global Security Research Team creates these updates to ensure up-to-date protection against sophisticated threats. Subscriptions include antivirus, intrusion prevention, web filtering, antispam, vulnerability and compliance management, application control, and database security services.

FortiCare Support Services

FortiCare Support Services provide global support for all Fortinet products and services. FortiCare support enables your Fortinet products to perform optimally. Support plans start with 8x5 Enhanced Support with "return and replace" hardware replacement or 24x7 Comprehensive Support with advanced replacement. Options include Premium Support, Premium RMA, and Professional Services. All hardware products include a 1-year limited hardware warranty and 90-day limited software warranty.

Documentation:

Download the Fortinet FortiBridge Bypass Appliances Datasheet (.PDF)

Pricing Notes:

Fortinet FortiBridge 2002 Series
FortiBridge-2002
Fortinet FortiBridge-2002
- Power failure bypass functionality for two network segments. 8 RJ45 10/100/1000, 2 RJ45 Management Ports, Dual Power Supply, Dual CPU
#FBG-2002
Our Price: $2,995.00
FortiBridge-2002 8x5 FortiCare Contracts
Fortinet FortiBridge-2002 8x5 FortiCare Contract, 1 Year
*Includes Hardware Unit, Return and Replace, Firmware Upgrades, 8x5 Enhanced Support, Antivirus, IPS, Web Content Filtering, & Antispam
#FC-10-02001-311-02-12
Our Price: $450.00
Fortinet FortiBridge-2002 8x5 FortiCare Contract, 2 Year
*Includes Hardware Unit, Return and Replace, Firmware Upgrades, 8x5 Enhanced Support, Antivirus, IPS, Web Content Filtering, & Antispam
#FC-10-02001-311-02-24
Our Price: $844.00
Fortinet FortiBridge-2002 8x5 FortiCare Contract, 3 Year
*Includes Hardware Unit, Return and Replace, Firmware Upgrades, 8x5 Enhanced Support, Antivirus, IPS, Web Content Filtering, & Antispam
#FC-10-02001-311-02-36
Our Price: $1,182.00
FortiBridge-2002 24x7 FortiCare Contracts
Fortinet Fortibridge-2002 24x7 FortiCare Contract , 1 Year
*Includes Hardware Unit, Advanced Hardware Replacement (Next Business Day), Firmware Upgrades, 24X7 Comprehensive Support, Antivirus, IPS, Web Content Filtering, & Antispam
#FC-10-02001-247-02-12
Our Price: $749.00
Fortinet Fortibridge-2002 24x7 FortiCare Contract , 2 Year
*Includes Hardware Unit, Advanced Hardware Replacement (Next Business Day), Firmware Upgrades, 24X7 Comprehensive Support, Antivirus, IPS, Web Content Filtering, & Antispam
#FC-10-02001-247-02-24
Our Price: $1,405.00
Fortinet Fortibridge-2002 24x7 FortiCare Contract , 3 Year
*Includes Hardware Unit, Advanced Hardware Replacement (Next Business Day), Firmware Upgrades, 24X7 Comprehensive Support, Antivirus, IPS, Web Content Filtering, & Antispam
#FC-10-02001-247-02-36
Our Price: $1,967.00
