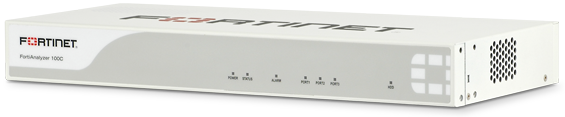

Fortinet FortiAnalyzer 100C Appliance

Overview:

The FortiAnalyzer-100C for ideal small organizations and provides advanced security analysis and management functions. You can analyze threat information and network traffic to assess your security posture. You can also quarantine archived files, correlate events, and assess network vulnerabilities. Over 300 customizable reports assist in monitoring and measuring trends and policy compliance.

FortiAnalyzer-100C Features & Benefits:

• Fully integrated with FortiManager appliances for a single point of command, control, analysis, and reporting
• FortiGuard™ subscription services deliver dynamic updates to vulnerability and compliance management functionality by Fortinet’s global threat research team
• 1TB of on-device log data capacity with additional data archiving capabilities allow administrators to retain data according to regulatory policies
• Up to 200 logs/second with support for up to 100 devices and data receive rates up to 800 Kbps
• Advanced features such as event correlation, forensic analysis, and vulnerability assessment provide essential tools for in-depth protection of complex networks
• Securely aggregates, analyzes, and reports on log data from gathered from Fortinet devices and other syslog-compatible devices

Enhanced Visibility With FortiAnalyzer Platforms

FortiAnalyzer platforms integrate network logging, analysis, and reporting into a single system, delivering increased knowledge of security events throughout a network. It provides organizations of any size with centralized security event analysis, forensic research, reporting, content archiving, data mining, malicious file quarantining and vulnerability assessment. Centralized collection, correlation, and analysis of geographically and chronologically diverse security data from Fortinet appliances and third-party devices deliver a simplified, consolidated view of your security posture.

The FortiAnalyzer family minimizes the effort required to monitor and maintain acceptable use policies, as well as identify attack patterns to help you fine tune your policies. In addition, FortiAnalyzer platforms provide detailed data capture for forensic purposes to comply with policies regarding privacy and disclosure of information

Security Event Information Management

You can put time back in your day by deploying a FortiAnalyzer platform into your security infrastructure, creating a single view of your security events, archived content, and vulnerability assessments. FortiAnalyzer platforms accept a full range of data from Fortinet solutions, including traffic, event, virus, attack, content filtering, and email filtering data. It eliminates the need to manually search multiple log files or manually analyze multiple consoles when performing forensic analysis or network auditing. A FortiAnalyzer platform’s central data archiving, file quarantine and vulnerability assessment functionality further reduce the amount of time you need to spend managing the range of security activity in your enterprise or organization.

Vulnerability Management

Fortinet offers an enhanced scanning capability that utilizes a dynamic signature dataset to detect devices on your network, catalog vulnerabilities, and recommend remediation. Additional capabilities include device discovery, mapping, asset definition and prioritization, and customized reporting. An optional Vulnerability Management subscription provides frequent updates developed by the FortiGuard Labs with up-todate vulnerability scan data to keep abreast of current threats.

Features & Benefits:

Technical Specifications:

Model:	FAZ-100C	FAZ-400C	FAZ-1000C	FAZ-2000B	FAZ-4000B
Hardware Specifications
Security Hardened Platform	Yes	Yes	Yes	Yes	Yes
10/100/1000 Ethernet	2	4	4	6	2
10/100 Ethernet	1	0	0	0	0
1GbE SPF	0	0	0	0	2
Number of Hard Drives	1	1	1 (Three Drives Optional)	2 (Four Drives Optional)	6 (Eighteen Drives Optional)
Total Hard Drive Capacity	1 TB	2 TB	1.0 TB (4 TB Optional)	2.0 TB (6 TB Optional)	6 TB (P24 TB Optional, 16 TB File System)
RAID Storage Management	No	No	No (Yes with Optional Drives 0, 1, 10)	Yes (0, 1, 5, 10, 50)	Yes (0, 1, 5, 6, 10, 50, 60: default is 50)
Redundant Hot Swap Power Supplies	No	No	No	Yes	Yes
System Performance
Log Performance (Logs/Sec)	Up to 200	625	Up to 1,000	Up to 3,000	Up to 6,000
Data Receive Rate	800 Kbps	2.5 Mbps	4 Mbps	12 Mbps	24 Mbps
Number of Licensed Network Devices1	100	200	2,000	2,000	2,000
Number of FortiClient Devices	100	2,000	No Restriction	No Restriction	No Restriction
Number of ADOMs Supported	1	10	50	100	250
FortiGate Models Supported	All Models	All Models	All Models	All Models	All Models
Dimensions
Height	1.75 in (4.4 cm)	1.7 in (4.4cm)	1.7 in (4.3 cm)	3.4 in (8.6 cm)	6.89 in (17.5cm)
Width	15 in (38 cm)	17.1 in (43.5 cm)	17.1 in (43.4 cm)	17.4 in (44.3 cm)	19.09 in (48.5 cm)
Length	6.3 in (16 cm)	14.3 in (36.4 cm)	24.7 in (62.7 cm)	26.8 in (68.1 cm)	27.17 in (69.0 cm)
Weight	4 lbs (1.8 kg)	14.7 lbs (6.7 kg)	35.0 lbs (15.9 kg)	57.5 lbs (26.1 kg)	94.5 lbs (43kg)
Rack Mountable	Yes	Yes	Yes	Yes	Yes
Regulatory
AC Power Required	100-240 VAC, 50-60 Hz, 1.5 Amp (Max)	100-240 VAC, 50-60 Hz, 4 Amp (Max)	100-240 VAC, 50-60 Hz, 7 Amp (Max)	100-240 VAC, 50-60 Hz, 8 Amp (Max)	100-240 VAC, 50 - 60 Hz, 5.5 - 11.5 Amps (Max)
Power Consumption (AVG)	56W	100W	189W	152W	420W for 6 HDD
Heat Dissipation	190.4 BTU	411 BTU	643.6 BTU	519 BTU	1433.7 BTU (6 drives) 2034.6 BTU (12 drives)
Operating Temperature	32 - 104 deg F (0 - 40 deg C)
Storage Temperature	-13 - 158 deg F (-25 - 70 deg C)
Humidity	5 to 95% non-condensing
Compliance
	FCC Class A Part 15, UL/CUL, C Tick, CE, VCCI

¹A licensed network device is defined as:

• One (1) FortiGate device without Virtual Domain (VDOM) mode enabled, or
• One (1) VDOM if FortiGate device is running in multiple VDOM mode or
• One (1) Third-party SYSLOG compatible device

Graphic Reporting:

FortiAnalyzer systems empower the network or security administrator with the knowledge needed to secure their networks through a comprehensive suite of standard graphical reports and the total flexibility to customize custom reports. Network knowledge can be archived, filtered and mined for compliance or historical analysis purposes.

Grandular Information:

The FortiAnalyzer User Interface (UI) enables administrators to drill deep within security log data to provide the granular level of reporting necessary to understand what is happening on your network. Historical or real-time views allow administrators to analyze log and content information, as well as network traffic. The advanced forensic analysis tools allow the administrator to track user activities to the content level.

Real-Time Log Viewer:

The ability to monitor network, traffic and user events in real-time or browse historical for specific events provides powerful insight into network security threats, performance and user behavior.

Supported Devices:

• FortiGate Multi-Threat Security Systems
• FortiMail Messaging Security Systems
• FortiClient Endpoint Security Suite
• FortiManager Centralized Management
• Any Syslog-Compatible Device

FortiAnalyzerOS provides the following features:

Services & Support:

FortiGuard Security Subscription Services

FortiGuard Security Subscription Services deliver dynamic, automated updates for Fortinet products. The Fortinet Global Security Research Team creates these updates to ensure up-to-date protection against sophisticated threats. Subscriptions include antivirus, intrusion prevention, web filtering, antispam, vulnerability and compliance management, application control, and database security services.

FortiCare Support Services

FortiCare Support Services provide global support for all Fortinet products and services. FortiCare support enables your Fortinet products to perform optimally. Support plans start with 8x5 Enhanced Support with "return and replace" hardware replacement or 24x7 Comprehensive Support with advanced replacement. Options include Premium Support, Premium RMA, and Professional Services. All hardware products include a 1-year limited hardware warranty and 90-day limited software warranty.

Documentation:

Download the Fortinet FortiAnalyzer Datasheet (PDF).
