Fortinet FortiAP U321EV
Universal Indoor Wireless Access Point


Fortinet FortiAP U321EV

Fortinet FortiAP Universal Access Point Series
FortiAP-U321EV
USA: FREE Ground ShippingFortiAP-U321EV Universal Indoor Wireless AP
Universal Indoor wireless AP - dual radio (Radio1-3x3 MIMO 2.4/5GHz 802.11 a/b/g/n @ 450Mbps (600Mbps turbo), Radio-2 3x3 MU-MIMO 5GHz 802.11a/n/ac wave2 @ 1300Mbps with TX Beam-forming and 3rd BLE radio, 2 high availability GbE RJ45 802.3at PoE ports, Internal antennas, Ceiling/wall mount kit included, Power adapter not included. For Gigabit PoE injector order: GPI-115(limited TX power) or GPI-130 preferred or SP-FAP200-PA. Region Code A
#FAP-U321EV-A
List Price: $900.00
Our Price: $663.00

Click here to jump to more pricing!

Overview:

The FortiAP U321EV and U323EV access points support the latest 802.11ac Wave 2 standard, with a client association rate of up to 2.34 Gbps. Additional features include 802.11ac explicit transmit beamforming (TxBF), MU-MIMO built in BLE radio for location services and more.

  • 802.11ac Wave 2
  • Dual Radio 2.4 & 5 GHz
  • 6 Interior/Exterior Antennas
  • 3x3 MU-MIMO
  • Up to 450 Mbps + 2.34 Gbps

Universal Access Points

Enterprise WiFi has transformed from a transient network to a permanent fixture within all organizations. The data transported on our wireless networks span from classroom video conferencing to healthcare patient monitoring traffic to financial Point-of-Sale transactions. Expectations continue to rise for this always on, always everywhere network. Today, WiFi is no longer a convenience but a mission critical utility

Universal Access Management
Ability to intelligently support stand-alone controllers (FortiWLC), integrated security controllers (FortiGate) and cloud management (future) options, establish a new benchmark in flexibility, performance and security.

Latest WiFi technologies
802.11ac Wave 2 technology with data rates of up to 3.5 Gbps and multi-user MIMO (MU-MIMO) improves client throughput and range.

Unmatched Security Protection
Integrates with Fortinet’s Security Fabric providing unparalleled cybersecurity protection at the network edge.

Highlights

  • Supports Universal Access Management from on-premise to cloud management
  • 802.11ac Wave 2 technology with data rates of up to 3.5 Gbps
  • 4x4 MU-MIMO technology improves client throughput and range
  • 802.11ac transmit beamforming (TxBF)
  • Modulation up to 256 QAM
  • Integrated with Fortinet Security Fabric
  • Virtual Cell enabled deployments segment traffic at RF layer

Deployments:

Fortinet Universal access points are designed to support medium to large offices, schools, universities, hospitals, hotels, and large retail stores.

Universal Access Management

Education

Deployment of large scale WiFi requires site surveys, channel planning and worries over cell sizes and transmit power. Fortinet’s Universal access points ,when paired with our wireless controllers (FortiWLC and MC), eliminates this work. This enables school administrators to simplify initial deployment or the adding of APs to support more students throughout the campus or in classrooms without the headaches of more wireless network planning.

Fortinet Universal access points for education

Healthcare

Patient safety is priority one. Fortinet Universal APs empower hospitals to improve patient safety by enabling life-critical applications such as telemetry requiring low bandwidth but exceptionally high reliability. Our Integrated secure wireless controllers (FortiGate) connected to our Universal access points ensures patient safety remains paramount.

Fortinet Universal access points for Healthcare

Small/Medium Business

The retail sector continues to be a top target for cyber criminals. To protect themselves and their customers, while also providing robust wireless services to their customers and employees, retailers need a cost-effective wireless solution. Retailers can streamline WiFi store deployments through the combination of Universal APs and FortiGate. This, in combination with FortiGuard services, provides cybersecurity protection to mitigate risk to retailers from damage created by a data breach.

Fortinet Universal access points for Retail

Specifications:


FortiAP U321EV FortiAP U323EV
Hardware
Hardware Type Indoor Universal AP Indoor Universal AP
Number of Radios 2 2
Number of Antennas 6 Internal plus 1 Bluetooth 6 RP-SMA External plus 1 Internal Bluetooth
Peak Antenna Gain 4.5 dBi for 2.4 GHz,
6.5 dBi for 5 GHz with 30 degree downtilt for ceiling mount
3.5 dBi for 2.4 GHz,
5 dBi for 5 GHz
Frequency Bands (GHz) * 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850 2.400–2.4835, 5.150–5.250, 5.250–5.350, 5.470–5.725, 5.725–5.850
Frequency of Radio 1 2.4 GHz b/g/n (3x3:3 stream)
20/40 Mhz (64 QAM)
2.4 GHz b/g/n (3x3:3 stream)
20/40 Mhz (64 QAM)
Frequency of Radio 2 5 GHz a/n/ac (3x3:3 stream)
20/40/80/160 MHz (256 QAM) MU-MIMO 2 simultanous devices
5 GHz a/n/ac (3x3:3 stream)
20/40/80/160 MHz (256 QAM) MU-MIMO 2 simultaneous devices
Maximum Data Rate Radio 1: up to 450 Mbps
Radio 2: up to 2340 Mbps
Radio 1: up to 800 Mbps
Radio 2: up to 3.46 Gbps
Radio Chains / Streams 3x3 / 3 spatial streams 3x3 / 3 spatial streams
Bluetooth Low Energy (BT/BLE) Radio Yes Yes
Ethernet Ports 2x GE RJ45, LLDP 2x GE RJ45, LLDP
USB Port 1x Type A 1x Type A
Serial Console Port 1 RS-232 x RJ45 1 RS-232 x RJ45
Power over Ethernet (PoE) IEEE 802.3at (3x3 @ 20 dBm with 802.3af; USB disabled) IEEE 802.3at (3x3 @ 20 dBm with 802.3af; USB disabled)
Simultaneous SSIDs Up to 16 (Dependant on mode) Up to 16 (Dependant on mode)
EAP Type(s) EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST
User/Device Authentication WPA and WPA2 with 802.1x or Preshared key, WEP and Web Captive Portal, MAC blacklist & whitelist WPA and WPA2 with 802.1x or Preshared key, WEP and Web Captive Portal, MAC blacklist & whitelist
Maximum Tx Power 2.4 GHz: 21.5 dBm (141 mW)*
5 GHz:19.5 dBm (90 mW)*
2.4 GHz: 21.5 dBm (141 mW)*
5 GHz:19.5 dBm (90 mW)*
Physical Security Kensington Lock Kensington Lock
IEEE Standards 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11n, 802.1x, 802.3af, 802.11ac, 802.3at, 802.3az, 802.3ad 802.11a, 802.11b, 802.11d, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11n, 802.1x, 802.3af, 802.11ac, 802.3at, 802.3az, 802.3ad
FortiPresence Capable Yes Yes
Wireless Mesh Capable Yes Yes
Modes of Operation WLC 8.3.3 (min.), FortiGate, (FortiCloud – Future) WLC 8.3.3 (min.), FortiGate, (FortiCloud – Future)
SSID Types Supported Local-Bridge, Tunnel & Mesh (when managed by controller) Local-Bridge, Tunnel & Mesh (when managed by controller)
Concurrent Clients Per Radio (Maximum / Recommended) 256 / 80 256 / 80
LED Off Mode Yes Yes
Advanced 802.11 Features
802.11ac MU-MIMO Wave 2 Yes Yes
Transmit Beam Forming (TxBF) Yes Yes
Low-Density Parity Check (LDPC) Encoding Yes Yes
Maximum Likelihood Demodulation (MLD) Yes Yes
Maximum Ratio Combining (MRC) Yes Yes
A-MPDU and A-MSDU Packet Aggregation Yes Yes
MIMO Power Save Yes Yes
Short Guard Interval Yes Yes
WME Multimedia Extensions Yes (4 priority queues for voice, video, data and background traffic) Yes (4 priority queues for voice, video, data and background traffic)
Wireless Monitoring Capabilities
Frequencies Scanned 2.4 and 5 GHz 2.4 and 5 GHz
Background Scan with Client Access on 2.4 and 5 GHz Yes Yes
Full-time Scan as Dedicated Monitor Yes Yes
Full-time Scan with Client Access No No
Packet Sniffer Mode Yes Yes
Spectrum Analyzer Yes — Dedicated chipset Yes — Dedicated chipset
FortiAP U421EV FortiAP U423EV
Dimensions
Length x Width x Height (inches) 8.58 x 8.58 x 1.69 8.96 x 8.58 x 1.69
Length x Width x Height (mm) 218 x 218 x 43 227.7 x 218 x 43
Weight 2.24 lb (1016.5 g) 2.25 lb (1021.5 g)
Package (shipping) Weight 3.73 lb (1694 g) 3.74 lb (1699 g)
Mounting Options Wall, T-Rail & Ceiling Mounting Wall, T-Rail & Ceiling Mounting
Included Accessories Ceiling, T-Rail and wall mount kit (AC power adapter sold separately) Ceiling, T-Rail and wall mount kit and 6 dipole antennas (AC power adapter sold separately)
Environment
Power Supply Adapter input: 100-240V, 50/60 Hz, 0.9A
Max output: 12V DC, 3A
Adapter input: 100-240V, 50/60 Hz, 0.9A
Max output: 12V DC, 3A
Power Consumption (Maximum) 20 W 20 W
Humidity 5–90% non condensing 5–90% non condensing
Operating Temperature 32–122°F (0–50°C) 32–122°F (0–50°C)
Storage Temperature -40–158°F (-40–70°C) -40–158°F (-40–70°C)
Directives Low Voltage Directive • RoHS Low Voltage Directive • RoHS
UL2043 Plenum Material Yes Yes
Mean Time Between Failures >30 Years >30 Years
Hit-less PoE Failover Yes Yes
Certifications
Safety - FCC FCC Part 15 Subpart B (Class B), Subpart C and Subpart E FCC Part 15 Subpart B (Class B), Subpart C and Subpart E
Safety - UL UL 609550-1, UL 2043, CSA C22.2 No. 60950-1 UL 609550-1, UL 2043, CSA C22.2 No. 60950-1
Safety - CB IEC 60950-1 IEC 60950-1
RF - IC RSS-210, RSS-GEN, RSS-102, ICES-003 RSS-210, RSS-GEN, RSS-102, ICES-003
Warranty
Limited Lifetime Warranty Yes Yes

* Frequency selection and power may be restricted to abide by regional regulatory compliance laws.

RF RX/TX Performance Table:


Radio 1 Radio 2
802.11 a/g 2.4 GHz Tx Power (dBm) 2.4 GHz Rx Sensitivity (dBm) 5 GHz Tx Power (dBm) 5 GHz Rx Sensitivity (dBm)
6 Mbps 22 -91 20 -90
9 Mbps 22 -90 20 -89
12 Mbps 22 -87 20 -86
18 Mbps 22 -86 20 -85
24 Mbps 22 -81 20 -80
36 Mbps 22 -76 19 -75
48 Mbps 22 -75 19 -74
54 Mbps 19 -74 18 -73
802.11 HT20
MSC 0/8/16 (BPSK) 21 -90 19 -90
MSC 1/9/17 (QPSK) 21 -86 19 -87
MSC 2/10/18 (QPSK) 20 -83 19 -85
MSC 3/11/19 (16-QAM) 19 -82 18 -82
MSC 4/12/20 (16-QAM) 19 -77 17 -80
MSC 5/13/21 (64-QAM) 18 -75 17 -77
MSC 6/14/22 (64-QAM) 18 -73 17 -74
MSC 7/15/23 (64-QAM) 17 -70 16 -71
802.11 HT40
MSC 0/8/16 (BPSK) 21 -87 18 -88
MSC 1/9/17 (QPSK) 20 -87 18 -85
MSC 2/10/18 (QPSK) 20 -84 18 -85
MSC 3/11/19 (16-QAM) 19 -83 18 -80
MSC 4/12/20 (16-QAM) 19 -78 18 -78
MSC 5/13/21 (64-QAM) 18 -73 17 -74
MSC 6/14/22 (64-QAM) 18 -72 17 -71
MSC 7/15/23 (64-QAM) 18 -71 15 -68
MSC 8/16/24 (256-QAM) - - 15 -64
MSC 9/17/25 (256-QAM) - - 15 -61
802.11 HT80
MSC 0 (BPSK) - - 18 -83
MSC 1 (QPSK) - - 17 -80
MSC 2 (QPSK) - - 17 -78
MSC 3 (16-QAM) - - 16 -75
MSC 4 (16-QAM) - - 16 -73
MSC 5 (64-QAM) - - 15 -75
MSC 6 (64-QAM) - - 15 -72
MSC 7 (64-QAM) - - 15 -69
MSC 8 (256-QAM) - - 15 -61
MSC 9 (256-QAM) - - 15 -58

Maximum capability of the Hardware provided (Exenculding antenna gain)

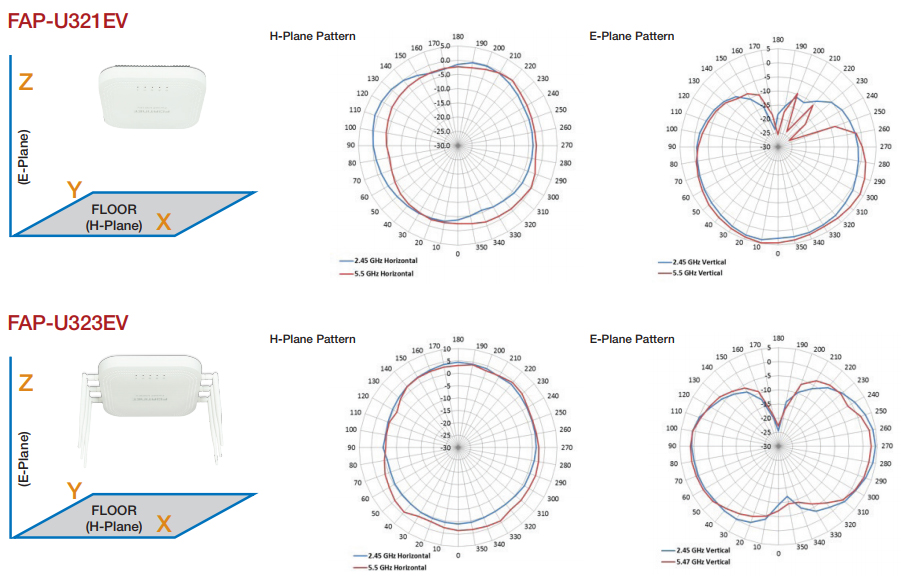

Antenna Radiation Patterns:

Antenna Radiation Patterns

Antenna Radiation Patterns

Performance Matrix:


802.11ac Performance — Data Rates (Mbps)
Descriptor Data Streams VHT20 Normal GI VHT20 Short GI VHT40 Normal GI VHT40 Short GI VHT80 Normal GI VHT80 Short GI VH160 Normal GI VH160 Short GI
MCS 0 1 6.5 7.2 13.5 15 29.3 32.5 58.6 65
MCS 1 1 13 14.4 27 30 58.5 65 117 130
MCS 2 1 19.5 21.7 40.5 45 87.8 97.5 175.6 195
MCS 3 1 26 28.9 54 60 117 130 234 260
MCS 4 1 39 43.3 81 90 175.5 195 351 390
MCS 5 1 52 57.8 108 120 234 260 468 520
MCS 6 1 58.5 65 121.5 135 263.3 292.5 526.6 585
MCS 7 1 65 72.2 135 150 292.5 325 585 650
MCS 8 1 78 86.7 162 180 351 390 702 780
MCS 9 1 NA NA 180 200 390 433.3 780 866.6
MCS 0 2 13 14.4 27 30 58.5 65 117 130
MCS 1 2 26 28.9 54 60 117 130 234 260
MCS 2 2 39 43.3 81 90 175.5 195 351 390
MCS 3 2 52 57.8 108 120 234 260 468 520
MCS 4 2 78 86.7 162 180 351 390 702 780
MCS 5 2 104 115.6 216 240 468 520 936 1040
MCS 6 2 117 130 243 270 526.5 585 1053 1170
MCS 7 2 130 144.4 270 300 585 650 1170 1300
MCS 8 2 156 173.3 324 360 702 780 1404 1560
MCS 9 2 NA NA 360 400 780 866.7 1560 1733.4
MCS 0 3 19.5 21.7 40.5 45 87.8 97.5 175.6 195
MCS 1 3 39 43.3 81 90 175.5 195 351 390
MCS 2 3 58.5 65 121.5 135 263.3 292.5 526.5 585
MCS 3 3 78 86.7 162 180 351 390 702 780
MCS 4 3 117 130 243 270 526.5 585 1053 1170
MCS 5 3 156 173.3 324 360 702 780 1404 1560
MCS 6 3 175.5 195 364.5 405 NA NA 1579.5 1755
MCS 7 3 195 216.7 405 450 877.5 975 1755 1950
MCS 8 3 234 260 486 540 1053 1170 2106 2340
MCS 9 3 260 286 540 600 1170 1300 NA NA

Pricing Notes:

Fortinet FortiAP Universal Access Point Series
FortiAP-U321EV
USA: FREE Ground ShippingFortiAP-U321EV Universal Indoor Wireless AP
Universal Indoor wireless AP - dual radio (Radio1-3x3 MIMO 2.4/5GHz 802.11 a/b/g/n @ 450Mbps (600Mbps turbo), Radio-2 3x3 MU-MIMO 5GHz 802.11a/n/ac wave2 @ 1300Mbps with TX Beam-forming and 3rd BLE radio, 2 high availability GbE RJ45 802.3at PoE ports, Internal antennas, Ceiling/wall mount kit included, Power adapter not included. For Gigabit PoE injector order: GPI-115(limited TX power) or GPI-130 preferred or SP-FAP200-PA. Region Code A
#FAP-U321EV-A
List Price: $900.00
Our Price: $663.00
8x5 FortiCare Contract
*8x5 Support, Hardware Replacement, Firmware and General Upgrades
1 Year 8x5 FortiCare Contract for FortiAP-U321EV
#FC-10-PU321-311-02-12
List Price: $45.00
Our Price: $39.00
FortiAP-U321EV 3 Year 8x5 FortiCare Contract
#FC-10-PU321-311-02-36
List Price: $135.00
Our Price: $116.88
FortiAP-U321EV 5 Year 8x5 FortiCare Contract
#FC-10-PU321-311-02-60
List Price: $225.00
Our Price: $194.80
24x7 FortiCare Contract
*24x7 Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades
1 Year 24x7 FortiCare Contract for FortiAP-U321EV
#FC-10-PU321-247-02-12
List Price: $90.00
Our Price: $78.00
FortiAP-U321EV 3 Year 24x7 FortiCare Contract
#FC-10-PU321-247-02-36
List Price: $270.00
Our Price: $233.77
FortiAP-U321EV 5 Year 24x7 FortiCare Contract
#FC-10-PU321-247-02-60
List Price: $450.00
Our Price: $389.61
Accessories
AC Power Adaptor for FAP-U321EV, FAP-U323EV, FAP-U221EV, FAP-U223EV, FAP-S221E, FAP-S223E, FAP-221E and FAP-223E with US power plug
#SP-FAP200-PA-US
Our Price: $33.00
