Fortinet FortiAP 210B Access Point
Integrated Wireless Security and Access Solutions

Fortinet FortiAP 210B Access Point

Fortinet FortiAP-210B Series
FortiAP-210B
Indoor wireless AP - 1 x GE RJ45 ports, single radio (802.11 a/b/g/n, 2x2 MIMO), Integrated wall mount, ceiling mount kit not included, AC power adapter included. For Gigabit PoE injector order: GPI-115. For ceiling mount kit order: FAP-200-MNT-1.
Fortinet FortiAP-210B
#FAP-210B-A
List Price: $395.00
Our Price: $309.00

Click here to jump to more pricing!

Live Demo! Click here to load

Overview:

The FortiAP-210B is a durable, business-grade 802.11n solution that provides you with up to 300 Mbps of total throughput for demanding use cases. It uses a single radio dual-band (2.4 GHz and 5 GHz) with 2x2 MIMO technology.

The FortiAP-210B is an enterprise-grade AP that not only provides speedy client access but also offers intelligent application detection and traffic shaping capabilities. Two (2) internal antennas support IEEE 802.11a, b, g and n wireless standards. The access point is capable of continuous air monitoring for rogue AP detection or delivering high throughput traffic to Wi-Fi clients. Unlike traditional airtime fairness algorithms that are not Business application aware, the FortiOS engine can perform deep L7 packet inspection to accelerate business applications, slow down non-priority traffic, and remove malware. When used as a dedicated AP with background scan or as a dedicated air monitor, the FortiAP-222B will help you meet PCI compliance requirements.

High Performance Secure Thin Access Pointse

  • Leverage existing FortiGate or FortiWiFi platforms as controllers for low TCO
  • Simultaneous security monitoring and client services
  • Full range of authentications and access for all use cases
  • Integration with FortiManager and FortiAnalyzer for unified control and reporting
  • Fast Roaming for uninterrupted data access
  • Automatic Radio Resource Provisioning (ARRP) for optimized throughput
  • Flexible deployment options with simple per device pricing
  • Layer 7 application QoS for maximum business productivity
  • Rogue AP control for PCI DSS compliance

The Need for a Fortified Wireless LAN

Enterprises are looking to increase productivity through uninterrupted access to applications and resources, without compromising security and agility. You want to increase visibility and control of your wireless network traffic by enforcing the same policies as your wired network and eliminate potential blind spots. You also need a solution that helps you meet compliance by proactively blocking unauthorized access all while providing tools for business continuity by following industry best practices.

Integrated Wireless Security and Access Solution

Fortinet's FortiAP wireless thin access points deliver secure, identity-driven WiFi client access that creates a fortified WLAN network. Centrally managed by a FortiGate® or FortiWiFi™ platform with its integrated Wireless Controller, FortiAPs allow you to deploy a comprehensive, integrated security solution for your wireless and wired networks. By acting as a Wireless Controller, FortiGate or FortiWiFi security platforms enable you to deploy the comprehensive protection of the industry leader in enterprise unified threat management (UTM) in overlay architecture, thus leveraging your current investment.

Industry-Leading Wireless Technology

FortiAP wireless access points are IEEE 802.11a/b/g/n standards-based, and operate on both 2.4 GHz b/g/n and 5 GHz a/n spectrums. They utilize industry leading wireless chip technology that takes advantage of 2x2 MIMO (multiple input multiple output) with dual transmit streams. This MIMO technology allows the FortiAP to reach wireless association rates as high as 300Mbps per radio and enables the coverage to extend twice as far as legacy 802.11a/b/g. Each FortiAP can support up to eight SSIDs per radio--seven for client access and one for scanning for rogue access points. They also use multiple discovery techniques to find available FortiGate controllers over L2 or L3 networks.

Features & Benefits:

The FortiAP-210B is an enterprise-grade AP that not only provides speedy client access but also offers intelligent application detection and traffic shaping capabilities. Two (2) internal antennas support IEEE 802.11a, b, g and n wireless standards. The access point is capable of continuous air monitoring for rogue AP detection or delivering high throughput traffic to Wi-Fi clients. Unlike traditional airtime fairness algorithms that are not Business application aware, the FortiOS engine can perform deep L7 packet inspection to accelerate business applications, slow down non-priority traffic, and remove malware. When used as a dedicated AP with background scan or as a dedicated air monitor, the FortiAP-222B will help you meet PCI compliance requirements.

Features Benefits
Enteprise Unified Threat Management Protects your network with the widest range of security and networking technologies seamlessly integrated into a single device: Firewall, IPS, Application Control, VPN, Web Filtering, and many others.
Application-Layer Quality of Service Going above and beyond Wireless Multimedia Extensions (WME) by offering layer 7 traffic shaping and application use control.
Robust rogue AP control Industry's most comprehensive monitoring, detection and suppression of rogue APs for PCI DSS compliance.
'Single Pane of Glass' Management Concol Unmatched visibility and control of all wired and wireless network traffic that eliminates blindspots in your security infrastructure and ensures consistent and effective policy enforcement and compliance.
One Access Point, Many Uses Software reconfiguration allows one radio to be dedicated to wireless air monitoring while the other provides full AP functionality to client; software license allows simultaneous mesh backhaul and remote AP functionality.

Deployment:

FortiAP Deployment

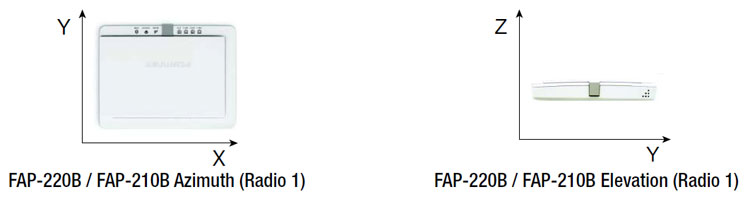

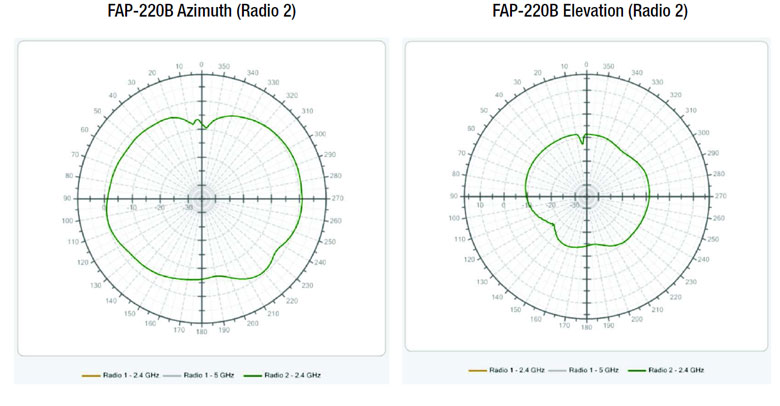

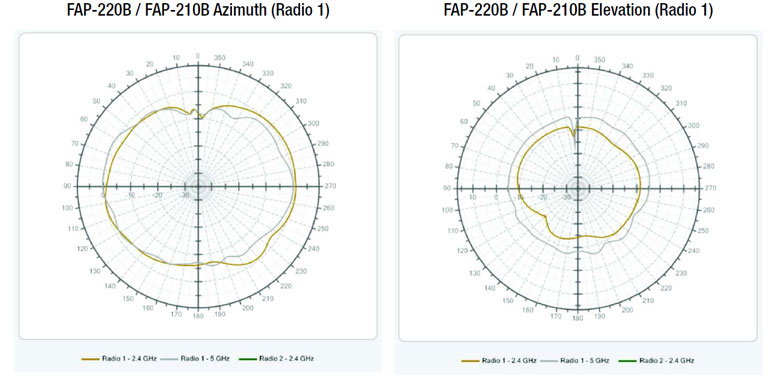

Antenna Patterns:

FortiAP Atenna Patterns

FortiAP Atenna Patterns

FortiAP Atenna Patterns

Performance Table:


RF RX/TX Performance Table
  Radio 1 (FAP-220B and FAP-210B) Radio 2 (FAP-220B only)
  2.4 GHz 5GHz 5GHz
802.11 a/g Tx Power Rx Sensitivity Tx Power Rx Sensitivity Tx Power Rx Sensitivity
6 Mbps 15 -89 19 -90 15 -88
9 Mbps 15 -89 19 -89 15 -88
12 Mbps 15 -87 19 -87 15 -86
18 Mbps 15 -85 19 -85 15 -84
24 Mbps 15 -81 19 -81 15 -80
36 Mbps 15 -78 19 -78 15 -77
48 Mbps 15 -75 19 -75 15 -74
54 Mbps 15 -73 19 -73 15 -72
802.11n HT20
MCS0 15 -93 19 -90.5 17 -92
MCS1 15 -92 18 -88 17 -90
MCS2 15 -88.5 17.5 -85 17 -87
MCS3 15 -87 17.5 -83 17 -85
MCS4 15 -83 17.5 -79.5 17 -82
MCS5 15 -80 17.5 -75 17 -78
MCS6 15 -78 17 -73 17 -77
MCS7 15 -75 16 -72 17 -74
802.11n HT40
MCS0 14.6 -90 18 -86 15 -90
MCS1 14.6 -89 17 -85 15 -89
MCS2 14.6 -87 17 -83 15 -87
MCS3 14.6 -83 17 -80.5 15 -84
MCS4 14.6 -89 17 -77.5 15 -81
MCS5 14.6 -80 16.5 -73 15 -77
MCS6 14.6 -75 16 -71 15 -75
MCS7 14.6 -72 15 -70 15 -74

FAP-222B RF RX/TX Performance Table
  Radio 1 Radio 2
  2.4 GHz 5GHz
802.11 a/g Tx Power Rx Sensitivity Tx Power Rx Sensitivity
6 Mbps 27 -95 26 -95
9 Mbps 27 -93 26 -93
12 Mbps 27 -91 26 -91
18 Mbps 27 -90 26 -90
24 Mbps 27 -88 26 -88
36 Mbps 26 -86 25 -86
48 Mbps 25 -84 23 -84
54 Mbps 24 -80 21 -80
802.11n
MCS0 27 -95 27 -94
MCS1 27 -92 27 -90
MCS2 27 -89 27 -87
MCS3 27 -86 26 -85
MCS4 26 -83 25 -83
MCS5 25 -81 23 -80*
MCS6 24 -79 22 -78
MCS7 23 -77 21 -76

All power values are in dBm.

Specifications:

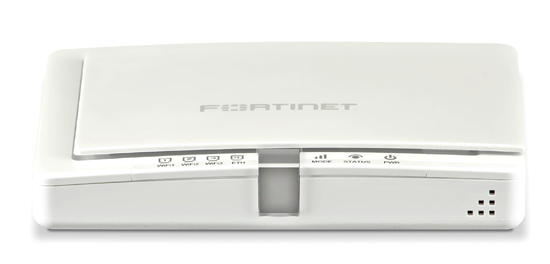

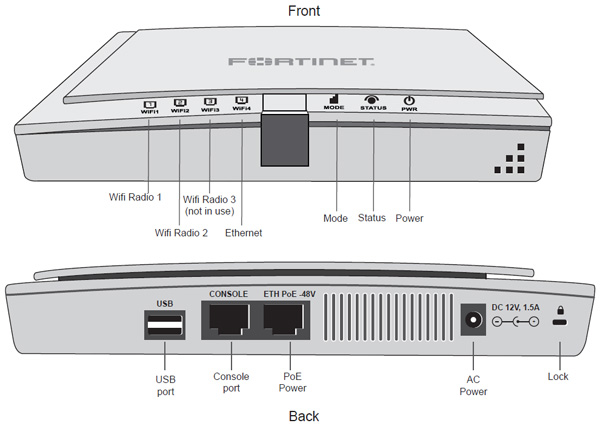

FortiAP-210B Front and Back

FortiGate Models FortiAP-210B FortiAP-220B FortiAP-222B
  FortiAP-210B FortiAP-220B FortiAP-222B
Hardware Specifications
Indoor/Outdoor Deployment Indoor Indoor Indoor or Outdoor
Number of Radios 1 2 2
Number of Antennas 2 internal 2 internal 4 external - N type 2 pieces - OUTDOOR DIPOLE 2.4GHZ 5DBI 180 X D20 2 pieces - OUTDOOR DIPOLE 5GHZ 7DBI 180 X D20
Frequency Bands (GHz)* 2.400-2.4835, 5.150-5.250, 5.250-5.350, 5.470-5.725, 5.725-5.860
Frequency of Radio 1 2.4 GHz b/g/n or 5 GHz a/n (Selectable) 2.4 GHz b/g/n or 5 GHz a/n (Selectable) 5 GHz a/n
Frequency of Radio 2 - 2.4 GHz b/g/n 2.4 GHz b/g/n
Tx/Rx Streams 2x2 MIMO dual stream – 300 Mbps/Radio 2x2 MIMO dual stream – 300 Mbps/Radio (600 Mbps Total) 2x2 MIMO dual stream – 300 Mbps/Radio (600 Mbps Total)
Ethernet Port 1 x 10/100/1000 1 x 10/100/1000 1 x 10/100/1000
Console Port 1 1 0
Power over Ethernet (PoE) 802.3af (15.4W) 802.3af (15.4W) PoE power injector supplied, or 802.3at (30W)
WME Multimedia Extensions Yes (4 priority queues for voice, video, data and background traffc)
Simultaneous SSIDs 8 - 7 for client access, 1 for monitoring 16 - 14 for client access, 2 for monitoring 16 (14 for client access, 2 for monitoring)
Maximum Transmission Power 17dBm (50mW) 17dBm (50mW) 27dBm (500mW) hardware capable – limited by software for regulatory compliance
Physical Security Kensington Lock Kensington Lock Concrete and pole mount
Mean Time Between Failures Kensington Lock Kensington Lock 305,420 hours
Dimensions
Height Height 1.1 in (2.7 cm), Width 6.4 in (16.3 cm), Length 5.1 in (12.9 cm) Height 1.1 in (2.7 cm), Width 6.4 in (16.3 cm), Length 5.1 in (12.9 cm 2.75 in (7 cm) x 7.75 in (19.7 cm) x 10 in (25.4cm)
Weight 11.2 oz (317 g) 11.3 oz (320 g) 5 lbs (2.3 Kg)
Mount Wall or Ceiling Wall or Ceiling Wall or Pole with mounting kit
Environment
Power Adaptor Adaptor Input 100-240V 50/60Hz 0.6A Output: 12V DC 1.5A –center positive POE injector supplied with AC power source.
Humidity 10% to 90% non condensing 0 to 100%
Operating Temperature 32 – 104 ˚F (0 – 40 ˚C) -4 – 140 ˚F (-20 – 60 ˚C)
Storage Temperature -4 to 158 ˚F (-25 to 70 ˚C) -4 – 140 ˚F (-20 – 60 ˚C)
Target Application Dedicated AP w/background scan or dedicated air monitor Simultaneous AP and dedicated air monitor Warehouses, outdoor areas, industrial settings, and other harsh environments.
Directives Low Voltage Directive RoHS

* Wifi abgn Certified
** Frequency selection varies by region-specific SKU
*** Sold separately under the SKU: FAP-200-MNT-1

Services & Support:


FortiGuard Security Subscription Services

FortiGuard Security Subscription Services deliver dynamic, automated updates for Fortinet products. The Fortinet Global Security Research Team creates these updates to ensure up-to-date protection against sophisticated threats. Subscriptions include antivirus, intrusion prevention, web filtering, antispam, vulnerability and compliance management, application control, and database security services.

FortiCare Support Services

FortiCare Support Services provide global support for all Fortinet products and services. FortiCare support enables your Fortinet products to perform optimally. Support plans start with 8x5 Enhanced Support with "return and replace" hardware replacement or 24x7 Comprehensive Support with advanced replacement. Options include Premium Support, Premium RMA, and Professional Services. All hardware products include a 1-year limited hardware warranty and 90-day limited software warranty.

Documentation:

Download the Fortinet FortiAP-200 Series Data Sheet (PDF).

Pricing Notes:

Fortinet FortiAP-210B Series
FortiAP-210B
Indoor wireless AP - 1 x GE RJ45 ports, single radio (802.11 a/b/g/n, 2x2 MIMO), Integrated wall mount, ceiling mount kit not included, AC power adapter included. For Gigabit PoE injector order: GPI-115. For ceiling mount kit order: FAP-200-MNT-1.
Fortinet FortiAP-210B
#FAP-210B-A
List Price: $395.00
Our Price: $309.00
FortiAP-210B FortiCare 8x5
*8x5 Support, Hardware Replacement, Firmware and General Upgrades
8x5 FortiCare for FortiAP-210B, 1-Year
#FC-10-P0210-311-02-12
Our Price: $20.00
8x5 FortiCare for FortiAP-210B, 2-Year
#FC-10-P0210-311-02-24
Our Price: $37.00
8x5 FortiCare for FortiAP-210B, 3-Year
#FC-10-P0210-311-02-36
Our Price: $52.00
FortiAP-210B FortiCare 24x7
*24x7 Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades
24x7 FortiCare for FortiAP-210B, 1-Year
#FC-10-P0210-247-02-12
Our Price: $40.00
24x7 FortiCare for FortiAP-210B, 2-Year
#FC-10-P0210-247-02-24
Our Price: $74.00
24x7 FortiCare for FortiAP-210B, 3-Year
#FC-10-P0210-247-02-36
Our Price: $104.00
Power over Ethernet (PoE) Injector
GPI-115 Gigabit Power over Ethernet (POE) Injector
#GPI-115
List Price: $65.00
Our Price: $51.00
Ceiling Mount Kit
Ceiling Tile Rail Mount Kit for 15/16" and 9/16" drop ceiling rails with cable conceal cover. For use with FAP-220A, FAP-220B, FAP-210B.
#FAP-200-MNT-1
Our Price: $30.00
Ceiling Tile Rail Mount Kit for 15/16" and 9/16" drop ceiling rails with cable conceal cover. For use with FAP-220A, FAP-220B, FAP-210B (Box of 10).
#FAP-200-MNT-10
Our Price: $190.00
