Fortinet FortiAP 11C Access Point
Integrated Wireless Security and Access Solutions

Fortinet FortiAP 11C Access Point

The FortiAP-11C is a small plug-and-play access point suitable for traveling road warriors or remote access.

Fortinet FortiAP-11C Series
FortiAP-11C
Remote wireless AP - 2 x GE RJ45 ports (including 1 x WAN port, 1 x LAN port), single radio (802.11 b/g/n, 1x1 MIMO), Mounting kit not applicable, Integrated AC power adapter with international plugs.
Fortinet FortiAP-11C
Wireless (802.11b/g/n, 1x1), 2 x GbE RJ45, Integrated Power Plug
#FAP-11C-A
List Price: $195.00
Our Price: $152.00

Click here to jump to more pricing!

Overview:

The FortiAP-11C is a small plug and play wireless access point suitable for travel or remote access. This compact device provides an IEEE 802.11 b/g/n radio and two Ethernet ports and an integrated power plug for flexible operation as a remote AP.

The remote access point function will allow IT personal to ship pre-configured devices to remote employees. Once plugged in, the AP automatically discovers the FortiGate wireless controller over the Internet, download its configuration and offers the same SSID used in corporate environments. This enables remote employees to gain secure encrypted network access to enterprise resources over the Internet. This feature also allows IT administrators to save time and reduce helpdesk calls by eliminating the need to assist remote users to resolve access issues.

High Performance Secure Thin Access Points

  • Leverage existing FortiGate or FortiWiFi platforms as controllers for low TCO
  • Full range of authentications and access for all use cases
  • Integration with FortiManager and FortiAnalyzer for unified control and reporting
  • Fast Roaming for uninterrupted data access
  • Automatic Radio Resource Provisioning (ARRP) for optimized throughput
  • Flexible deployment options with simple per device pricing
  • Layer 7 application QoS for maximum business productivity
  • Rogue AP control for PCI DSS compliance

The Need for a Fortified Wireless LAN

Enterprises are looking to increase productivity through uninterrupted access to applications and resources, without compromising security and agility. You want to increase visibility and control of your wireless network traffic by enforcing the same policies as your wired network and eliminate potential blind spots. You also need a solution that helps you meet compliance by proactively blocking unauthorized access all while providing tools for business continuity by following industry best practices.

Integrated Wireless Security and Access Solution

Fortinet’s FortiAP-11C wireless thin access point delivers secure, identity-driven WiFi client access that creates a fortified WLAN network. Centrally managed by a FortiGate® or FortiWiFi™ platform with its integrated wireless controller, FortiAPs allow you to deploy a comprehensive, integrated security solution for your wireless and wired networks. By acting as a wireless controller, FortiGate or FortiWiFi security platforms enable you to deploy comprehensive unified threat management (UTM) protection over your wireless network.

Plug-and-Play Access Point

The FortiAP-11C is a small plug-and-play access point suitable for travel or remote access. The remote access point function automatically discovers the FortiGate wireless controller in the enterprise private cloud, download its configuration and offer the same SSID used in corporate environments, so remote employees can gain secure encrypted access to enterprise resources over the Internet. This feature saves IT administrators time and reduces helpdesk calls.

This access point has an integrated power plug for easy storage and installation. It uses standards-based IEEE 802.11b/g/n to proivde access to laptops and tablet devices. It also provides two Ethernet ports (LAN and WAN) to allow devices such as Voice over IP telephones to easily connect to the corporate network, enabling an instant office environment for the distributed workforce.

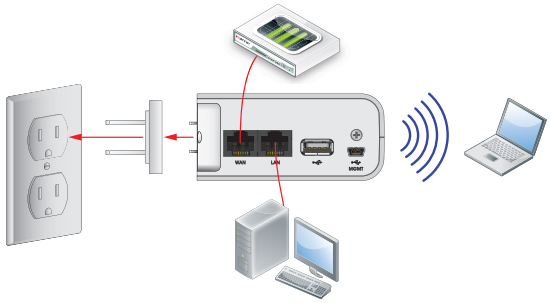

To connect the FortiAP unit

Features & Benefits:


Features Benefits
Enteprise Unified Threat Management Protects your network with the widest range of security and networking technologies seamlessly integrated into a single device: Firewall, IPS, Application Control, VPN, Web Filtering, and many others.
Application-Layer Quality of Service Going above and beyond Wireless Multimedia Extensions (WME) by offering layer 7 traffic shaping and application use control.
'Single Pane of Glass' Management Concol Unmatched visibility and control of all wired and wireless network traffic that eliminates blindspots in your security infrastructure and ensures consistent and effective policy enforcement and compliance.
One Access Point, Many Uses Software reconfiguration allows one radio to be dedicated to wireless air monitoring while the other provides full AP functionality to client; software license allows simultaneous mesh backhaul and remote AP functionality.

Deployment:

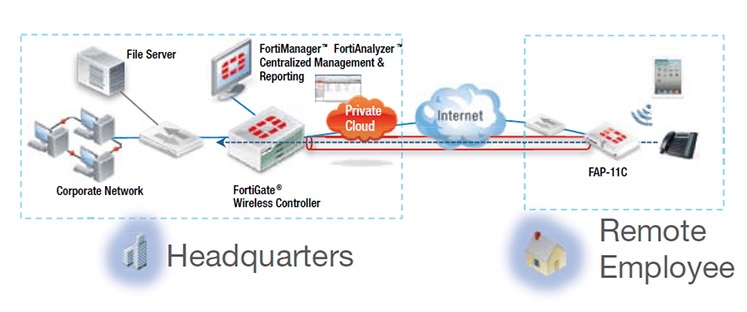

FortiAP Deployment

Performance Table:


RF RX/TX Performance Table
  Radio 1, 5GHz
802.11 b Tx Power Rx Sensitivity
1 Mbps 17 -86
11 Mbps 16 -83
802.11 g
6 Mbps 16 -85
9 Mbps 16 -83
12 Mbps 16 -81
18 Mbps 16 -79
24 Mbps 16 -77
36 Mbps 15 -73
48 Mbps 14 -71
54 Mbps 13 -69
802.11n HT20
MCS0 15 -83
MCS1 14 -80
MCS2 14 -77
MCS3 14 -74
MCS4 14 -72
MCS5 13 -70
MCS6 12 -68
MCS7 12 -66

Specifications:

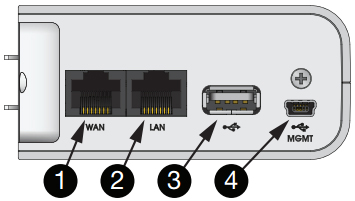

FAP-11C

  1. WAN Port
  2. LAN Port
  3. USB Port
  4. USB Management (USB MGMT)
Model: FortiAP-11C FortiAP-14C FortiAP-28C
Hardware Specifications
Hardware Type Remote AP Remote AP Remote AP
Indoor/Outdoor Deployment Indoor - Travel Indoor - Home Office Indoor - Small Office
Number of Radios 1 1 1
Number of Antennas 1 Internal 1 Internal 2
Peak Antenna Gain 3 dBi for 2.4 GHz 3 dBi for 2.4 GHz 3 dBi for 2.4 GHz, 4 dBi for 5 GHz
Frequency Bands (GHz)* 2.400 - 2.4835 2.400 - 2.4835 2.400 - 2.4835
Frequency of Radio 1 2.4GHz IEEE b/g/n 2.4GHz IEEE b/g/n 2.4 GHz IEEE b/g/n, 5 GHz IEEE a/n
Tx/Rx Streams (802.11n mode) 1x1 MIMO with 1 spatial stream 1x1 MIMO with 1 spatial stream 2x2 MIMO with 2 spatial streams
Ethernet Port 150 Mbps association rate 150 Mbps association rate 300 Mbps association rate
Ethernet WAN Ports 1 x 10/100/1000 1 x 10/100 2 x 10/100/1000
Ethernet LAN Ports 1 x 10/100/1000 4 x 10/100 8 x 10/100/1000
Serial Console Port No
USB Port 1 type A, 1 type B No 2 type A, 1 type B
Power over Ethernet (PoE) N/A
WME Multimedia Extensions Yes (4 priority queues for voice, video, data and background traffic)
Simultaneous SSIDs 8 (7 for client access, 1 for monitoring)
EAP Type(s) EAP-TLS, EAP-TTLS/MSCHAPv2, EAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC EAP-SIM, EAP-AKA, EAP-FAST
User/Device Authentication WPA™ and WPA2™ with 802.1x or Preshared key, WEP and Web Captive Portal, MAC blacklist & whitelist
Maximum Tx Power 17 dBm (50mW) *
IEEE Specifications 802.11b, 802.11e, 802.11g, 802.11h, 802.11i, 802.11j, 802.11n, 802.1X
Dimensions
Height x Width x Length (in) 4.3 x 3.5 x 1.5 1.06 x 4.92 x 3.86 1.38 x 8.43 x 7.09
Height x Width x Length (mm) 110 x 89 x 34 27 x 125 x 98 35 x 214 x 180
Mounting Options 0.22 kg (0.5 lbs) 0.1 kg (0.2 lbs) 0.5 kg (1.1 lbs)
Environment
Power Required Integrated Power Plug 100–240 VAC, 50–60 Hz (external DC power adaptor) 100–240 VAC, 50–60 Hz (external DC power adaptor)
Power Consumption (AVG) 5 W 1.5 W 12 W
Power Consumption (MAX) 7 W 2 W 15 W
Heat Dissipation 17 BTU/h 4.5 BTU/h 45 BTU/h
Operating Temperature -4–140°F (-20–60°C) 32–104°F (0–40°C) 32–104°F (0–40°C)
Storage Temperature -4–158°F (-20–70°C) -13–158°F (-25–70°C) -13–158°F (-25–70°C)
Humidity 10 to 90% non-condensing 20 to 90% non-condensing 20 to 90% non-condensing

* Frequency selection and power may be restricted to abide by regional regulatory compliance laws

Services & Support:

FortiGuard Security Subscription Services

FortiGuard Security Subscription Services deliver dynamic, automated updates for Fortinet products. The Fortinet Global Security Research Team creates these updates to ensure up-to-date protection against sophisticated threats. Subscriptions include antivirus, intrusion prevention, web filtering, antispam, vulnerability and compliance management, application control, and database security services.

FortiCare Support Services

FortiCare Support Services provide global support for all Fortinet products and services. FortiCare support enables your Fortinet products to perform optimally. Support plans start with 8x5 Enhanced Support with "return and replace" hardware replacement or 24x7 Comprehensive Support with advanced replacement. Options include Premium Support, Premium RMA, and Professional Services. All hardware products include a 1-year limited hardware warranty and 90-day limited software warranty.

Documentation:

Download the Fortinet FortiAP-11C Series Data Sheet (PDF).

Pricing Notes:

Fortinet FortiAP-11C Series
FortiAP-11C
Remote wireless AP - 2 x GE RJ45 ports (including 1 x WAN port, 1 x LAN port), single radio (802.11 b/g/n, 1x1 MIMO), Mounting kit not applicable, Integrated AC power adapter with international plugs.
Fortinet FortiAP-11C
Wireless (802.11b/g/n, 1x1), 2 x GbE RJ45, Integrated Power Plug
#FAP-11C-A
List Price: $195.00
Our Price: $152.00
Fortinet 8x5 FortiCare Contract
*8x5 Support, Hardware Replacement, Firmware and General Upgrades
8x5 FortiCare for FortiAP-11C, 1-Year
#FC-10-P0011-311-02-12
Our Price: $10.00
8x5 FortiCare for FortiAP-11C, 2-Year
#FC-10-P0011-311-02-24
Our Price: $18.00
8x5 FortiCare for FortiAP-11C, 3-Year
#FC-10-P0011-311-02-36
Our Price: $26.00
Fortinet 24x7 FortiCare Contract
*24x7 Support, Advanced Hardware Replacement (NBD), Firmware and General Upgrades
24x7 FortiCare for FortiAP-11C, 1-Year
#FC-10-P0011-247-02-12
Our Price: $20.00
24x7 FortiCare for FortiAP-11C, 2-Year
#FC-10-P0011-247-02-24
Our Price: $37.00
24x7 FortiCare for FortiAP-11C, 3-Year
#FC-10-P0011-247-02-36
Our Price: $51.00
International Power Adapter Plug Package
FAP-11C replacement power adaptor plug package for Australia, China, EU, UK, US.
#SP-ADAPTORPLUG-FAP11C
Our Price: $25.00
